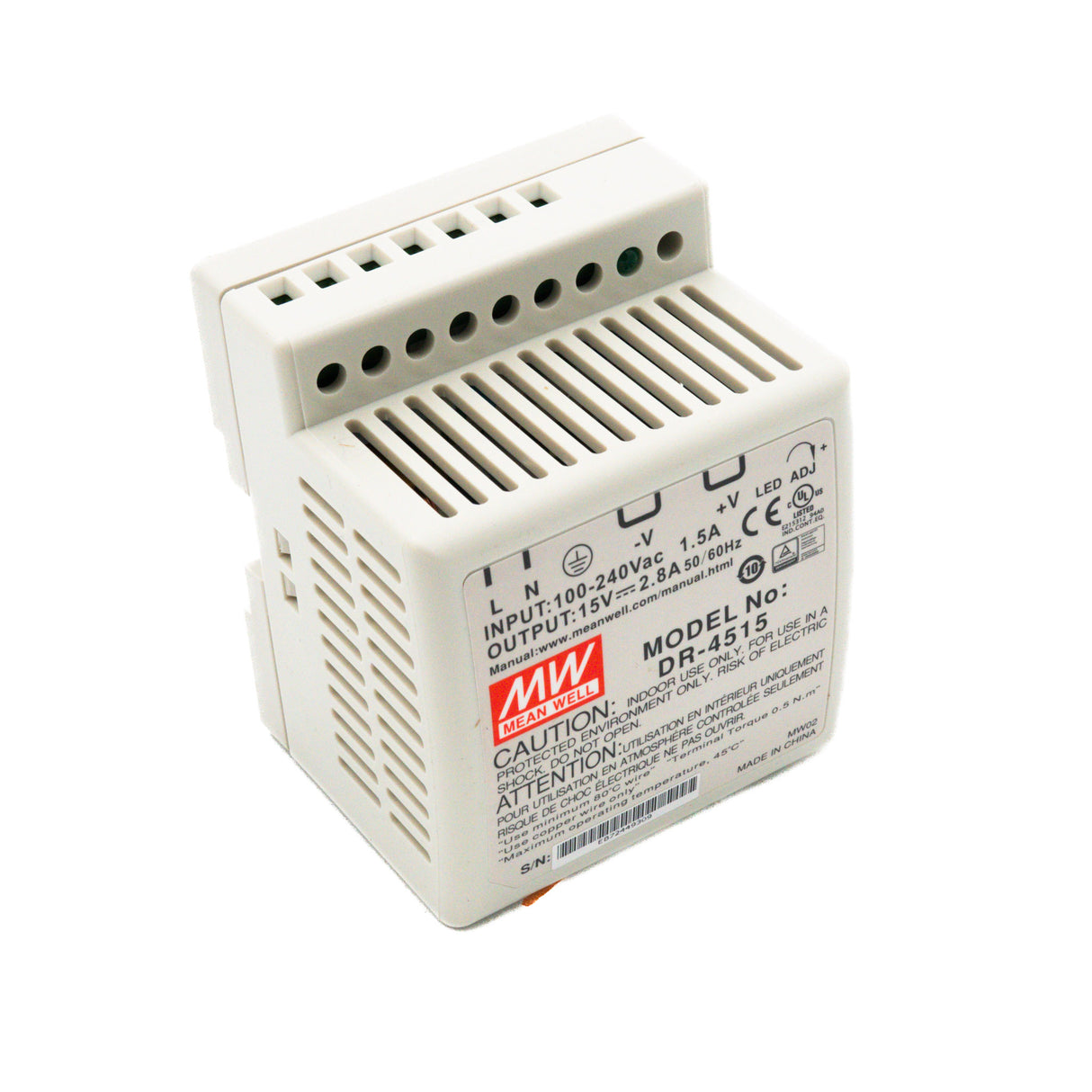

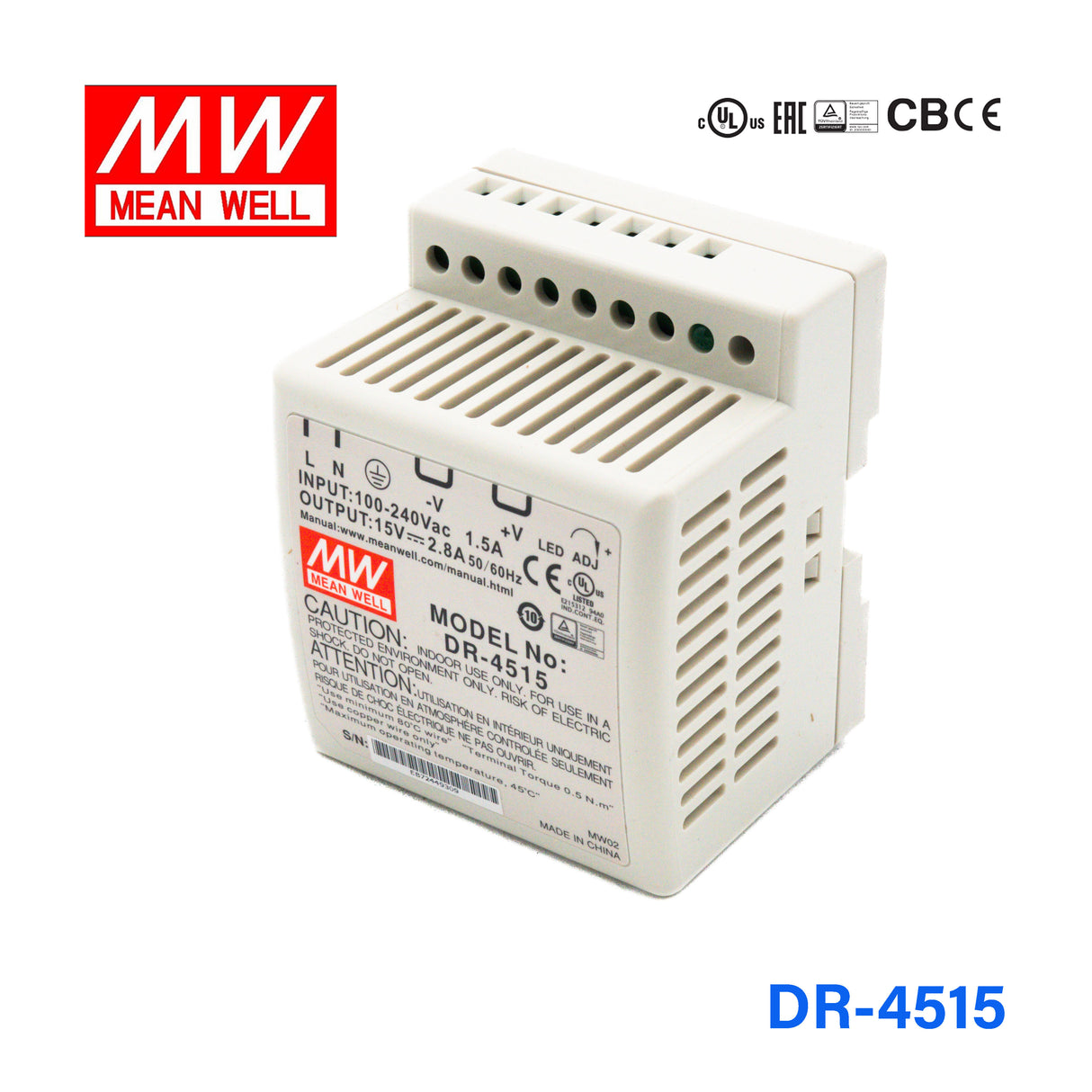

Mean Well DR-4515 AC-DC Industrial DIN rail power supply 45W
Please Login for Pricing
Description
Description
AC-DC Industrial DIN rail power supply; Output 15Vdc at 2.8A; plastic case; DR-4515 is succeeded by HDR-60-15.
Specifications
Specifications
-
BrandMean Well
-
SeriesDR-DN
-
Power Rating45 Watt
-
Output Voltage15 Volt
-
Rated Current2.8 Ampere
-
Input Voltage85V~264V
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operating Temperature-10°C~50°C
-
Warranty3 Year
-
Length9.3 cm
-
Width7.8 cm
-
Height6.7 cm
-
Weight0.31 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other DR-DN Series Models
7 other models| Model | Power | Voltage | Current | IP Rating | |
|---|---|---|---|---|---|
| Mean Well DRDN20-24 Redundancy Module Power Supply 20A - DIN Rail | 480W | 24V | 20A | Indoor | View |
| Mean Well DRDN40-48 Redundancy Module Power Supply 40A - DIN Rail | 1920W | 48V | 40A | Indoor | View |
| Mean Well DRDN40-24 Redundancy Module Power Supply 40A - DIN Rail | 960W | 24V | 40A | Indoor | View |
| Mean Well DRDN40-12 Redundancy Module Power Supply 40A - DIN Rail | 480W | 12V | 40A | Indoor | View |
| Mean Well DRDN20-48 Redundancy Module Power Supply 20A - DIN Rail | 960W | 48V | 20A | Indoor | View |
| Mean Well DR-4524 AC-DC Industrial DIN rail power supply 45W | 45W | 24V | 2A | — | View |
| Mean Well DR-4505 AC-DC Industrial DIN rail power supply 45W | 45W | 5V | 5A | — | View |
{
