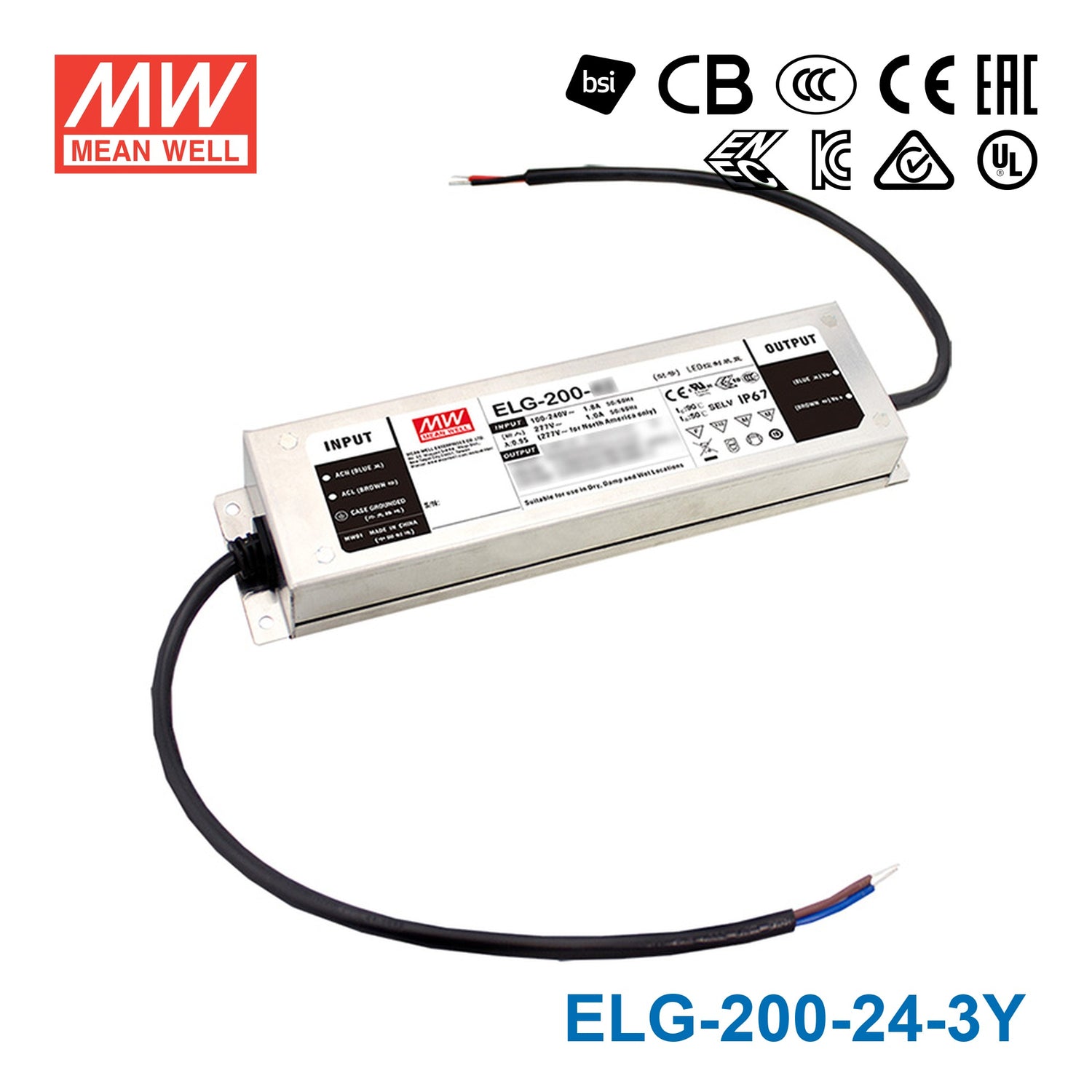

Mean Well ELG-200-24-3Y AC-DC Single output LED Driver Mix Mode (CV...
Please Login for Pricing
Description
Description
The ELG-200-24 is a 200W Mean Well power converter (input range: 100~305VAC).
Key Features
- ✓ Input voltage range: 100~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: UL8750(type”HL”), CSA C22.2 No. 250.13-12; EAC TP TC 004;BISIS15885(for 12/12A/12B/12DA/24/24A/24B/24DA/36/36A/36B/42A/42B/48/48A/48B/54A/54B only); GB19510.14,GB19510.1; IP65 or IP67;KC61347-1,KC61347-2-13
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesELG Series
-
Power Rating200 Watt
-
Output Voltage24 Volt
-
Rated Current8.4 Ampere
-
Input Voltage100V~305V
-
Standards MetBSMI,CB,CE,EAC,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty5 Year
-
Length24.4 cm
-
Width7.1 cm
-
Height3.75 cm
-
Weight1.22 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
How does the ELG-200-24-3Y differ from the standard ELG-200-24?
The ELG-200-24-3Y is a 3-conductor AC input variant intended for installations that require a three-conductor input wiring configuration. Both models share the same 200W / 24V / 8.4A output and IP67 waterproof rating. The ELG-200-24-3Y is certified to BSMI, CB, CE, EAC, and UL standards, while the standard ELG-200-24 carries a broader set including CCC, ENEC, KC, and c_rcm.
Can the ELG-200-24-3Y power outdoor 24V LED signage?
Yes. The ELG-200-24-3Y carries an IP67 waterproof rating, making it suitable for outdoor LED signage and architectural lighting exposed to rain and dust. Its -40°C to +90°C operating range covers year-round outdoor conditions.
How much 24V LED strip can the ELG-200-24-3Y drive?
The ELG-200-24-3Y provides 200W at 24V and 8.4A. At 20W/m strip density, that supports approximately 10 meters; at 14.4W/m, approximately 13.9 meters. Divide 200W by your strip's rated power per meter for the precise maximum run length.
Is the ELG-200-24-3Y suitable for 24V LED strips in a submerged or underground installation?
The ELG-200-24-3Y is IP67 rated, meaning it is protected against temporary submersion in water. However, long-term or high-pressure submersion requires IP68-rated equipment. For underground junction boxes with incidental water ingress, IP67 is generally acceptable; for continuously flooded environments, a higher-rated solution is recommended.
Can the ELG-200-24-3Y operate on 277V commercial mains supply in the United States?
Yes. The ELG-200-24-3Y accepts 100–305VAC input, which includes the 277V commercial single-phase supply common in US commercial lighting circuits, as well as 120V residential and 230V international supplies.
Is the ELG-200-24-3Y appropriate for 24V LED lighting in a cold-chain warehouse?
Yes. The ELG-200-24-3Y's operating range of -40°C to +90°C covers the cold temperatures typical of refrigerated and frozen warehouses. Its IP67 rating also protects against condensation that occurs when the driver is moved between temperature zones.
