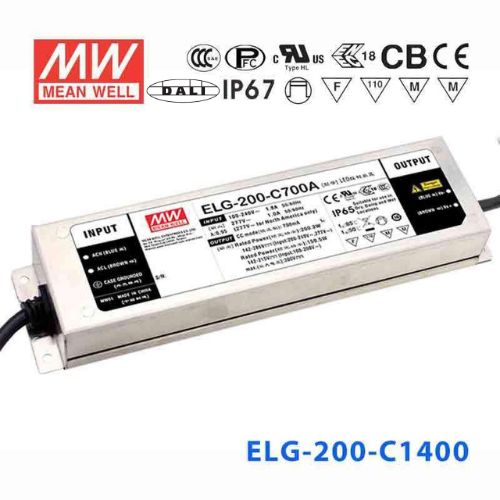

Mean Well ELG-200-C1400DA Power Supply 200W 1400mA - DALI

Overview

ELG-200-C1400DA is the model of this series: rated current 1400mA, typical efficiency 92%.

ELG-200-C series is a 200W LED AC/DC driver featuring the constant current mode and high voltage output. ELG-200-C operates from 100~305VAC and offers models with different rated current ranging between 700mA and 2100mA. Thanks to the high efficiency up to 93%, with the fanless design, the entire series is able to operate for -40℃~+85℃ case temperature under free air convection. The design of metal housing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications. ELG-200-C is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

Features

Constant current mode output
Metal housing design with functional Ground
Built-in active PFC function
No load / Standby power consumption <0.5W
IP67 / IP65 rating for indoor or outdoor installations
Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off); Smart timer dimming; DALI
Typical lifetime>50000 hours
5 years warranty

Specifications

ELG-200-C1400DASpecifications from the official datasheet (2026-07-06 edition)

OUTPUT

RATED CURRENT: 1400mA
RATED POWER 200VAC ~ 305VAC: 198.8W
RATED POWER 100VAC ~ 180VAC: 149.8W
CONSTANT CURRENT REGION^Note.2: 71 ~ 142V
OPEN CIRCUIT VOLTAGE(max.): 160V
CURRENT ADJ. RANGE: Adjustable for A/AB-Type only (via built-in potentiometer) 700 ~ 1400mA
CURRENT RIPPLE: 5.0% max. @rated current
CURRENT TOLERANCE: ±5.0%
SET UP TIME^Note.4: 800ms/115VAC, 500ms/230VAC

INPUT

VOLTAGE RANGE^Note.3: 100 ~ 305VAC 142 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF≧0.97/115VAC, PF≧0.95/230VAC, PF≧0.92/277VAC@full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20%(@load≧50%/115VC,230VAC; @load≧75%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION(THD)” section)
EFFICIENCY (Typ.): 92%
AC CURRENT (Typ.): 1.8A / 115VAC 1.0A / 230VAC 1.0A/277VAC
INRUSH CURRENT(Typ.): COLD START 65A(twidth=680μs measured at 50% Ipeak)/230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 2 units (circuit breaker of type B) / 4 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.75mA / 277VAC
NO LOAD / STANDBY POWER CONSUMPTION: No load power consumption <0.5W for Blank / A-Type Standby power consumption <0.5W for B / AB / DA-Type

PROTECTION

SHORT CIRCUIT: Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 160 ~ 180V Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE: Shut down o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.: Tcase=-40 ~ +85℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
MAX. CASE TEMP.: Tcase=+85℃
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 60℃)
VIBRATION: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL8750(type”HL”), CSA C22.2 No. 250.13-12;BS EN/EN/AS/NZS 61347-1,BS EN/EN/AS/NZS 61347-2-13 independent, BS EN/EN62384;GB/T19510.1,GB/T19510.213;EAC TP TC 004;BIS IS15885(for 700A only); IP65 or IP67;KC61347-1,KC61347-2-13 approved
DALI STANDARDS: Compliance to IEC62386-101,102,(207 by request) for DA Type only
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC I/P-FG:2.0KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55015,BS EN/EN61000-3-2 Class C (@load≧50%) ; BS EN/EN61000-3-3; GB/T 17743, GB17625.1; EAC TP TC 020; KC KN15,KN61547
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, light industry level(surge immunity:Line-Earth:6KV, Line-Line:4KV);EAC TP TC 020; KC KN15,KN61547

OTHERS

MTBF: 2728.6K hrs min. Telcordia SR-332 (Bellcore) ;217.6K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 244*71*37.5 mm (L*W*H)
PACKING: 1.22Kg; 12pcs /15.2kg / 0.72CUFT

Certifications & ratings

Type: Type HL

Test conditions and notes11

1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
2. Please refer to "DRIVING METHODS OF LED MODULE".
3. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
4. Length of set up time is measured at first cold start. Turning ON/OFF the power supply may lead to increase of the set up time.
5. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
6. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 85℃ or less.
7. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
8. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
9. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
10. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED power supply can only be used behind a switch without permanently connected to the mains.
11. For A/AB type need to consider build in using to comply with Type HL application.

Technical drawings

ELG-200-C1400DA BLOCK DIAGRAM — BLOCK DIAGRAM

ELG-200-C1400DA DIMMING OPERATION — DIMMING OPERATION

ELG-200-C1400DA OUTPUT LOAD vs TEMPERATURE(Note.7) — OUTPUT LOAD vs TEMPERATURE(Note.7)

ELG-200-C1400DA STATIC CHARACTERISTIC — STATIC CHARACTERISTIC

ELG-200-C1400DA TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

ELG-200-C1400DA LIFETIME(Kh) — LIFETIME(Kh)

ELG-200-C1400DA MECHANICAL SPECIFICATION — MECHANICAL SPECIFICATION

ELG-200-C1400DA Dimensions (mm) — Dimensions (mm)

ELG-200-C1400DA ※ B/DA-Type — ※ B/DA-Type

ELG-200-C1400DA ※ 3Y Model (3-wire input) — ※ 3Y Model (3-wire input)

ELG-200-C1400DA Recommend Mounting Direction — Recommend Mounting Direction

Typical applications

LED street lighting
LED harbar lighting
LED bay lighting
LED greenhouse lighting
LED flood lighting
Type "HL" for use in Class I, Division 2 hazardous (Classified) location.

Downloads

Certificates4

UL Certificate (ELG-200-C)(EN) PDF Download

CB Certificate (ELG-200-C)(EN) PDF Download

EMC Certificate (ELG-200-C)(EN) PDF Download

ENEC Certificate (ELG-200-C)(EN) PDF Download

Test reports1

Test Report (ELG-200-C1400)(EN) PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

Does the ELG-200-C1400DA support DALI-based building automation systems?

Yes. The "DA" suffix indicates DALI (Digital Addressable Lighting Interface) dimming support, allowing the driver to be individually addressed and controlled within a DALI-networked lighting system. This is common in commercial office, retail, and hospitality environments.

Can the ELG-200-C1400DA be used to power high-voltage LED module strings in commercial ceiling fixtures?

Yes. Operating in constant current mode at 1400mA with a CC voltage range of 71–142V, this driver is well-suited for series-connected LED modules used in commercial recessed or surface-mount ceiling fixtures where DALI dimming control is required.

Is the ELG-200-C1400DA rated for outdoor or damp-location use?

Yes. The ELG-200-C1400DA carries an IP67 waterproof rating, so it can be installed in outdoor luminaires, covered walkway fixtures, or damp-location applications without additional protective enclosures.

What LED applications benefit most from the DALI interface on the ELG-200-C1400DA?

DALI control is particularly useful in smart building projects where individual luminaire dimming, group scenes, and occupancy-responsive control are needed. Typical applications include office task lighting, hotel corridor lighting, and retail display arrays using high-voltage LED modules within the 71–142V CC range.

How does the ELG-200-C1400DA compare to the ELG-200-C1400B in terms of dimming capability?

The C1400B uses 3-in-1 dimming (0–10VDC, 10V PWM, and resistance) suited for simpler analog control systems, while the C1400DA uses DALI protocol (IEC62386-101, 102) for digital, addressable control in networked lighting systems. Both are 198.8W at 1400mA with IP67 rating; the choice depends on the control infrastructure of the installation.

Can the ELG-200-C1400DA operate in harsh-temperature environments such as outdoor signage cabinets?

Yes. With a case temperature (Tcase) rating of -40°C to +85°C and IP67 waterproofing, the ELG-200-C1400DA is suitable for outdoor signage cabinets and other thermally challenging environments.
