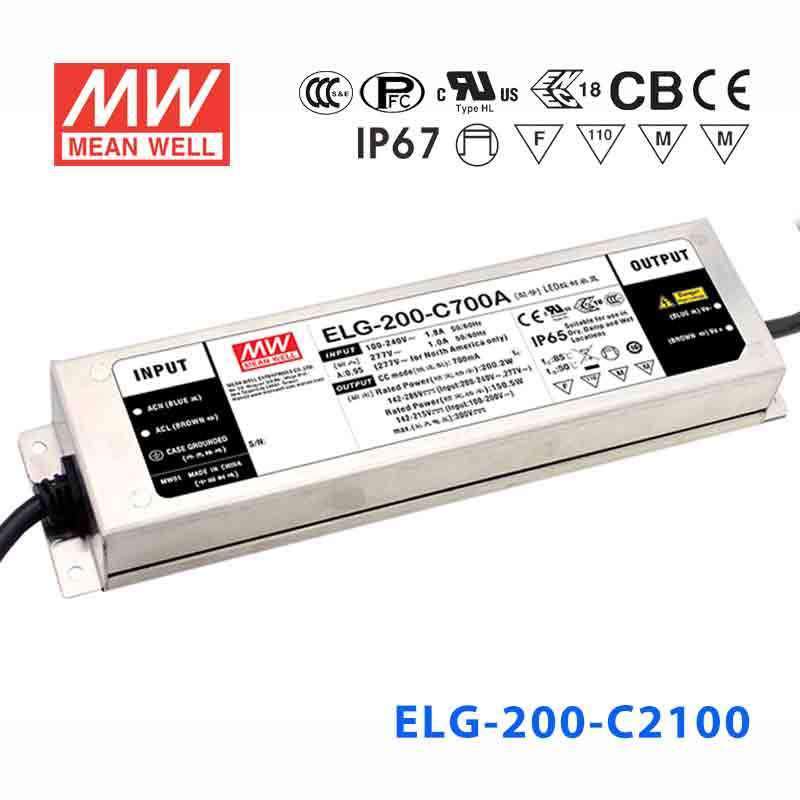

Mean Well ELG-200-C2100A LED Driver | Adjustable 2100mA

Overview

ELG-200-C2100A is the model of this series: rated current 2100mA, typical efficiency 92%.

ELG-200-C series is a 200W LED AC/DC driver featuring the constant current mode and high voltage output. ELG-200-C operates from 100~305VAC and offers models with different rated current ranging between 700mA and 2100mA. Thanks to the high efficiency up to 93%, with the fanless design, the entire series is able to operate for -40℃~+85℃ case temperature under free air convection. The design of metal housing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications. ELG-200-C is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

Features

Constant current mode output
Metal housing design with functional Ground
Built-in active PFC function
No load / Standby power consumption <0.5W
IP67 / IP65 rating for indoor or outdoor installations
Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off); Smart timer dimming; DALI
Typical lifetime>50000 hours
5 years warranty

Specifications

ELG-200-C2100ASpecifications from the official datasheet (2026-07-06 edition)

OUTPUT

RATED CURRENT: 2100mA
RATED POWER 200VAC ~ 305VAC: 201.6W
RATED POWER 100VAC ~ 180VAC: 151.2W
CONSTANT CURRENT REGION^Note.2: 48 ~ 96V
OPEN CIRCUIT VOLTAGE(max.): 105V
CURRENT ADJ. RANGE: Adjustable for A/AB-Type only (via built-in potentiometer) 1050 ~ 2100mA
CURRENT RIPPLE: 5.0% max. @rated current
CURRENT TOLERANCE: ±5.0%
SET UP TIME^Note.4: 800ms/115VAC, 500ms/230VAC

INPUT

VOLTAGE RANGE^Note.3: 100 ~ 305VAC 142 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF≧0.97/115VAC, PF≧0.95/230VAC, PF≧0.92/277VAC@full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20%(@load≧50%/115VC,230VAC; @load≧75%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION(THD)” section)
EFFICIENCY (Typ.): 92%
AC CURRENT (Typ.): 1.8A / 115VAC 1.0A / 230VAC 1.0A/277VAC
INRUSH CURRENT(Typ.): COLD START 65A(twidth=680μs measured at 50% Ipeak)/230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 2 units (circuit breaker of type B) / 4 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.75mA / 277VAC
NO LOAD / STANDBY POWER CONSUMPTION: No load power consumption <0.5W for Blank / A-Type Standby power consumption <0.5W for B / AB / DA-Type

PROTECTION

SHORT CIRCUIT: Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 105 ~ 130V Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE: Shut down o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.: Tcase=-40 ~ +85℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
MAX. CASE TEMP.: Tcase=+85℃
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 60℃)
VIBRATION: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL8750(type”HL”), CSA C22.2 No. 250.13-12;BS EN/EN/AS/NZS 61347-1,BS EN/EN/AS/NZS 61347-2-13 independent, BS EN/EN62384;GB/T19510.1,GB/T19510.213;EAC TP TC 004;BIS IS15885(for 700A only); IP65 or IP67;KC61347-1,KC61347-2-13 approved
DALI STANDARDS: Compliance to IEC62386-101,102,(207 by request) for DA Type only
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC I/P-FG:2.0KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55015,BS EN/EN61000-3-2 Class C (@load≧50%) ; BS EN/EN61000-3-3; GB/T 17743, GB17625.1; EAC TP TC 020; KC KN15,KN61547
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, light industry level(surge immunity:Line-Earth:6KV, Line-Line:4KV);EAC TP TC 020; KC KN15,KN61547

OTHERS

MTBF: 2728.6K hrs min. Telcordia SR-332 (Bellcore) ;217.6K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 244*71*37.5 mm (L*W*H)
PACKING: 1.22Kg; 12pcs /15.2kg / 0.72CUFT

Certifications & ratings

Type: Type HL

Test conditions and notes11

1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
2. Please refer to "DRIVING METHODS OF LED MODULE".
3. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
4. Length of set up time is measured at first cold start. Turning ON/OFF the power supply may lead to increase of the set up time.
5. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
6. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 85℃ or less.
7. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
8. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
9. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
10. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED power supply can only be used behind a switch without permanently connected to the mains.
11. For A/AB type need to consider build in using to comply with Type HL application.

Technical drawings

ELG-200-C2100A BLOCK DIAGRAM — BLOCK DIAGRAM

ELG-200-C2100A DIMMING OPERATION — DIMMING OPERATION

ELG-200-C2100A OUTPUT LOAD vs TEMPERATURE(Note.7) — OUTPUT LOAD vs TEMPERATURE(Note.7)

ELG-200-C2100A STATIC CHARACTERISTIC — STATIC CHARACTERISTIC

ELG-200-C2100A TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

ELG-200-C2100A LIFETIME(Kh) — LIFETIME(Kh)

ELG-200-C2100A MECHANICAL SPECIFICATION — MECHANICAL SPECIFICATION

ELG-200-C2100A Dimensions (mm) — Dimensions (mm)

ELG-200-C2100A ※ B/DA-Type — ※ B/DA-Type

ELG-200-C2100A ※ 3Y Model (3-wire input) — ※ 3Y Model (3-wire input)

ELG-200-C2100A Recommend Mounting Direction — Recommend Mounting Direction

Typical applications

LED street lighting
LED harbar lighting
LED bay lighting
LED greenhouse lighting
LED flood lighting
Type "HL" for use in Class I, Division 2 hazardous (Classified) location.

Downloads

Certificates4

UL Certificate (ELG-200-C)(EN) PDF Download

CB Certificate (ELG-200-C)(EN) PDF Download

EMC Certificate (ELG-200-C)(EN) PDF Download

ENEC Certificate (ELG-200-C)(EN) PDF Download

Test reports1

Test Report (ELG-200-C2100)(EN) PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

Can the ELG-200-C2100A drive LED arrays in retail display lighting where output current adjustment is needed?

Yes. The A suffix indicates this model includes a built-in output adjustment potentiometer, allowing the constant current output to be trimmed from its nominal 2100mA down to 1050mA to suit different LED array configurations. This flexibility is useful in retail display or hospitality lighting where fine-tuning luminaire brightness is required.

Is the ELG-200-C2100A suitable for semi-outdoor installations such as covered walkways or building facades?

The ELG-200-C2100A carries an IP65 water-resistant rating, which protects against low-pressure water jets from any direction and complete dust exclusion. This is appropriate for covered walkways, facade-mounted luminaires, or any installation where direct rain contact is unlikely but moisture exposure is possible.

Can this driver power LED downlights in a hotel or commercial interior where scene control is important?

It can power the downlights, but the A-type has no dimming input, so it cannot follow scene-control commands; its potentiometer only sets a fixed current (1050–2100mA) during commissioning. For scene control, choose the B, AB or DA type. It outputs 201.6W at 2100mA with a CC voltage range of 48–96V.

How many LEDs can be connected to the ELG-200-C2100A in a series string?

The CC output voltage range of the ELG-200-C2100A is 48–96V. The maximum number of LEDs in series depends on the forward voltage of each LED; the combined string forward voltage must fall between 48V and 96V. The driver will then regulate the string current at up to 2100mA.

Does the IP65 rating of the ELG-200-C2100A differ significantly from the IP67 versions in this series?

IP65 provides complete dust protection and resistance to low-pressure water jets, but does not qualify for temporary water immersion. IP67-rated variants in this series add protection against temporary immersion. For fully outdoor exposure, the IP67 models are more appropriate; IP65 suits protected indoor or semi-outdoor installations.

Can the ELG-200-C2100A be used for LED signage modules on an illuminated building directory?

Yes. With 201.6W of constant current output and a 48–96V operating range, this driver can power LED module strings used in illuminated directories and architectural signage. The adjustable output is useful for calibrating brightness uniformity across the sign face.
