Overview

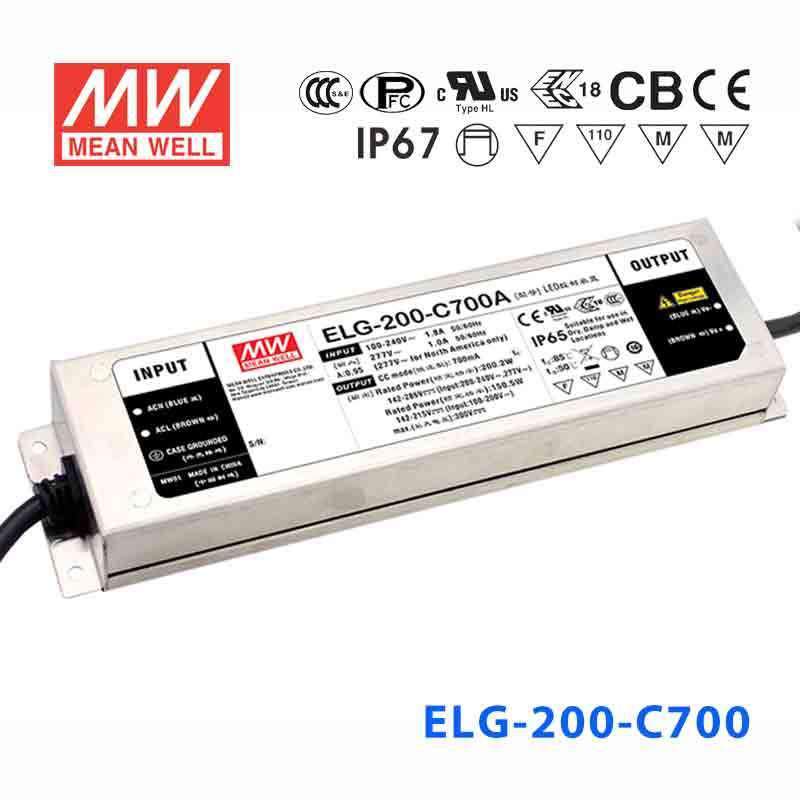

ELG-200-C700 is the model of this series: rated current 700mA, typical efficiency 93%.

ELG-200-C series is a 200W LED AC/DC driver featuring the constant current mode and high voltage output. ELG-200-C operates from 100~305VAC and offers models with different rated current ranging between 700mA and 2100mA. Thanks to the high efficiency up to 93%, with the fanless design, the entire series is able to operate for -40℃~+85℃ case temperature under free air convection. The design of metal housing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications. ELG-200-C is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

Features

Constant current mode output
Metal housing design with functional Ground
Built-in active PFC function
No load / Standby power consumption <0.5W
IP67 / IP65 rating for indoor or outdoor installations
Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off); Smart timer dimming; DALI
Typical lifetime>50000 hours
5 years warranty

Specifications

ELG-200-C700Specifications from the official datasheet (2026-07-06 edition)

OUTPUT

RATED CURRENT: 700mA
RATED POWER 200VAC ~ 305VAC: 200.2W
RATED POWER 100VAC ~ 180VAC: 150.5W
CONSTANT CURRENT REGION^Note.2: 142 ~ 286V
OPEN CIRCUIT VOLTAGE(max.): 300V
CURRENT ADJ. RANGE: Adjustable for A/AB-Type only (via built-in potentiometer) 350 ~ 700mA
CURRENT RIPPLE: 5.0% max. @rated current
CURRENT TOLERANCE: ±5.0%
SET UP TIME^Note.4: 800ms/115VAC, 500ms/230VAC

INPUT

VOLTAGE RANGE^Note.3: 100 ~ 305VAC 142 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF≧0.97/115VAC, PF≧0.95/230VAC, PF≧0.92/277VAC@full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20%(@load≧50%/115VC,230VAC; @load≧75%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION(THD)” section)
EFFICIENCY (Typ.): 93%
AC CURRENT (Typ.): 1.8A / 115VAC 1.0A / 230VAC 1.0A/277VAC
INRUSH CURRENT(Typ.): COLD START 65A(twidth=680μs measured at 50% Ipeak)/230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 2 units (circuit breaker of type B) / 4 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.75mA / 277VAC
NO LOAD / STANDBY POWER CONSUMPTION: No load power consumption <0.5W for Blank / A-Type Standby power consumption <0.5W for B / AB / DA-Type

PROTECTION

SHORT CIRCUIT: Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 315 ~ 370V Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE: Shut down o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.: Tcase=-40 ~ +85℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
MAX. CASE TEMP.: Tcase=+85℃
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 60℃)
VIBRATION: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL8750(type”HL”), CSA C22.2 No. 250.13-12;BS EN/EN/AS/NZS 61347-1,BS EN/EN/AS/NZS 61347-2-13 independent, BS EN/EN62384;GB/T19510.1,GB/T19510.213;EAC TP TC 004;BIS IS15885(for 700A only); IP65 or IP67;KC61347-1,KC61347-2-13 approved
DALI STANDARDS: Compliance to IEC62386-101,102,(207 by request) for DA Type only
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC I/P-FG:2.0KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55015,BS EN/EN61000-3-2 Class C (@load≧50%) ; BS EN/EN61000-3-3; GB/T 17743, GB17625.1; EAC TP TC 020; KC KN15,KN61547
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, light industry level(surge immunity:Line-Earth:6KV, Line-Line:4KV);EAC TP TC 020; KC KN15,KN61547

OTHERS

MTBF: 2728.6K hrs min. Telcordia SR-332 (Bellcore) ;217.6K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 244*71*37.5 mm (L*W*H)
PACKING: 1.22Kg; 12pcs /15.2kg / 0.72CUFT

Certifications & ratings

Type: Type HL

Test conditions and notes11

1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
2. Please refer to "DRIVING METHODS OF LED MODULE".
3. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
4. Length of set up time is measured at first cold start. Turning ON/OFF the power supply may lead to increase of the set up time.
5. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
6. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 85℃ or less.
7. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
8. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
9. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
10. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED power supply can only be used behind a switch without permanently connected to the mains.
11. For A/AB type need to consider build in using to comply with Type HL application.

Technical drawings

ELG-200-C700 BLOCK DIAGRAM — BLOCK DIAGRAM

ELG-200-C700 DIMMING OPERATION — DIMMING OPERATION

ELG-200-C700 OUTPUT LOAD vs TEMPERATURE(Note.7) — OUTPUT LOAD vs TEMPERATURE(Note.7)

ELG-200-C700 STATIC CHARACTERISTIC — STATIC CHARACTERISTIC

ELG-200-C700 TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

ELG-200-C700 LIFETIME(Kh) — LIFETIME(Kh)

ELG-200-C700 MECHANICAL SPECIFICATION — MECHANICAL SPECIFICATION

ELG-200-C700 Dimensions (mm) — Dimensions (mm)

ELG-200-C700 ※ 3Y Model (3-wire input) — ※ 3Y Model (3-wire input)

ELG-200-C700 Recommend Mounting Direction — Recommend Mounting Direction

Typical applications

LED street lighting
LED harbar lighting
LED bay lighting
LED greenhouse lighting
LED flood lighting
Type "HL" for use in Class I, Division 2 hazardous (Classified) location.

Downloads

Certificates4

UL Certificate (ELG-200-C)(EN) PDF Download

CB Certificate (ELG-200-C)(EN) PDF Download

EMC Certificate (ELG-200-C)(EN) PDF Download

ENEC Certificate (ELG-200-C)(EN) PDF Download

Test reports1

Test Report (ELG-200-C700)(EN) PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

Can the ELG-200-C700 drive a long series string of LED modules for outdoor signage or linear lighting?

Yes. The ELG-200-C700 is a constant current driver with a CC voltage range of 142–286V, the highest-voltage range in the ELG-200-C series. This high-voltage range is well suited to long series strings of LED modules used in large illuminated signs or extended linear architectural lighting.

Is the ELG-200-C700 suitable for LED tube or linear module arrays in outdoor channel letters?

Yes. The 700mA constant current output and 142–286V CC range accommodate series strings of LED modules or discrete LEDs used in channel letter sign construction. The IP67 waterproof rating allows installation inside outdoor sign housings exposed to weather.

Can the ELG-200-C700 be used for LED lighting in outdoor architectural or landscape installations?

Yes. With IP67 waterproof protection, a case temperature (Tcase) rating of -40°C to +85°C, and a wide 100–305VAC input, this driver is suitable for outdoor landscape, pathway, and architectural lighting fixtures. The 200.2W total output at 700mA supports high-power series LED strings in these applications.

How many LEDs can be connected in series to the ELG-200-C700?

The ELG-200-C700 has a CC voltage range of 142–286V. The number of LEDs per series string depends on the forward voltage of each individual LED; strings must be sized so the total combined forward voltage falls within 142–286V. The driver will regulate the current at 700mA across that voltage window.

What distinguishes the ELG-200-C700 from the ELG-200-C2100 within the 200W constant current range?

The ELG-200-C700 outputs 200.2W at 700mA with a CC voltage range of 142–286V, making it suited for long, high-voltage LED strings. The ELG-200-C2100 outputs 201.6W at 2100mA with a CC voltage range of 48–96V, better matching shorter, lower-voltage LED strings that require higher drive current. Both share IP67 protection and the same physical dimensions.

Can the ELG-200-C700 be installed in an outdoor enclosure without additional weatherproofing?

The ELG-200-C700 carries an IP67 rating, which provides complete dust exclusion and protection against temporary water immersion. It can be installed in outdoor luminaire housings or sign enclosures exposed to rain; Mean Well's user manual should be followed for IP waterproof installation cautions.
