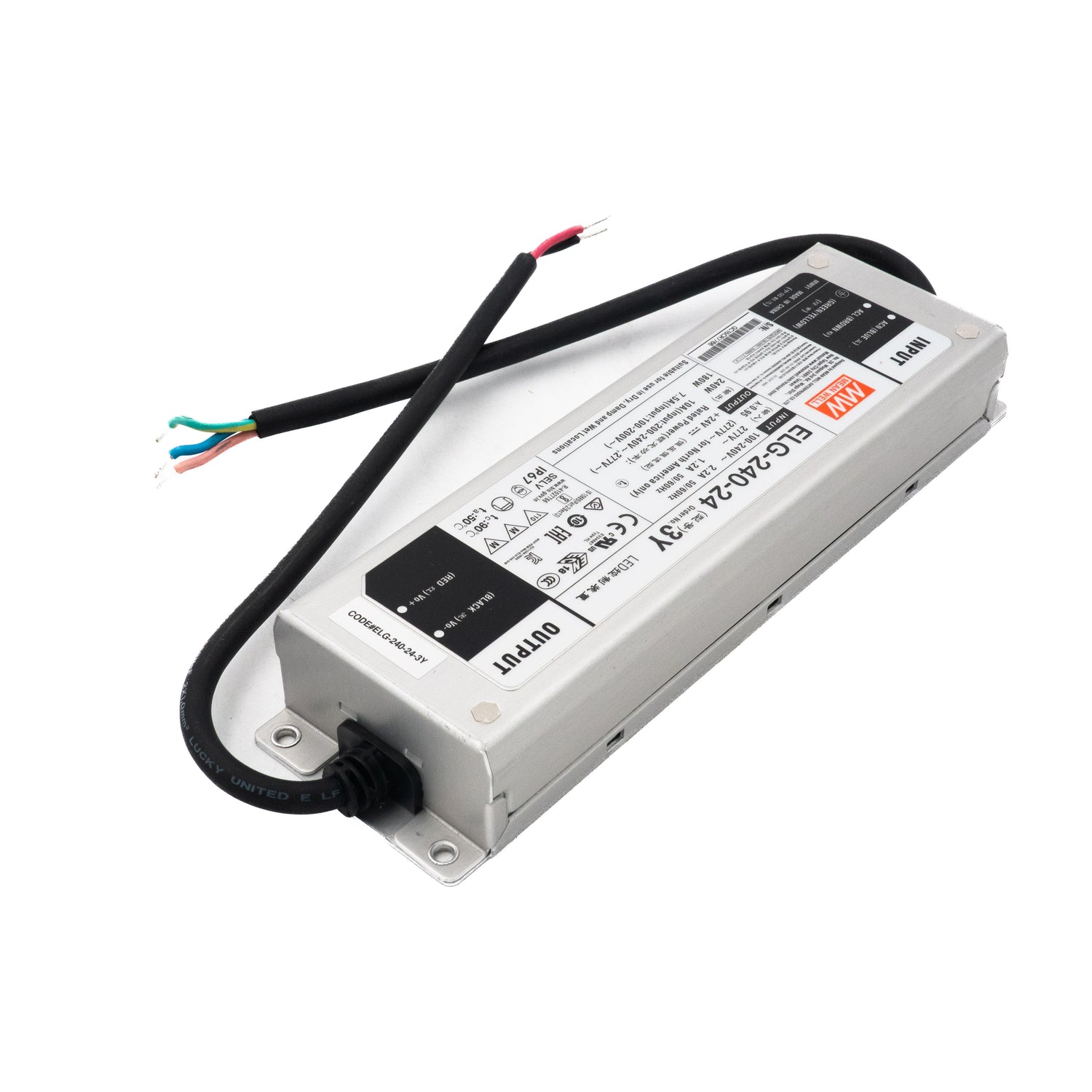

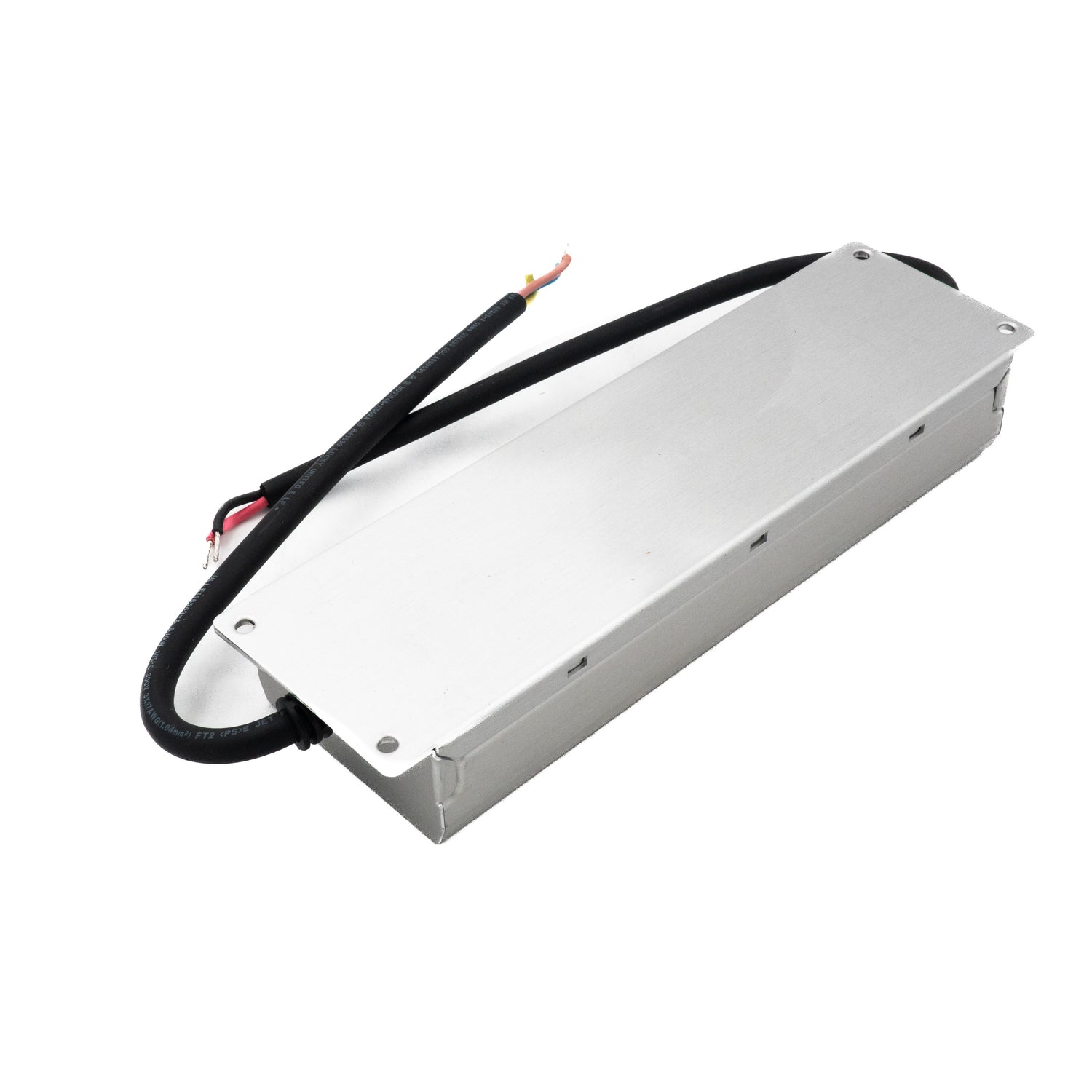

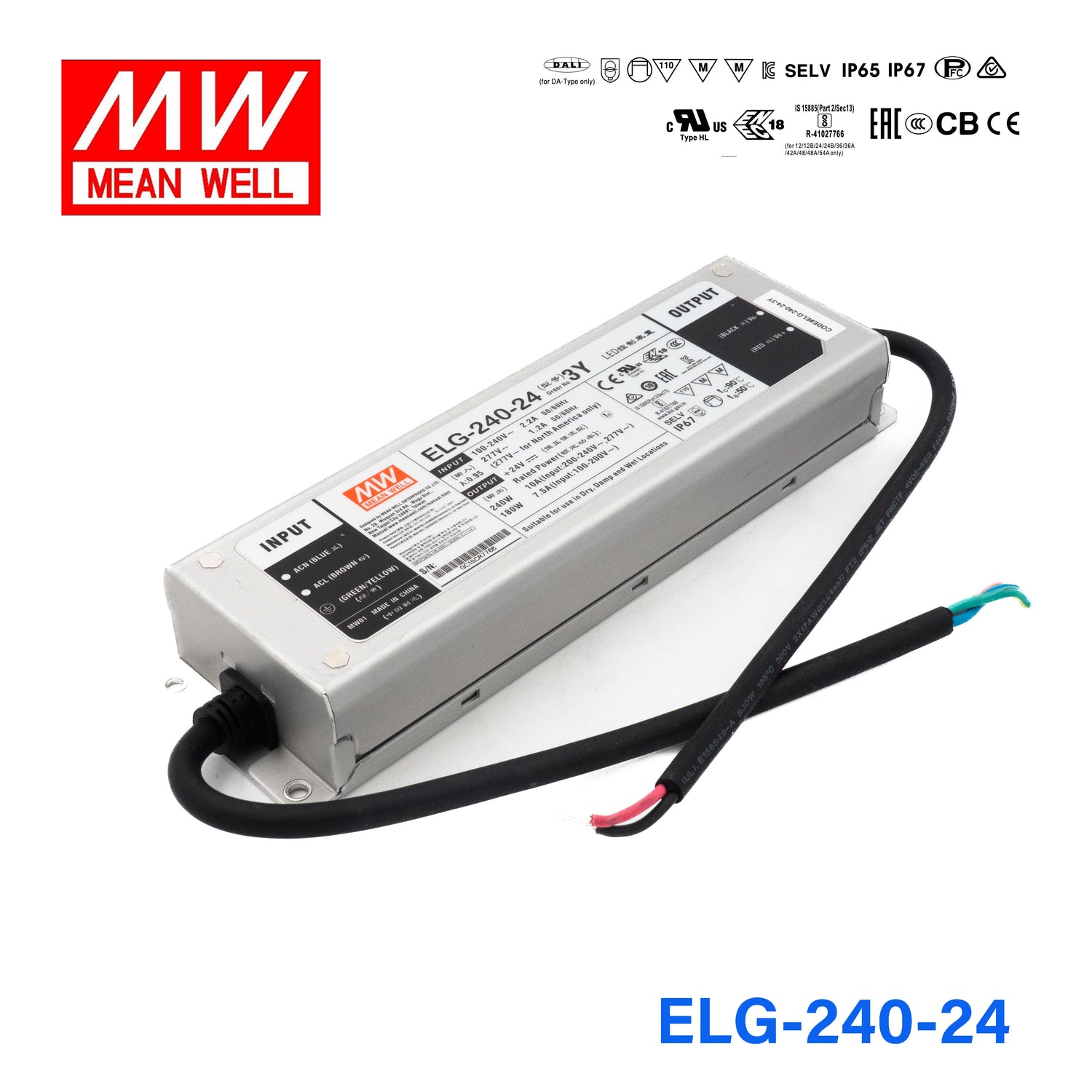

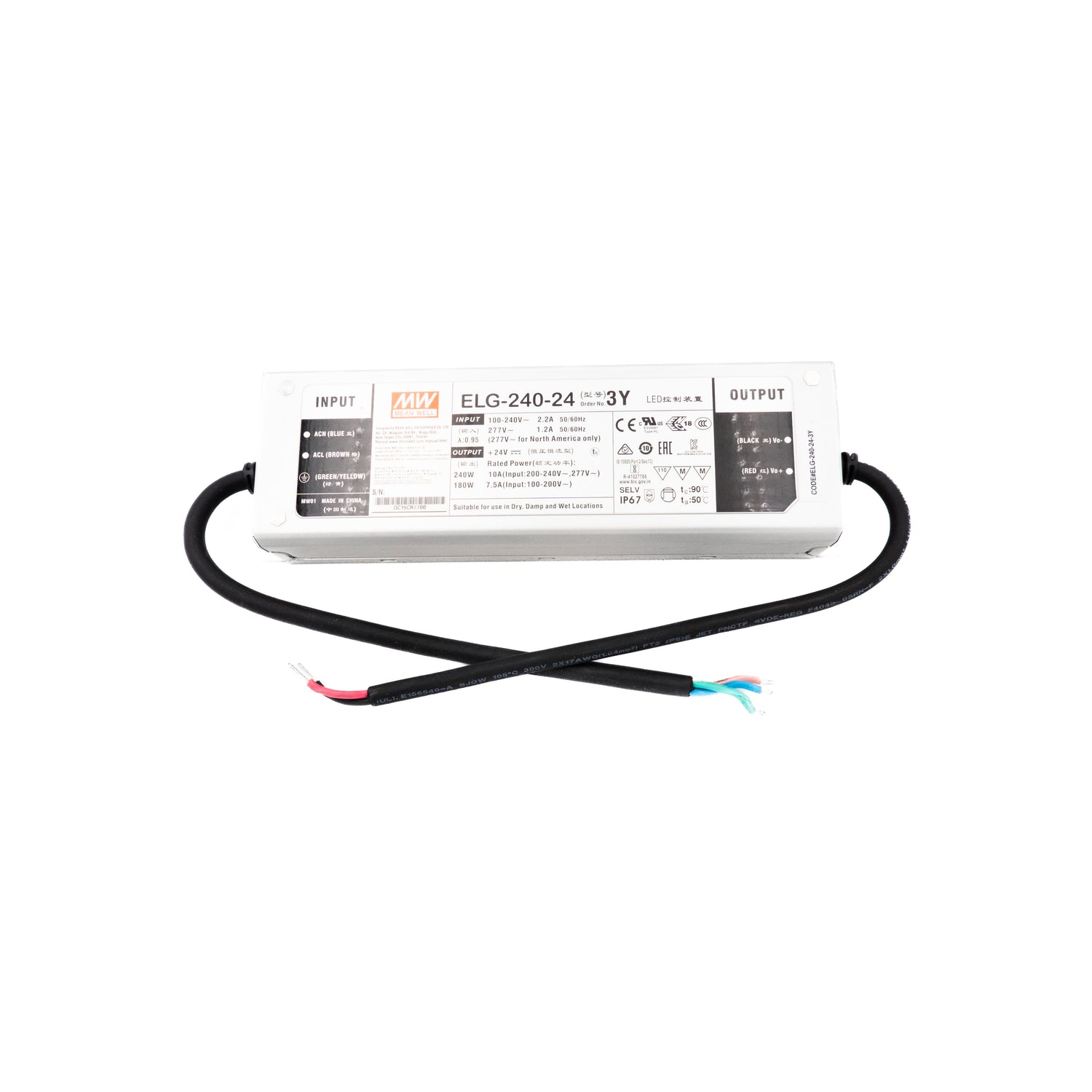

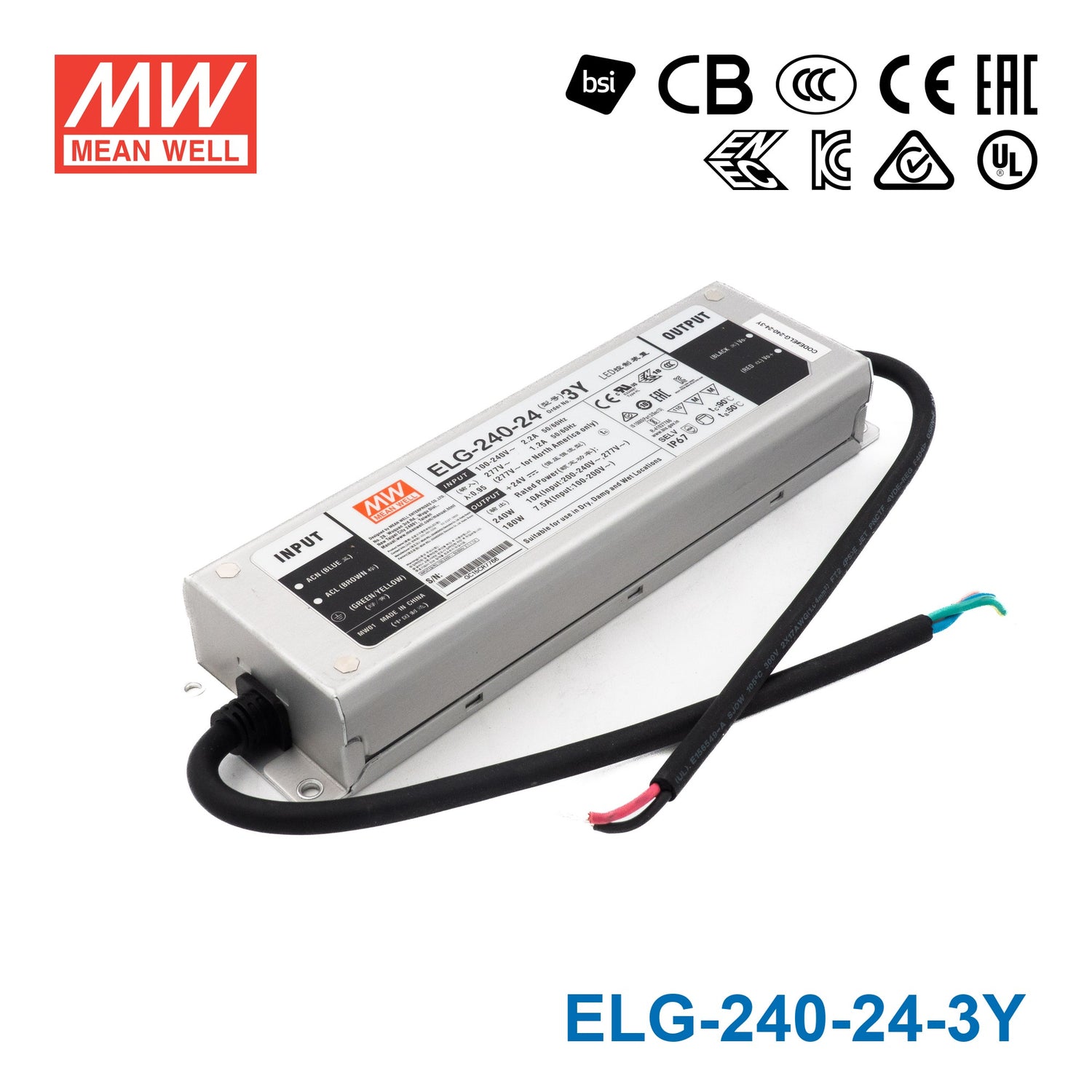

Mean Well ELG-240-24-3Y AC-DC Single output LED Driver Mix Mode (CV+CC) with PFC

The '-3Y' designation indicates this variant is tested and certified specifically to the 3Y safety class requirements. Both deliver 240W at 24V with 10A output and share IP67 waterproof construction, but the ELG-240-24-3Y carries BSMI, CB, CE, EAC, and UL certifications tailored to markets requiring that classification.

Yes. The IP67 waterproof rating seals the driver against complete, temporary water immersion, making it appropriate for outdoor LED strip installations in fountains, pool surrounds, or other wet-area applications. The operating range of -40°C to +90°C accommodates harsh outdoor climates.

Yes. At 240W and 24V it provides ample power for medium-to-large channel letter or illuminated sign cabinets using 24V LED modules. The IP67 rating keeps the driver protected when mounted behind signs exposed to outdoor weather.

The driver outputs 240W at 24V. For 24V strip rated at 20W per meter: 240W ÷ 20W/m = 12m at full rated load. For continuous duty apply an 80% derating, giving approximately 9.6 meters. Check your strip's rated power per meter and apply the same calculation.

Yes. The wide 100–305VAC input range, IP67 waterproof seal, and -40°C to +90°C temperature range make this driver appropriate for 24V LED lighting in bus shelters, railway platform canopies, or other public transport infrastructure exposed to weather extremes.
