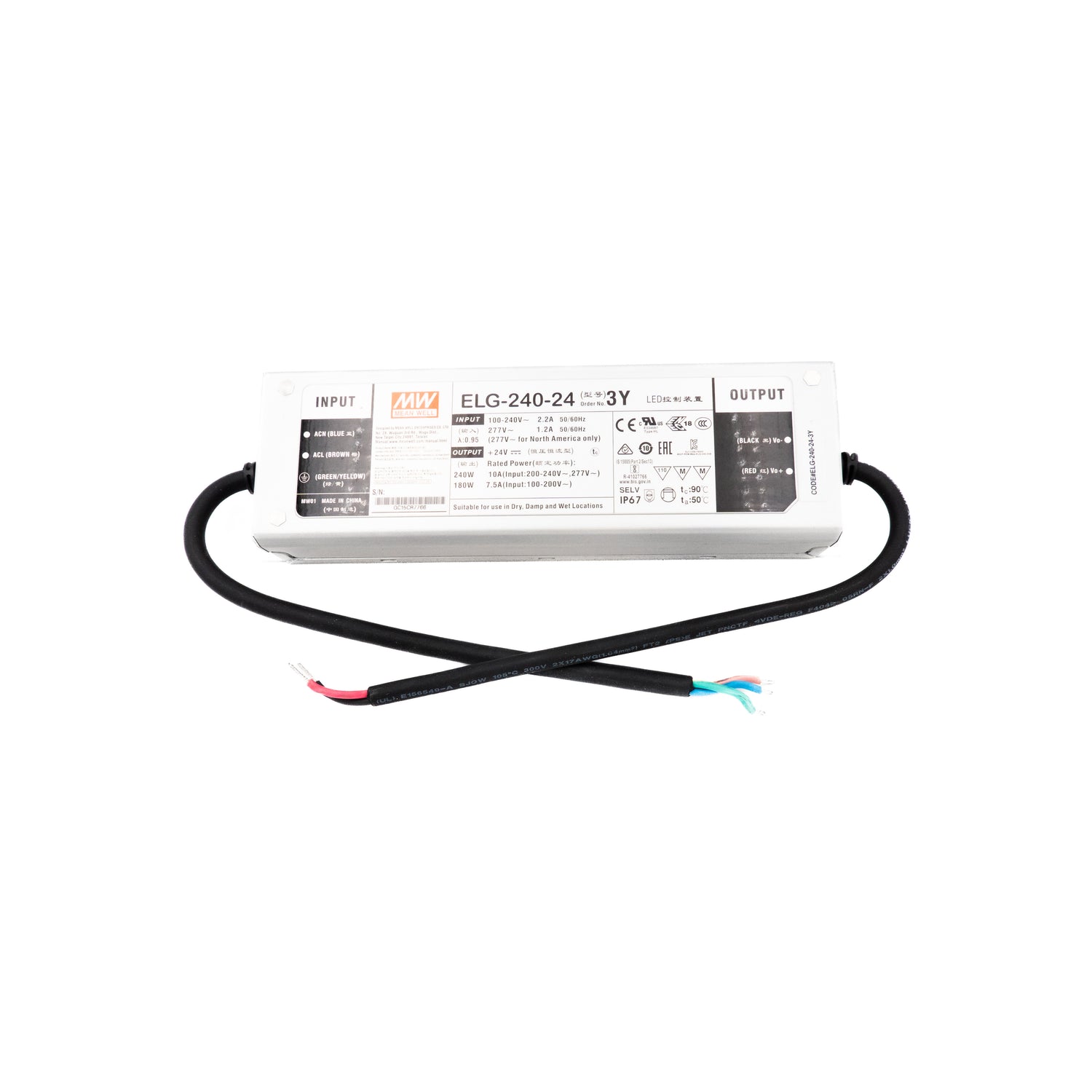

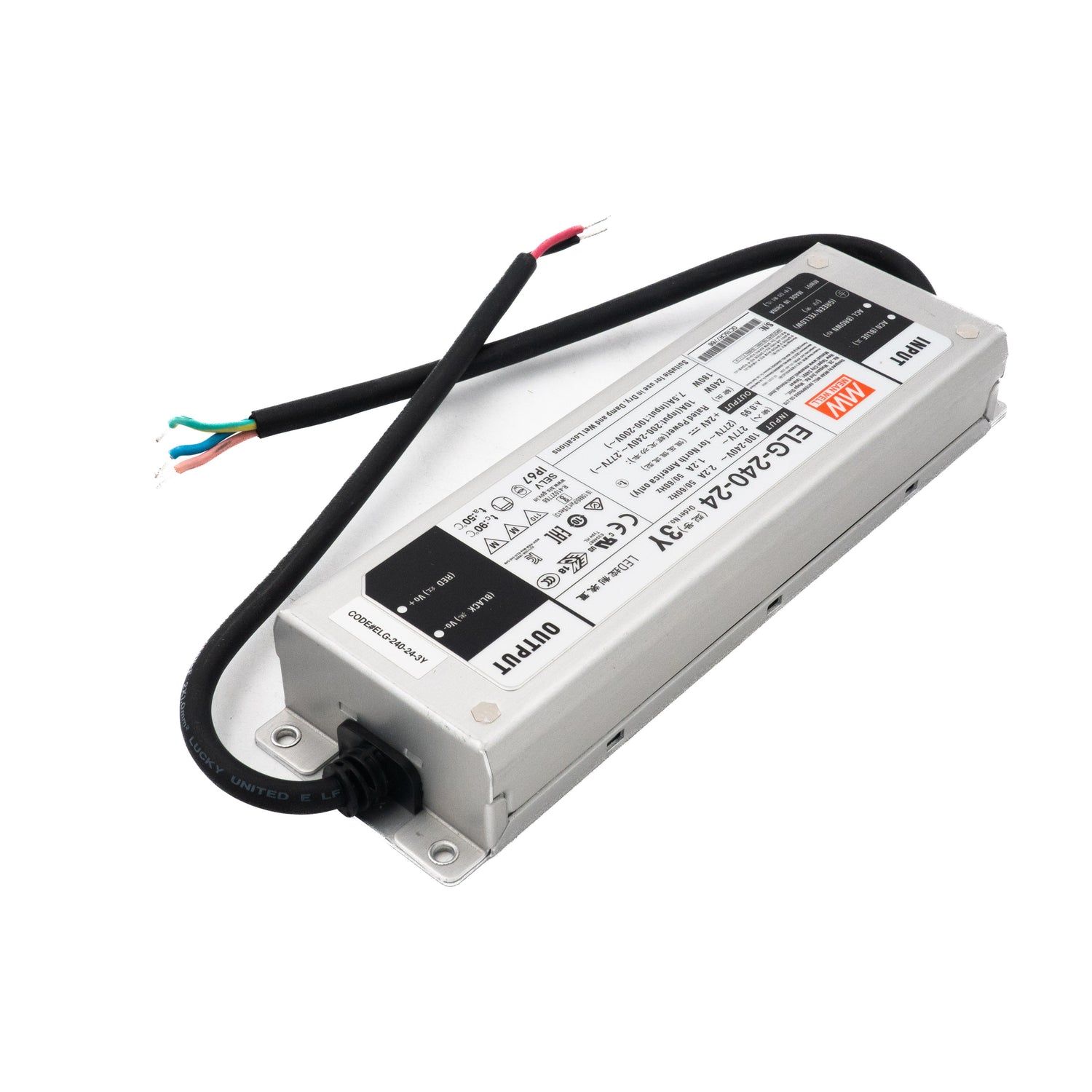

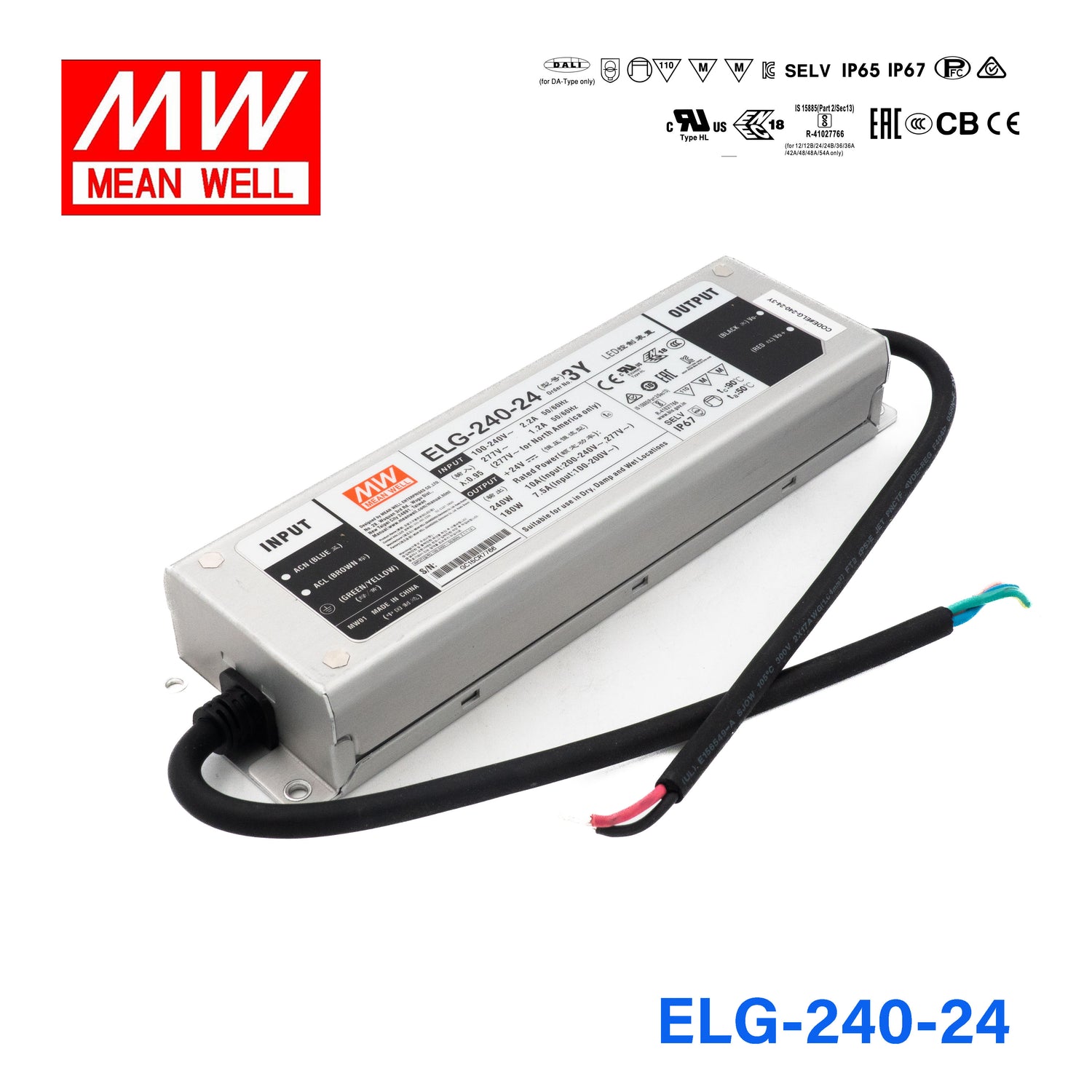

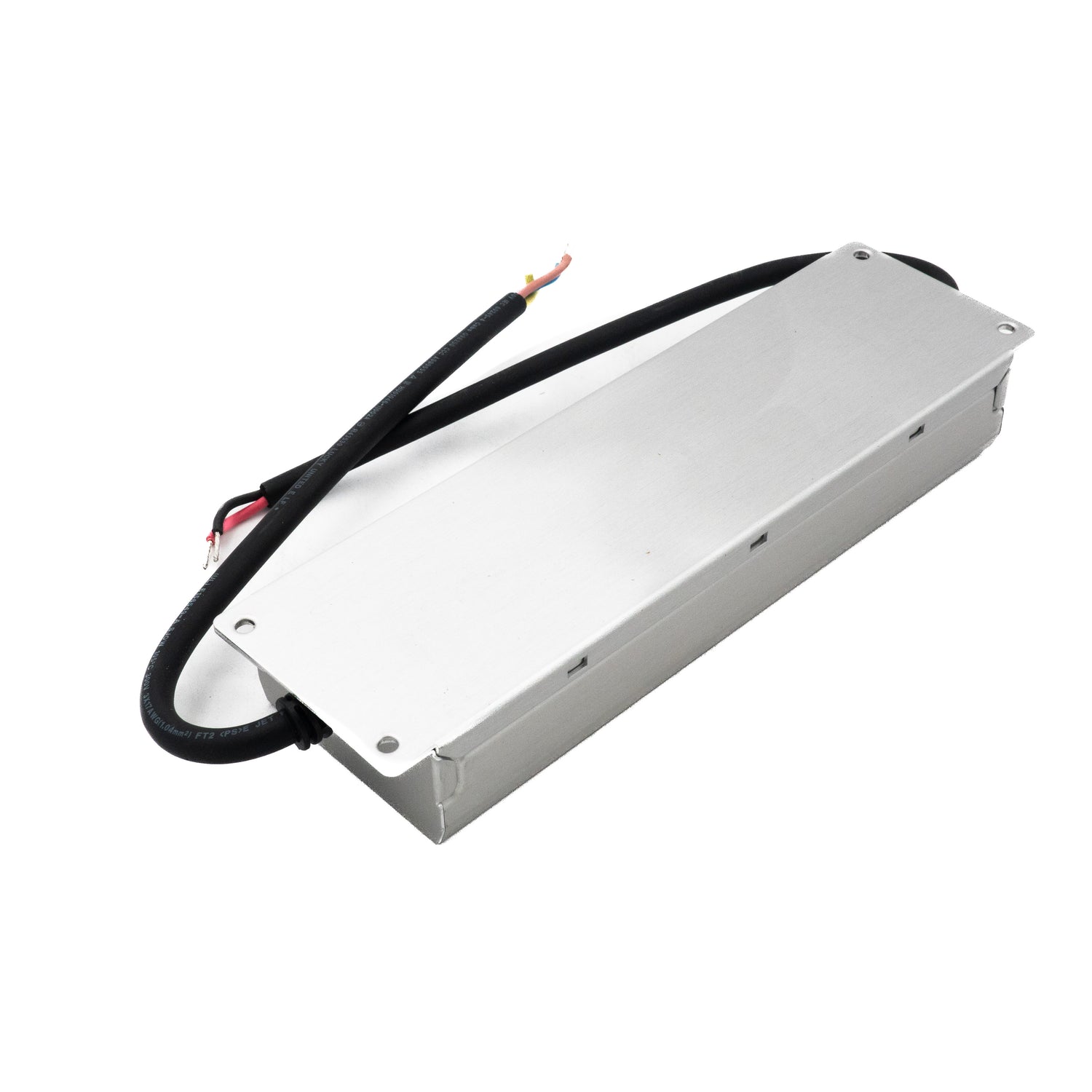

Mean Well ELG-240-24 Power Supply 240W 24V
Please Login for Pricing
Description
Description
The ELG-240 is a 240W Mean Well power converter (input range: 100~305VAC).
Key Features
- ✓ Input voltage range: 100~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: (type”HL”), CSA C22.2 No. 250.13-12;IEC/EN/AS/NZS 61347-1, IEC/EN/AS/NZS 61347-2-13 UL8750 EAC TP TC 004;BIS IS15885(for 24/24B/36/36A/42/42A/48/48A/54/54A only) GB19510.14,GB19510.1; IP65 or IP67; KC61347 1 KC61347 2 13
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesELG Series
-
Power Rating240 Watt
-
Output Voltage24 Volt
-
Rated Current10 Ampere
-
Input Voltage100V~305V
-
Standards MetBSI,CB,CCC,CE,EAC,ENEC,KC,RCM,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty5 Year
-
Length24.4 cm
-
Width7.1 cm
-
Height3.75 cm
-
Weight1.22 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the ELG-240-24 to power 24V LED strips for a large commercial installation?
Yes. At 240W and 24V the driver can deliver up to 10A, making it suitable for extended LED strip runs in retail, hospitality, or office cove lighting. The IP67 waterproof rating also allows installation in damp or outdoor locations where 24V strip is common.
How many meters of 24V LED strip can the ELG-240-24 power?
The ELG-240-24 outputs 240W at 24V. For a 24V strip rated at 14.4W per meter: 240W ÷ 14.4W/m ≈ 16.7m at full load. Derate to 80% for continuous runs, giving approximately 13 meters. Check your strip's rated power per meter and apply the same calculation for your specific product.
Is the ELG-240-24 suitable for outdoor landscape or architectural lighting?
Yes. The IP67 waterproof rating means the unit is fully sealed against water ingress, allowing it to be mounted in outdoor junction boxes, underground enclosures, or exposed weatherproof fixtures. The -40°C to +90°C operating range covers virtually all outdoor climate conditions.
Can the ELG-240-24 be used to drive 24V LED wall-wash fixtures in a facade lighting project?
Yes. The 240W capacity at 24V is sufficient to supply multiple 24V LED wall-wash or grazing fixtures in series-parallel configurations. The wide 100–305VAC input handles both North American 120V and European 230V mains, making it versatile for international projects.
Does the ELG-240-24 support dimming?
The base ELG-240-24 (no suffix) does not include a built-in dimming interface; it operates at fixed output. For dimming capability, consider the ELG-240-24A (adjustable output), ELG-240-24B (three-in-one dimming), ELG-240-24D2 (0-10V and PWM), or ELG-240-24DA (DALI) variants.
Is the ELG-240-24 approved for use in North American commercial projects?
Yes. The driver carries c_BSI, CB, CCC, CE, EAC, ENEC, KC, c_RCM, and UL certifications along with a 5-year warranty. UL listing satisfies the electrical safety requirements for commercial projects in the US and Canada, and CE marks it for European use.
Other ELG-240 Models
4 other models| Model | Power | Voltage | Current | IP Rating | |
|---|---|---|---|---|---|
| Mean Well S-ELG-240-24 Power Supply 240W 24V with AU/NZ plug | 240W | 24V | 10A | IP67 | View |
| Mean Well ELG-240-48 Power Supply 240W 48V | 240W | 48V | 5A | — | View |
| Mean Well ELG-240-24-3Y AC-DC Single output LED Driver Mix Mode (CV+CC) with PFC | 240W | 24V | 10A | IP67 | View |
| Mean Well ELG-240-48DA Power Supply 240W 48V 3-wire Input - DALI | 240W | 48V | 5A | IP67 | View |
