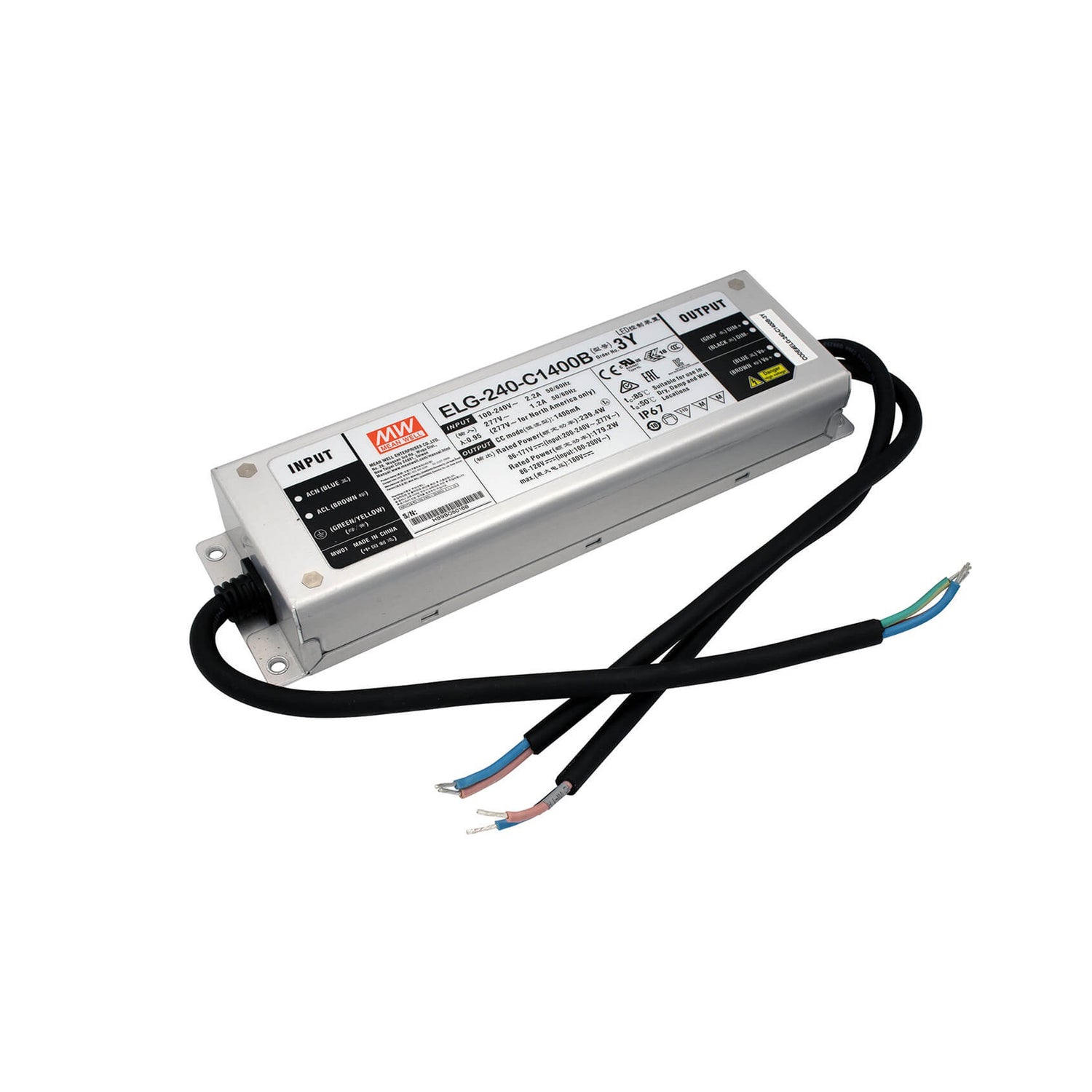

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

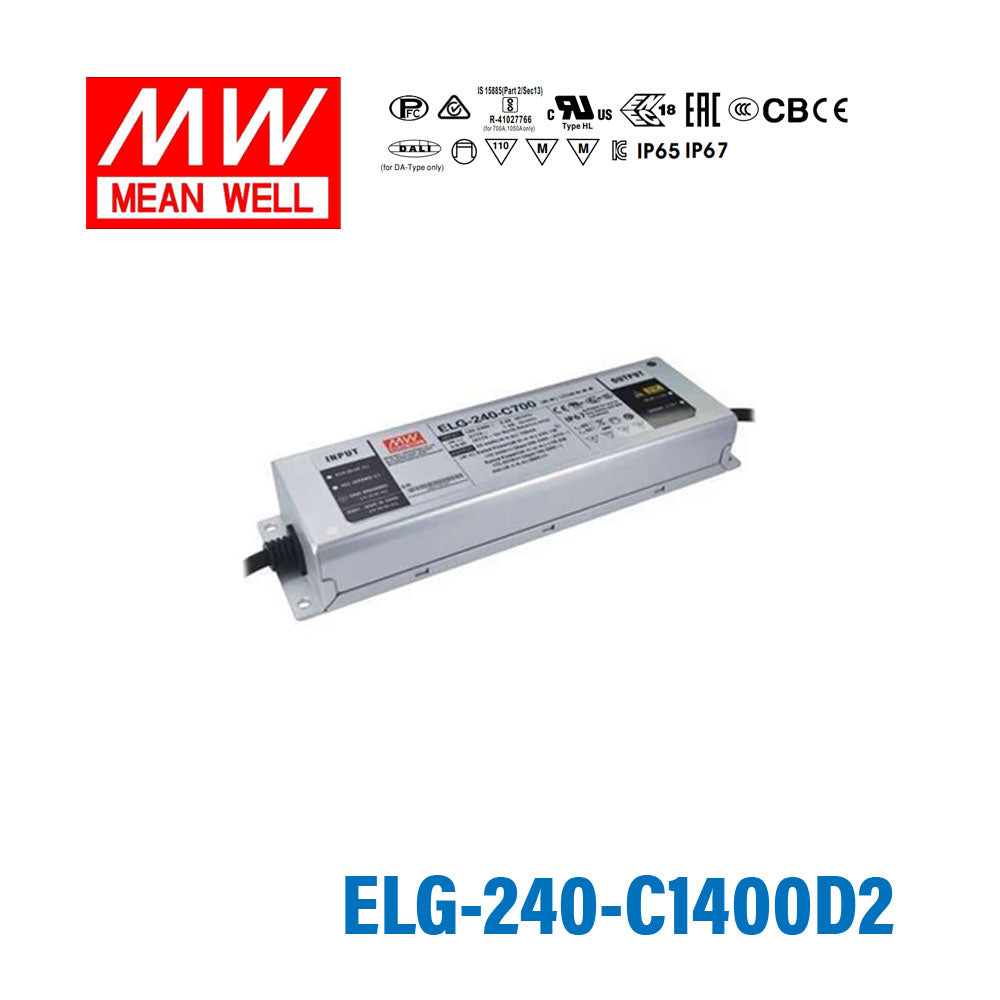

Mean Well ELG-240-C1400D2 AC-DC Single output LED Driver (CC) with PFC

contant currentmetal caseIP65/IP675 years warranty

SKU:

ELG-240-C1400D2

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

The ELG-240 is a 240W Mean Well power converter (input range: 100~305VAC).

Key Features

✓ Input voltage range: 100~305VAC
✓ DC output voltage adjustable ±10%
✓ 3.75KVAC reinforced I/O isolation
✓ Protections: Short circuit / Over voltage / Over temperature
✓ Active PFC — meets international energy efficiency regulations
✓ Safety approvals: (type”HL”), CSA C22.2 No. 250.13-12;IEC/EN/AS/NZS 61347-1, IEC/EN/AS/NZS 61347-2-13 UL8750 EAC TP TC 004;BIS IS15885(for 24/24B/36/36A/42/42A/48/48A/54/54A only) GB19510.14,GB19510.1; IP65 or IP67; KC61347 1 KC61347 2 13
✓ 3 years warranty

Frequently Asked Questions

Can the ELG-240-C1400D2 power a fixed-brightness LED downlight installation with no dimming required?

Yes. The 'D2' suffix identifies this as a fixed-output, non-dimmable constant-current driver. At 240W and 1400mA, it provides stable, unvarying drive current for LED downlight strings whose combined forward voltage falls within the 100–171V output range.

Is the ELG-240-C1400D2 rated for outdoor or wet-location use?

Yes. It carries an IP67 rating, making it suitable for outdoor cabinets, ground-recessed luminaires, and wet locations. The operating temperature range of -40°C to +85°C supports installation in cold-climate regions.

Can this driver be used for LED modules in an outdoor advertising sign where no dimming is needed?

Yes. For installations where constant maximum brightness is required around the clock, the ELG-240-C1400D2 provides a fixed 1400mA output without the overhead of a dimming interface, simplifying the design of sign power systems.

How many LEDs can I wire in series to the ELG-240-C1400D2?

The output voltage range is 100–171V at constant 1400mA. The number of series LEDs depends on each individual LED's forward voltage (Vf); sum the Vf values of your string to confirm they fall within the 100–171V regulation range.

How does the ELG-240-C1400D2 differ from the other ELG-240-C1400 variants?

The D2 is the fixed-output non-dimmable version: 240W, 1400mA, no dimming input, BSMI/CB/CE/EAC/UL certifications. The base C1400 is similar but carries additional certifications (CCC, ENEC, c_bsi, c_rcm). The C1400A adds analogue current trim, the C1400B adds PWM/0–10V dimming, the C1400AB adds both, and the C1400DA adds DALI dimming.

What certifications does the ELG-240-C1400D2 hold?

It is certified to BSMI, CB, CE, EAC, and UL, covering major North American, European, and Asian markets. It carries a 5-year manufacturer warranty and is housed in a metal IP67 enclosure.
