Mean Well

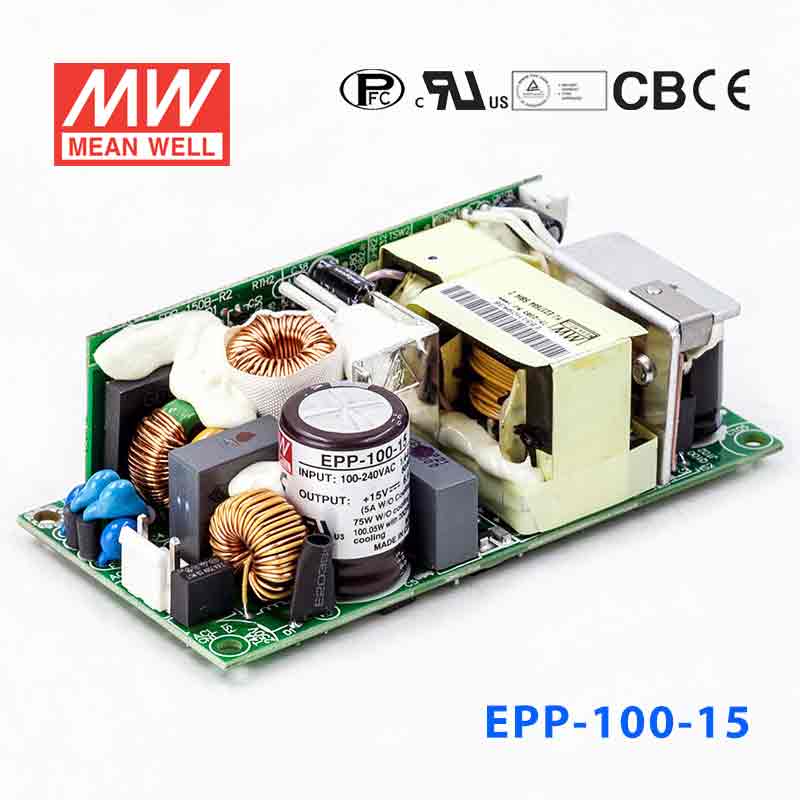

Mean Well EPP-100-15 Power Supply 75W 15V

4" x 2", high efficiency up to 92%, economical PFC, no load power consumption
SKU:
EPP-100-15
End of Life, Succeeded by LOP-200-15
Please for Pricing
|

Description

Features

4"x2" compact size
Universal AC input / Full range
Built-in active PFC function
High efficiency up to 92.5%
Protections: Short circuit/Overload/Over voltage/Over temperature
75W free air convection, 100W with 20CFM forced air
LED indicator for power on
No-load power consumption<0.5W
Built-in 12V/0.3A auxiliary output
3 years warranty

General Specification

AC input voltage range 90~264VAC; 127~370VDC
AC inrush current Cold start 70A/230VAC
Leakage current

<2mA/264VAC
Overload protection 105 ~ 145% rated output power
Over-voltage protection 110%~130% rated output voltage
Setup, rise, hold up time 1000ms, 30ms, 16ms
Withstand voltage I/P-O/P:3KVAC, I/P-FG:2KVAC, O/P-FG:0.5KVAC
Working temperature -30~+70°C
Vibration 10~500Hz, 2G 10min./1 cycle, the period for 60min. Each along X, Y, Z axes
Safety standards UL,TUV BS EN62368-1
EMC standards UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved
Connection I/P: 3 Pin JST B3P-VH, O/P: 4 Pin JST B4P-VH
Dimension (LxWxH) 101.6x50.8x29
Packing 72pcs / 15.4kg

Specifications
  • Brand
    Mean Well
  • Series
    EPP Series
  • Power Rating
    75 Watt
  • Output Voltage
    15 Volt
  • Rated Current
    5 Ampere
  • Input Voltage
    90V~264V
  • Standards Met
    CB,CE,EAC,TUV,UL
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -30°C~70°C
  • Warranty
    3 Year
  • Length
    10.16 cm
  • Width
    5.08 cm
  • Height
    2.9 cm
  • Weight
    0.2 kg

File Downloads

::specification::

Payment & Security

Payment methods

  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the EPP-100-15 for a 15V industrial control or instrumentation load?

Yes, if the equipment needs constant 15V and the load stays within 75W and 5A. It fits 15V control electronics, instrumentation modules, and other industrial devices built around a fixed 15V rail.

Is the EPP-100-15 appropriate for embedded systems that require a regulated 15V supply?

It can be used for embedded and OEM electronics that need a constant 15V output up to 5A. The 101.6 x 50.8 x 29.0 mm size can also help in compact equipment designs.

Can this 15V power supply run automation interfaces, signal conditioners, or control modules?

It is suitable for 15V automation and control loads when the total demand does not exceed 75W. The maximum output current is 5A, so grouped loads need to be sized against that limit.

Would the EPP-100-15 make sense for a 15V lab fixture or equipment subassembly?

Yes, where the subassembly requires a constant 15V source and fits within the 75W, 5A rating. Its 90-264VAC input allows the same unit to be used across a broad AC input range.

Is the EPP-100-15 rated for hot, cold, or outdoor conditions?

The specified operating temperature range is -30C to +70C. No IP rating is listed, so the temperature range is known, but indoor versus outdoor enclosure suitability is not defined in the provided specs.
