Mean Well

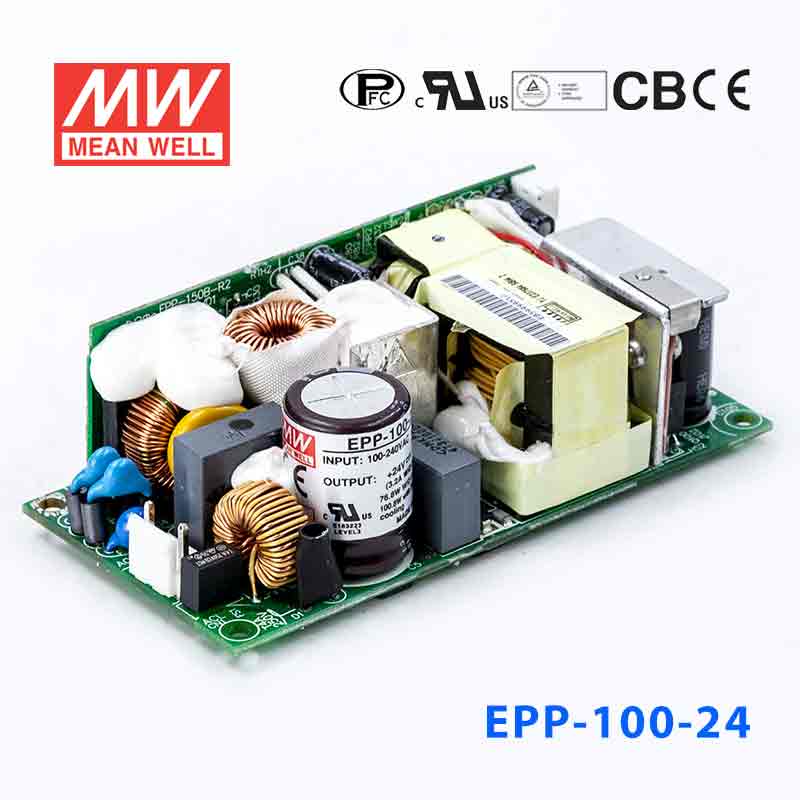

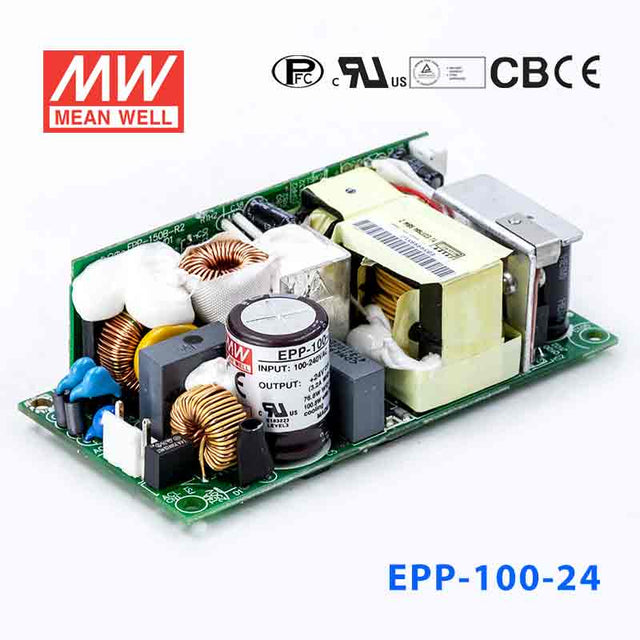

Mean Well EPP-100-24 Power Supply 76W 24V

4" x 2", high efficiency up to 92%, economical PFC, no load power consumption
SKU:
EPP-100-24
End of Life, Succeeded by LOP-200-24
Please for Pricing
|

Description

Features

4"x2" compact size
Universal AC input / Full range
Built-in active PFC function
High efficiency up to 92.5%
Protections: Short circuit/Overload/Over voltage/Over temperature
75W free air convection, 100W with 20CFM forced air
LED indicator for power on
No-load power consumption<0.5W
Built-in 12V/0.3A auxiliary output
3 years warranty

General Specification

AC input voltage range 90~264VAC; 127~370VDC
AC inrush current Cold start 70A/230VAC
Leakage current

<2mA/264VAC
Overload protection 105 ~ 145% rated output power
Over-voltage protection 110%~130% rated output voltage
Setup, rise, hold up time 1000ms, 30ms, 16ms
Withstand voltage I/P-O/P:3KVAC, I/P-FG:2KVAC, O/P-FG:0.5KVAC
Working temperature -30~+70°C
Vibration 10~500Hz, 2G 10min./1 cycle, the period for 60min. Each along X, Y, Z axes
Safety standards UL,TUV BS EN62368-1
EMC standards UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved
Connection I/P: 3 Pin JST B3P-VH, O/P: 4 Pin JST B4P-VH
Dimension (LxWxH) 101.6x50.8x29
Packing 72pcs / 15.4kg

Specifications
  • Brand
    Mean Well
  • Series
    EPP Series
  • Power Rating
    76.8 Watt
  • Output Voltage
    24 Volt
  • Rated Current
    3.2 Ampere
  • Input Voltage
    90V~264V
  • Standards Met
    CB,CE,EAC,TUV,UL
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -30°C~70°C
  • Warranty
    3 Year
  • Length
    10.16 cm
  • Width
    5.08 cm
  • Height
    2.9 cm
  • Weight
    0.2 kg

File Downloads

::specification::

Payment & Security

Payment methods

  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the EPP-100-24 for a 24V PLC panel, sensor bank, or automation controller?

Yes, if the equipment requires constant 24V and the total load remains within 76.8W and 3.2A. That makes it a practical fit for many 24V industrial control and sensing applications.

Is the EPP-100-24 suitable for 24V embedded or OEM equipment inside a compact enclosure?

It can fit 24V OEM and embedded equipment that draws no more than 3.2A from a constant-voltage source. The 101.6 x 50.8 x 29.0 mm footprint is useful where internal mounting space is tight.

Can this model power 24V HMI equipment or industrial communication hardware?

It is appropriate for 24V control and interface devices as long as the combined load stays within 76.8W. Buyers should size the system against the 3.2A maximum output current.

Would the EPP-100-24 work for a 24V test fixture or machine subassembly?

Yes, for fixtures or subassemblies that need a regulated 24V output and do not exceed 76.8W or 3.2A. The 90-264VAC input can also simplify use across different AC supply conditions.

Can the EPP-100-24 be used where temperature swings are expected?

The published operating temperature range is -30C to +70C. No IP rating is shown in the provided specs, so temperature capability is stated, but direct outdoor exposure or wet-area suitability is not confirmed here.
