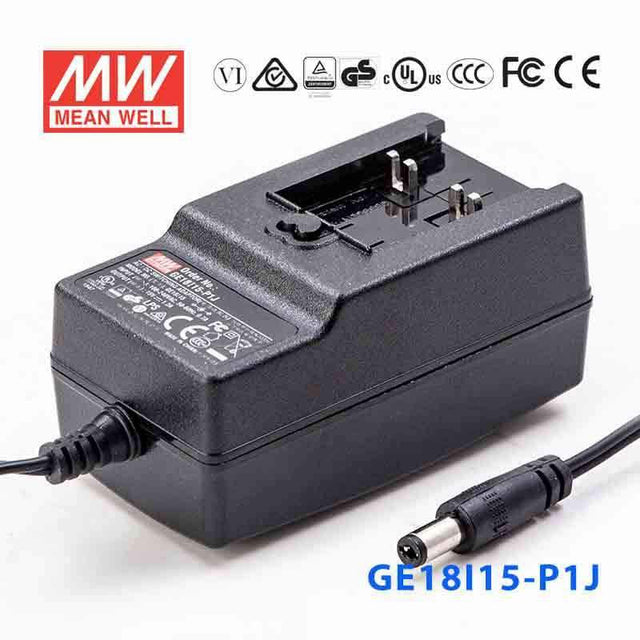

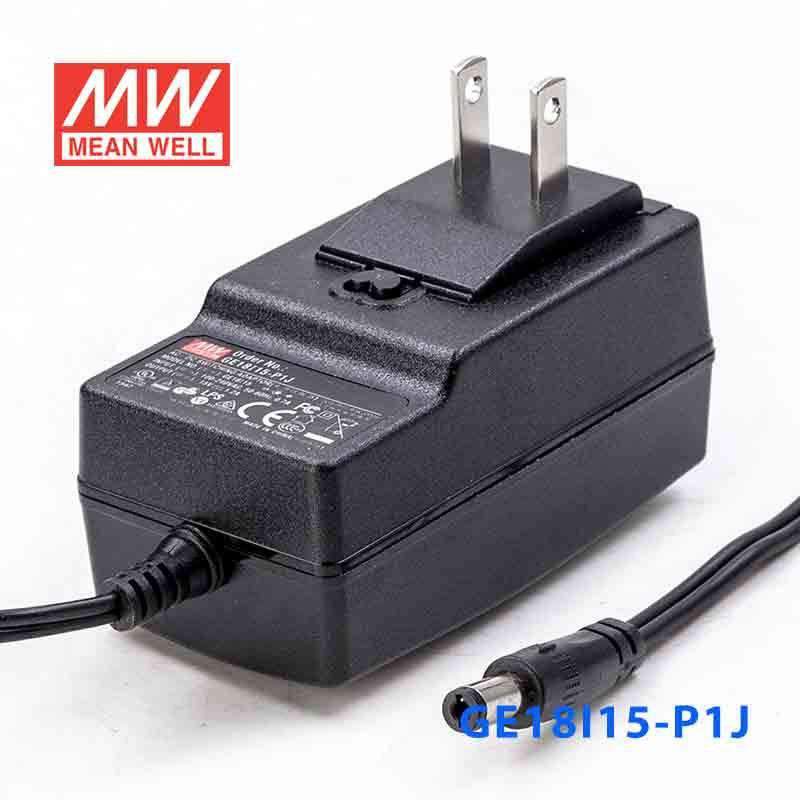

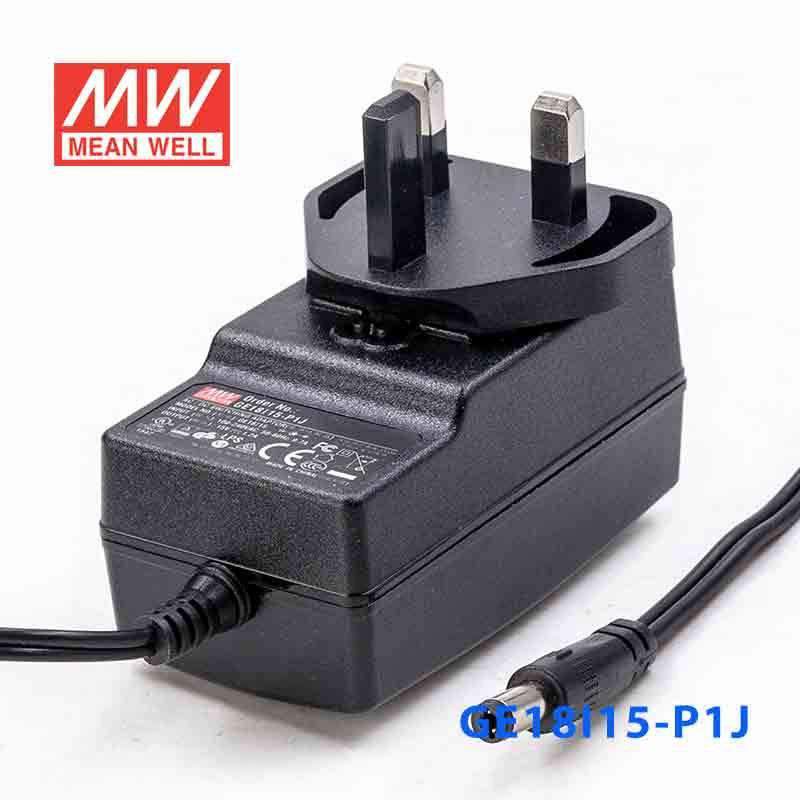

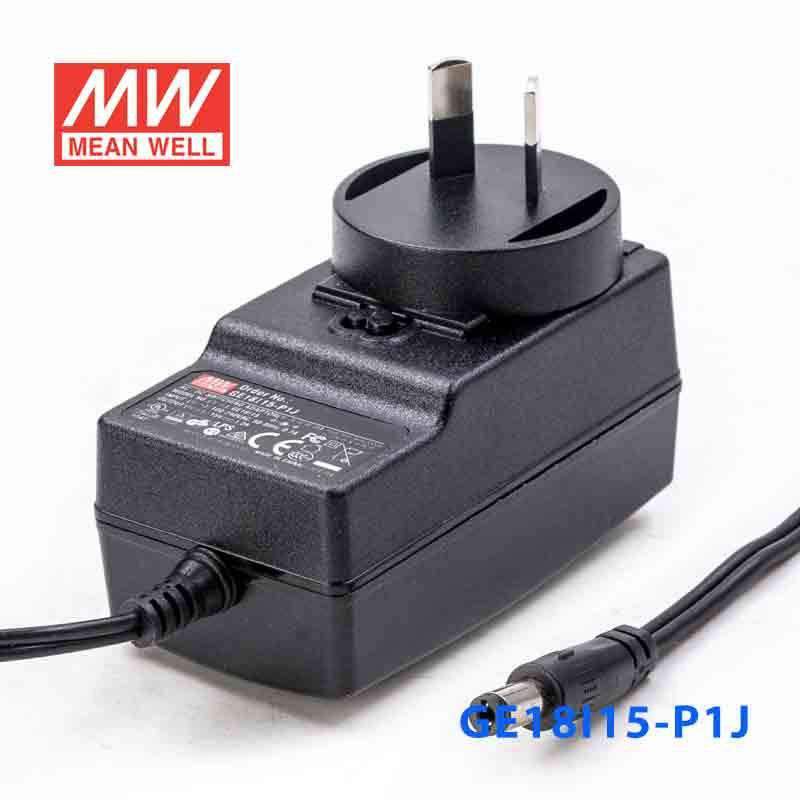

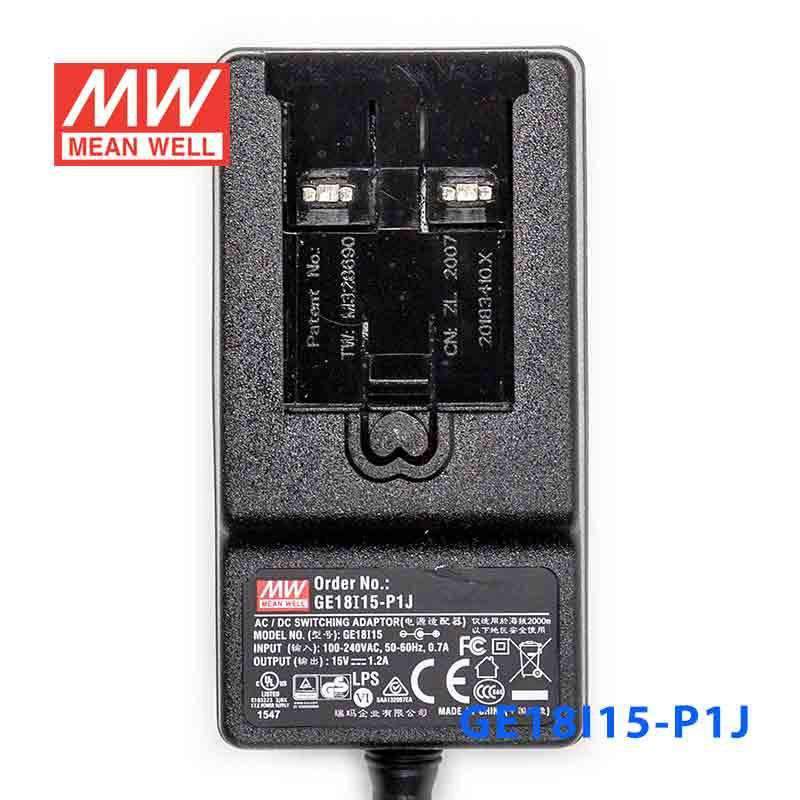

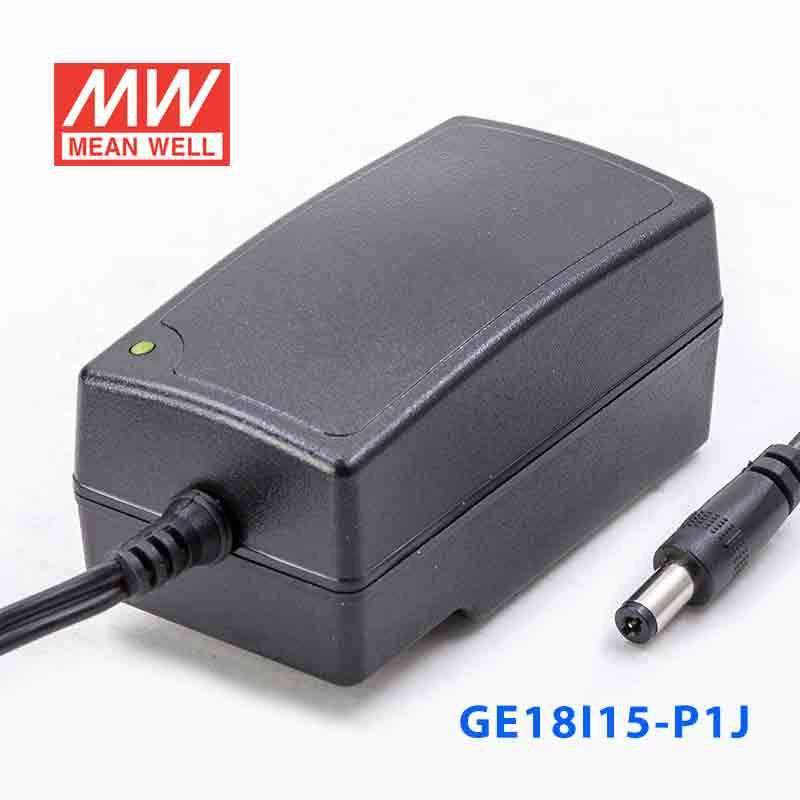

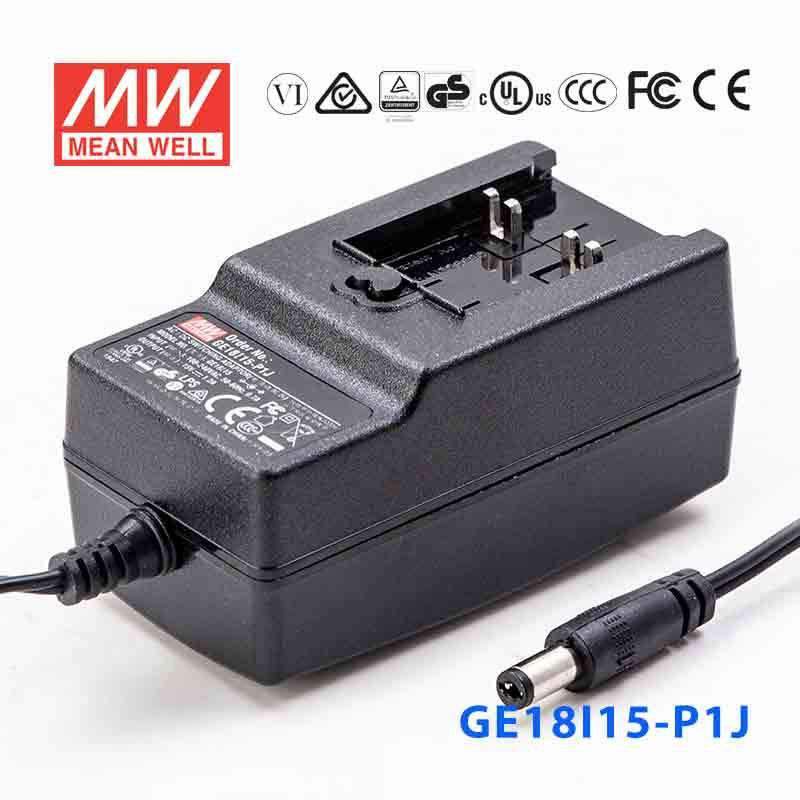

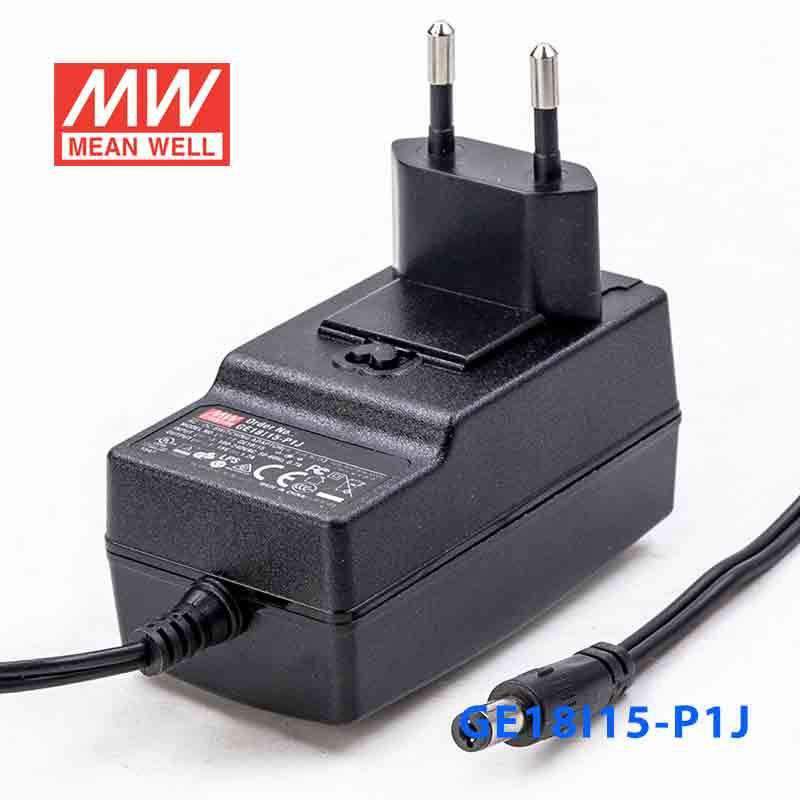

Mean Well GE18I15-P1J Power Supply 18W 15V
Please Login for Pricing
Description
Description
The GE18I15 is a 18W Mean Well power converter (input range: 90~264VAC, operating temperature: -10~+50℃).
Key Features
- ✓ Input voltage range: 90~264VAC
- ✓ Wide operating temperature: -10~+50℃
- ✓ Protections: Short circuit / Overload / Over voltage
- ✓ Safety approvals: -20 ~ +85℃, 10 ~ 95% RH ±0.03% / ℃ (0 ~ 30℃) 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes UL62368-1, CSA C22.2 NO. 62368-1 , TUV EN62368-1, AS/NZS 60950.1, CCC GB4943, EAC TP TC 004
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesGE Series
-
Power Rating18 Watt
-
Output Voltage15 Volt
-
Rated Current1.2 Ampere
-
Input Voltage90V~264V
-
Standards MetCCC,CE,EAC,FCC,RCM,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-10°C~50°C
-
Warranty2 Year
-
Length8.1 cm
-
Width4.3 cm
-
Height4.05 cm
-
Weight0.13 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the GE18I15-P1J for a 15V industrial control or instrumentation device?
Yes, if the load is designed for constant 15V DC and does not exceed 1.2A or 18W. That makes it suitable for compact industrial electronics in the 15V range.
Is this 15V adapter suitable for a small automation sensor hub or interface unit?
It can be suitable when the equipment requires regulated 15V input and stays within 1.2A. The 18W rating is intended for lower-power devices, not larger automation loads.
Can the GE18I15-P1J power a 15V embedded controller or communications accessory?
Yes, for electronics that specify constant 15V DC and a maximum load of 18W. Buyers should confirm the device current requirement does not exceed 1.2A.
Would this work for a compact test, measurement, or lab device that needs 15V?
It may be used for lab or measurement equipment rated for 15V DC constant voltage and no more than 1.2A. The 90-264VAC input range supports operation from a wide range of AC sources.
Can this model be used outdoors or in washdown areas?
This model is better treated as an indoor power supply unless the end equipment provides environmental protection. The listed operating temperature is -10°C to +50°C, and the provided specs do not include an IP rating.
