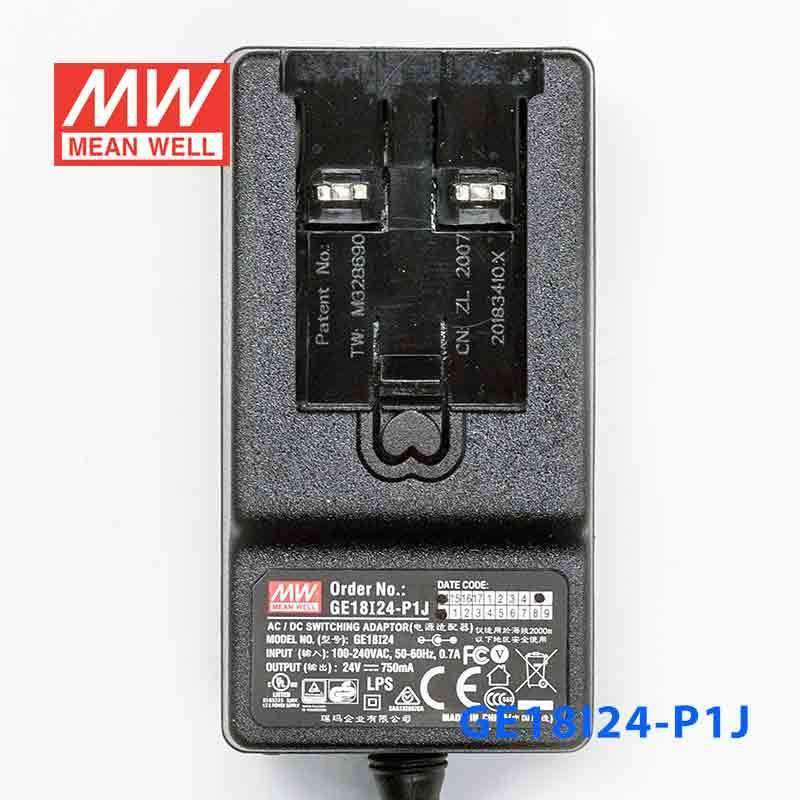

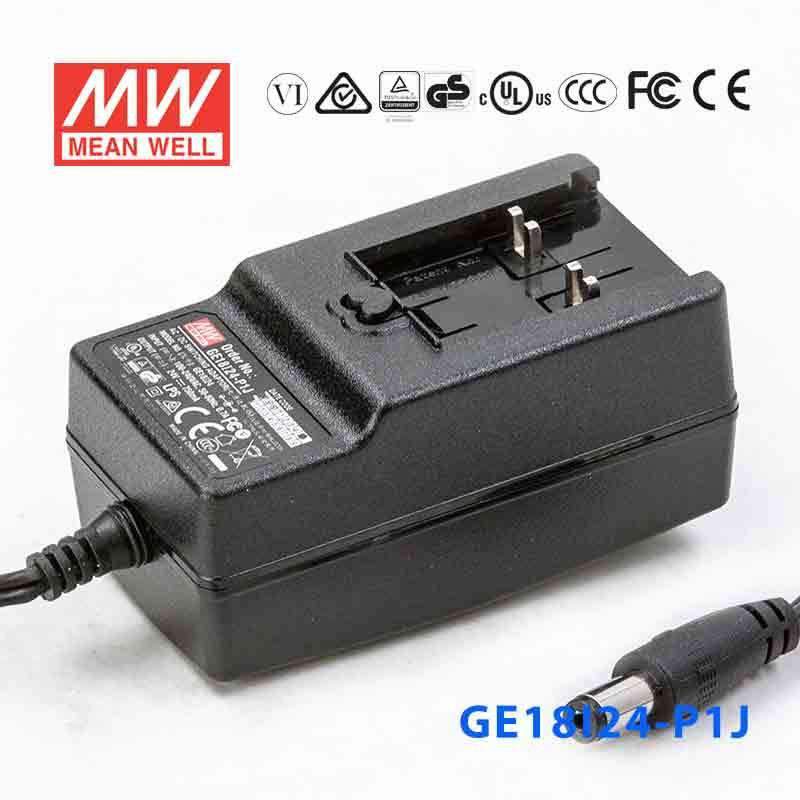

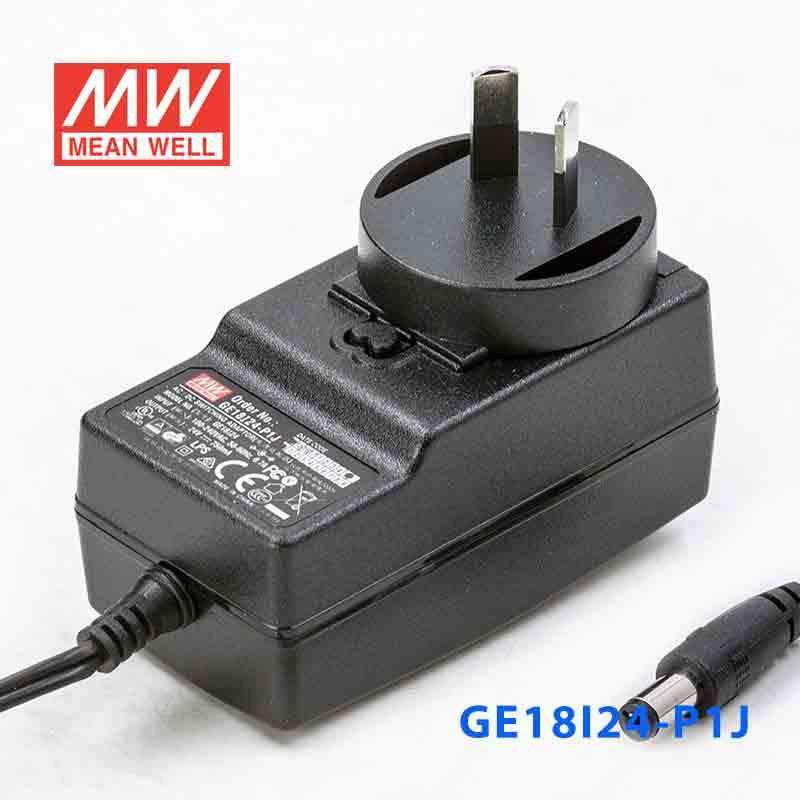

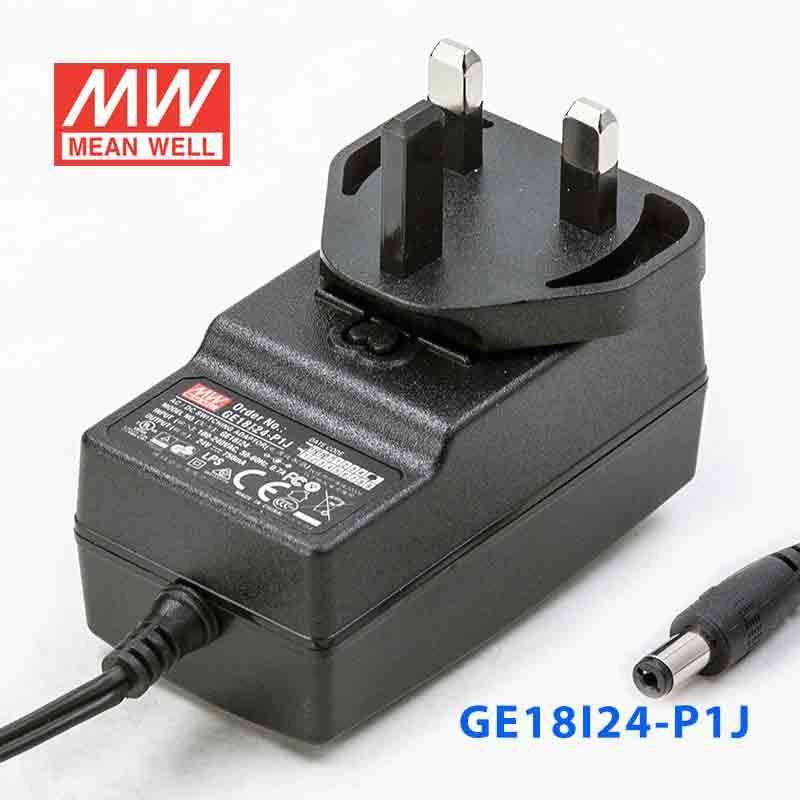

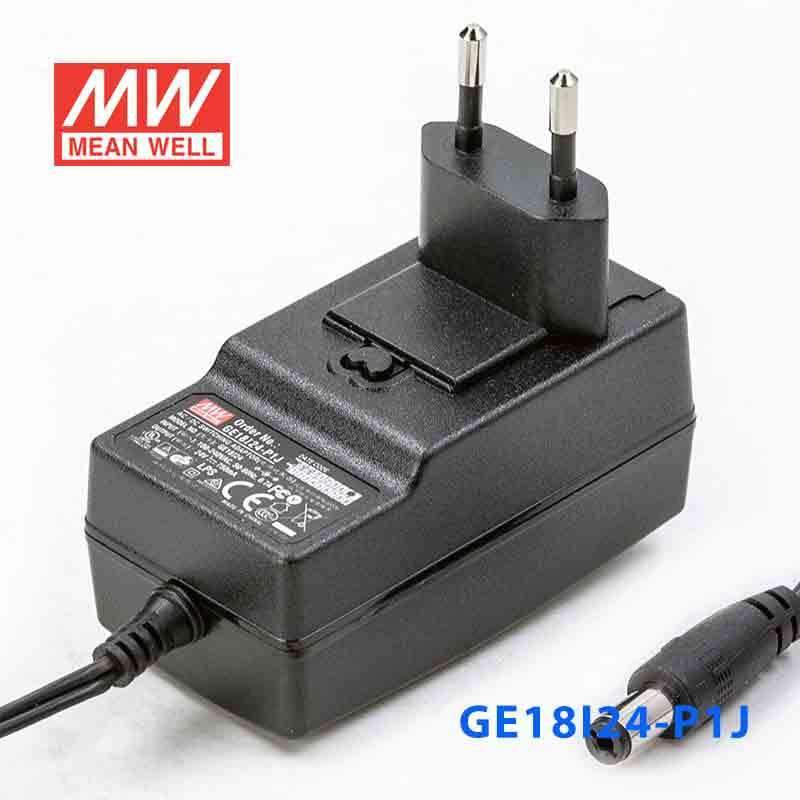

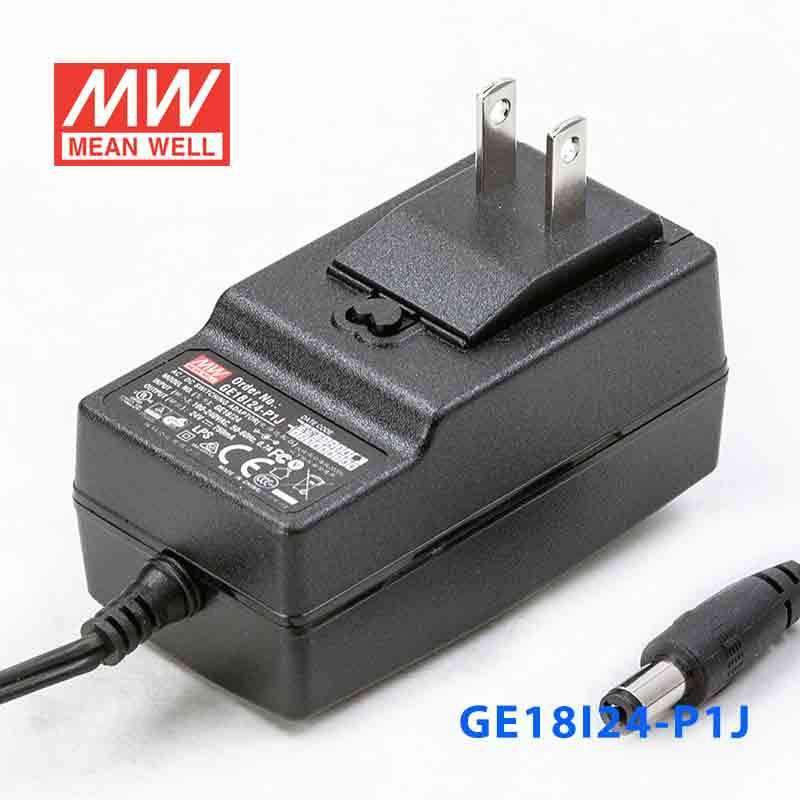

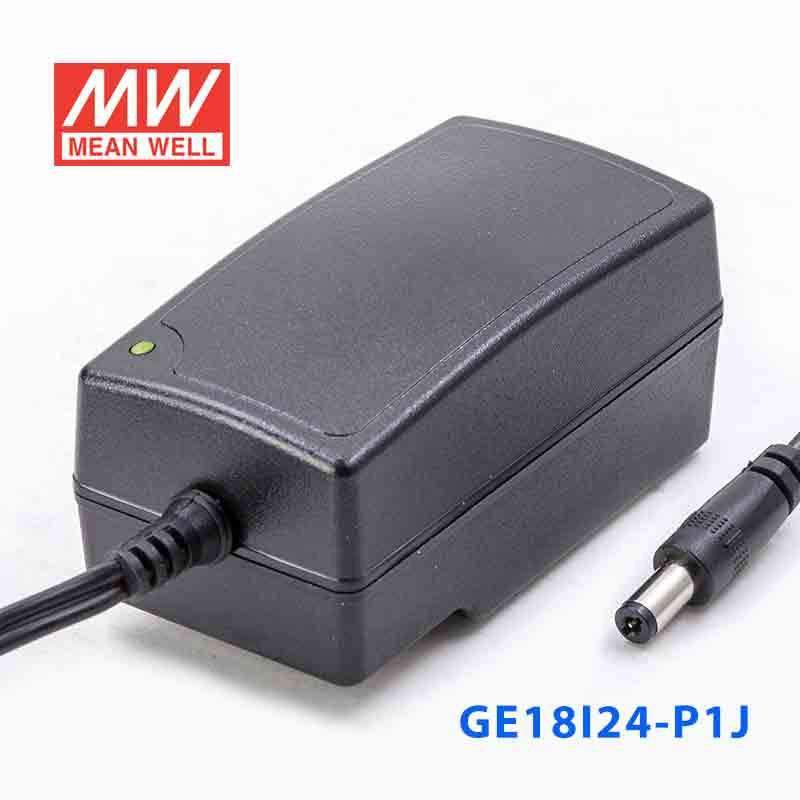

Mean Well GE18I24-P1J Power Supply 18W 24V
Please Login for Pricing
Description
Description
The GE18I24 is a 18W Mean Well power converter (input range: 90~264VAC, operating temperature: -10~+50℃).
Key Features
- ✓ Input voltage range: 90~264VAC
- ✓ Wide operating temperature: -10~+50℃
- ✓ Protections: Short circuit / Overload / Over voltage
- ✓ Safety approvals: -20 ~ +85℃, 10 ~ 95% RH ±0.03% / ℃ (0 ~ 30℃) 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes UL62368-1, CSA C22.2 NO. 62368-1 , TUV EN62368-1, AS/NZS 60950.1, CCC GB4943, EAC TP TC 004
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesGE Series
-
Power Rating18 Watt
-
Output Voltage24 Volt
-
Rated Current0.75 Ampere
-
Input Voltage90V~264V
-
Standards MetCCC,CE,EAC,FCC,RCM,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-10°C~50°C
-
Warranty2 Year
-
Length8.1 cm
-
Width4.3 cm
-
Height4.05 cm
-
Weight0.13 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the GE18I24-P1J for a 24V industrial sensor, I/O block, or small automation accessory?
Yes, if the device needs a constant 24V DC input and draws no more than 0.75A. This model is rated for 18W total output, so it fits lower-power 24V industrial and automation loads within that limit.
Is this 24V adapter suitable for a compact embedded controller or gateway that runs on 24V DC?
It is suitable for embedded or control hardware that requires constant 24V and stays at or below 0.75A. The 18W rating makes it a fit for light-duty 24V electronics rather than higher-draw equipment.
Can this power supply be used for a 24V HMI, panel indicator, or low-power control interface?
It can work for a 24V control interface if the load does not exceed 18W or 0.75A. Because it is a constant-voltage supply, it is intended for equipment designed to take a regulated 24V input.
Is the GE18I24-P1J suitable for outdoor or harsh industrial environments?
The published operating temperature is -10°C to +50°C. No IP rating is listed in the provided specs, so the safe conclusion is indoor use in protected locations rather than exposed outdoor or washdown environments.
What is the difference between the GE18I24-P1J and the other versions in the same series?
The related series variants listed are GE18I24-P1J-欧套, GE18I24-P1J-混套, GE18I24-P1J-澳套, GE18I24-P1J-美套, and GE18I24-P1J-英套. For this base model page, the stated electrical specification is 18W, 24V, 0.75A constant voltage, so compare the exact suffix when selecting among sibling versions.
Other GE18 Models
6 other models| Model | Power | Voltage | Current | |
|---|---|---|---|---|
| Mean Well GE18I12-P1J Power Supply 18W 12V | 18W | 12V | 1.5A | View |
| Mean Well GE18I48-P1J Power Supply 18W 48V | 18W | 48V | 0.37A | View |
| Mean Well GE18I18-P1J Power Supply 18W 18V | 18W | 18V | 1A | View |
| Mean Well GE18I15-P1J Power Supply 18W 15V | 18W | 15V | 1.2A | View |
| Mean Well GE18I07-P1J Power Supply 13W 7.5V | 13W | 7.5V | 1.73A | View |
| Mean Well GE18I05-P1J Power Supply 12W 5V | 12W | 5V | 2.4A | View |
