Description
Description
Features

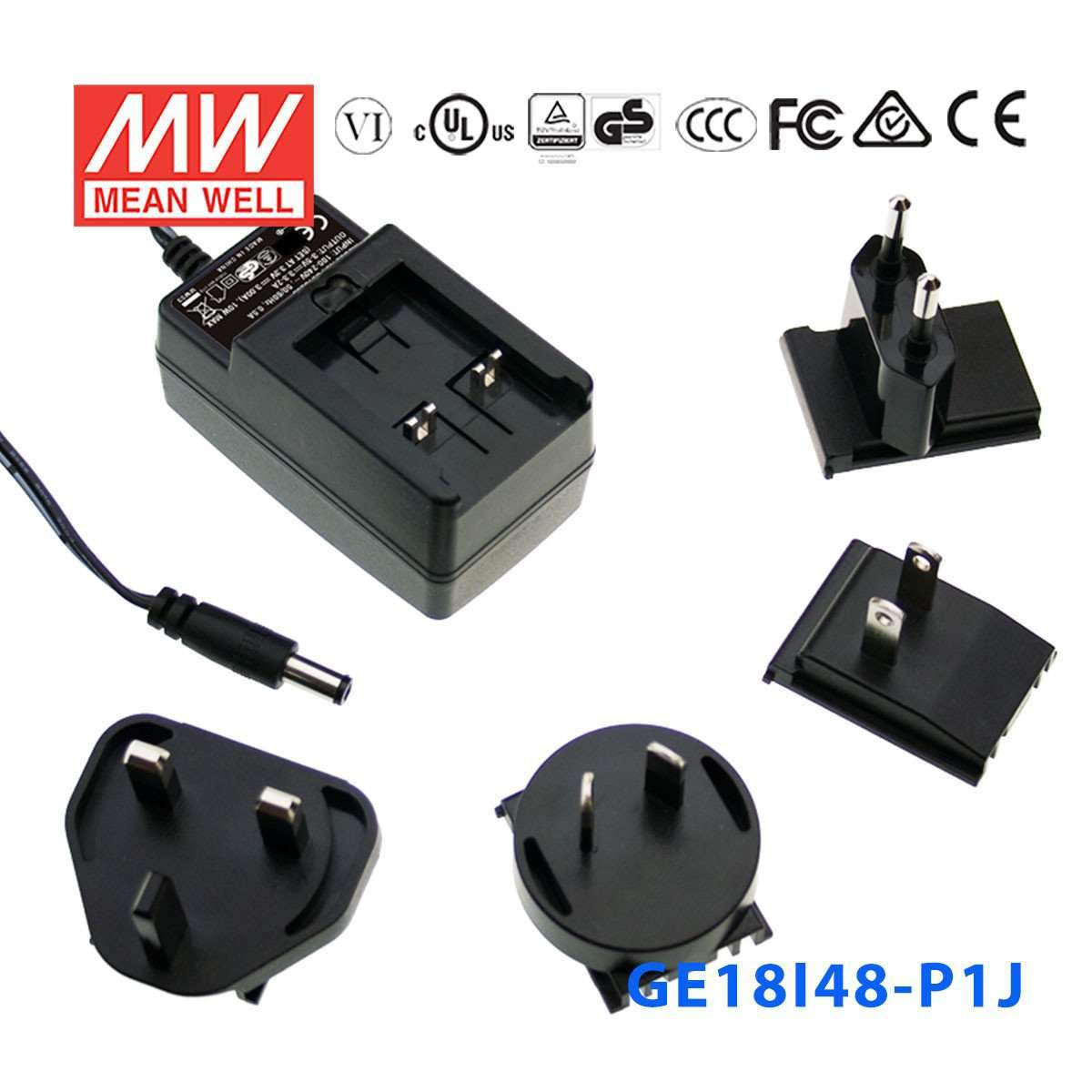

Interchangeable AC plugs (plug kit sold seperately) |
Universal AC input / Full range |
Protections: Short circuit / Overload / Over voltage |
No load power consumption <0.3W |
ErP step 2 compliant (Level V) |
Meet EISA 2007 (Energy Independence and Security Act) |
Class II power (without earth pin) |
Fully enclosed plastic case |
LED indicator for power on |
Pass LPS |
Approvals: UL / CUL / TUV / CCC / RCM / CB / FCC / CE |
2 years warranty |
General Specification
AC input voltage range | 90~264VAC / 0.7A |
AC inrush current (max.) | Cold start, 40A at 100VAC; 80A at 230VAC |
Setup, rise, hold up time | 4000ms, 100ms, 30ms at 230VAC input |
Overload protection | Hiccup mode, auto-recovery |
Over voltage protection | 115%~135% rated output voltage |
Withstand voltage | I/P-O/P:4242VDC, 1 minute |
Working temperature | -10~+50°C (refer to output derating curve) |
Safety standards | UL60950-1, CSA22.2, EN60950-1, GB4943, AS/NZS 60950.1 approved |
EMC standards | EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, FCC part15 class B, GB9254 |
Length of output cable | 150cm of AWM2468, 18AWG |
Dimension (LxWxH) | 70.7x 40x 38.8 mm |
Standard DC plug | P1J: 2.1ID x 5.5OD x 11L, tuning fork type |
Specifications
Specifications
-
BrandMean Well
-
SeriesGE Series
-
Power Rating18 Watt
-
Output Voltage48 Volt
-
Rated Current0.37 Ampere
-
Input Voltage90V~264V
-
Standards MetCCC,CE,EAC,FCC,RCM,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-10°C~50°C
-
Warranty2 Year
-
Length8.1 cm
-
Width4.3 cm
-
Height4.05 cm
-
Weight0.13 kg
