Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

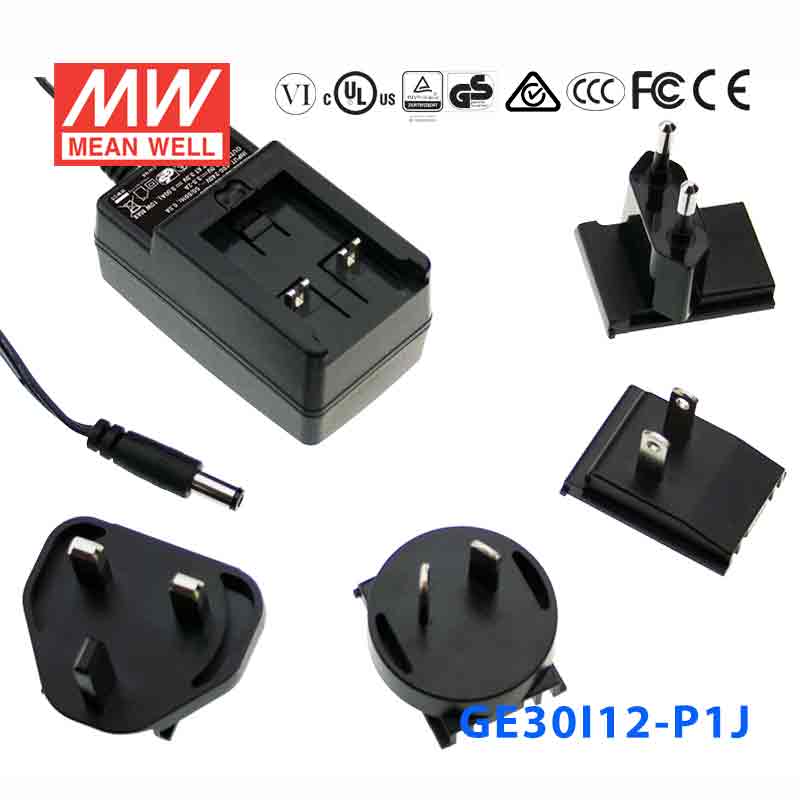

Mean Well GE30I12-P1J Power Supply 30W 12V

SKU:

GE30I12-P1J

End of Life, Succeeded by NGE30I12-P1J

Please for Pricing

Notify me when it's back in stock

Description

The GE30I12 is a 30W Mean Well power converter.

Key Features

✓ Protections: Overload / Over voltage
✓ Safety approvals: UL60950-1, CSA C22.2, TUV EN60950 -1, AS/NZS 60950.1, CCC GB4943
✓ 3 years warranty

Specifications

Brand

Mean Well
Series

GE Series
Power Rating

30 Watt
Output Voltage

12 Volt
Rated Current

2.5 Ampere
Input Voltage

90V~264V
Standards Met

CCC,CE,EAC,FCC,RCM,TUV,UL
Operation Mode

Constant Voltage
Operating Temperature

-10°C~50°C
Warranty

2 Year
Length

8.1 cm
Width

4.3 cm
Height

4.05 cm
Weight

0.13 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the GE30I12-P1J for a 12V industrial control accessory or small automation module?

Yes, if the equipment requires constant-voltage 12V input and the total load stays within 2.5A and 30W. That makes it a fit for smaller 12V industrial or automation devices rather than higher-draw systems.

Is this 12V power supply suitable for embedded systems or edge devices that run on 12V DC?

It can be suitable for embedded or edge hardware designed for 12V constant-voltage power. The available output is 12V at up to 2.5A, with a total power limit of 30W.

Can this unit power a 12V HMI, panel accessory, or low-power industrial display?

It can, provided the device needs 12V constant-voltage input and its total draw does not exceed 30W or 2.5A. Buyers typically use this class of supply for compact 12V support loads, not for large panels or multiple high-draw devices.

Would this work for a 12V automation sensor group or small controller add-on?

It is appropriate when the combined 12V load remains within 2.5A and 30W. Because it is a constant-voltage model, it should only be used with equipment specified for 12V DC input.

Is the GE30I12-P1J intended for indoor or outdoor use?

The listed operating temperature is -10°C to +50°C, but no IP rating is provided in the product specs. Without a stated IP rating, it is best treated as a protected indoor power supply or used inside an enclosure suited to the environment.

Model	Power	Voltage	Current
Mean Well GE30I24-P1J Power Supply 30W 24V	30W	24V	1.25A	View
Mean Well GE30I18-P1J Power Supply 30W 18V	30W	18V	1.66A	View
Mean Well GE30I15-P1J Power Supply 30W 15V	30W	15V	2A	View
