Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

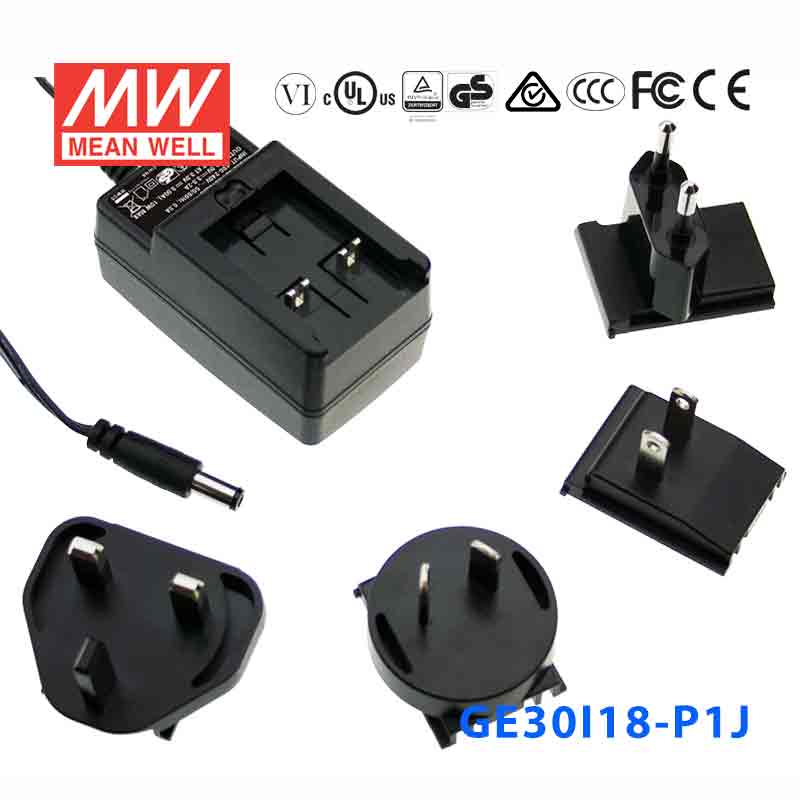

Mean Well GE30I18-P1J Power Supply 30W 18V

SKU:

GE30I18-P1J

End of Life, Succeeded by NGE30I18-P1J

Please for Pricing

Notify me when it's back in stock

Description

The GE30I18 is a 30W Mean Well power converter.

Key Features

✓ Protections: Overload / Over voltage
✓ Safety approvals: UL60950-1, CSA C22.2, TUV EN60950 -1, AS/NZS 60950.1, CCC GB4943
✓ 3 years warranty

Specifications

Brand

Mean Well
Series

GE Series
Power Rating

30 Watt
Output Voltage

18 Volt
Rated Current

1.66 Ampere
Input Voltage

90V~264V
Standards Met

CCC,CE,EAC,FCC,RCM,TUV,UL
Operation Mode

Constant Voltage
Operating Temperature

-10°C~50°C
Warranty

2 Year
Length

8.1 cm
Width

4.3 cm
Height

4.05 cm
Weight

0.13 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the GE30I18-P1J for an 18V industrial control or automation load?

Yes, if the load is designed for constant-voltage 18V DC and stays within 1.66A and 30W. It is suited to smaller 18V control or automation devices that do not need higher output current.

Is this 18V power supply suitable for an embedded system that specifies 18V input?

It can be suitable when the embedded system calls for 18V constant-voltage power. The output limit is 1.66A, with total available power of 30W.

Can this unit run an 18V monitoring, sensing, or instrumentation module?

It can support 18V modules as long as their total draw stays at or below 1.66A and 30W. Because this is a constant-voltage supply, it should be matched only to equipment rated for 18V DC input.

Would this work for a compact 18V automation accessory in a cabinet?

Yes, for compact 18V accessories that fit within the 30W output budget. The small housing size of 81.0 × 43.0 × 40.5 mm can also help where space is limited.

Is the GE30I18-P1J suitable for outdoor installations?

The operating temperature is listed as -10°C to +50°C, but no IP rating is provided. Based on the published specs, it should be treated as a protected indoor unit unless the final installation provides suitable environmental protection.

Model	Power	Voltage	Current
Mean Well GE30I24-P1J Power Supply 30W 24V	30W	24V	1.25A	View
Mean Well GE30I15-P1J Power Supply 30W 15V	30W	15V	2A	View
Mean Well GE30I12-P1J Power Supply 30W 12V	30W	12V	2.5A	View
