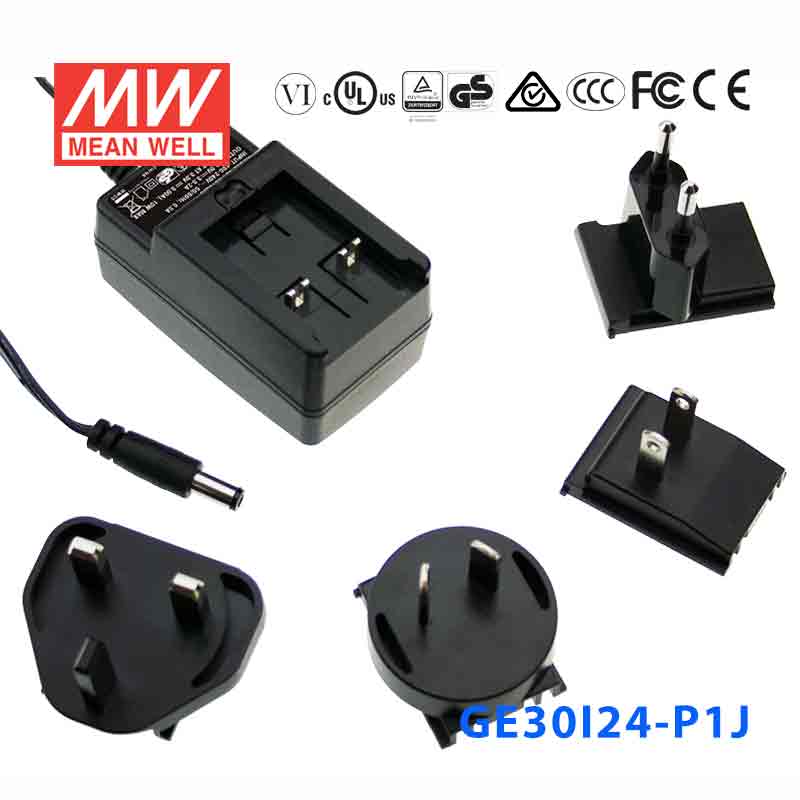

Mean Well GE30I24-P1J Power Supply 30W 24V

SKU:

GE30I24-P1J

End of Life, Succeeded by NGE30I24-P1J

Please for Pricing

Notify me when it's back in stock

Description

The GE30I24 is a 30W Mean Well power converter.

Key Features

✓ Protections: Overload / Over voltage
✓ Safety approvals: UL60950-1, CSA C22.2, TUV EN60950 -1, AS/NZS 60950.1, CCC GB4943
✓ 3 years warranty

Specifications

Brand

Mean Well
Series

GE Series
Power Rating

30 Watt
Output Voltage

24 Volt
Rated Current

1.25 Ampere
Input Voltage

90V~264V
Standards Met

CCC,CE,EAC,FCC,RCM,TUV,UL
Operation Mode

Constant Voltage
Operating Temperature

-10°C~50°C
Warranty

2 Year
Length

8.1 cm
Width

4.3 cm
Height

4.05 cm
Weight

0.13 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the GE30I24-P1J for a 24V PLC accessory or industrial control device?

Yes, if the equipment requires constant-voltage 24V DC and the load stays within 1.25A and 30W. That makes it a fit for lower-power 24V control accessories rather than larger 24V field loads.

Is this suitable for a 24V embedded computer, gateway, or communications device?

It can be used with 24V embedded or communications hardware that operates from constant-voltage DC input. The supply provides 24V at up to 1.25A, with a total output of 30W.

Can this power a 24V sensor interface or compact automation subsystem?

It can, provided the combined 24V load does not exceed 1.25A or 30W. Buyers should confirm the equipment requires 24V constant-voltage power, since this model is not for other output voltages.

Would this work for low-power 24V instrumentation or monitoring equipment?

Yes, for low-power 24V instrumentation that stays within the rated output. This model is intended for 24V applications where 30W is enough and a compact 81.0 × 43.0 × 40.5 mm package is useful.

Can I use this 24V power supply in unprotected outdoor conditions?

The specified operating range is -10°C to +50°C, but the product data does not list an IP rating. Without a stated ingress rating, it should not be assumed to be suitable for direct exposure to weather.

Model	Power	Voltage	Current
Mean Well GE30I18-P1J Power Supply 30W 18V	30W	18V	1.66A	View
Mean Well GE30I15-P1J Power Supply 30W 15V	30W	15V	2A	View
Mean Well GE30I12-P1J Power Supply 30W 12V	30W	12V	2.5A	View
