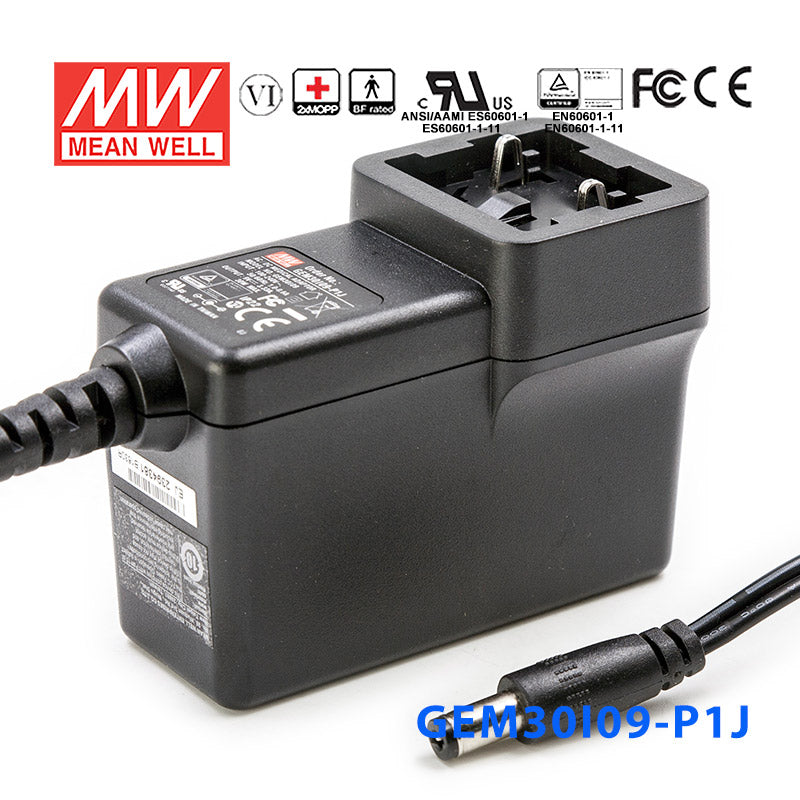

Mean Well GEM30I09-P1J Power Supply 30W 9V 3.33A

SKU GEM30I09-P1J

Log in to see price Trade pricing & online ordering for account holders

End of Life, Succeeded by NGE30I09-P1J

Available to order

Overview

GEM30I09-P1J is the 9V output model of this series: rated current 3.33A, typical efficiency 87%.

GEM30I is a highly reliable, 30W wall-mounted style single-output green medical adaptor series, which is compact and convenient for carry. This product is equipped with an interchangeable AC plug (4 types, including European type, USA type, U.K. type and Australian type) that makes it very suitable for businessmen to use in the major countries around the globe. GEM30I is a class Ⅱ power unit (no FG), accepting the input range from 80VAC to 264VAC that it can satisfy the demands for various types of medical electrical devices. The circuitry design meets the international medical standards (2*MOPP), having an ultra low leakage current (<100 μA), fitting the medical devices in direct electrical contact with the patients. With the working efficiency up to 90% and the extremely low no-load power consumption below 0.1W, GEM30I is compliant with the latest USA energy regulation EISA 2007/DoE(Level Ⅵ) and EU ErP. The supreme feature allows the adaptor to save the energy when it is under either the operating mode or the standby mode. The entire series is approved for international safety regulations; moreover, it adopts the 94V-0 flame retardant plastic case that it can effectively prevent users from electric hazard.

Features

Interchangeable AC plugs (plug kit sold separately)
Medical safety approved (2 x MOPP) according to ANSI/AAMI ES60601-1/ES60601-1-11,BS EN/EN60601-1/ BS EN/EN60601-1-11
Extremely Low leakage current
No load power consumption< 0.1W
Energy efficiency Level Ⅵ
-25~+70℃ wide range working temperature
Class Ⅱ power (no earth pin)
Protections: Short circuit / Overload / Over voltage
Fully enclosed plastic case
Various DC plug quick adapter accessory available (Plug kit sold separately, please refer to : https://www.meanwell.com/upload/pdf/DC_plug.pdf)
3 years warranty

Specifications

GEM30I09-P1JSpecifications from the official datasheet (2022-04-15 edition)

OUTPUT

SAFETY MODEL NO.: GEM30I09
DC VOLTAGE^Note.2: 9V
RATED CURRENT: 3.33A
CURRENT RANGE: 0 ~ 3.33A
RATED POWER (max.): 30W
RIPPLE & NOISE (max.)^Note.3: 100mVp-p
VOLTAGE TOLERANCE^Note.4: ±5.0%
LINE REGULATION^Note.5: ±1.0%
LOAD REGULATION^Note.6: ±5.0%
SETUP, RISE, HOLD UP TIME: 500ms, 100ms, 16ms/230VAC 500ms, 100ms, 16ms/115VAC at full load

INPUT

VOLTAGE RANGE^Note.7: 80 ~ 264VAC 113 ~ 370VDC
FREQUENCY RANGE: 47 ~ 63Hz
EFFICIENCY (Typ.): 87%
AC CURRENT: 1A / 115VAC 0.6A / 230VAC
INRUSH CURRENT (max.): Cold start 30A / 115VAC 65A / 230VAC
LEAKAGE CURRENT(max.): Touch current < 100μA/264VAC

PROTECTION

OVERLOAD: 120 ~ 200% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 110 ~ 140% rated output voltage Protection type : Clamp by zener diode, output short

ENVIRONMENT

WORKING TEMP.: -25 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -25 ~ +85℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: ±0.03% / ℃ (0 ~ 40℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: ANSI/AAMI ES60601-1 / 60601-1-11, TUV BS EN/EN60601-1 / 60601-1-11, EAC TP TC 004 approved
ISOLATION LEVEL: Pimary - Secondary: 2 x MOPP
WITHSTAND VOLTAGE: I/P-O/P:5656VDC
ISOLATION RESISTANCE: I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Parameter Standard Test Level

Conducted emission BS EN/EN55011 (CISPR11),FCC PART 18 Class B
Radiated emission BS EN/EN55011 (CISPR11),FCC PART 18 Class B
Harmonic current BS EN/EN61000-3-2 Class A
Voltage flicker BS EN/EN61000-3-3
EMC IMMUNITY: BS EN/EN60601-1-2, BS EN/EN61204-3

Parameter Standard Test Level

ESD BS EN/EN61000-4-2 Level 4, 15KV air; Level 4, 8KV contact
RF field susceptibility BS EN/EN61000-4-3 Level 3, 10V/m(80MHz~2.7GHz) Table 9, 9~28V/m(385MHz~5.78GHz)
EFT bursts BS EN/EN61000-4-4 Level 3, 2KV
Surge susceptibility BS EN/EN61000-4-5 Level 3, 1KV/Line-Line
Conducted susceptibility BS EN/EN61000-4-6 Level 2, 3V
Magnetic field immunity BS EN/EN61000-4-8 Level 4, 30A/m
Voltage dip, interruption BS EN/EN61000-4-11 >95% dip 0.5 periods, 30% dip 25 periods, >95% interruptions 250 periods

Parameter	Standard	Test Level
Conducted emission	BS EN/EN55011 (CISPR11),FCC PART 18	Class B
Radiated emission	BS EN/EN55011 (CISPR11),FCC PART 18	Class B
Harmonic current	BS EN/EN61000-3-2	Class A
Voltage flicker	BS EN/EN61000-3-3

Parameter	Standard	Test Level
ESD	BS EN/EN61000-4-2	Level 4, 15KV air; Level 4, 8KV contact
RF field susceptibility	BS EN/EN61000-4-3	Level 3, 10V/m(80MHz~2.7GHz) Table 9, 9~28V/m(385MHz~5.78GHz)
EFT bursts	BS EN/EN61000-4-4	Level 3, 2KV
Surge susceptibility	BS EN/EN61000-4-5	Level 3, 1KV/Line-Line
Conducted susceptibility	BS EN/EN61000-4-6	Level 2, 3V
Magnetic field immunity	BS EN/EN61000-4-8	Level 4, 30A/m
Voltage dip, interruption	BS EN/EN61000-4-11	>95% dip 0.5 periods, 30% dip 25 periods, >95% interruptions 250 periods

OTHERS

LIFE: 3 years : 100% load 40℃, 12hours / day
MTBF: 400Khrs min. MIL-HDBK-217F(25℃)
DIMENSION: 75.5*39.1*56.2mm (L*W*H)
PACKING: 192g ; 60pcs / 12.5kg / CARTON

CONNECTOR

PLUG: See page 4~5 ; other type available by customer requested
CABLE: See page 4~5 ; other type available by customer requested

Certifications & ratings

IP level: IP21

Test conditions and notes8

1.All parameters are specified at 230VAC input, rated load, 25℃ 70% RH ambient.
2.DC voltage: The output voltage set at point measure by plug terminal & 50% load.
3.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1μf & 47μf capacitor.
4.Tolerance: includes set up tolerance, line regulation, load regulation.
5.Line regulation is measured from low line to high line at rated load.
6.Load regulation is measured from 10% to 100% rated load.
7.Derating may be needed under low input voltage. Please check the derating curve for more details.
8.The power supply is considered as an independent unit, but the final equipment still need to re-confirm that the whole system complies with the EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on http://www.meanwell.com)

Technical drawings

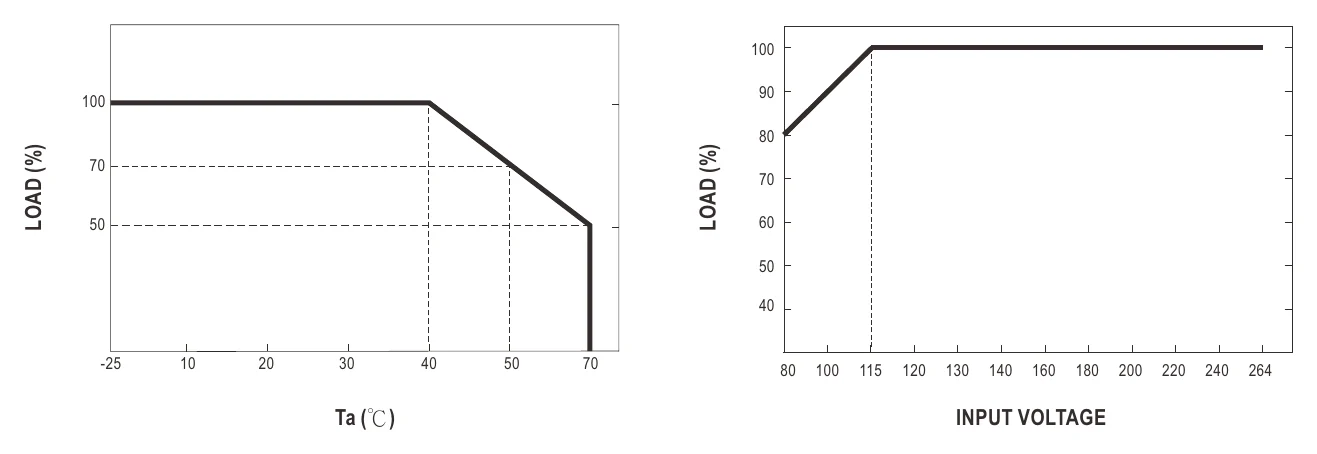

GEM30I09-P1J Derating Curve — Derating Curve

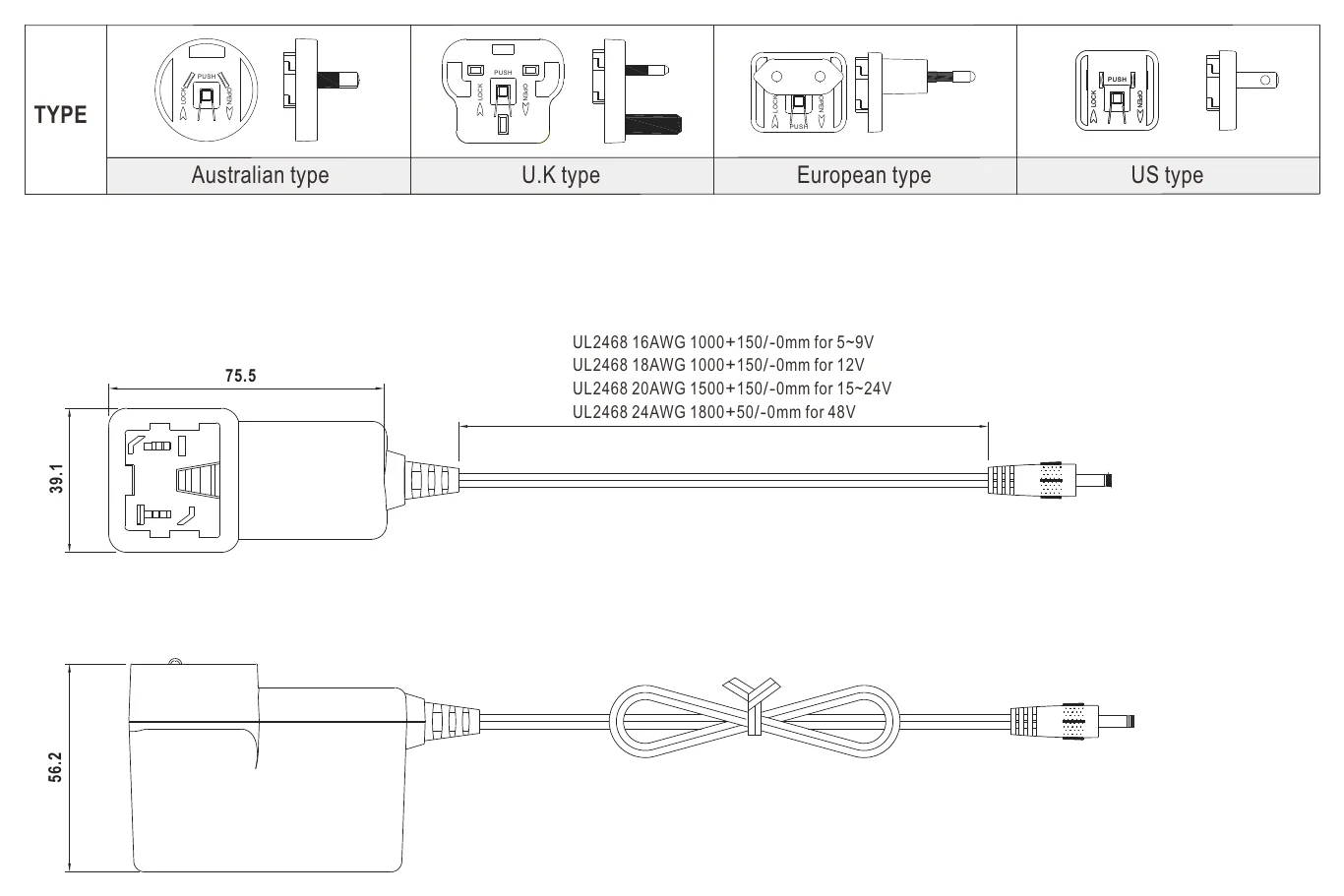

GEM30I09-P1J Mechanical Specification — Mechanical Specification

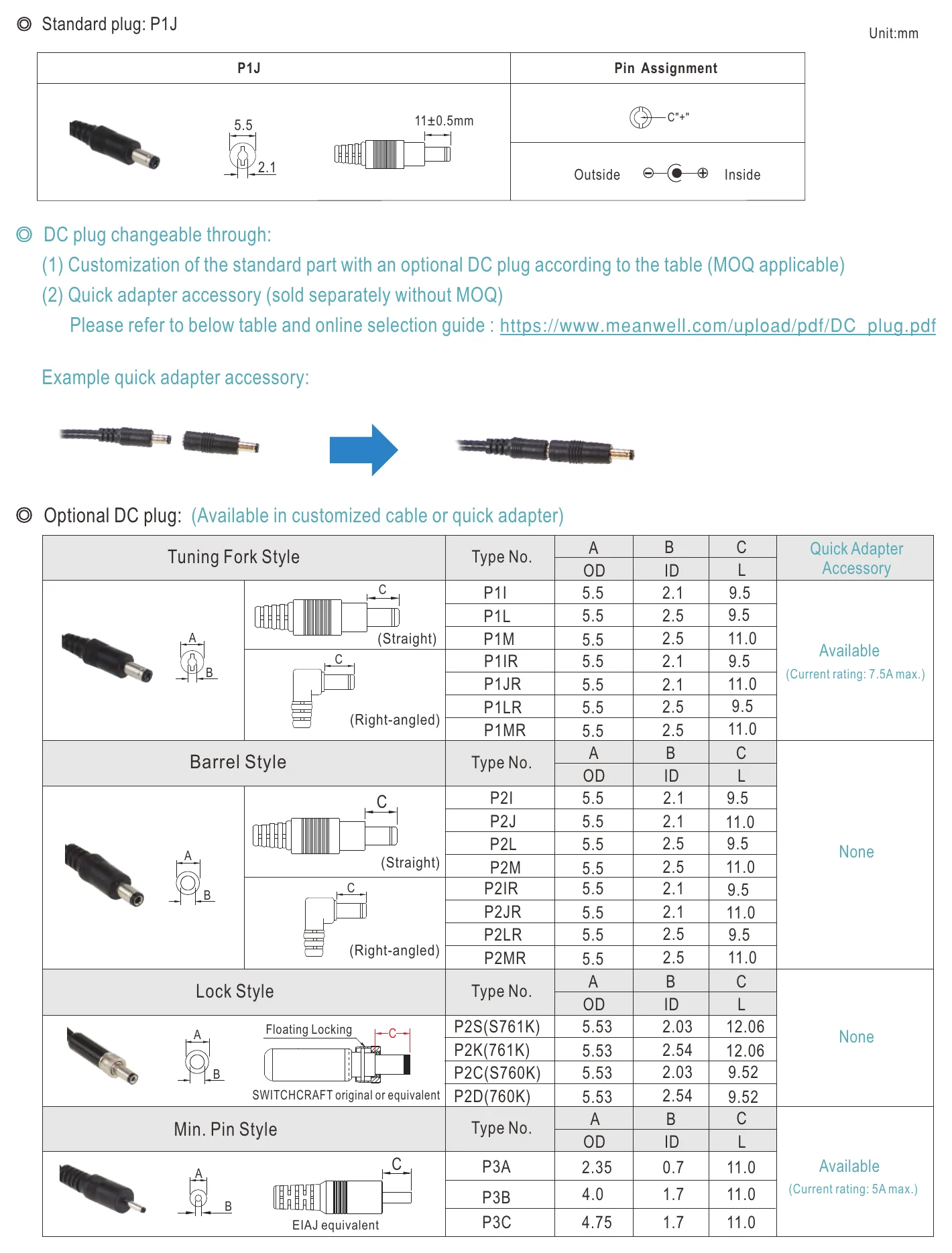

GEM30I09-P1J DC output plug — DC output plug

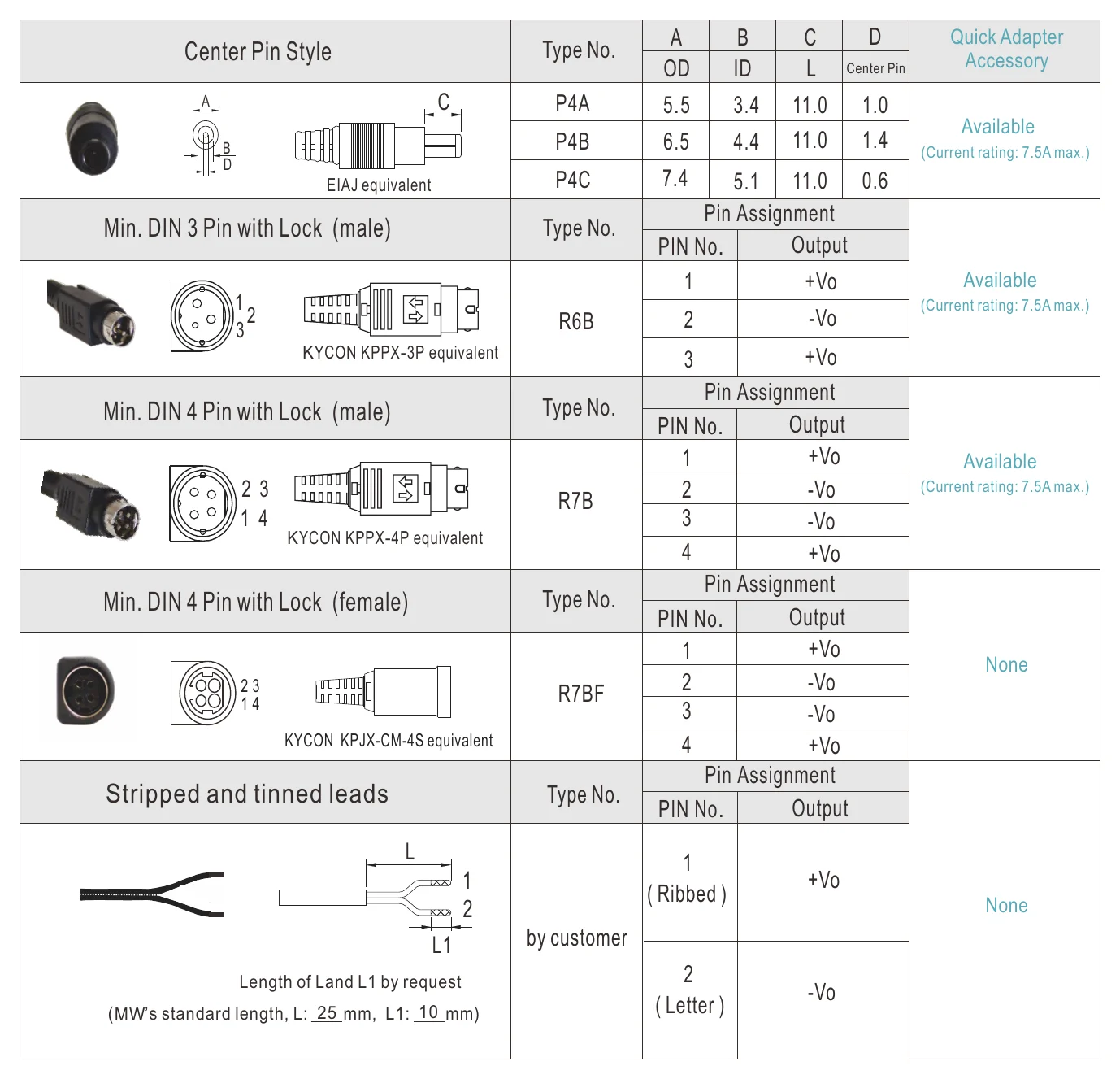

GEM30I09-P1J Illustration (page 5) — Illustration (page 5)

Typical applications

Downloads

Certificates8

Mean Well E227340 UL Certificate PDF Download

Mean Well 0147476-EAC Certificate PDF Download

Mean Well GEM30-40I-TUV Certificate PDF Download

Mean Well GEM30I-40I-CB.PDF Certificate PDF Download

Mean Well GEM30-40I-FCC Certificate PDF Download

Mean Well GEM30-40I-EMC Certificate PDF Download

Mean Well GEM30-40I-CE-dec Certificate PDF Download

Mean Well GEM30I-40I-UK-dec Certificate PDF Download

Test reports1

Mean Well GEM30x09 Test Report PDF Download

Catalogues3

Mean Well Medical Catalog PDF Download

Mean Well Adaptor Catalog PDF Download

Mean Well Catalog (Industrial) PDF Download

FAQ

Can I use the GEM30I09-P1J for 9V industrial or embedded electronics?

Yes, when the target device requires constant 9V DC and its load stays within 3.33A and 30W. It is appropriate for electronics built around a 9V input rail rather than higher-voltage automation power standards.

Is this 9V power supply suitable for compact control modules or monitoring devices?

It can be used for compact control or monitoring devices that specify a 9V constant voltage input. The available output is 30W maximum at up to 3.33A, so it should be matched to lower-power 9V equipment.

Can the GEM30I09-P1J power a 9V communications or interface device?

It may be a fit for communications or interface devices that are designed for constant 9V DC operation. The wide 80-264VAC input range is useful where incoming AC power may vary across sites or regions.

How does the GEM30I09-P1J compare to the other GEM30I09-P1J versions?

The sibling versions of GEM30I09-P1J are the same adaptor supplied with a different interchangeable AC plug: European (AC plug-EU2), mixed four-type set (AC plug-MIX2), Australian (AC plug-AU2), US (AC plug-US2) or U.K. (AC plug-UK2). The listed specs for this base version are 30W, 9V, 3.33A, 80-264VAC input, 75.5 × 39.1 × 56.2 mm (L × W × H) dimensions, 0.192 kg weight, -25°C to +70°C operation (with derating), and ANSI/AAMI ES60601-1, TUV BS EN/EN60601-1 / 60601-1-11 and EAC safety approvals, with FCC Part 18 Class B emissions.

Can this adapter be used in demanding indoor temperature conditions?

Its operating temperature range is -25°C to +70°C, with load derating at higher temperatures per the derating curve, so the rated window is broad for indoor equipment use. The unit is rated IP21, so it should be placed in a protected indoor location.
