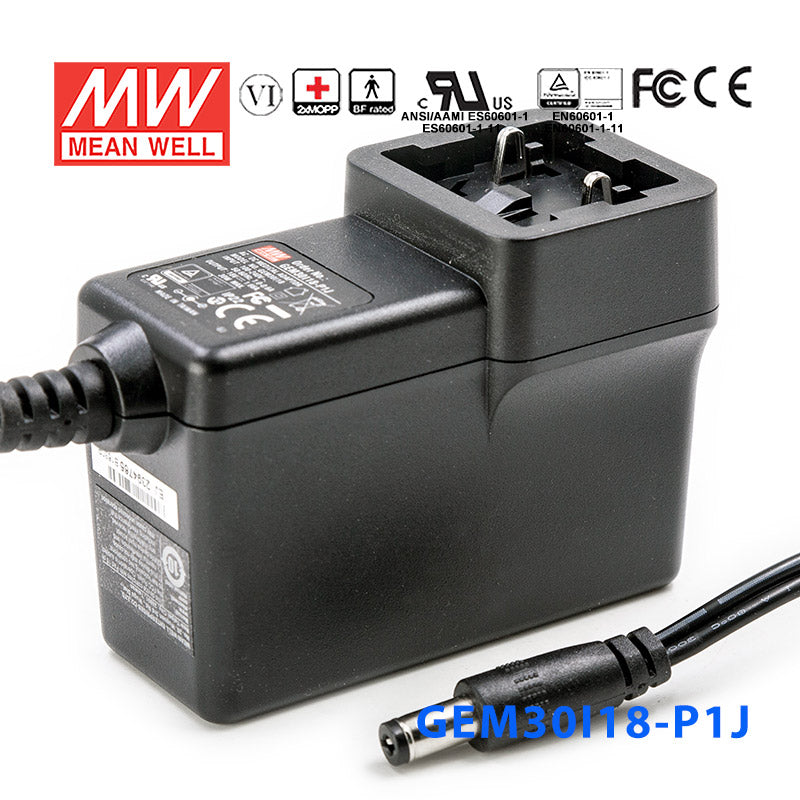

Mean Well GEM30I18-P1J Power Supply 30W 18V

SKU:

GEM30I18-P1J

End of Life, Succeeded by NGE30I18-P1J

Please for Pricing

Notify me when it's back in stock

Description

The GEM30I18 is a 30W Mean Well power converter.

Key Features

✓ Protections: Short circuit / Overload / Over voltage
✓ Safety approvals: ANSI/AAMI ES60601-1 / 60601-1-11, TUV EN60601-1 / 60601-1-11, EAC TP TC 004
✓ 3 years warranty

Specifications

Brand

Mean Well
Series

GEM Series
Power Rating

30 Watt
Output Voltage

18 Volt
Rated Current

1.66 Ampere
Input Voltage

80V~264V
Standards Met

CB,CE,EAC,FCC,TUV,UL
Operation Mode

Constant Voltage
Operating Temperature

-25°C~70°C
Warranty

3 Year
Length

7.55 cm
Width

5.62 cm
Height

3.91 cm
Weight

0.19 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the GEM30I18-P1J with an 18V embedded system or control board?

Yes, if the equipment requires a constant-voltage 18V DC source and draws no more than 1.66A. This model provides up to 30W, which makes it appropriate for smaller 18V embedded and control electronics.

Is this a good fit for 18V industrial inspection or sensing equipment?

It can be used for 18V devices such as compact inspection modules or sensing equipment when the load stays within 1.66A. The 80-264VAC input is also useful where the same equipment may be deployed in different AC input regions.

Can this power a small 18V automation device in a control cabinet?

Yes, for cabinet-based equipment that needs regulated 18V DC at up to 1.66A. Because it is a 30W constant-voltage unit, it is better matched to light 18V automation loads than to higher-current devices.

Is the GEM30I18-P1J suitable for outdoor or harsh exposed locations?

The operating temperature range is -25°C to +70°C, so the temperature limits are specified. However, the provided specs do not include an IP rating, which means outdoor exposure or wet-location suitability is not defined in this product data.

How do the GEM30I18-P1J sibling versions compare?

The sibling list includes GEM30I18-P1J-欧套, GEM30I18-P1J-混套, GEM30I18-P1J-澳套, GEM30I18-P1J-美套, and GEM30I18-P1J-英套. Across the base product, the stated specs are 30W output, 18V, 1.66A, constant-voltage operation, 80-264VAC input, 75.5 × 56.2 × 39.1 mm size, -25°C to +70°C operating temperature, and a 3-year warranty.

Model	Power	Voltage	Current
Mean Well GEM30I48-P1J Power Supply 30W 48V	30W	48V	0.62A	View
Mean Well GEM30I24-P1J Power Supply 30W 24V	30W	24V	1.25A	View
Mean Well GEM30I15-P1J Power Supply 30W 15V	30W	15V	2A	View
Mean Well GEM30I12-P1J Power Supply 30W 12V	30W	12V	2.5A	View
Mean Well GEM30I09-P1J Power Supply 30W 9V	30W	9V	3.33A	View
Mean Well GEM30I07-P1J Power Supply 25W 7.5V	25W	7.5V	3.33A	View
Mean Well GEM30I05-P1J Power Supply 20W 5V	20W	5V	4A	View
