Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

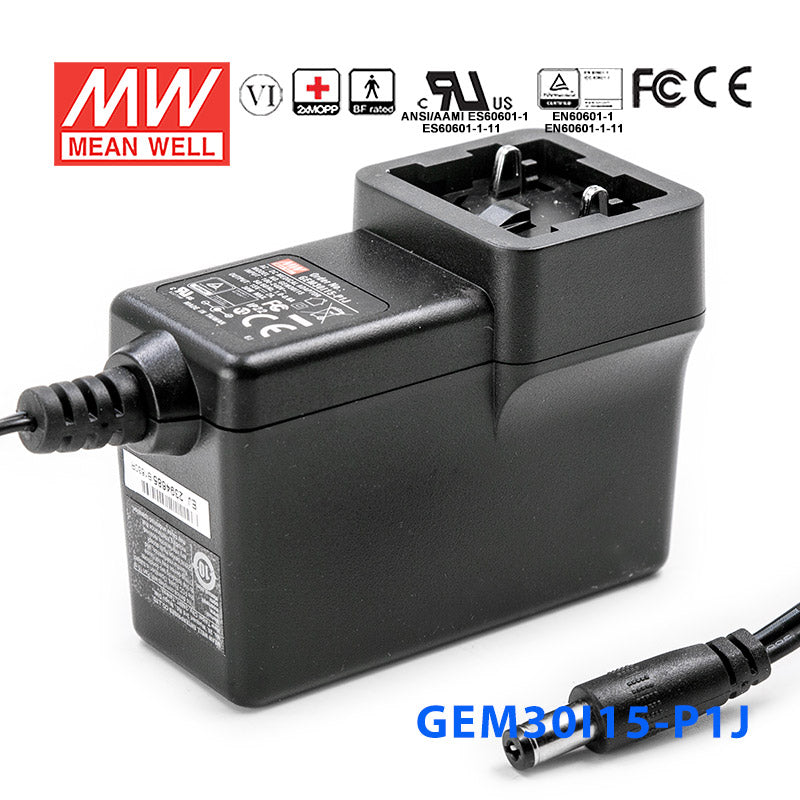

Mean Well GEM30I15-P1J Power Supply 30W 15V

SKU:

GEM30I15-P1J

End of Life, Succeeded by NGE30I15-P1J

Please for Pricing

Notify me when it's back in stock

Description

The GEM30I15 is a 30W Mean Well power converter.

Key Features

✓ Protections: Short circuit / Overload / Over voltage
✓ Safety approvals: ANSI/AAMI ES60601-1 / 60601-1-11, TUV EN60601-1 / 60601-1-11, EAC TP TC 004
✓ 3 years warranty

Specifications

Brand

Mean Well
Series

GEM Series
Power Rating

30 Watt
Output Voltage

15 Volt
Rated Current

2 Ampere
Input Voltage

80V~264V
Standards Met

CB,CE,EAC,FCC,TUV,UL
Operation Mode

Constant Voltage
Operating Temperature

-25°C~70°C
Warranty

3 Year
Length

7.55 cm
Width

5.62 cm
Height

3.91 cm
Weight

0.19 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the GEM30I15-P1J for a 15V industrial control module or interface board?

Yes, this model is a constant-voltage 15V supply rated for up to 2A. It fits control modules, interface boards, or embedded electronics that require 15V DC and stay within the 30W output limit.

Is this power supply suitable for 15V test and measurement equipment?

It can be a fit for bench or field equipment that needs a regulated 15V DC source at up to 2A. The wide 80-264VAC input also helps when the equipment may be used across different AC mains ranges.

Can I use this for a small 15V automation accessory or sensor-powered device?

Yes, if the device is designed for constant-voltage 15V input and does not exceed 2A. With a 30W rating, it is better suited to low-power automation accessories than larger 15V loads.

Will this work in a cold plant cabinet or a warm equipment enclosure?

The specified operating temperature range is -25°C to +70°C, so the temperature range is defined for both colder and warmer indoor equipment areas. The provided specs do not list an IP rating, so exposure to dust, rain, or washdown conditions is not established by this data.

What is the difference between the GEM30I15-P1J sibling versions?

The listed siblings are GEM30I15-P1J-欧套, GEM30I15-P1J-混套, GEM30I15-P1J-澳套, GEM30I15-P1J-美套, and GEM30I15-P1J-英套. The base electrical specs remain 30W, 15V, 2A, constant voltage, 80-264VAC input, 75.5 × 56.2 × 39.1 mm dimensions, -25°C to +70°C operation, and a 3-year warranty.

Model	Power	Voltage	Current
Mean Well GEM30I48-P1J Power Supply 30W 48V	30W	48V	0.62A	View
Mean Well GEM30I24-P1J Power Supply 30W 24V	30W	24V	1.25A	View
Mean Well GEM30I18-P1J Power Supply 30W 18V	30W	18V	1.66A	View
Mean Well GEM30I12-P1J Power Supply 30W 12V	30W	12V	2.5A	View
Mean Well GEM30I09-P1J Power Supply 30W 9V	30W	9V	3.33A	View
Mean Well GEM30I07-P1J Power Supply 25W 7.5V	25W	7.5V	3.33A	View
Mean Well GEM30I05-P1J Power Supply 20W 5V	20W	5V	4A	View
