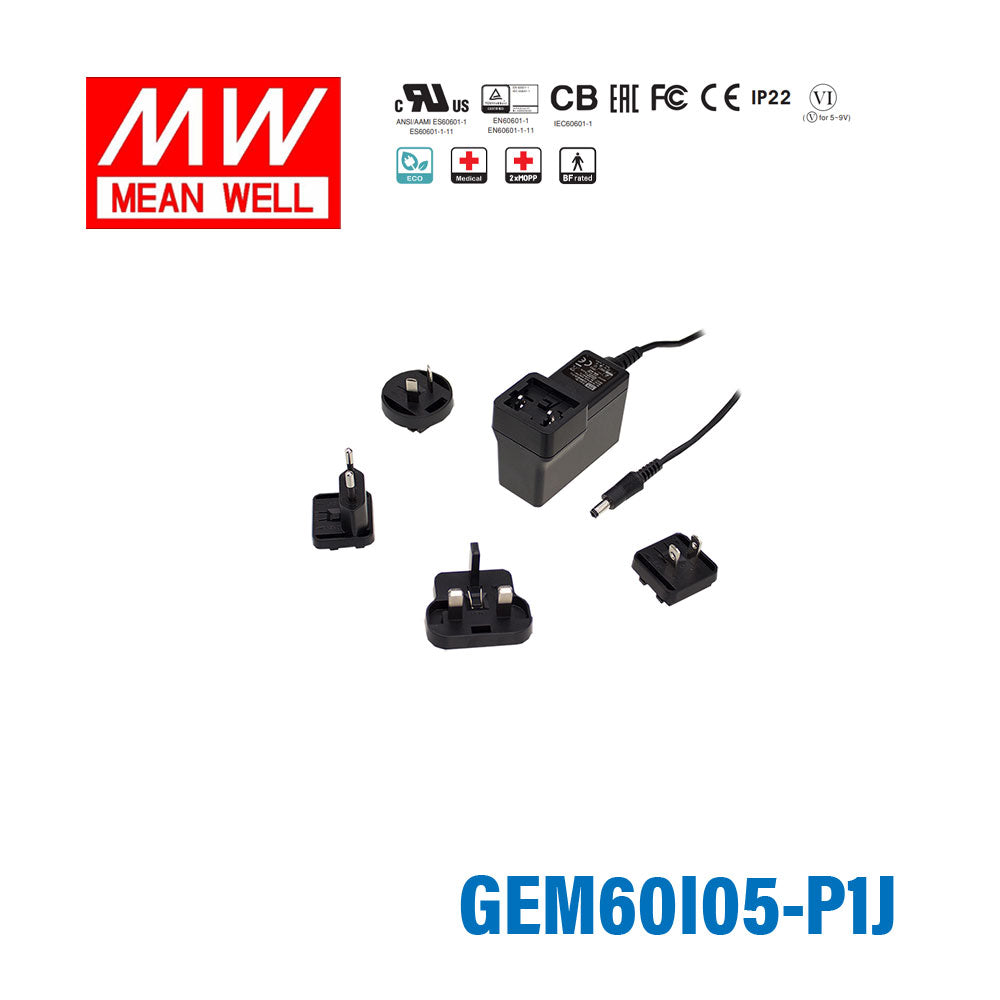

Mean Well GEM60I05-P1J Power Supply 30W 5V
Please Login for Pricing
Description
Description
Features
| Interchangeable AC plugs (plug kit sold separately) |
| Medical safety approved(2 xMOPP) according to 60601-1 |
| Extremely low leakage current |
| No-load power consumption <0.15W |
| Energy efficiency Level V |
| -30 ~ +70°C wide range working temperature |
| Class II power (without earth pin) |
| Protections: Short circuit/ Overload/ Over voltage |
| Fully enclosed plastic case |
| 3 years warranty |
General Specification
| AC input voltage range | 80~264VAC; 113 ~ 370VDC |
| AC inrush current (max.) | Cold start, 50A / 115VAC; 100A / 230VAC |
| Setup, rise, hold up time | 500ms, 30ms, 10ms at 230VAC input |
| Overload protection | 105 ~ 160% rated output power; Protection type: Hiccup mode, recovers automatically after fault condition is removed |
| Over-voltage protection | 110%~140% rated output voltage; Protection type: Clamp by Zener diode, output short |
| Withstand voltage | I/P-O/P:5656VDC |
| Working temperature | -30~+70°C (refer to output derating curve) |
| Safety standards | TUV BS EN/EN60601-1/BS ANSI/AAMI ES60601-1-11 |
| EMC standards | EN55011 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11 |
| Length of output cable | UL2468 22AWG 1200mm for 5-9V, UL2468 18AWG 1800mm for 12-24V |
| Dimension (LxWxH) | 75.5x 39.1x 56.2 mm |
| Standard DC plug | P1J: 2.1ID x 5.5OD x 11L, tuning fork type |
Specifications
Specifications
-
BrandMean Well
-
SeriesGEM Series
-
Power Rating30 Watt
-
Output Voltage5 Volt
-
Rated Current6 Ampere
-
Input Voltage80V~264V
-
Standards MetCB,CE,EAC,FCC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length7.55 cm
-
Width5.62 cm
-
Height3.91 cm
-
Weight0.2 kg
