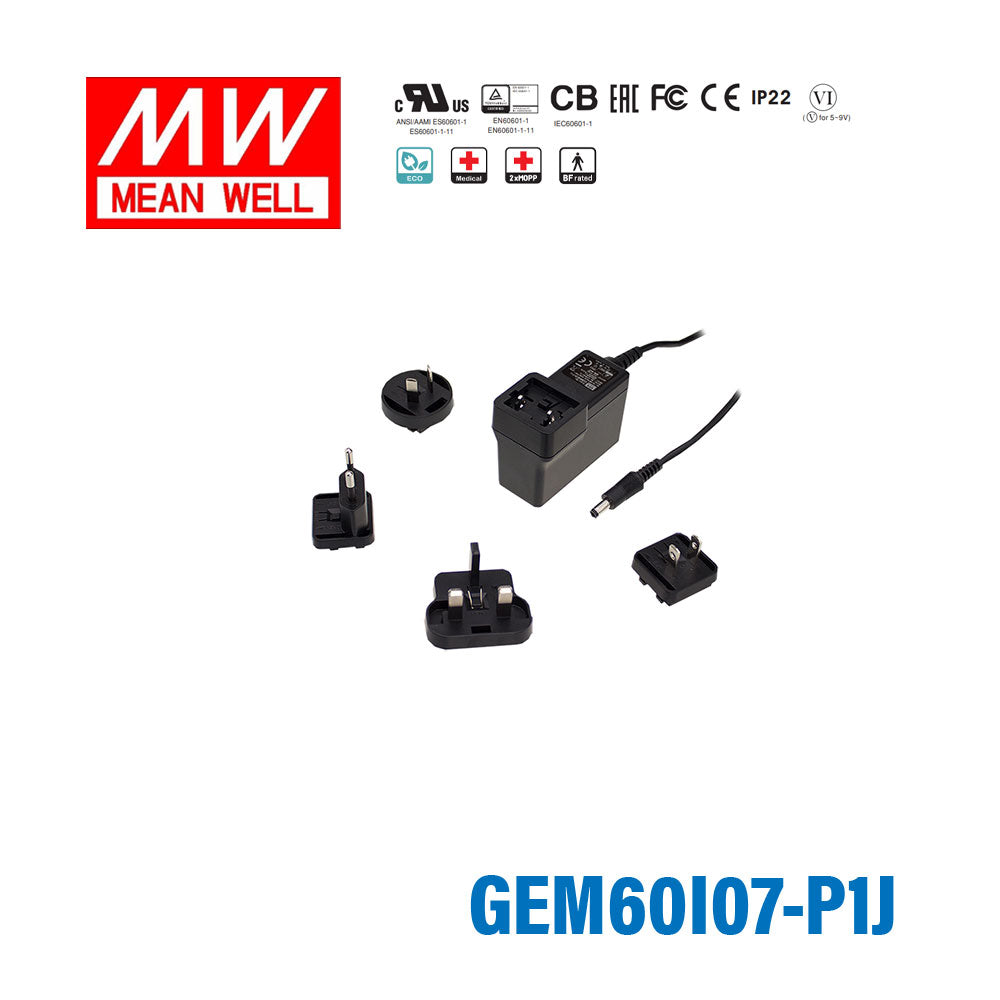

Mean Well GEM60I07-P1J Power Supply 45W 7.5V

SKU:

GEM60I07-P1J

Please for Pricing

Notify me when it's back in stock

Description

The GEM60I07 is a 60W Mean Well power converter.

Key Features

✓ Protections: Overload / Over voltage
✓ Safety approvals: ISOLATION LEVEL
✓ 3 years warranty

Specifications

Brand

Mean Well
Series

GEM Series
Power Rating

45 Watt
Output Voltage

7.5 Volt
Rated Current

6 Ampere
Input Voltage

80V~264V
Standards Met

CB,CE,EAC,FCC,TUV,UL
Operation Mode

Constant Voltage
Operating Temperature

-30°C~70°C
Warranty

3 Year
Length

7.55 cm
Width

5.62 cm
Height

3.91 cm
Weight

0.2 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the GEM60I07-P1J for a 7.5V embedded controller or legacy electronics platform?

Yes, if the equipment is designed for constant 7.5V DC input and its load stays within 6A and 45W. This is a constant-voltage supply, so the target device must specifically require 7.5V rather than another DC level.

Is this suitable for 7.5V industrial test fixtures or service jigs?

It can be used for test fixtures, service docks, or production jigs that need a regulated 7.5V source and draw no more than 6A or 45W. The 80-264VAC input range helps when the fixture may be used in different AC environments.

Can the GEM60I07-P1J power a group of 7.5V peripherals or control boards from one source?

Yes, as long as all connected 7.5V loads together stay within the 6A output current and 45W power rating. Because it is constant voltage, the connected electronics must all be designed for 7.5V operation.

Would this model make sense for compact 7.5V instrumentation inside equipment cabinets?

Yes, for instrumentation or interface boards that require 7.5V DC and remain within 45W. Its dimensions are 75.5 x 56.2 x 39.1 mm and its weight is 0.2 kg, which suits compact internal mounting spaces.

Is the GEM60I07-P1J appropriate for outdoor use?

The published environmental data gives an operating range of -30 to +70 C, but no IP rating is listed. Based on these specs, temperature capability is defined, while outdoor exposure resistance is not.

Model	Power	Voltage	Current
Mean Well GEM60I48-P1J Power Supply 60W 48V	60W	48V	1.25A	View
Mean Well GEM60I24-P1J Power Supply 60W 24V	60W	24V	2.5A	View
Mean Well GEM60I18-P1J Power Supply 60W 18V	60W	18V	3.33A	View
Mean Well GEM60I15-P1J Power Supply 60W 15V	60W	15V	4A	View
Mean Well GEM60I12-P1J Power Supply 54W 12V	54W	12V	4.5A	View
Mean Well GEM60I09-P1J Power Supply 49.5W 9V	49.5W	9V	5.5A	View
Mean Well GEM60I05-P1J Power Supply 30W 5V	30W	5V	6A	View
