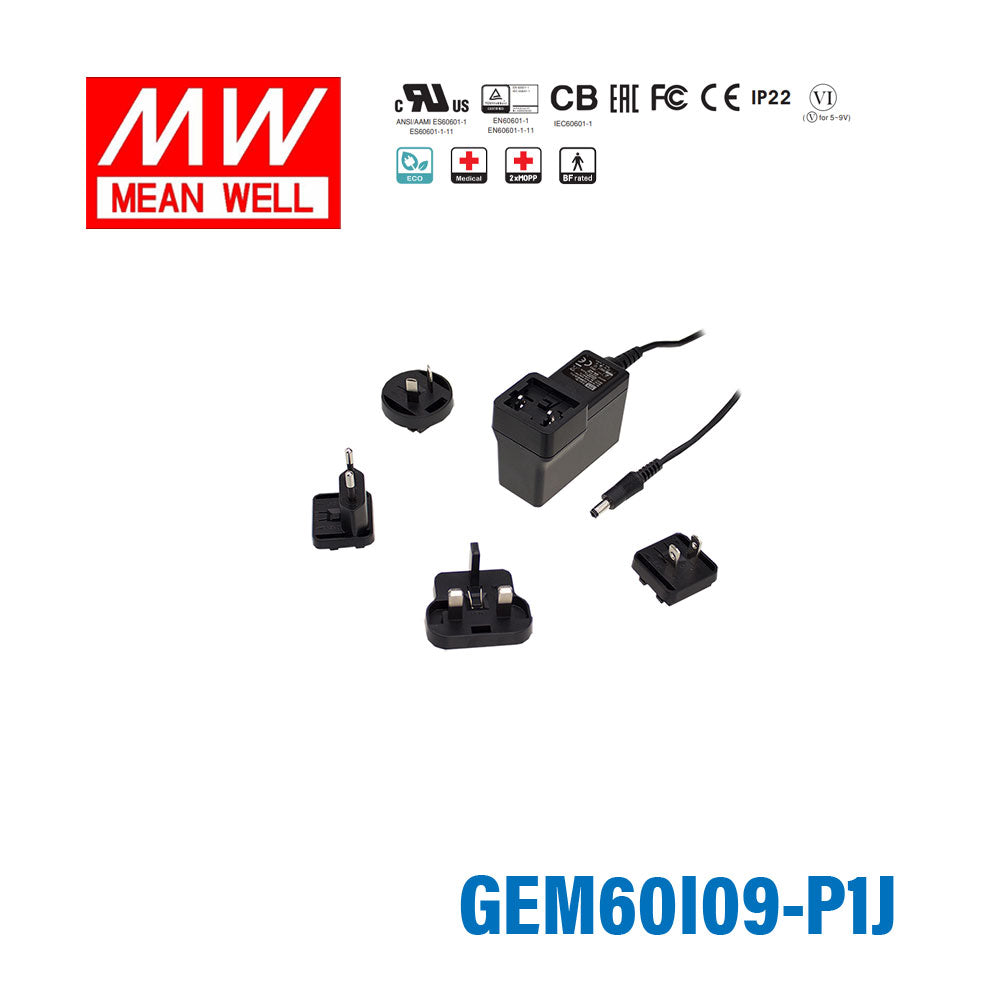

Mean Well GEM60I09-P1J Power Supply 49.5W 9V 5.5A

SKU GEM60I09-P1J

Log in to see price Trade pricing & online ordering for account holders

End of Life, Succeeded by NGE65I09-P1J

Available to order

Overview

GEM60I09-P1J is the 9V output model of this series: rated current 5.5A, typical efficiency 87%.

GEM60I is a highly reliable, 60W wall-mounted style single-output green medical adaptor series, which is compact and convenient for carry. This product is equipped with an interchangeable AC plug (4 types, including European type, USA type, U.K. type and Australian type) that makes it very suitable for businessmen to use in the major countries around the globe. GEM60I is a class Ⅱ power unit (no FG), accepting the input range from 80VAC to 264VAC that it can satisfy the demands for various types of medical electrical devices. The circuitry design meets the international medical standards (2*MOPP), having an ultra low leakage current (<100μA), fitting the medical devices in direct electrical contact with the patients. With the working efficiency up to 90% and the extremely low no-load power consumption below 0.15W, GEM60I is compliant with the latest USA energy regulation EISA 2007/DOE(Level Ⅵ) and EU ErP (5~9V for Level Ⅴ). The supreme feature allows the adaptor to save the energy when it is under either the operating mode or the standby mode. The entire series is approved for international safety regulations; moreover, it adopts the 94V-0 flame retardant plastic case that it can effectively prevent users from electrical hazard.

Features

Interchangeable AC plugs (plug kit sold separately)
Ultra slim, compact size
Medical safety approved (2 x MOPP) according to ANSI/AAMI ES60601-1/ES60601-1-11,BS EN/EN60601-1/ BS EN/EN60601-1-11
Extremely Low leakage current
No load power consumption< 0.15W
Energy efficiency Level Ⅵ ( except 5~9V for Level Ⅴ)
-30~+70℃ wide range working temperature
Class Ⅱ power (no earth pin)
Protections: Short circuit / Overload / Over voltage
Fully enclosed plastic case
Various DC plug quick adapter accessory available (Plug kit sold separately, please refer to : https://www.meanwell.com/upload/pdf/DC_plug.pdf)
3 years warranty

Specifications

GEM60I09-P1JSpecifications from the official datasheet (2022-04-15 edition)

OUTPUT

SAFETY MODEL NO.: GEM60I09
DC VOLTAGE^Note.2: 9V
RATED CURRENT: 5.5A
CURRENT RANGE: 0 ~ 5.5A
RATED POWER (max.): 50W
RIPPLE & NOISE (max.)^Note.3: 100mVp-p
VOLTAGE TOLERANCE^Note.4: ±5.0%
LINE REGULATION^Note.5: ±1.0%
LOAD REGULATION^Note.6: ±5.0%
SETUP, RISE, HOLD UP TIME: 500ms, 30ms, 10ms/230VAC 500ms, 30ms, 10ms/115VAC at full load

INPUT

VOLTAGE RANGE^Note.7: 80 ~ 264VAC 113 ~ 370VDC
FREQUENCY RANGE: 47 ~ 63Hz
EFFICIENCY (Typ.): 87%
AC CURRENT: 1.5A / 115VAC 0.8A / 230VAC
INRUSH CURRENT (max.): Cold start 50A / 115VAC 100A / 230VAC
LEAKAGE CURRENT(max.): Touch current < 100μA/264VAC

PROTECTION

OVERLOAD: 105 ~ 160% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 110 ~ 140% rated output voltage Protection type : Clamp by zener diode, output short

ENVIRONMENT

WORKING TEMP.: -30 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -30 ~ +85℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: ±0.03% / ℃ (0 ~ 40℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
IP rating: IP22

SAFETY & EMC

SAFETY STANDARDS^{Note. 8}: TUV BS EN/EN60601-1/BS EN/EN60601-1-11,ANSI/ AAMI ES60601-1/ES60601-1-11(3.1 version), CAN/CSA-C22 NO. 60601-1 3rd edition, EAC TP TC 004 approved
ISOLATION LEVEL: Pimary - Secondary: 2 x MOPP
WITHSTAND VOLTAGE: I/P-O/P:5656VDC
ISOLATION RESISTANCE: I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Parameter Standard Test Level

Conducted emission BS EN/EN55011 (CISPR11),FCC PART 18 Class B
Radiated emission BS EN/EN55011 (CISPR11),FCC PART 18 Class B
Harmonic current BS EN/EN61000-3-2 Class A
Voltage flicker BS EN/EN61000-3-3
EMC IMMUNITY: BS EN/EN55011, BS EN/EN60601-1-2

Parameter Standard Test Level

ESD BS EN/EN61000-4-2 Level 4, 15KV air; Level 4, 8KV contact
RF field susceptibility BS EN/EN61000-4-3 Level 3, 10V/m(80MHz~2.7GHz) Table 9, 9~28V/m(385MHz~6GHz)
EFT bursts BS EN/EN61000-4-4 Level 3, 2KV Line-Line,1KV ineterconnect Lines at 100KHz rate
Surge susceptibility BS EN/EN61000-4-5 Level 3, 2KV/Line-Line
Conducted susceptibility BS EN/EN61000-4-6 Level 2, 3V
Magnetic field immunity BS EN/EN61000-4-8 Level 4, 30A/m
Voltage dip, interruption BS EN/EN61000-4-11 >95% dip 0.5 periods, 30% dip 25 periods, >95% interruptions 250 periods

Parameter	Standard	Test Level
Conducted emission	BS EN/EN55011 (CISPR11),FCC PART 18	Class B
Radiated emission	BS EN/EN55011 (CISPR11),FCC PART 18	Class B
Harmonic current	BS EN/EN61000-3-2	Class A
Voltage flicker	BS EN/EN61000-3-3

Parameter	Standard	Test Level
ESD	BS EN/EN61000-4-2	Level 4, 15KV air; Level 4, 8KV contact
RF field susceptibility	BS EN/EN61000-4-3	Level 3, 10V/m(80MHz~2.7GHz) Table 9, 9~28V/m(385MHz~6GHz)
EFT bursts	BS EN/EN61000-4-4	Level 3, 2KV Line-Line,1KV ineterconnect Lines at 100KHz rate
Surge susceptibility	BS EN/EN61000-4-5	Level 3, 2KV/Line-Line
Conducted susceptibility	BS EN/EN61000-4-6	Level 2, 3V
Magnetic field immunity	BS EN/EN61000-4-8	Level 4, 30A/m
Voltage dip, interruption	BS EN/EN61000-4-11	>95% dip 0.5 periods, 30% dip 25 periods, >95% interruptions 250 periods

OTHERS

LIFE: 3 years : 100% load 40℃, 8hours / day
MTBF: 400Khrs min. MIL-HDBK-217F(25℃)
DIMENSION: 75.5*39.1*56.2mm (L*W*H)
PACKING: 200g ; 60pcs / 13kg / CARTON

CONNECTOR

PLUG: See page 4~5 ; other type available by customer requested
CABLE: See page 4~5 ; other type available by customer requested

Test conditions and notes8

1.All parameters are specified at 230VAC input, rated load, 25℃ 70% RH ambient.
2.DC voltage: The output voltage set at point measure by plug terminal & 50% load.
3.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1μf & 47μf capacitor.
4.Tolerance: includes set up tolerance, line regulation, load regulation.
5.Line regulation is measured from low line to high line at rated load.
6.Load regulation is measured from 10% to 100% rated load.
7.Derating may be needed under low input voltage. Please check the derating curve for more details.
8.The power supply is considered as an independent unit, but the final equipment still need to re-confirm that the whole system complies with the EMC directives. For guidance on how to perform these EMC tests, please refer to "EMI testing of component power supplies." (as available on http://www.meanwell.com)

Technical drawings

GEM60I09-P1J Derating Curve — Derating Curve

GEM60I09-P1J Mechanical Specification — Mechanical Specification

GEM60I09-P1J DC output plug — DC output plug

GEM60I09-P1J Illustration (page 5) — Illustration (page 5)

Typical applications

Downloads

Certificates8

Mean Well 0147477-EAC Certificate PDF Download

Mean Well GEM60I-GSM60U-UL Certificate PDF Download

Mean Well GEM60I-GSM60E-TUV Certificate PDF Download

Mean Well GSM60-GEM60I-CB Certificate PDF Download

Mean Well GEM60I-GSM60E-FCC Certificate PDF Download

Mean Well GEM60I-GSM60E-EMC Certificate PDF Download

Mean Well GEM60I-GSM60E-CE-dec Certificate PDF Download

Mean Well GEM60I-GSM60E-UK-dec Certificate PDF Download

Test reports1

Mean Well GEM60I09 Test Report PDF Download

Catalogues3

Mean Well Medical Catalog PDF Download

Mean Well Adaptor Catalog PDF Download

Mean Well Catalog (Industrial) PDF Download

FAQ

Can I use the GEM60I09-P1J for a 9V embedded system or industrial interface device?

Yes, if the device needs constant 9V DC and the load remains within 5.5A and 50W. This makes it suitable for 9V electronics that require regulated constant-voltage input.

Is this power supply suitable for 9V control, sensor, or monitoring equipment?

It can be used for 9V control or monitoring equipment as long as the total demand does not exceed 5.5A or 50W. The correct match is based on the equipment's required voltage and total load, not just the connector style.

Can the GEM60I09-P1J support multiple 9V boards from one supply?

Yes, if all 9V boards together stay within the rated 5.5A output current and 50W total power. Since this is a constant-voltage model, each connected board must be designed for 9V input.

Would this work for compact 9V electronics in industrial or IT equipment housings?

Yes, for compact 9V loads that stay inside the 50W rating. It is a plug-in adaptor with interchangeable AC plugs, measuring 75.5 x 39.1 x 56.2 mm (L x W x H) and weighing 0.2 kg, which keeps it easy to place near space-constrained equipment.

Can the GEM60I09-P1J be used in outdoor or temperature-variable locations?

The listed operating temperature is -30 to +70 C, with load derating at higher temperatures per the derating curve. The adaptor is rated IP22, so outdoor or moisture-exposed use should not be assumed.
