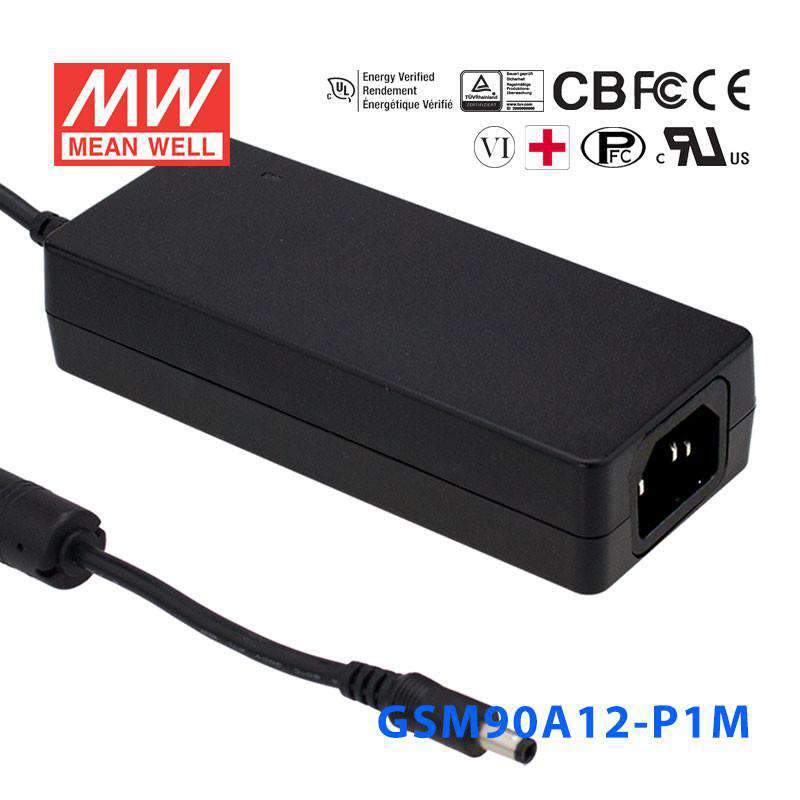

Mean Well GSM90A12-P1M Power Adaptor | Auckland, NZ Reliable Distributor

Description

The GSM90A12 is a 90W Mean Well power converter (input range: 80~264VAC).

Key Features

✓ Input voltage range: 80~264VAC
✓ 4KVAC reinforced I/O isolation
✓ Cooling by free air convection
✓ Protections: Short circuit / Overload / Over voltage / Over temperature
✓ Safety approvals: ISOLATION LEVEL
✓ 3 years warranty

Specifications

Brand

Mean Well
Series

GSM Series
Power Rating

80 Watt
Output Voltage

12 Volt
Rated Current

6.67 Ampere
Input Voltage

80V~264V
Standards Met

CB,CE,EAC,FCC,TUV,UL
Operation Mode

Constant Voltage
Operating Temperature

-30°C~70°C
Warranty

3 Year
Length

14.5 cm
Width

6 cm
Height

3.2 cm
Weight

0.45 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the GSM90A12-P1M for 12V industrial controllers or HMI accessories?

Yes, it provides constant 12V output at up to 6.67A. That suits 12V industrial control accessories, operator interface peripherals, or similar equipment that fits within its 80W output rating.

Is this a good fit for 12V embedded systems or test equipment?

It can be used for 12V embedded platforms or bench and test devices that need a constant 12V source. The load must stay at or below 6.67A and within the 80W power rating.

Can the GSM90A12-P1M power 12V automation sensors and small control loads?

It is appropriate for 12V automation-related loads when the total demand does not exceed 6.67A. With 80-264VAC input, it also supports use in installations that need broad AC input compatibility.

How can I tell whether this 12V power supply is correctly sized?

Your device should require constant 12V and draw no more than 6.67A. This model is specified for 80W output, so it should be matched only to loads within that 12V and 80W envelope.

Can this model be used in outdoor or temperature-variable locations?

The specified operating range is -30°C to +70°C, which supports use across a broad temperature span. The provided specs do not list an IP rating, so outdoor exposure or wet-area use is not confirmed by the available data.

Model	Power	Voltage	Current
Mean Well GSM90B24-P1M Power Supply 90W 24V	90W	24V	3.75A	View
Mean Well GSM90B48-P1M Power Supply 90W 48V	90W	48V	1.87A	View
Mean Well GSM90B19-P1M Power Supply 90W 19V	90W	19V	4.74A	View
Mean Well GSM90B15-P1M Power Supply 90W 15V	90W	15V	6A	View
Mean Well GSM90B12-P1M Power Supply 80W 12V	80W	12V	6.67A	View
Mean Well GSM90A48-P1M Power Supply 90W 48V	90W	48V	1.87A	View
Mean Well GSM90A24-P1M Power Supply 90W 24V	90W	24V	3.75A	View
Mean Well GSM90A19-P1M Power Supply 90W 19V	90W	19V	4.74A	View
Mean Well GSM90A15-P1M Power Supply 90W 15V	90W	15V	6A	View
