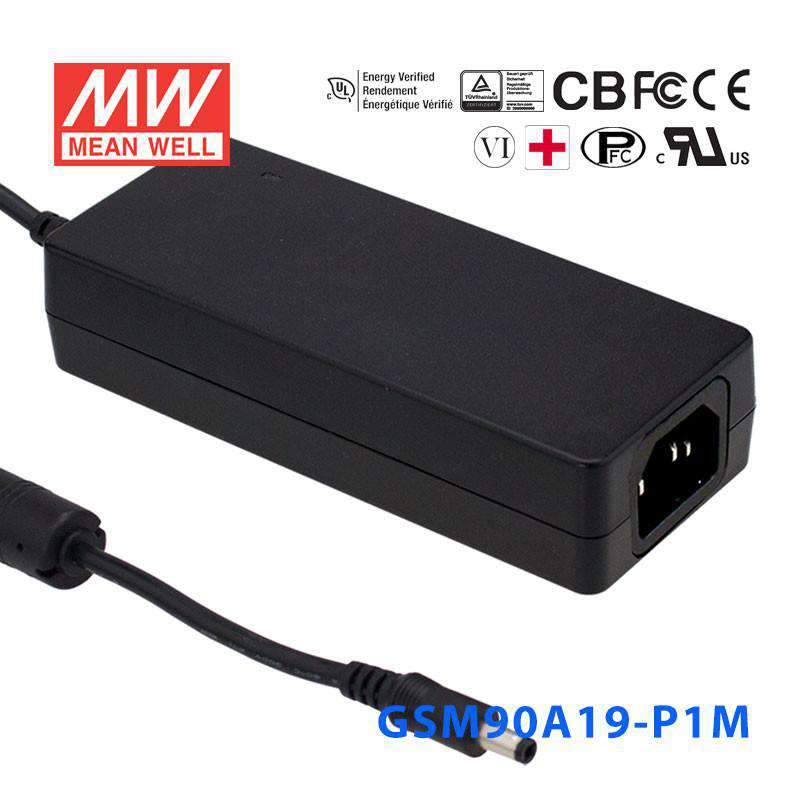

Mean Well GSM90A19-P1M Power Supply 90W 19V
Please Login for Pricing
Description
Description
The GSM90A19 is a 90W Mean Well power converter (input range: 80~264VAC).
Key Features
- ✓ Input voltage range: 80~264VAC
- ✓ 4KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓ Safety approvals: ISOLATION LEVEL
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesGSM Series
-
Power Rating90 Watt
-
Output Voltage19 Volt
-
Rated Current4.74 Ampere
-
Input Voltage80V~264V
-
Standards MetCB,CE,EAC,FCC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length14.5 cm
-
Width6 cm
-
Height3.2 cm
-
Weight0.45 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the GSM90A19-P1M for 19V industrial PCs or display equipment?
Yes, this model provides constant 19V output at up to 4.74A. That suits 19V industrial PCs, displays, or similar IT hardware that remains within its 90W output rating.
Is this power supply appropriate for 19V embedded computing or edge devices?
It can be used with 19V embedded computing or edge devices that require constant voltage input. The load must stay at or below 4.74A and within the 90W capacity.
Can the GSM90A19-P1M support 19V monitoring or kiosk systems?
It is a practical fit for 19V monitoring, kiosk, or interface systems when the equipment calls for constant 19V power. The wide 80-264VAC input range is useful where AC source conditions vary by site.
How do I size this 19V adapter for my equipment?
Match it to devices that require constant 19V input and do not exceed 4.74A. The unit is rated for 90W output, so the connected system needs to stay within that 19V and 90W range.
Can this 19V model be used in unconditioned environments?
The specified operating temperature range is -30°C to +70°C, so it is rated for broad temperature conditions. The provided specs do not include an IP rating, so exposed outdoor use should not be assumed from this information alone.
