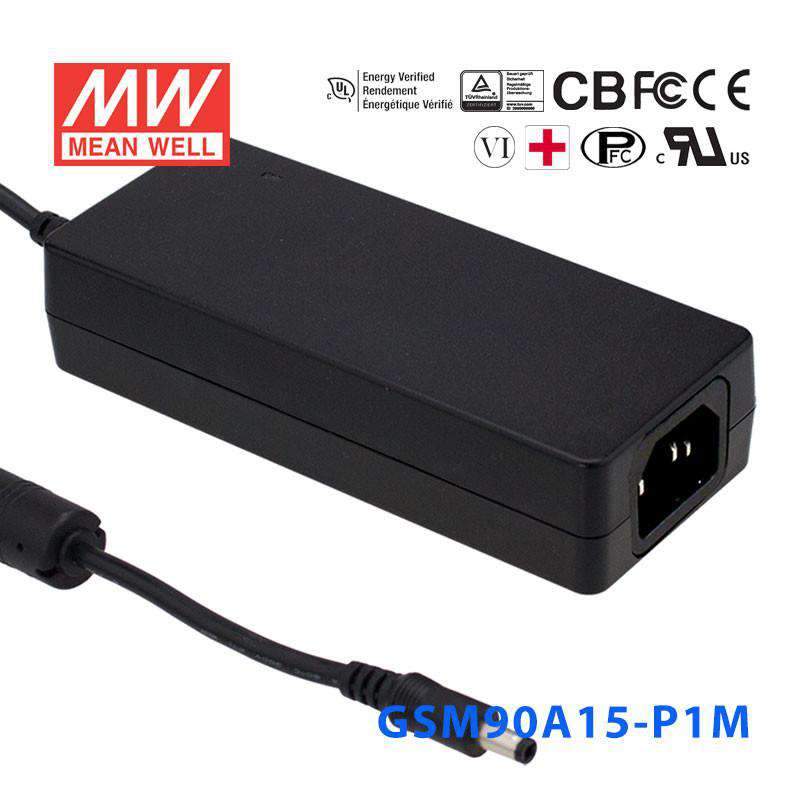

Mean Well GSM90A15-P1M 90W 15V - Power Adaptor for NZ

Description

The GSM90A15 is a 90W Mean Well power converter (input range: 80~264VAC).

Key Features

✓ Input voltage range: 80~264VAC
✓ 4KVAC reinforced I/O isolation
✓ Cooling by free air convection
✓ Protections: Short circuit / Overload / Over voltage / Over temperature
✓ Safety approvals: ISOLATION LEVEL
✓ 3 years warranty

Specifications

Brand

Mean Well
Series

GSM Series
Power Rating

90 Watt
Output Voltage

15 Volt
Rated Current

6 Ampere
Input Voltage

80V~264V
Standards Met

CB,CE,EAC,FCC,TUV,UL
Operation Mode

Constant Voltage
Operating Temperature

-30°C~70°C
Warranty

3 Year
Length

14.5 cm
Width

6 cm
Height

3.2 cm
Weight

0.45 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the GSM90A15-P1M for 15V automation or industrial electronics?

Yes, it delivers constant 15V output at up to 6A. That makes it suitable for 15V automation or industrial electronic loads that stay within the 90W rating.

Is this power supply suitable for 15V embedded systems and instrument devices?

It can support 15V embedded hardware or instrument devices that need constant voltage power. The connected equipment should not exceed 6A draw or the 90W output limit.

Can the GSM90A15-P1M be used for 15V lab, monitoring, or control equipment?

It is appropriate for 15V monitoring or control equipment when the required input is constant 15V. The adapter accepts 80-264VAC input and provides up to 90W at 15V.

How do I check compatibility for a 15V load with this adapter?

Confirm that your equipment requires constant 15V and that the current draw does not go above 6A. This model is rated for 90W total output, so both voltage and power demand must remain within those specs.

Is the GSM90A15-P1M intended for outdoor use or extreme temperatures?

Its operating temperature range is -30°C to +70°C, so it is rated for wide temperature conditions. No IP rating appears in the provided specifications, so outdoor or water-exposed use is not established here.

Model	Power	Voltage	Current
Mean Well GSM90B24-P1M Power Supply 90W 24V	90W	24V	3.75A	View
Mean Well GSM90B48-P1M Power Supply 90W 48V	90W	48V	1.87A	View
Mean Well GSM90B19-P1M Power Supply 90W 19V	90W	19V	4.74A	View
Mean Well GSM90B15-P1M Power Supply 90W 15V	90W	15V	6A	View
Mean Well GSM90B12-P1M Power Supply 80W 12V	80W	12V	6.67A	View
Mean Well GSM90A48-P1M Power Supply 90W 48V	90W	48V	1.87A	View
Mean Well GSM90A24-P1M Power Supply 90W 24V	90W	24V	3.75A	View
Mean Well GSM90A19-P1M Power Supply 90W 19V	90W	19V	4.74A	View
Mean Well GSM90A12-P1M Power Supply 90W 12V	80W	12V	6.67A	View
