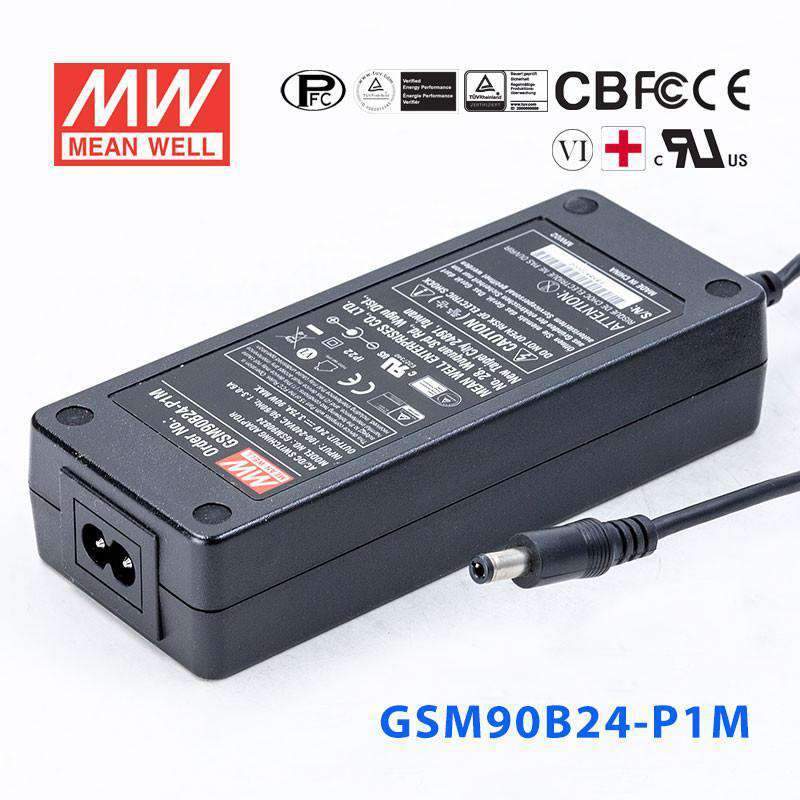

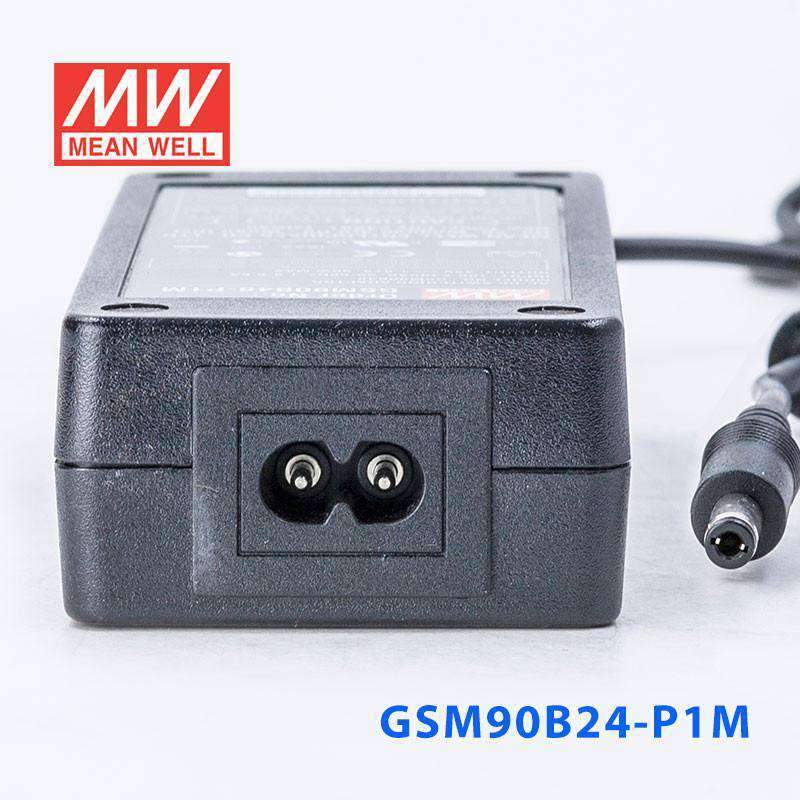

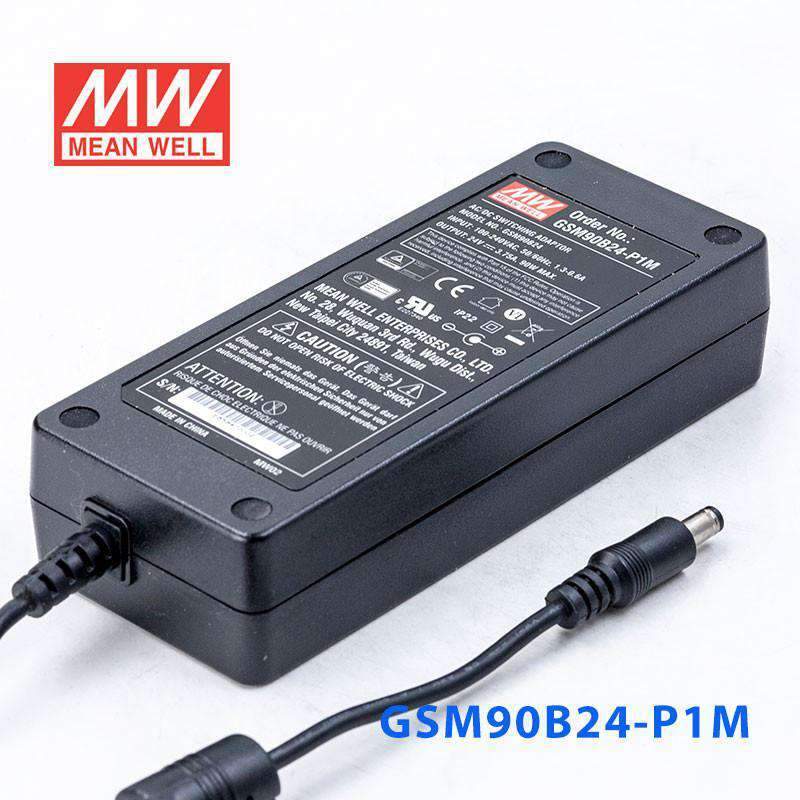

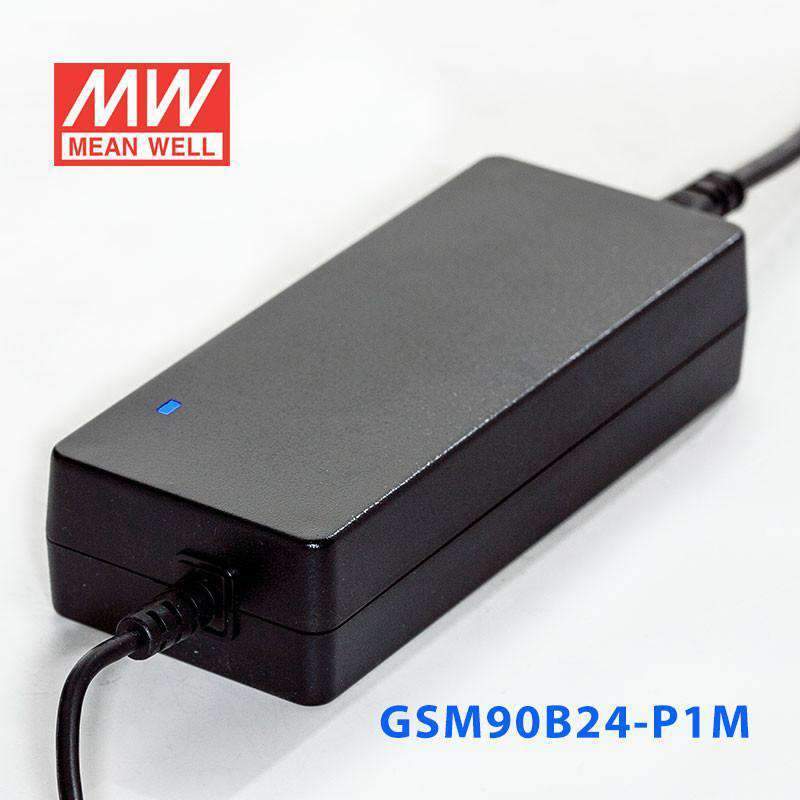

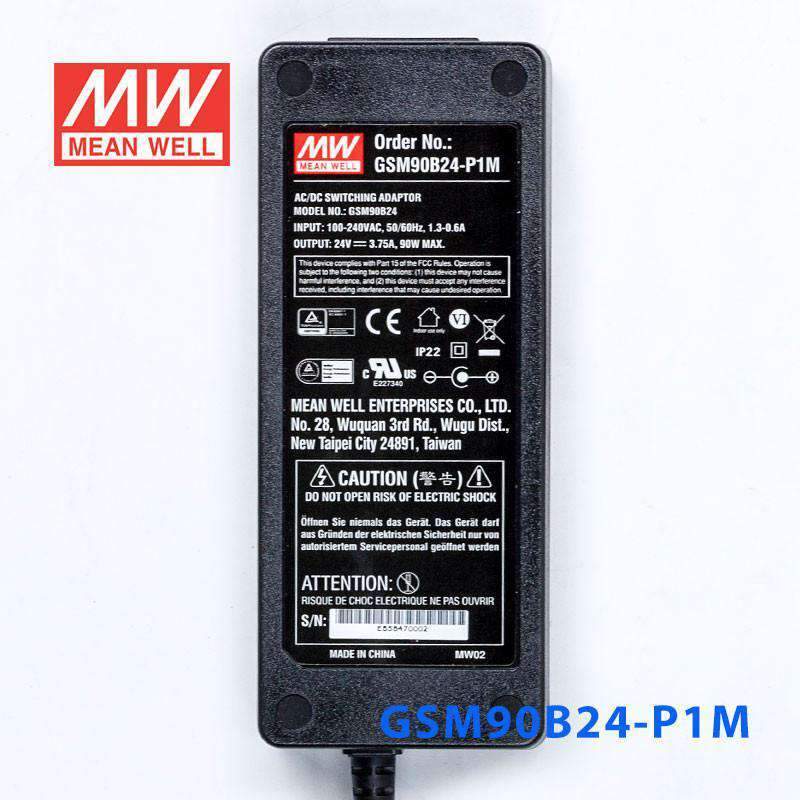

Mean Well GSM90B24-P1M Power Supply 90W 24V
Please Login for Pricing
Description
Description
The GSM90B24 is a 90W Mean Well power converter (input range: 80~264VAC, operating temperature: -30~+70℃).
Key Features
- ✓ Input voltage range: 80~264VAC
- ✓ 4KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Wide operating temperature: -30~+70℃
- ✓ Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓ Safety approvals: ISOLATION LEVEL
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesGSM Series
-
Power Rating90 Watt
-
Output Voltage24 Volt
-
Rated Current3.75 Ampere
-
Input Voltage80V~264V
-
Standards MetCB,CE,EAC,FCC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length14.5 cm
-
Width6 cm
-
Height3.2 cm
-
Weight0.45 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What are the main output specifications of the Mean Well GSM90B24-P1M?
This model is a 90W desktop AC/DC power supply with a regulated 24V DC output. Its rated output current is 3.75A, making it suitable for equipment that requires 24V power within that load range.
Is the GSM90B24-P1M suitable for medical applications?
Yes. This model is medical safety approved and is specified with 2 x MOPP isolation between primary and secondary. It also lists low leakage current under 100uA and approvals to medical safety standards including ANSI/AAMI ES60601-1 and EN60601-1-11.
What type of DC plug does the GSM90B24-P1M use?
The standard DC plug for this version is the P1M type. It is specified as 2.5 mm inner diameter by 5.5 mm outer diameter by 11 mm length, with center positive polarity.
What input range does the GSM90B24-P1M support?
This power supply has a universal input range of 80 to 264VAC, and it also supports 113 to 370VDC input. That wide range helps it fit global equipment programs where mains conditions may vary.
Can this power supply be used in demanding operating environments?
It is rated for a working temperature range of -30 to +60°C, with output derating referenced at the upper end of the range. The unit also includes protection against short circuit, overload, over voltage, and over temperature.
What makes the GSM90B24-P1M different from a general-purpose desktop adapter?
This model stands out for its medical approvals, low leakage current, and 2 x MOPP isolation, which are important in healthcare and patient-adjacent equipment. It also offers high efficiency up to 91%, low no-load power consumption below 0.15W, and a fully enclosed desktop-style case.
