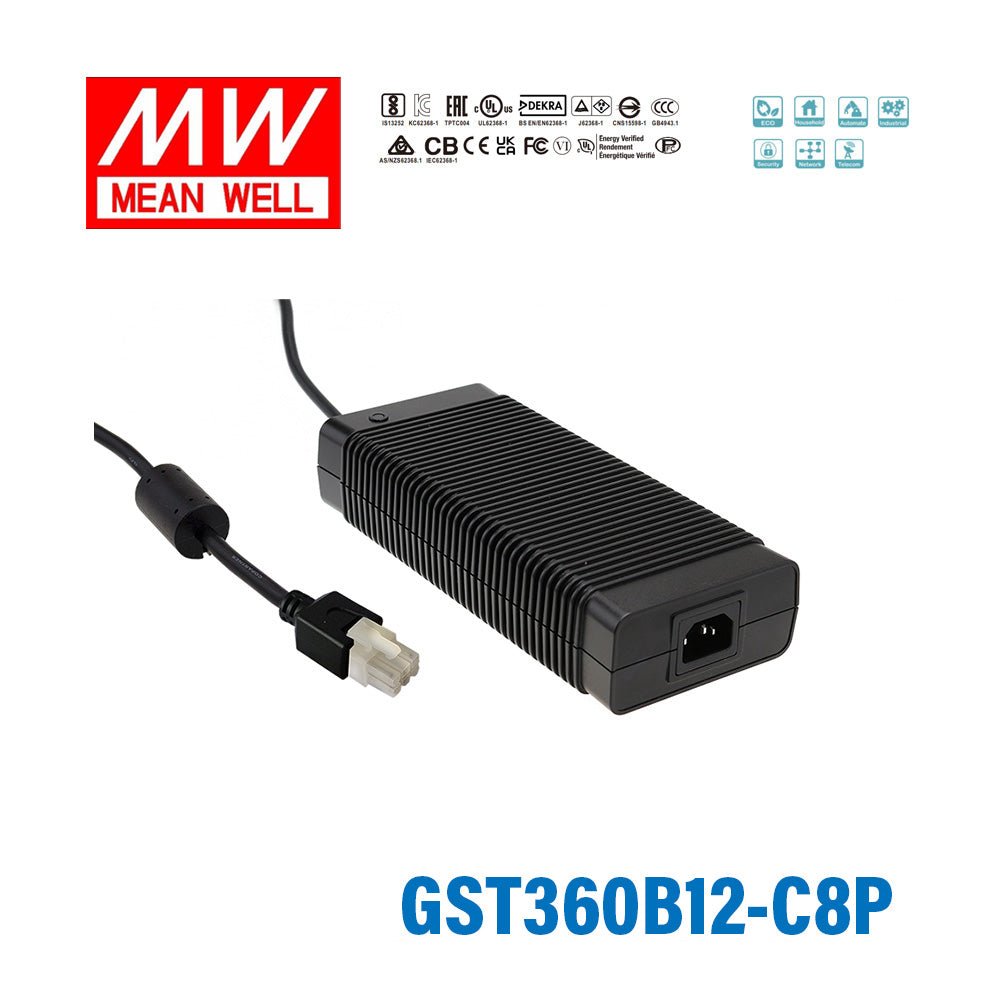

Mean Well GST360B12-C8P AC-DC Industrial Adaptor 330W 12V With 8 Pi...
Please Login for Pricing
Description
Description
Universal AC input / Full range
450W peak power(3 sec.)
C8P: MOLEX 8 pin connector
Key Features
- ✓Universal AC input / Full range450W peak power(3 sec.)
- ✓No load power consumption < 0.5W
- ✓Energy Efficiency Level VI
- ✓Meet EISA 2007 (Energy Independence and Security Act)
- ✓NRCan compliant
- ✓MEPS compliant
- ✓3 pole AC inlet IEC320-C14
- ✓Class I power (with earth pin) only
- ✓Protections: Short circuit /Overload / Over voltage/Over temperature
- ✓Fully enclosed plastic case
- ✓LED indicator for power on
- ✓Built-in active PFC function
- ✓Fanless design
- ✓3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesGST Series
-
Power Rating330 Watt
-
Output Voltage12 Volt
-
Rated Current27.5 Ampere
-
Input Voltage85V~264V
-
Standards MetBSI,BSMI,CB,CCC,CE,EAC,FCC,KC,PSE,RCM,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length22 cm
-
Width9.5 cm
-
Height4.6 cm
-
Weight1.4 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What are the main output specifications of the Mean Well GST360B12-C8P?
The GST360B12-C8P is a 330W AC-DC industrial adaptor with a regulated 12V DC output. It is rated for up to 27.5A continuous current and supports 450W peak power for 3 seconds.
What kind of applications is this 12V power adaptor suited for?
This model is intended for industrial or commercial equipment that needs a high-power 12V DC supply with up to 27.5A available output. It is particularly relevant where a MOLEX 8 pin connector and desktop-style enclosed adaptor format are required.
What input voltage range does the GST360B12-C8P support?
The adaptor accepts universal AC input from 85 to 264VAC and also supports 120 to 370VDC input. That full-range input makes it suitable for use across many regional power environments without changing the power unit itself.
What output connector does this model use?
The GST360B12-C8P uses a C8P MOLEX 8 pin connector as its standard DC plug. It also includes a 100cm output cable specified as UL2464, 16AWG x 4C.
How does this model perform in demanding environments?
The specified operating temperature range is -30°C to +70°C, subject to the output derating curve. It also uses a fanless design and a fully enclosed plastic case, which can be beneficial in applications where low noise and a sealed desktop adaptor format are preferred.
What protection and compliance features does the GST360B12-C8P include?
This adaptor includes short circuit, overload, over voltage, and over temperature protection. It is also Energy Efficiency Level VI rated, includes active PFC, and is listed with multiple safety and EMC approvals including UL60950-1, TUV EN60950-1, EN55022 Class B, and FCC Part 15/CISPR22 Class B.
What are the physical size and warranty for this power adaptor?
The GST360B12-C8P measures 220 x 95 x 46 mm and weighs 1.4 kg. Mean Well specifies this model with a 3-year warranty.
