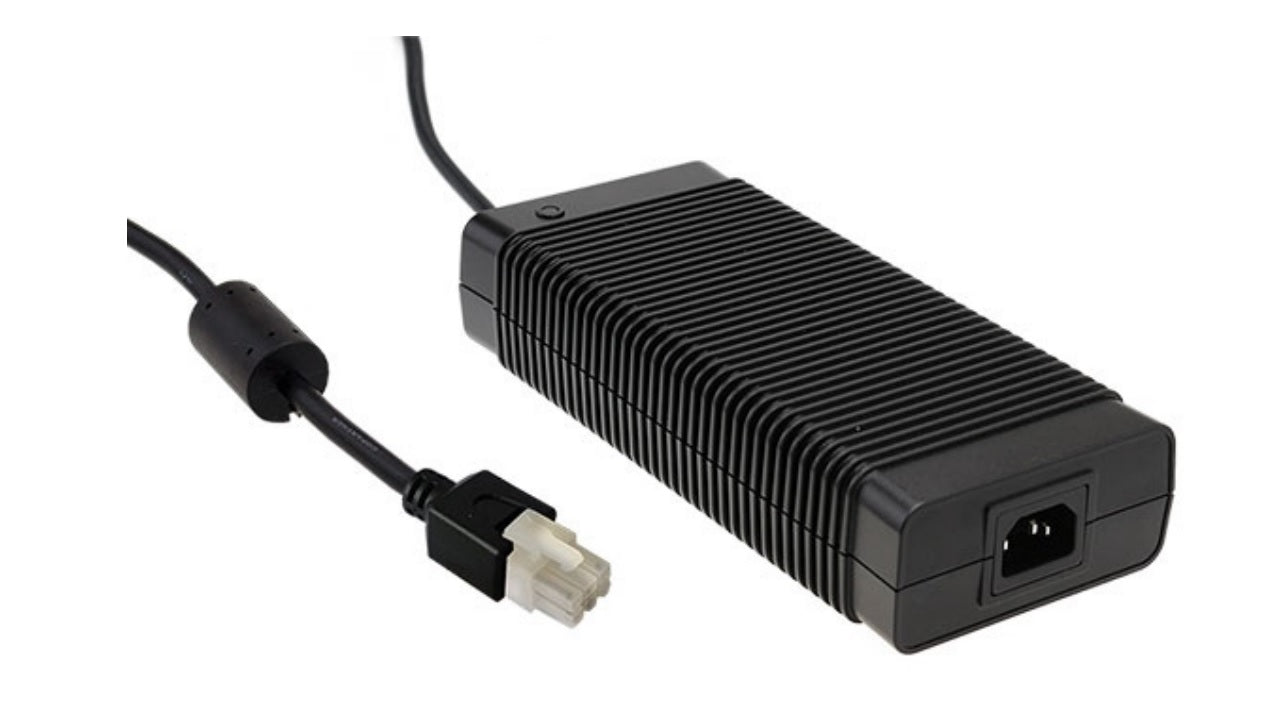

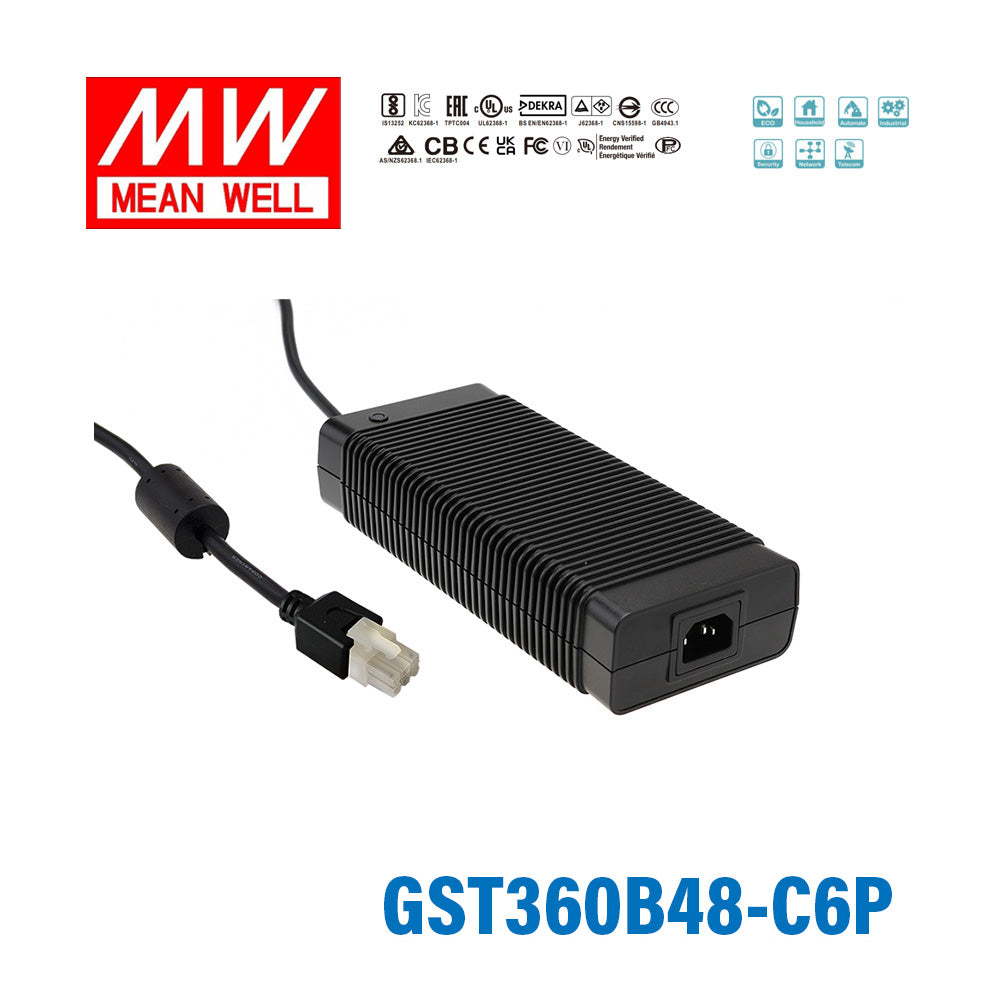

Mean Well GST360B48-C6P AC-DC Industrial Adaptor 360W 48V With 6 Pin Connector 7.5A

450W peak power for 3sglobal certificatesno load power consumption<0.5Wenergy efficiency level VI

SKU GST360B48-C6P

Log in to see price Trade pricing & online ordering for account holders

Available to order

Overview

GST360B48-C6P is the 48V output model of this series: rated current 7.5A, typical efficiency 95%.

GST360B is a highly reliable, 360W desktop style single-output green adaptor series. This product is a classⅡ power unit (without FG), equipped with a standard IEC320-C18 AC inlet and adopting the input range from 85 VAC to 264VAC. The entire series supplies different models with output voltages ranging between 12VDC and 55VDC that can satisfy the demands for various types of consumer electronic devices. With the efficiency up to 95.0% and the extremely low no-load power consumption below 0.5W, GST360B is compliant with USA EISA 2007/DoE,Canada NRCan.The supreme feature allows the adaptor to save the energy when it is either under the operating mode or the standby mode. The entire series utilizes the 94V-0 flame retardant plastic case. GST360B is certified for the international safety regulations.

Features

Global certificates
450W peak power(3 sec.)
Universal AC input / Full range
2 pole AC inlet IEC320-C18, Class II power unit
Built-in active PFC function
No load power consumption<0.5W
Energy efficiency Level VI
Comply with international energy-saving standards
Protections: Short circuit / Overload / Over voltage / Over temperature
Fanless design with -30~+70℃ working temperature
Fully enclosed plastic case
LED indicator for power on
3 years warranty

Specifications

GST360B48-C6PSpecifications from the official datasheet (2026-04-03 edition)

OUTPUT

SAFETY MODEL NO.: GST360B48
DC VOLTAGE^Note.2: 48V
RATED CURRENT: 7.5A
CURRENT RANGE: 0 ~ 7.5A
POWER Rated (max.): 360W
POWER Peak (3sec.): 450W
RIPPLE & NOISE (max.)^Note.3: 200mVp-p
VOLTAGE TOLERANCE^Note.4: ±2.0%
LINE REGULATION^Note.5: ±1.0%
LOAD REGULATION: ±2.0%
SETUP, RISE TIME^Note.6: 2000ms, 50ms / 230VAC 2000ms, 50ms / 115VAC at full load
HOLD UP TIME (Typ.): 8ms / 230VAC 8ms / 115VAC at full load

INPUT

VOLTAGE RANGE^Note.7: 85 ~ 264VAC 120 ~ 370VDC
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF>0.95 / 230VAC PF>0.98 / 115VAC at full load
EFFICIENCY (Typ.): 95%
AC CURRENT (Typ.): 3.8A / 115VAC 2A / 230VAC
INRUSH CURRENT (max.): Cold start 95A / 115VAC 120A / 230VAC
LEAKAGE CURRENT(max.): Touch current <0.5mA / 260VAC

PROTECTION

OVERLOAD: 135 ~ 155% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed for 12 ~ 36V Shut down o/p voltage, re-power on to recover for 48V and 55V
OVER VOLTAGE: 105 ~ 135% rated output voltage Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE: Shut down o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.: -30 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: ±0.03% / ℃ (0~35℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
OPERATING ALTITUDE^{Note. 8}: 5000 meters
OVER VOLTAGE CATEGORY: Ⅱ; According to UL62368-1, BS EN/EN62368-1; altitude up to 5000 meters

SAFETY & EMC (Note. 9)

SAFETY STANDARDS: UL62368-1, CSA C22.2 No.62368-1, Dekra BS EN/EN62368-1,IEC 61558-1,IEC 61558-2-16, CCC GB4943.1, AS/NZS 61558-1/-2-16, EAC TP TC 004 approved
WITHSTAND VOLTAGE: I/P-O/P: 3KVAC
ISOLATION RESISTANCE: I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Parameter Standard Test Level

Conducted emission BS EN/EN55032(CISPR32),FCC PART 15 / CISPR22 CAN ICES-3(B)/NMB-3(B),EAC TP TC 020 Class B
Radiated emission BS EN/EN55032(CISPR32),FCC PART 15 / CISPR22 CAN ICES-3(B)/NMB-3(B),EAC TP TC 020 Class B
Harmonic current BS EN/EN61000-3-2 Class A
Voltage flicker BS EN/EN61000-3-3
EMC IMMUNITY: Parameter Standard Test Level

ESD BS EN/EN61000-4-2 Level 4, 15KV air; Level 4, 8KV contact
RF field susceptibility BS EN/EN61000-4-3 Level 2, 3V/m
EFT bursts BS EN/EN61000-4-4 Level 2, 1KV
Surge susceptibility BS EN/EN61000-4-5 Level 3, 1KV/Line-Line
Conducted susceptibility BS EN/EN61000-4-6 Level 2, 3V
Magnetic field immunity BS EN/EN61000-4-8 Level 2, 3A/m
Voltage dips , interruption BS EN/EN61000-4-11 ＞95% dip 0. 5 periods, 30% dip 25 periods, ＞95% interruptions 250 periods

Parameter	Standard	Test Level
Conducted emission	BS EN/EN55032(CISPR32),FCC PART 15 / CISPR22 CAN ICES-3(B)/NMB-3(B),EAC TP TC 020	Class B
Radiated emission	BS EN/EN55032(CISPR32),FCC PART 15 / CISPR22 CAN ICES-3(B)/NMB-3(B),EAC TP TC 020	Class B
Harmonic current	BS EN/EN61000-3-2	Class A
Voltage flicker	BS EN/EN61000-3-3

Parameter	Standard	Test Level
ESD	BS EN/EN61000-4-2	Level 4, 15KV air; Level 4, 8KV contact
RF field susceptibility	BS EN/EN61000-4-3	Level 2, 3V/m
EFT bursts	BS EN/EN61000-4-4	Level 2, 1KV
Surge susceptibility	BS EN/EN61000-4-5	Level 3, 1KV/Line-Line
Conducted susceptibility	BS EN/EN61000-4-6	Level 2, 3V
Magnetic field immunity	BS EN/EN61000-4-8	Level 2, 3A/m
Voltage dips , interruption	BS EN/EN61000-4-11	＞95% dip 0. 5 periods, 30% dip 25 periods, ＞95% interruptions 250 periods

OTHERS

MTBF: 2057.2K hrs min. Telcordia SR-332 (Bellcore) ; 265.9K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 220*95*46mm (L*W*H)
PACKING: 1.4Kg; 8pcs/12Kg/0.82CUFT

CONNECTOR

PLUG: See page 4 ; Other type available by customer requested
CABLE: See page 4 ; Other type available by customer requested

Test conditions and notes9

1. All parameters are specified at 230VAC input, rated load, 25℃ 70% RH ambient.
2. DC voltage: The output voltage set at point measure by plug terminal & 50% load.
3. Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1 μF & 47 μF capacitor.
4. Tolerance: includes set up tolerance, line regulation, load regulation.
5. Line regulation is measured from low line to high line at rated load.
6. Length of set up time is measured at first cold start. Turning ON/OFF the power supply may lead to increase of the set up time.
7. Derating may be needed under low input voltage. Please check the derating curve for more details.
8. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
9. The power supply is considered as an independent unit, but the final equipment still need to re-confirm that the whole system complies with the EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )

Technical drawings

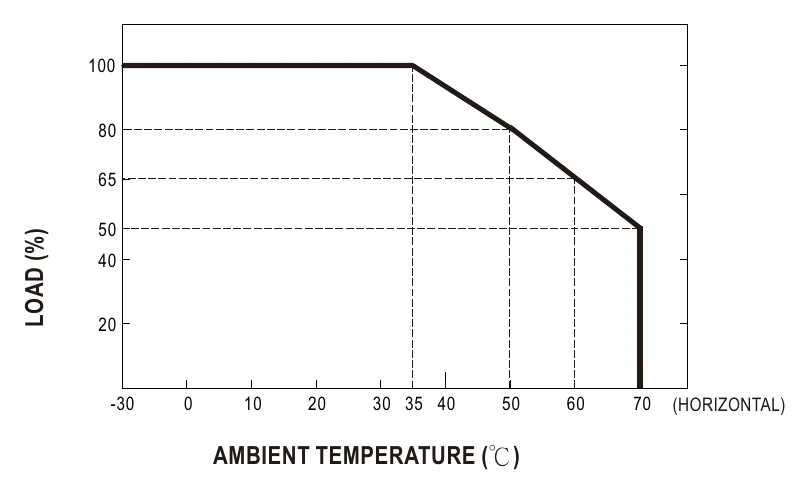

GST360B48-C6P Derating Curve — Derating Curve

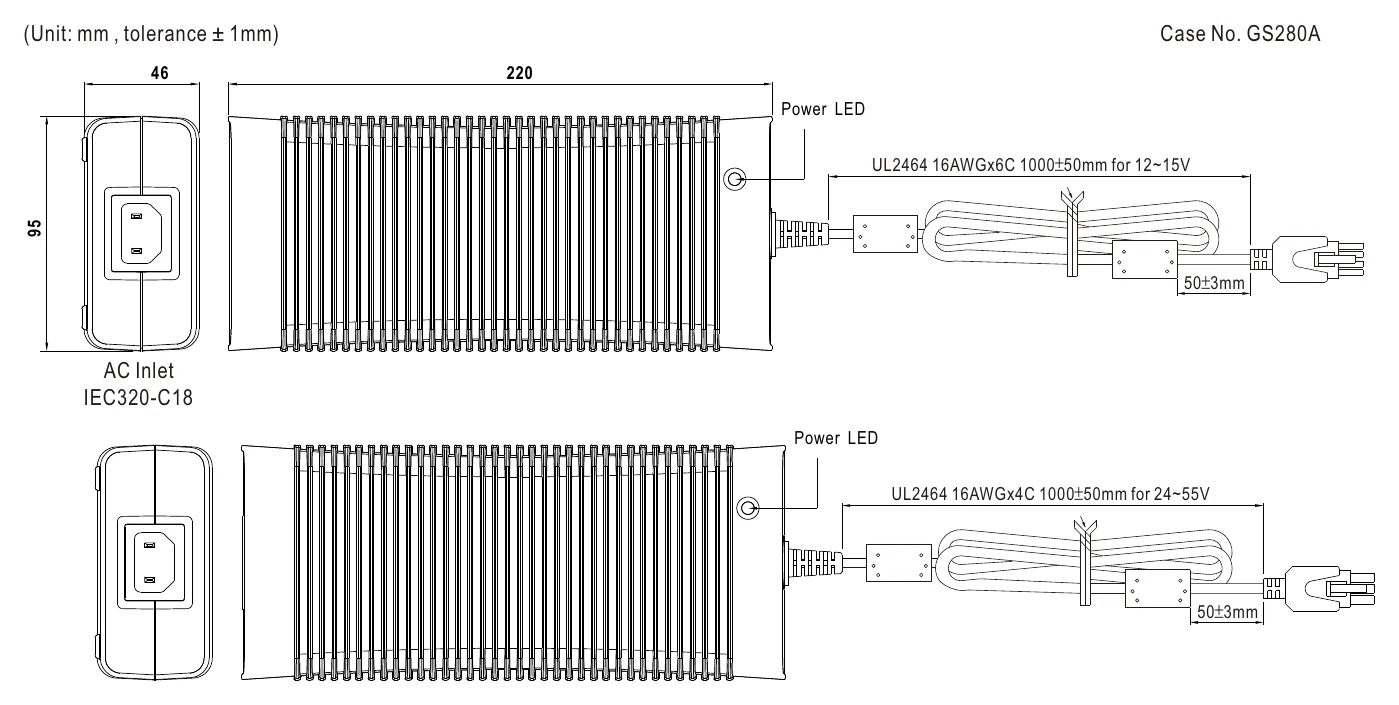

GST360B48-C6P Mechanical Specification — Mechanical Specification

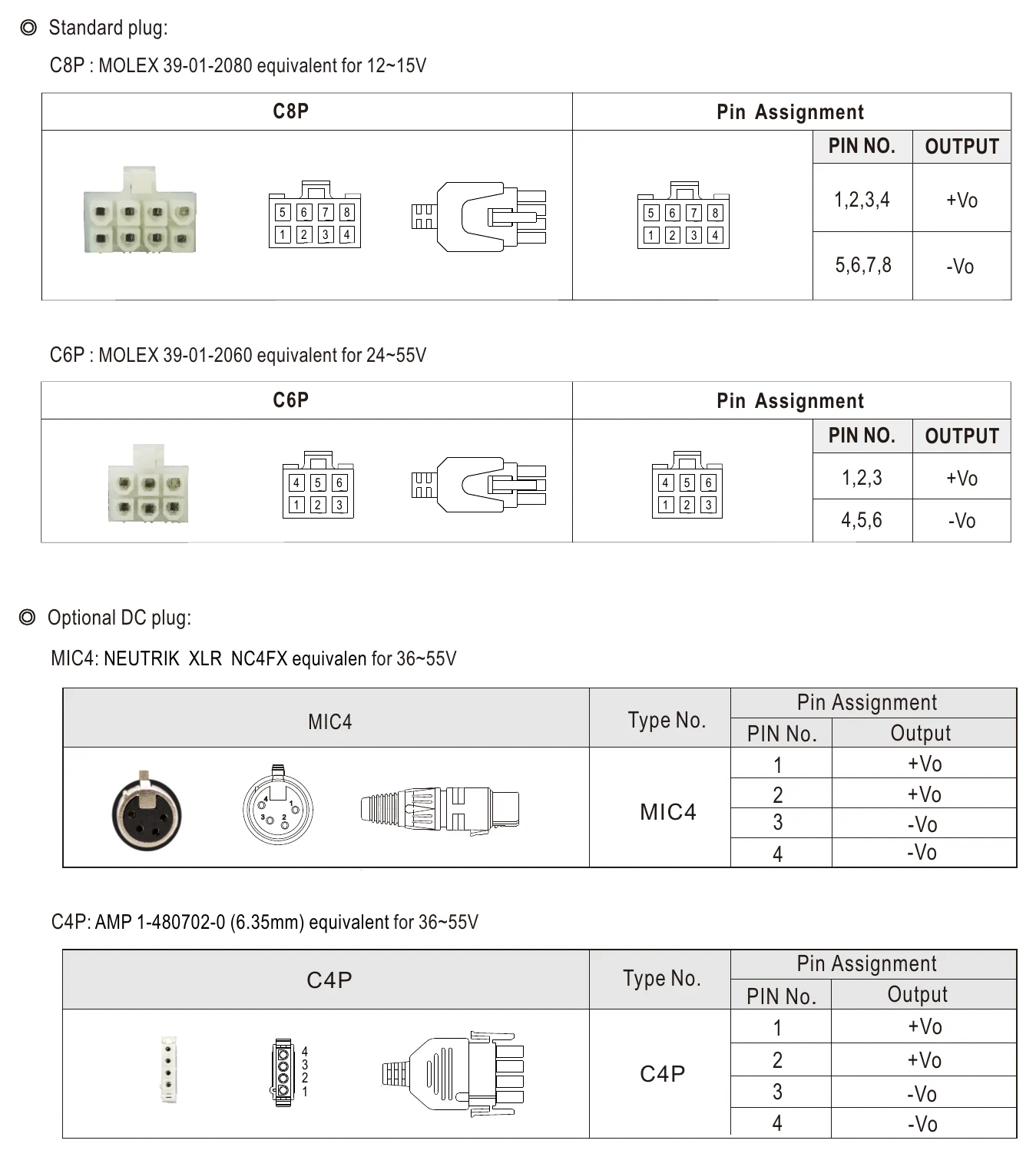

GST360B48-C6P DC output plug — DC output plug

Typical applications

Downloads

Catalogues1

Mean Well Catalog (Industrial) PDF Download

FAQ

What are the main output specifications of the Mean Well GST360B48-C6P?

This model is a 360W AC-DC industrial adaptor with a 48V DC output. Its rated output current is 7.5A. It is designed for applications that need a higher-power external power supply with a fixed 48V output.

What type of input power does the GST360B48-C6P accept?

The GST360B48-C6P has a universal input range of 85 to 264VAC, and it also supports 120 to 370VDC input. That wide range makes it suitable for use across different regions and industrial environments where mains input can vary. It uses an IEC320-C18 AC inlet.

What connector does this 48V adaptor use on the DC output side?

This version uses a C6P MOLEX 6 pin connector as its standard DC plug. The output cable length is 100cm and uses UL2464 16AWGx4C cable. Buyers should confirm the connector format matches their equipment before ordering.

Is the GST360B48-C6P suitable for industrial or continuous-use environments?

Yes, this model is built for industrial use and includes overload, over voltage and over temperature protection. It is rated for 10 to 500Hz, 2G vibration along the X, Y and Z axes and for operating altitudes up to 5000 meters. The operating temperature range is -30°C to +70°C, subject to the manufacturer's derating guidance.

What protection features are included in this power adaptor?

The GST360B48-C6P includes overload, over voltage, and over temperature protection. Overload protection triggers at 135 to 155% of rated output power and, on this 48V model, shuts down the output until the unit is re-powered. These built-in protections help support equipment protection in demanding commercial and industrial applications.

How energy efficient is the Mean Well GST360B48-C6P?

This adaptor has a typical efficiency of 95% at 230VAC input and rated load. Its typical power factor is above 0.95 at 230VAC and above 0.98 at 115VAC at full load. These characteristics make it a relevant choice for buyers who prioritize efficient power conversion.

What approvals and compliance standards does this model meet?

The GST360B48-C6P is approved to safety standards including UL62368-1, CSA C22.2 No.62368-1, Dekra BS EN/EN62368-1, IEC 61558-1/-2-16, CCC GB4943.1, AS/NZS 61558-1/-2-16 and EAC TP TC 004. EMC standards include BS EN/EN55032 (CISPR32) Class B, FCC Part 15 / CISPR22 Class B, CAN ICES-3(B), BS EN/EN61000-3-2 Class A and BS EN/EN61000-3-3. This broad compliance profile is useful for OEM and industrial procurement requirements.

What physical size and weight should buyers expect for this adaptor?

The unit dimensions are 220 x 95 x 46 mm, and the listed weight is 1.4 kg. This is an external power supply with an IEC320-C18 AC inlet rather than a compact plug-in adaptor.
