Mean Well

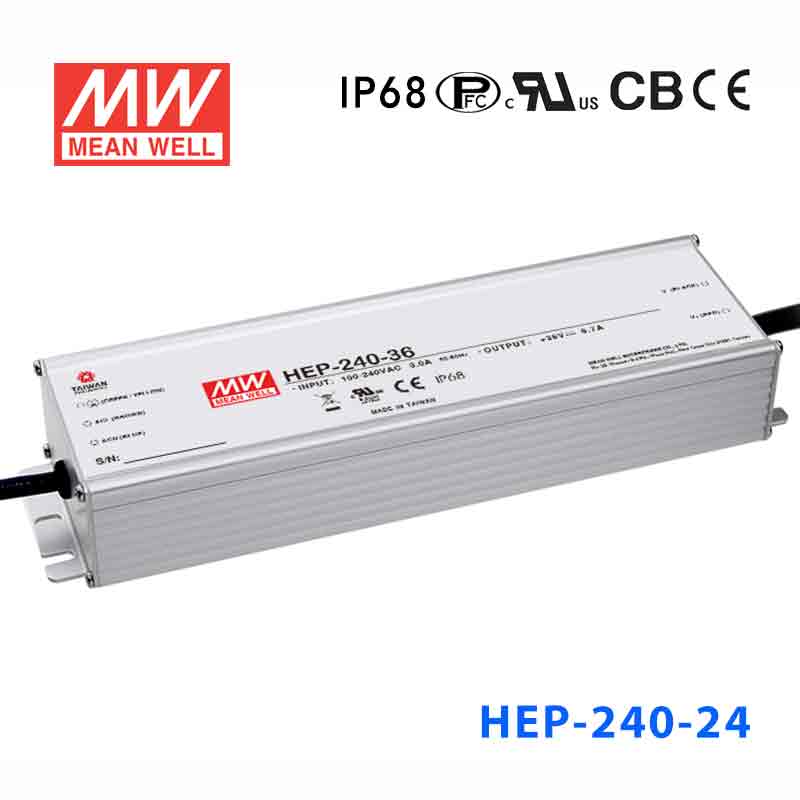

Mean Well HEP-240-24 Power Supply 240W 24V 10A

fanless designhigh efficiency up to 96%rugged metal case with IP65 design(IP68 option available)withstand 10G vibrationsuitable for harsh environment
SKU HEP-240-24
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →

Select model — 15 in this family

HEP-240-24
Available to order
|

Overview

HEP-240-24 is the 24V output model of this series: rated current 10A, rated power 240W, typical efficiency 92.5%.

HEP-240 is a 240W industrial AC/DC power supply featuring the outstanding capability to operate under a harsh environment with high dust density, humidity, vibration and altitude. The entire series is housed with a robust aluminum case and fully potted with heat-conducted silicone. Thanks to state-of-the-art design, the working efficiency is up to 93.5%, enabling HEP-240, with a fanless design, perfectly work between -55℃ and +70℃ under free air convection.

Features

  • Universal AC input / Full range
  • Built-in active PFC function
  • High efficiency up to 93.5%
  • Fanless design, cooling by free air convection
  • -55~+70℃ wide operating range
  • Aluminum case and filling with heat-conducted silicone
  • IP65 design, optional IP68 rated model available
  • Meet 6KV surge immunity level
  • Withstand 10G vibration test
  • Operating altitude up to 5000 meters (Note.8)
  • Protections: Short circuit / Overload / Over voltage / Over temperature
  • 6 years warranty (Note.10)

Specifications

HEP-240-24Specifications from the official datasheet (2025-10-10 edition)

OUTPUT

DC VOLTAGE
24V
RATED CURRENT
10A
RATED POWER
240W
RIPPLE & NOISE (max.)Note.2
150mVp-p
VOLTAGE ADJ. RANGENote.5
22.4 ~ 25.6V
CURRENT ADJ. RANGE
Can be adjusted by internal potentiometer for A type only
CURRENT ADJ. RANGE
5 ~ 10A
VOLTAGE TOLERANCENote.3
±1.0%
LINE REGULATION
±0.5%
LOAD REGULATION
±0.5%
SETUP, RISE TIMENote.6
1000ms,80ms/115VAC 500ms,80ms/230VAC at full load
HOLD UP TIME (Typ.)
15ms at full load 230VAC /115VAC

INPUT

VOLTAGE RANGENote.4
90~264VAC (277VAC operational) 128~370VDC(390VDC operational)
FREQUENCY RANGE
47 ~ 63Hz
POWER FACTOR (Typ.)
PF>0.98/115VAC, PF>0.95/230VAC, PF>0.92/277VAC at full load
EFFICIENCY (Typ.)
92.5%
AC CURRENT (Typ.) 12V
2A / 115VAC 1.05A / 230VAC 0.9A/277VAC
AC CURRENT (Typ.) 15~54V
2.5A / 115VAC 1.3A / 230VAC 1.1A/277VAC
INRUSH CURRENT(Typ.)
COLD START 75A at 230VAC
LEAKAGE CURRENT
<0.75mA / 277VAC

PROTECTION

OVER CURRENT
105 ~ 125% Protection type : Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUIT
Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE
27 ~ 34V Protection type : Shut down and latch off o/p voltage, re-power on to recover
OVER TEMPERATURE
Shut down o/p voltage, recovers automatically after temperature goes down

ENVIRONMENT

WORKING TEMP.
-55 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY
-60 ~ +80℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT
±0.03%/℃ (0 ~ 60℃)
VIBRATION
20 ~ 500Hz, 10G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDSNote.8
UL62368-1, IEC62368-1, IP65 (or IP68 for HEP-240 Blank-Type), EAC TP TC 004 approved; Design refer to BS EN/EN62368-1
WITHSTAND VOLTAGE
I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, light industry level (surge 6KV), EAC TP TC 020

OTHERS

MTBF
2008.7K hrs min. Telcordia SR-332 (Bellcore) ; 171.3Khrs min. MIL-HDBK-217F (25℃)
DIMENSION
244.2*68*38.8mm (L*W*H)
PACKING
1.3Kg; 12pcs/16.6Kg/0.84CUFT

Certifications & ratings

IP rating
IP65 IP68 (optional)
Test conditions and notes10
  1. 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
  2. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
  3. 3. Tolerance : includes set up tolerance, line regulation and load regulation.
  4. 4. Derating may be needed under low input voltages. Please check the static characteristics for more details.
  5. 5. A-Type only.
  6. 6. Length of set up time is measured at cold first start. Turning ON/OFF the power supply may lead to increase of the set up time.
  7. 7. The power supply is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
  8. 8. The water protection level test for the IP68 rating is performed 1000mm below the surface of the water for 1 month.
  9. 9. Refer to warranty statement.
  10. 10. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

HEP-240-24 Block Diagram
Block Diagram
HEP-240-24 Derating Curve
Derating Curve
HEP-240-24 Mechanical Specification
Mechanical Specification

Typical applications

  • Outdoor telecommunication equipment
  • Outdoor electronic signage and billboard
  • Petroleum plant or mine shaft facility

Downloads

FAQ

Can I use the HEP-240-24 for 24V PLCs, sensors, or automation loads?

Yes, this is a constant-voltage 24V power supply rated for 10A and 240W, which fits many 24V automation and control systems. It is intended for loads that require a stable 24V DC output and stay within those current and power limits.

Is the HEP-240-24 suitable for 24V industrial networking or embedded control systems?

It can support 24V industrial electronics, embedded controllers, and network-related equipment that are designed for constant-voltage 24V input and draw up to 10A. The 92.5% typical efficiency and 10G vibration rating are also helpful in enclosed cabinets.

Can this model be used for outdoor 24V equipment or harsh-environment installations?

The HEP-240-24 carries an IP68 rating, so it is built for strong protection against dust and water exposure in harsh environments. Its -55°C to +70°C operating temperature range also supports use where ambient conditions are unusually cold or hot.

Would the HEP-240-24 work for 24V LED, control, or DC distribution systems?

It is a fit for 24V constant-voltage systems where the combined load stays within 240W and 10A. That makes it relevant for industrial DC distribution, 24V control assemblies, and other 24V equipment that needs a rugged power source rather than a basic indoor supply.

How does the HEP-240-24 compare with other HEP-240 outputs?

In the HEP-240 series, the 12V models are 192W and 16A, the 15V models are 225W and 15A, the 24V models are 240W and 10A, the 36V models are 241.2W and 6.7A, the 48V models are 240W and 5A, and the 54V models are 240.3W and 4.45A, with each voltage available in both standard and A-suffix versions. This HEP-240-24 is the IP68 24V, 10A option, while HEP-240-24A is the IP65 version with the same electrical rating.
