Mean Well

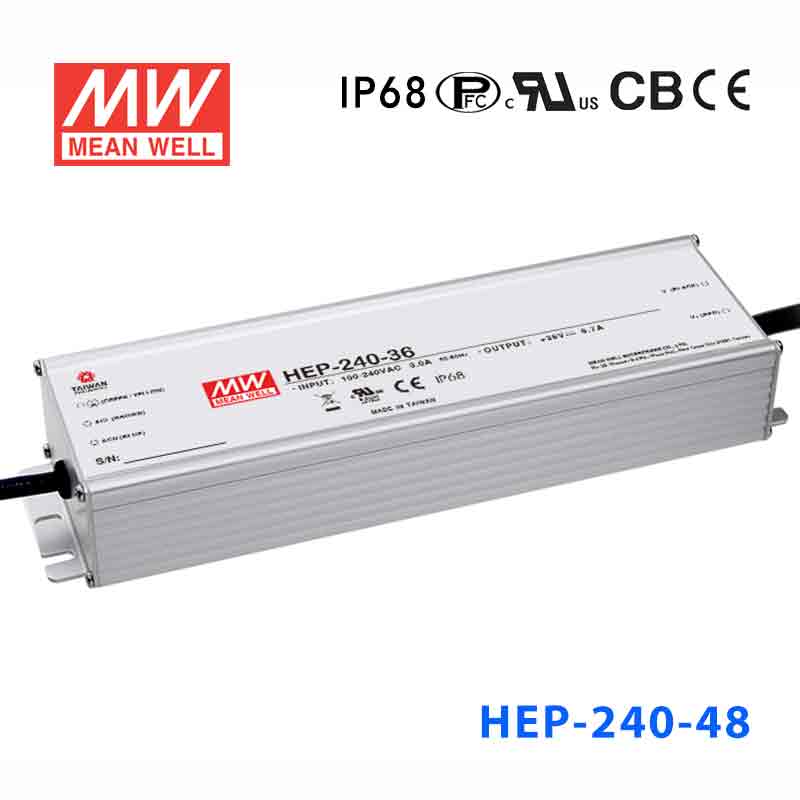

Mean Well HEP-240-48A Power Supply 240W 48V 5A

fanless designhigh efficiency up to 96%rugged metal case with IP65 design(IP68 option available)withstand 10G vibrationsuitable for harsh environment
SKU HEP-240-48A
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →

Select model — 15 in this family

HEP-240-48A
Available to order
|

Overview

HEP-240-48A is the 48V output model of this series: rated current 5A, rated power 240W, typical efficiency 93%.

HEP-240 is a 240W industrial AC/DC power supply featuring the outstanding capability to operate under a harsh environment with high dust density, humidity, vibration and altitude. The entire series is housed with a robust aluminum case and fully potted with heat-conducted silicone. Thanks to state-of-the-art design, the working efficiency is up to 93.5%, enabling HEP-240, with a fanless design, perfectly work between -55℃ and +70℃ under free air convection.

Features

  • Universal AC input / Full range
  • Built-in active PFC function
  • High efficiency up to 93.5%
  • Fanless design, cooling by free air convection
  • -55~+70℃ wide operating range
  • Aluminum case and filling with heat-conducted silicone
  • IP65 design, optional IP68 rated model available
  • Meet 6KV surge immunity level
  • Withstand 10G vibration test
  • Operating altitude up to 5000 meters (Note.8)
  • Protections: Short circuit / Overload / Over voltage / Over temperature
  • 6 years warranty (Note.10)

Specifications

HEP-240-48ASpecifications from the official datasheet (2025-10-10 edition)

OUTPUT

DC VOLTAGE
48V
RATED CURRENT
5A
RATED POWER
240W
RIPPLE & NOISE (max.)Note.2
250mVp-p
VOLTAGE ADJ. RANGENote.5
44.8 ~ 51.2V
CURRENT ADJ. RANGE
Can be adjusted by internal potentiometer for A type only
CURRENT ADJ. RANGE
2.5 ~ 5A
VOLTAGE TOLERANCENote.3
±1.0%
LINE REGULATION
±0.5%
LOAD REGULATION
±0.5%
SETUP, RISE TIMENote.6
1000ms,80ms/115VAC 500ms,80ms/230VAC at full load
HOLD UP TIME (Typ.)
15ms at full load 230VAC /115VAC

INPUT

VOLTAGE RANGENote.4
90~264VAC (277VAC operational) 128~370VDC(390VDC operational)
FREQUENCY RANGE
47 ~ 63Hz
POWER FACTOR (Typ.)
PF>0.98/115VAC, PF>0.95/230VAC, PF>0.92/277VAC at full load
EFFICIENCY (Typ.)
93%
AC CURRENT (Typ.) 12V
2A / 115VAC 1.05A / 230VAC 0.9A/277VAC
AC CURRENT (Typ.) 15~54V
2.5A / 115VAC 1.3A / 230VAC 1.1A/277VAC
INRUSH CURRENT(Typ.)
COLD START 75A at 230VAC
LEAKAGE CURRENT
<0.75mA / 277VAC

PROTECTION

OVER CURRENT
105 ~ 125% Protection type : Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUIT
Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE
55 ~ 63V Protection type : Shut down and latch off o/p voltage, re-power on to recover
OVER TEMPERATURE
Shut down o/p voltage, recovers automatically after temperature goes down

ENVIRONMENT

WORKING TEMP.
-55 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY
-60 ~ +80℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT
±0.03%/℃ (0 ~ 60℃)
VIBRATION
20 ~ 500Hz, 10G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDSNote.8
UL62368-1, IEC62368-1, IP65 (or IP68 for HEP-240 Blank-Type), EAC TP TC 004 approved; Design refer to BS EN/EN62368-1
WITHSTAND VOLTAGE
I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, light industry level (surge 6KV), EAC TP TC 020

OTHERS

MTBF
2008.7K hrs min. Telcordia SR-332 (Bellcore) ; 171.3Khrs min. MIL-HDBK-217F (25℃)
DIMENSION
244.2*68*38.8mm (L*W*H)
PACKING
1.3Kg; 12pcs/16.6Kg/0.84CUFT

Certifications & ratings

IP rating
IP65 IP68 (optional)
Test conditions and notes10
  1. 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
  2. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
  3. 3. Tolerance : includes set up tolerance, line regulation and load regulation.
  4. 4. Derating may be needed under low input voltages. Please check the static characteristics for more details.
  5. 5. A-Type only.
  6. 6. Length of set up time is measured at cold first start. Turning ON/OFF the power supply may lead to increase of the set up time.
  7. 7. The power supply is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
  8. 8. The water protection level test for the IP68 rating is performed 1000mm below the surface of the water for 1 month.
  9. 9. Refer to warranty statement.
  10. 10. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

HEP-240-48A Block Diagram
Block Diagram
HEP-240-48A Derating Curve
Derating Curve
HEP-240-48A Mechanical Specification
Mechanical Specification

Typical applications

  • Outdoor telecommunication equipment
  • Outdoor electronic signage and billboard
  • Petroleum plant or mine shaft facility

Downloads

FAQ

Can the HEP-240-48A power 48V PLC, control, or automation equipment?

Yes, for equipment that requires constant 48V DC and stays within 240W and 5A. That makes it appropriate for many 48V control and automation loads where a regulated 48V output is required.

Is HEP-240-48A suitable for 48V embedded systems or communications hardware?

It can support 48V embedded platforms or communications hardware that are designed for fixed 48V DC input. The available output is 240W at 5A, so the total connected load has to remain inside that limit.

Can I use this model for 48V DC equipment in vibration-prone industrial locations?

It is designed for harsh environments, with IP65 protection and a published 10G vibration tolerance. Electrically, it is still a constant-voltage 48V unit limited to 240W and 5A, so the load must match those values.

Is the HEP-240-48A meant for indoor use only or light outdoor exposure too?

This version is rated IP65, so it is water-resistant rather than fully sealed to the IP68 level. Combined with the -55°C to +70°C operating range, it fits indoor industrial spaces and outdoor locations where IP65 protection is appropriate.

How does HEP-240-48A compare with the other HEP-240 models?

Across the HEP-240 group, the listed outputs are 192W at 12V and 16A, 225W at 15V and 15A, 240W at 24V and 10A, 241.2W at 36V and 6.7A, 240W at 48V and 5A, and 240.3W at 54V and 4.45A. The A and non-A entries shown for each voltage class carry the same published wattage, voltage, and current figures.
