Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

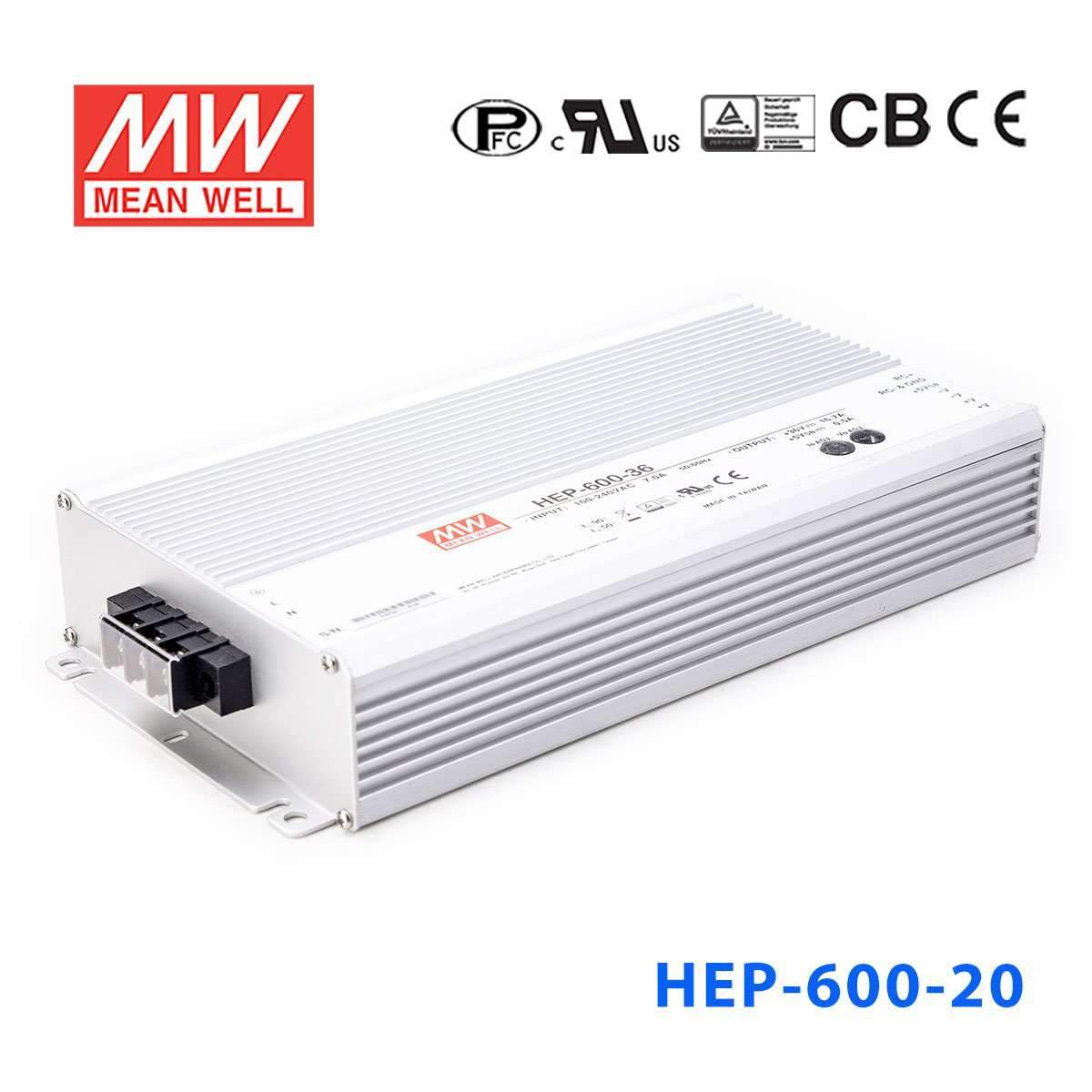

Mean Well HEP-600-20 Power Supply 560W 20V 28A

fanless designhigh efficiency up to 96%rugged metal case with IP65 design(IP68 option available)withstand 10G vibrationsuitable for harsh environment

SKU HEP-600-20

Log in to see price Trade pricing & online ordering for account holders

Available to order

Overview

HEP-600-20 is the 20V output model of this series: rated current 28A, rated power 560W, typical efficiency 95%.

HEP-600 is a 600W industrial AC/DC power supply featuring the outstanding capability to operate under highly humid, dusty, oily, and high-vibration harsh environment. The entire series is housed with the aluminum case and fully potted with heat-conducted silicone. Thanks to state-of-the-art design, the working efficiency is up to 96%, enabling HEP-600 perfectly work between -40℃ and +70℃ under free air convection.

Features

Universal AC input / Full range
Built-in active PFC function
No load power consumption <0.5W at remote OFF
High efficiency up to 96%
Fanless design, cooling by free air convection
-40 ~ +70℃ wide operating range
Aluminum case and filling with heat-conducted glue
Withstand 10G vibration test
Output voltage and output current can be adjusted through internal potentiometer
Protections: Short circuit / Over current / Over voltage / Over temperature
LED indicator for power on
Operating altitude up to 5000 meters (Note.7)
6 years warranty

Specifications

HEP-600-20Specifications from the official datasheet (2025-10-10 edition)

OUTPUT

DC VOLTAGE: 20V
RATED CURRENT: 28A
RATED POWER: 560W
RIPPLE & NOISE (max.)^Note.2: 150mVp-p
VOLTAGE ADJ. RANGE: 17 ~ 21V
CURRENT ADJ. RANGE: 14 ~ 28A
VOLTAGE TOLERANCE^Note.3: ±1.5%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±1.0%
SETUP, RISE TIME^Note.5: 500ms, 80ms at full load 230VAC /115VAC
HOLD UP TIME (Typ.): 15ms at full load 230VAC /115VAC

INPUT

VOLTAGE RANGE^Note.4: 90~264VAC(277VAC operational) 128~370VDC(390VDC operational)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF>0.98/115VAC, PF>0.95/230VAC, PF>0.93/277VAC at full load
EFFICIENCY (Typ.): 95%
AC CURRENT (Typ.): 7A / 115VAC 3.3A / 230VAC 2.9A / 277VAC
INRUSH CURRENT(Typ.): COLD START 70A(twidth=1000μs measured at 50% Ipeak) at 230VAC
LEAKAGE CURRENT: <0.75mA / 277VAC

PROTECTION

OVER CURRENT: 105 ~ 125% Protection type : Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUIT: Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE: 22 ~ 26V
OVER TEMPERATURE: Shut down o/p voltage, re-power on to recover

FUNCTION

REMOTE ON/OFF CONTROL: Power on : "Hi" >2 ~ 5V or Open circuit Power off : "Low" <0 ~ 0.5V or Short circuit
5V STANDBY: 5VSB : 5V@0.5A ; tolerance ±5%, ripple : 100mVp-p(max.)

ENVIRONMENT

WORKING TEMP.: -40 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 60℃)
VIBRATION: 20 ~ 500Hz, 10G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC (Note.6)

SAFETY STANDARDS: UL62368-1,TUV BS EN/EN62368-1, EAC TP TC 004, BIS IS13252(Part1): 2010/IEC 60950-1:2005(NOTE 8) approved
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55024, heavy industry level, EAC TP TC 020

OTHERS

MTBF: 914.7K hrs min. Telcordia SR-332 (Bellcore) ; 76.9K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 280*144*48.5mm (L*W*H)
PACKING: 3.9Kg; 4pcs/16Kg/0.9CUFT

Test conditions and notes8

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. Derating may be needed under low input voltages. Please check the static characteristics for more details.
5. Length of set up time is measured at cold first start. Turning ON/OFF the power supply may lead to increase of the set up time.
6. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
7. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
8. Some model may not have the BIS logo, please contact your MEAN WELL sales for more information.

Technical drawings

HEP-600-20 Block Diagram — Block Diagram

HEP-600-20 Illustration (page 4) — Illustration (page 4)

Typical applications

Outdoor telecommunication equipment
Outdoor electronic signage and billboard
Petroleum plant or mine shaft facility

Downloads

Certificates4

CB Certificate(HEP-600)(EN) PDF Download

TUV Certificate(HEP-600)(EN) PDF Download

EMC Certificate(HEP-600)(EN) PDF Download

UL Certificate(HEP-600)(EN) PDF Download

Test reports1

Test Report(HEP-600-20)(EN) PDF Download

Catalogues1

Mean Well Catalog (Industrial) PDF Download

FAQ

Can I use the HEP-600-20 for 20V industrial or embedded equipment?

Yes, it is built for constant-voltage 20V DC applications and can deliver up to 28A and 560W. That makes it suitable for industrial and embedded equipment designed specifically for a 20V supply rail.

Is the HEP-600-20 suitable for 20V automation subsystems in harsh environments?

It can fit 20V automation subsystems that need a constant-voltage supply and stay within 560W and 28A. The -40°C to +70°C operating range (with derating) and 10G vibration rating support use in rugged industrial conditions.

Can this model be used for 20V test equipment or specialized control hardware?

It is appropriate for 20V test, instrumentation, or control hardware that requires constant 20V DC and falls within the 28A output limit. The 90-264VAC input range (277VAC operational) also helps where the equipment may be deployed internationally or in facilities with varying AC input.

Is the HEP-600-20 suitable for outdoor or wet locations?

The spec sheet does not state an IP rating for this model, so confirm its suitability before installing it in outdoor or wet locations. It is specified for harsh environments, with -40°C to +70°C operation (with derating) and 20-95% RH non-condensing humidity.

How does the HEP-600-20 differ from nearby HEP-600 voltage options?

The HEP-600-20 is rated 560W at 20V and 28A. In the same family, the nearby constant-voltage options are 15V at 540W and 36A, 24V at 600W and 25A, 30V at 600W and 20A, 36V at 601.2W and 16.7A, 42V at 600.6W and 14.3A, 48V at 600W and 12.5A, and 54V at 604.8W and 11.2A.
