Mean Well

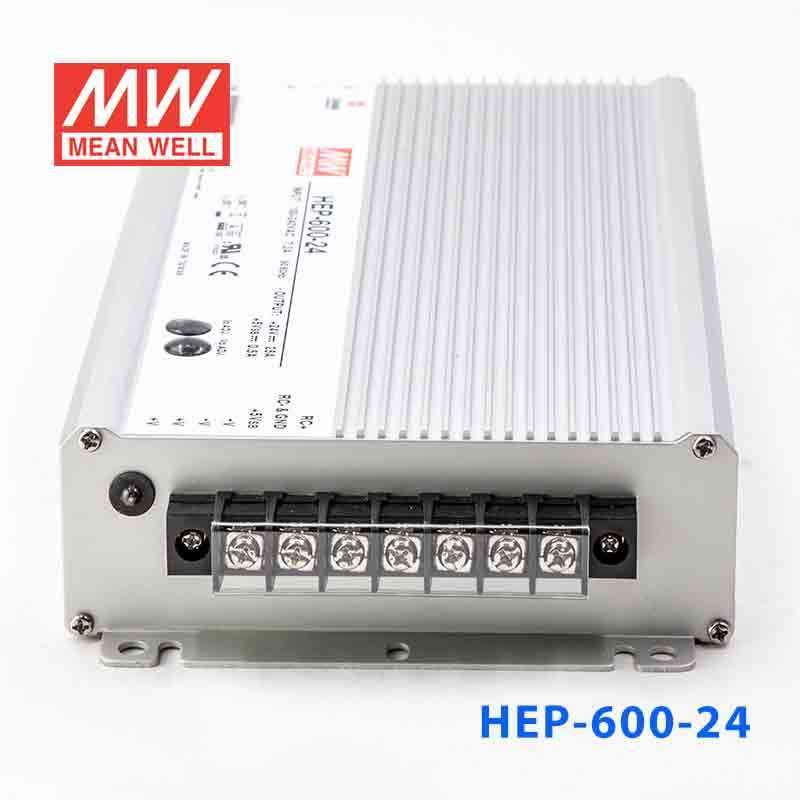

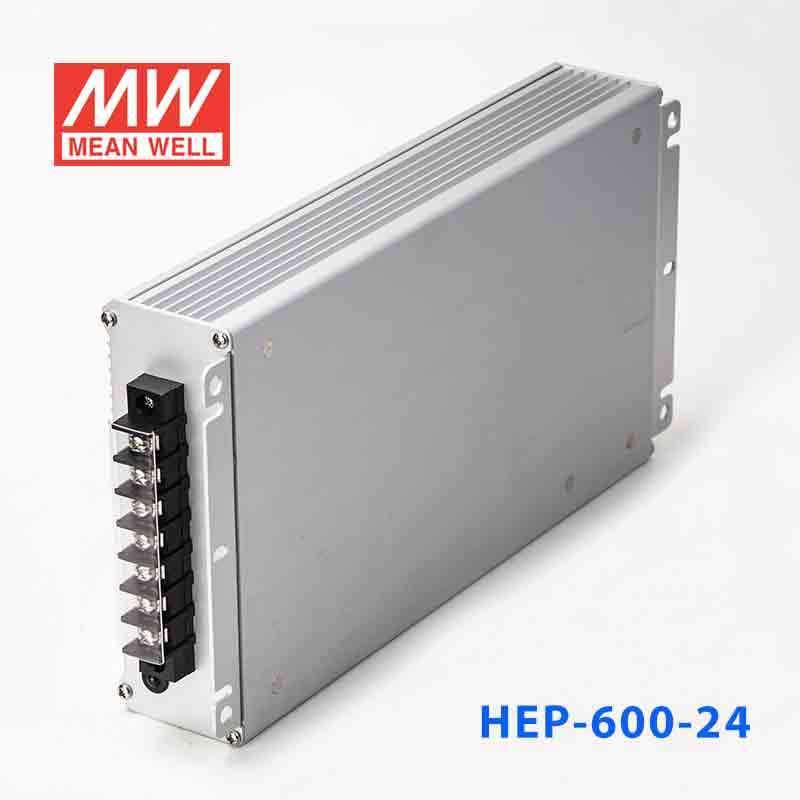

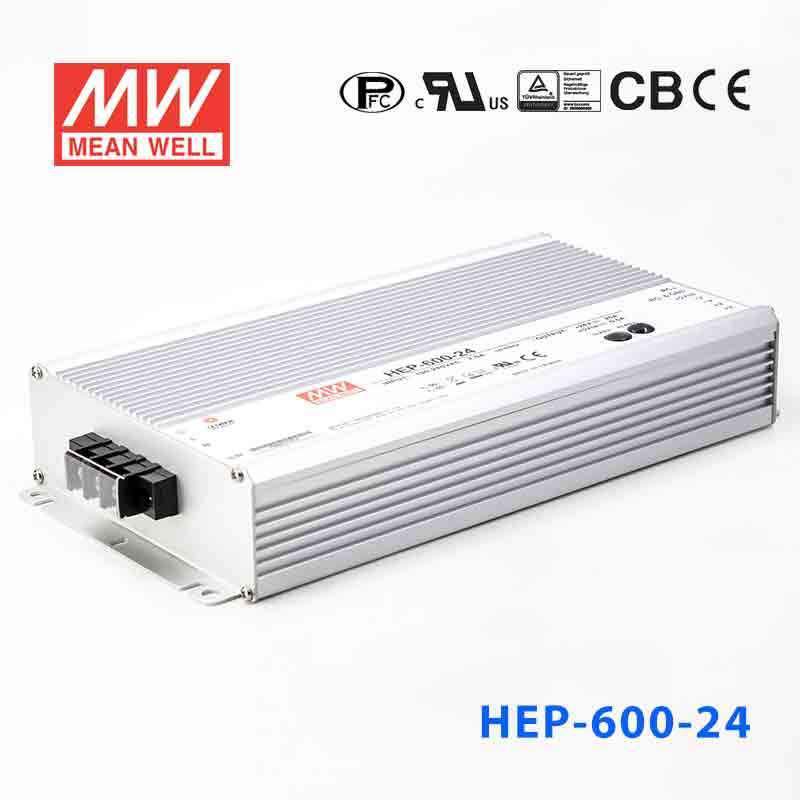

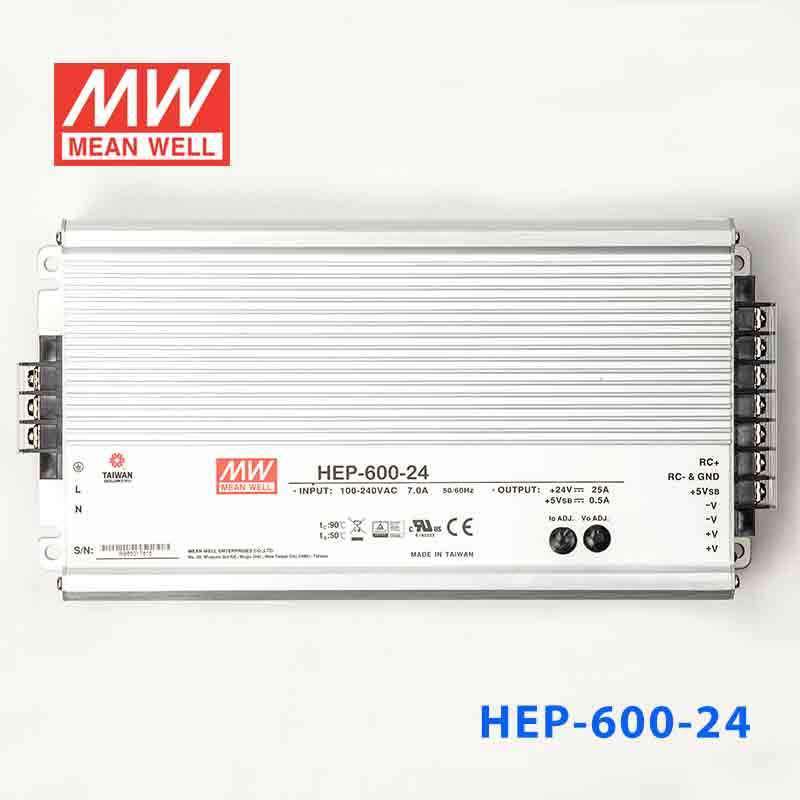

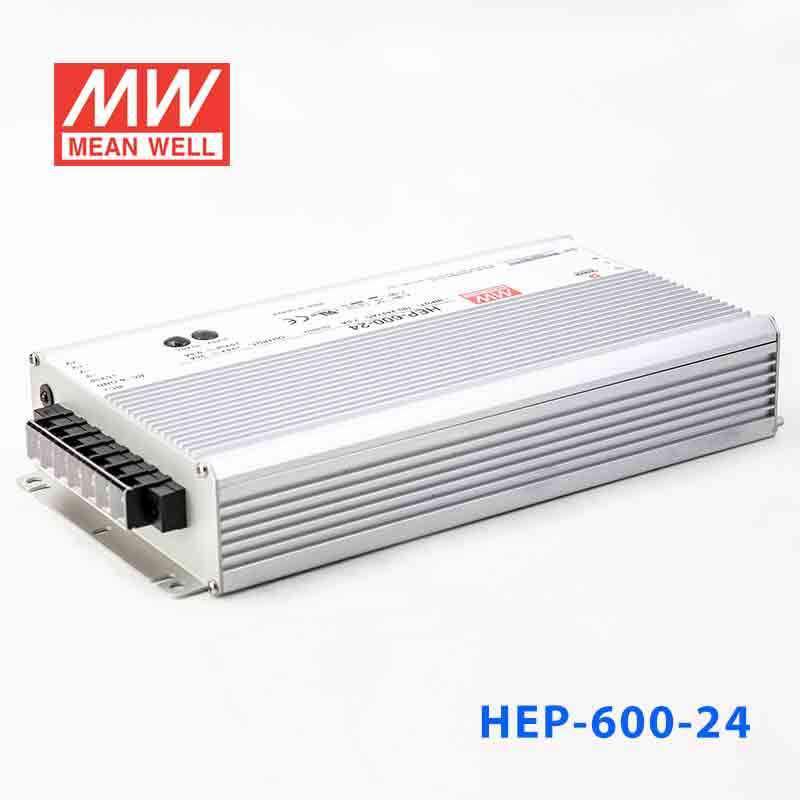

Mean Well HEP-600-24 Power Supply 600W 24V 25A

fanless designhigh efficiency up to 96%rugged metal case with IP65 design(IP68 option available)withstand 10G vibrationsuitable for harsh environment
SKU HEP-600-24
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →

Select model — 15 in this family

HEP-600-24
In stock
|

Overview

HEP-600-24 is the 24V output model of this series: rated current 25A, rated power 600W, typical efficiency 95%.

HEP-600 is a 600W industrial AC/DC power supply featuring the outstanding capability to operate under highly humid, dusty, oily, and high-vibration harsh environment. The entire series is housed with the aluminum case and fully potted with heat-conducted silicone. Thanks to state-of-the-art design, the working efficiency is up to 96%, enabling HEP-600 perfectly work between -40℃ and +70℃ under free air convection.

Features

  • Universal AC input / Full range
  • Built-in active PFC function
  • No load power consumption <0.5W at remote OFF
  • High efficiency up to 96%
  • Fanless design, cooling by free air convection
  • -40 ~ +70℃ wide operating range
  • Aluminum case and filling with heat-conducted glue
  • Withstand 10G vibration test
  • Output voltage and output current can be adjusted through internal potentiometer
  • Protections: Short circuit / Over current / Over voltage / Over temperature
  • LED indicator for power on
  • Operating altitude up to 5000 meters (Note.7)
  • 6 years warranty

Specifications

HEP-600-24Specifications from the official datasheet (2025-10-10 edition)

OUTPUT

DC VOLTAGE
24V
RATED CURRENT
25A
RATED POWER
600W
RIPPLE & NOISE (max.)Note.2
150mVp-p
VOLTAGE ADJ. RANGE
20.4 ~ 25.2V
CURRENT ADJ. RANGE
12.5 ~ 25A
VOLTAGE TOLERANCENote.3
±1.0%
LINE REGULATION
±0.5%
LOAD REGULATION
±0.5%
SETUP, RISE TIMENote.5
500ms, 80ms at full load 230VAC /115VAC
HOLD UP TIME (Typ.)
15ms at full load 230VAC /115VAC

INPUT

VOLTAGE RANGENote.4
90~264VAC(277VAC operational) 128~370VDC(390VDC operational)
FREQUENCY RANGE
47 ~ 63Hz
POWER FACTOR (Typ.)
PF>0.98/115VAC, PF>0.95/230VAC, PF>0.93/277VAC at full load
EFFICIENCY (Typ.)
95%
AC CURRENT (Typ.)
7A / 115VAC 3.3A / 230VAC 2.9A / 277VAC
INRUSH CURRENT(Typ.)
COLD START 70A(twidth=1000μs measured at 50% Ipeak) at 230VAC
LEAKAGE CURRENT
<0.75mA / 277VAC

PROTECTION

OVER CURRENT
105 ~ 125% Protection type : Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUIT
Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE
26 ~ 30V
OVER TEMPERATURE
Shut down o/p voltage, re-power on to recover

FUNCTION

REMOTE ON/OFF CONTROL
Power on : "Hi" >2 ~ 5V or Open circuit Power off : "Low" <0 ~ 0.5V or Short circuit
5V STANDBY
5VSB : 5V@0.5A ; tolerance ±5%, ripple : 100mVp-p(max.)

ENVIRONMENT

WORKING TEMP.
-40 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +85℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT
±0.03%/℃ (0 ~ 60℃)
VIBRATION
20 ~ 500Hz, 10G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC (Note.6)

SAFETY STANDARDS
UL62368-1,TUV BS EN/EN62368-1, EAC TP TC 004, BIS IS13252(Part1): 2010/IEC 60950-1:2005(NOTE 8) approved
WITHSTAND VOLTAGE
I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55024, heavy industry level, EAC TP TC 020

OTHERS

MTBF
914.7K hrs min. Telcordia SR-332 (Bellcore) ; 76.9K hrs min. MIL-HDBK-217F (25℃)
DIMENSION
280*144*48.5mm (L*W*H)
PACKING
3.9Kg; 4pcs/16Kg/0.9CUFT
Test conditions and notes8
  1. 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
  2. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
  3. 3. Tolerance : includes set up tolerance, line regulation and load regulation.
  4. 4. Derating may be needed under low input voltages. Please check the static characteristics for more details.
  5. 5. Length of set up time is measured at cold first start. Turning ON/OFF the power supply may lead to increase of the set up time.
  6. 6. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
  7. 7. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
  8. 8. Some model may not have the BIS logo, please contact your MEAN WELL sales for more information.

Technical drawings

HEP-600-24 Block Diagram
Block Diagram
HEP-600-24 Illustration (page 4)
Illustration (page 4)

Typical applications

  • Outdoor telecommunication equipment
  • Outdoor electronic signage and billboard
  • Petroleum plant or mine shaft facility

Downloads

FAQ

Can I use the HEP-600-24 for a 24V PLC, sensor, or actuator system?

Yes, if the system is designed for constant-voltage 24V DC. This unit provides up to 25A and 600W, which fits higher-load 24V automation systems that stay within those ratings.

Is the HEP-600-24 suitable for 24V industrial PCs, networking gear, or edge devices?

It can be used where the equipment requires a 24V DC source and the total draw does not exceed 25A or 600W. The remote on/off control and 5V/0.5A standby output can also be useful in equipment enclosures.

Can this model support several 24V loads from one power supply?

Yes, provided the combined 24V load remains within 25A and 600W. It is a constant-voltage model, so it is intended for systems built around a fixed 24V DC bus.

Is the HEP-600-24 appropriate for outdoor equipment or washdown environments?

It is specified for harsh environments with an operating range of -40°C to +70°C (with derating) and 20-95% RH non-condensing humidity. The spec sheet does not state an IP rating, so confirm its suitability for outdoor or washdown locations before installation.

What are the main output choices across the HEP-600 family if I am comparing 24V to other versions?

The listed HEP-600 outputs are 480W 12V 40A, 540W 15V 36A, 560W 20V 28A, 600W 24V 25A, 600W 30V 20A, 601.2W 36V 16.7A, 600.6W 42V 14.3A, 600W 48V 12.5A, and 604.8W 54V 11.2A.
