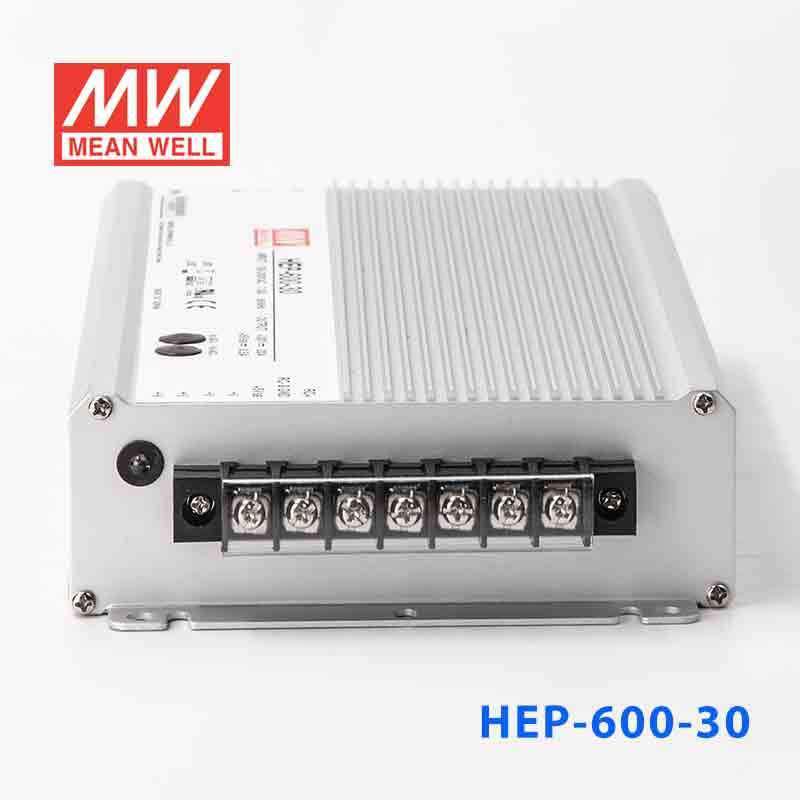

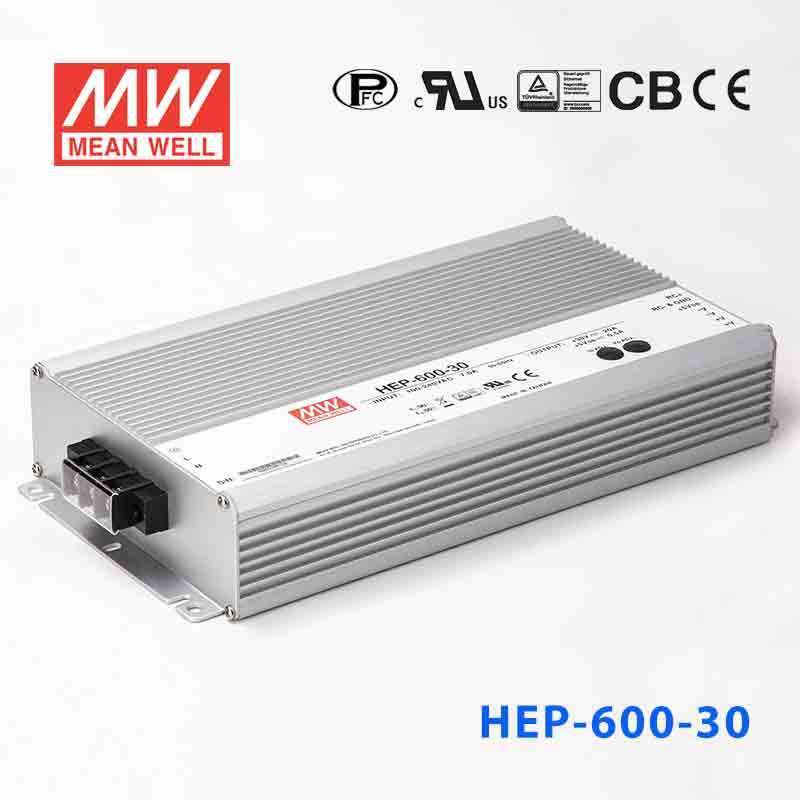

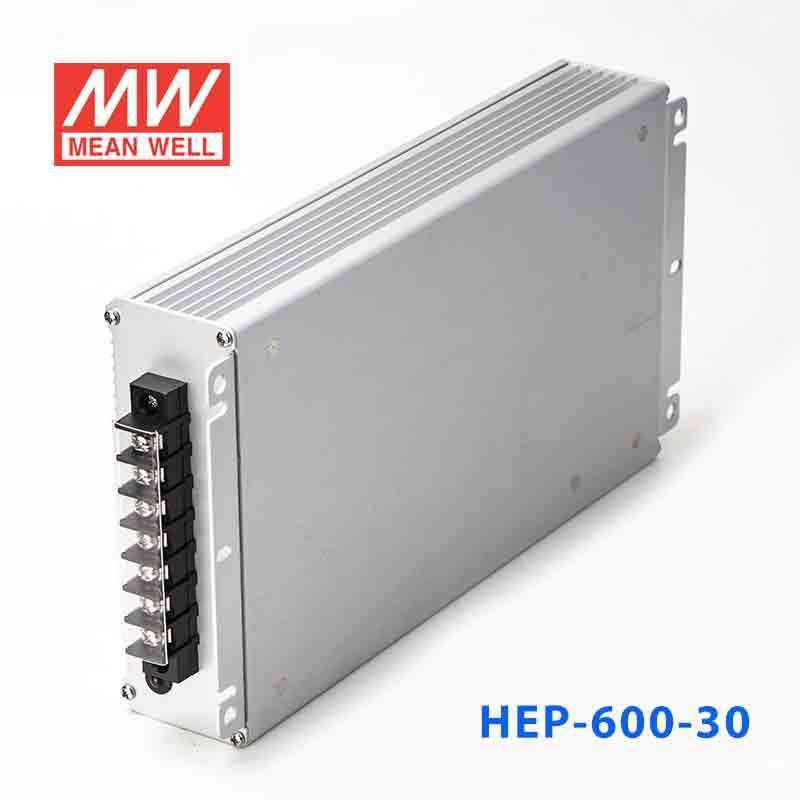

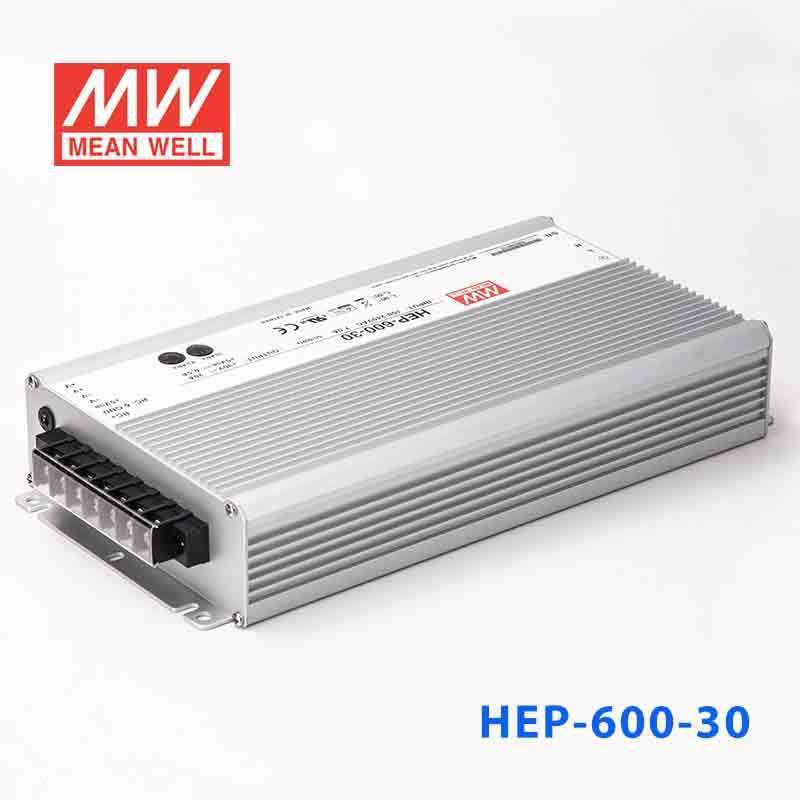

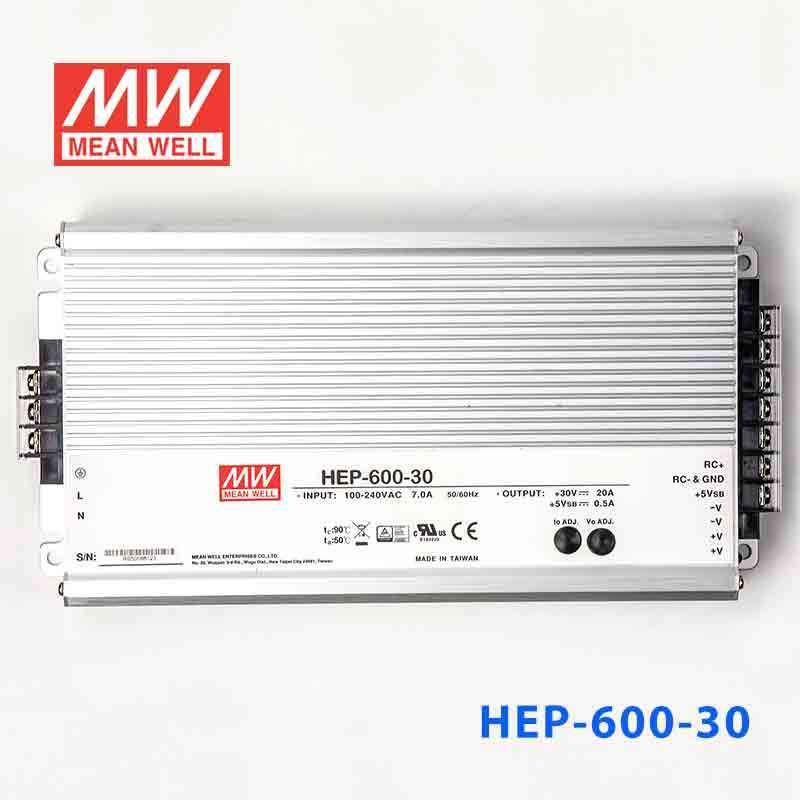

Mean Well HEP-600-30 Power Supply 600W 30V 20A

fanless designhigh efficiency up to 96%rugged metal case with IP65 design(IP68 option available)withstand 10G vibrationsuitable for harsh environment

SKU HEP-600-30

Log in to see price Trade pricing & online ordering for account holders

Available to order

Overview

HEP-600-30 is the 30V output model of this series: rated current 20A, rated power 600W, typical efficiency 95.5%.

HEP-600 is a 600W industrial AC/DC power supply featuring the outstanding capability to operate under highly humid, dusty, oily, and high-vibration harsh environment. The entire series is housed with the aluminum case and fully potted with heat-conducted silicone. Thanks to state-of-the-art design, the working efficiency is up to 96%, enabling HEP-600 perfectly work between -40℃ and +70℃ under free air convection.

Features

Universal AC input / Full range
Built-in active PFC function
No load power consumption <0.5W at remote OFF
High efficiency up to 96%
Fanless design, cooling by free air convection
-40 ~ +70℃ wide operating range
Aluminum case and filling with heat-conducted glue
Withstand 10G vibration test
Output voltage and output current can be adjusted through internal potentiometer
Protections: Short circuit / Over current / Over voltage / Over temperature
LED indicator for power on
Operating altitude up to 5000 meters (Note.7)
6 years warranty

Specifications

HEP-600-30Specifications from the official datasheet (2025-10-10 edition)

OUTPUT

DC VOLTAGE: 30V
RATED CURRENT: 20A
RATED POWER: 600W
RIPPLE & NOISE (max.)^Note.2: 200mVp-p
VOLTAGE ADJ. RANGE: 25.5 ~ 31.5V
CURRENT ADJ. RANGE: 10 ~ 20A
VOLTAGE TOLERANCE^Note.3: ±1.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±0.5%
SETUP, RISE TIME^Note.5: 500ms, 80ms at full load 230VAC /115VAC
HOLD UP TIME (Typ.): 15ms at full load 230VAC /115VAC

INPUT

VOLTAGE RANGE^Note.4: 90~264VAC(277VAC operational) 128~370VDC(390VDC operational)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF>0.98/115VAC, PF>0.95/230VAC, PF>0.93/277VAC at full load
EFFICIENCY (Typ.): 95.5%
AC CURRENT (Typ.): 7A / 115VAC 3.3A / 230VAC 2.9A / 277VAC
INRUSH CURRENT(Typ.): COLD START 70A(twidth=1000μs measured at 50% Ipeak) at 230VAC
LEAKAGE CURRENT: <0.75mA / 277VAC

PROTECTION

OVER CURRENT: 105 ~ 125% Protection type : Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUIT: Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE: 32.5 ~ 36.5V
OVER TEMPERATURE: Shut down o/p voltage, re-power on to recover

FUNCTION

REMOTE ON/OFF CONTROL: Power on : "Hi" >2 ~ 5V or Open circuit Power off : "Low" <0 ~ 0.5V or Short circuit
5V STANDBY: 5VSB : 5V@0.5A ; tolerance ±5%, ripple : 100mVp-p(max.)

ENVIRONMENT

WORKING TEMP.: -40 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 60℃)
VIBRATION: 20 ~ 500Hz, 10G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC (Note.6)

SAFETY STANDARDS: UL62368-1,TUV BS EN/EN62368-1, EAC TP TC 004, BIS IS13252(Part1): 2010/IEC 60950-1:2005(NOTE 8) approved
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55024, heavy industry level, EAC TP TC 020

OTHERS

MTBF: 914.7K hrs min. Telcordia SR-332 (Bellcore) ; 76.9K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 280*144*48.5mm (L*W*H)
PACKING: 3.9Kg; 4pcs/16Kg/0.9CUFT

Test conditions and notes8

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. Derating may be needed under low input voltages. Please check the static characteristics for more details.
5. Length of set up time is measured at cold first start. Turning ON/OFF the power supply may lead to increase of the set up time.
6. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
7. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
8. Some model may not have the BIS logo, please contact your MEAN WELL sales for more information.

Technical drawings

HEP-600-30 Block Diagram — Block Diagram

HEP-600-30 Illustration (page 4) — Illustration (page 4)

Typical applications

Outdoor telecommunication equipment
Outdoor electronic signage and billboard
Petroleum plant or mine shaft facility

Downloads

Certificates4

CB Certificate(HEP-600)(EN) PDF Download

TUV Certificate(HEP-600)(EN) PDF Download

EMC Certificate(HEP-600)(EN) PDF Download

UL Certificate(HEP-600)(EN) PDF Download

Test reports1

Test Report(HEP-600-30)(EN) PDF Download

Catalogues1

Mean Well Catalog (Industrial) PDF Download

FAQ

Can I use the HEP-600-30 for a 30V industrial or automation system?

Yes, if the equipment is designed for constant-voltage 30V DC input. This model provides up to 20A and 600W, so the total 30V load must stay within those ratings.

Is the HEP-600-30 suitable for 30V embedded equipment or production test stations?

It can be used for 30V DC embedded or test applications, and its output voltage can be adjusted from 25.5V to 31.5V (current level 10-20A) by internal potentiometer. The 90-264VAC input range (277VAC operational) also supports use across a wide span of AC input conditions.

Can this power several 30V loads from one supply?

Yes, provided all connected 30V loads together remain at or below 20A and 600W. Because it is a constant-voltage model, it should be matched only to systems intended for a 30V DC bus.

Is the HEP-600-30 appropriate for outdoor or harsh-environment equipment?

It is specified for harsh environments, operating from -40°C to +70°C (with derating) with 10G vibration resistance. The spec sheet does not state an IP rating, so confirm its suitability for outdoor or very wet locations before installation.

What are the other HEP-600 family output ratings if I am comparing 30V to sibling models?

The listed HEP-600 outputs are 480W 12V 40A, 540W 15V 36A, 560W 20V 28A, 600W 24V 25A, 600W 30V 20A, 601.2W 36V 16.7A, 600.6W 42V 14.3A, 600W 48V 12.5A, and 604.8W 54V 11.2A.
