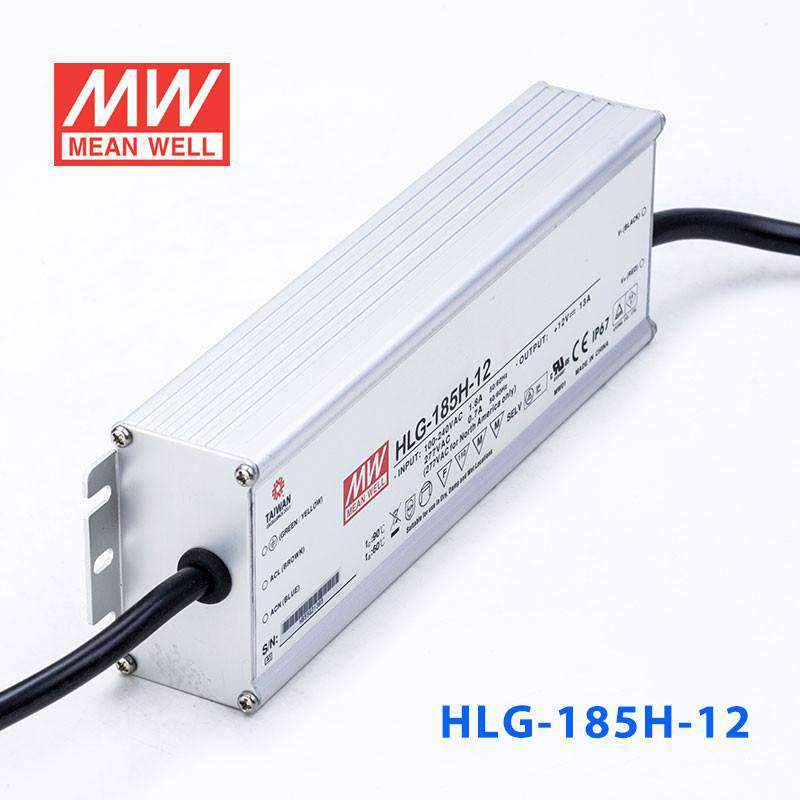

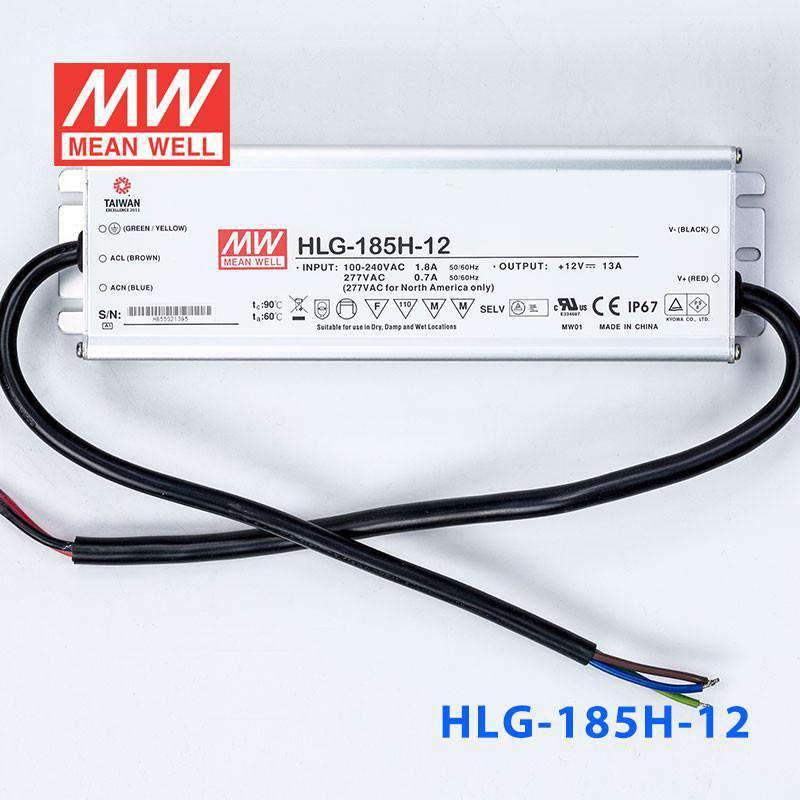

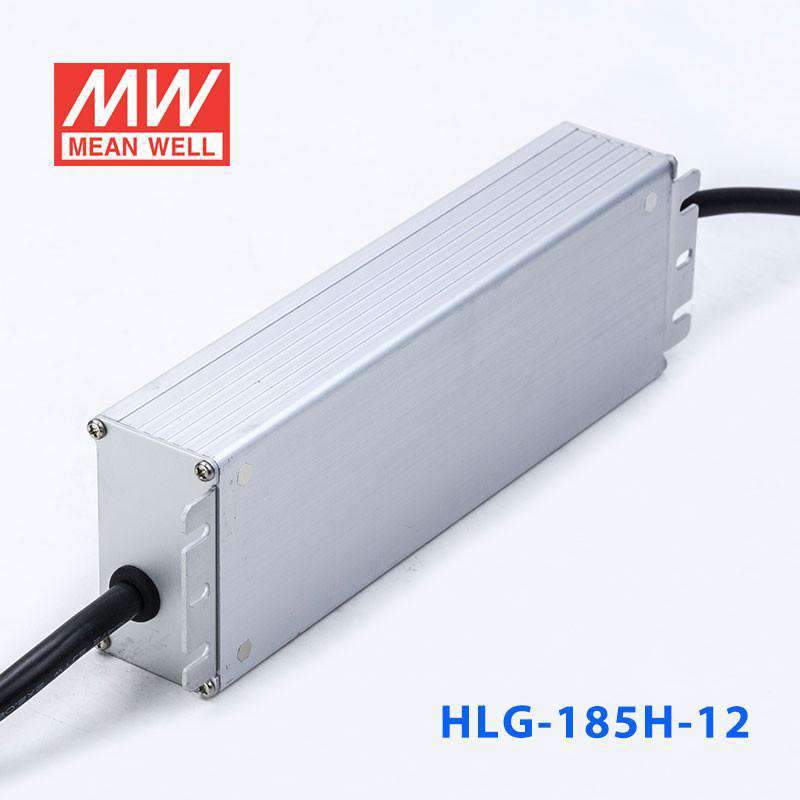

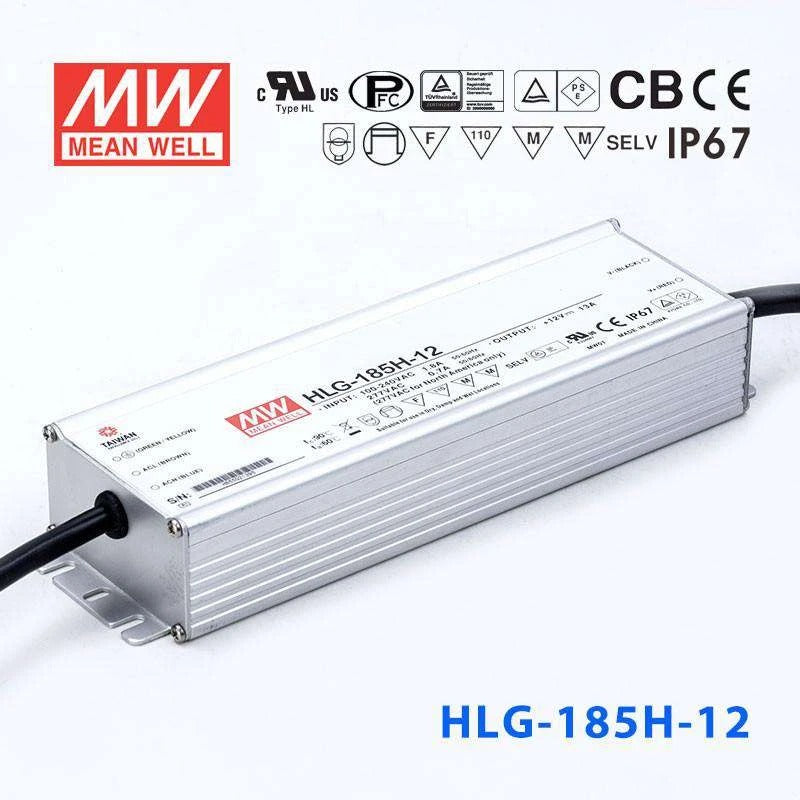

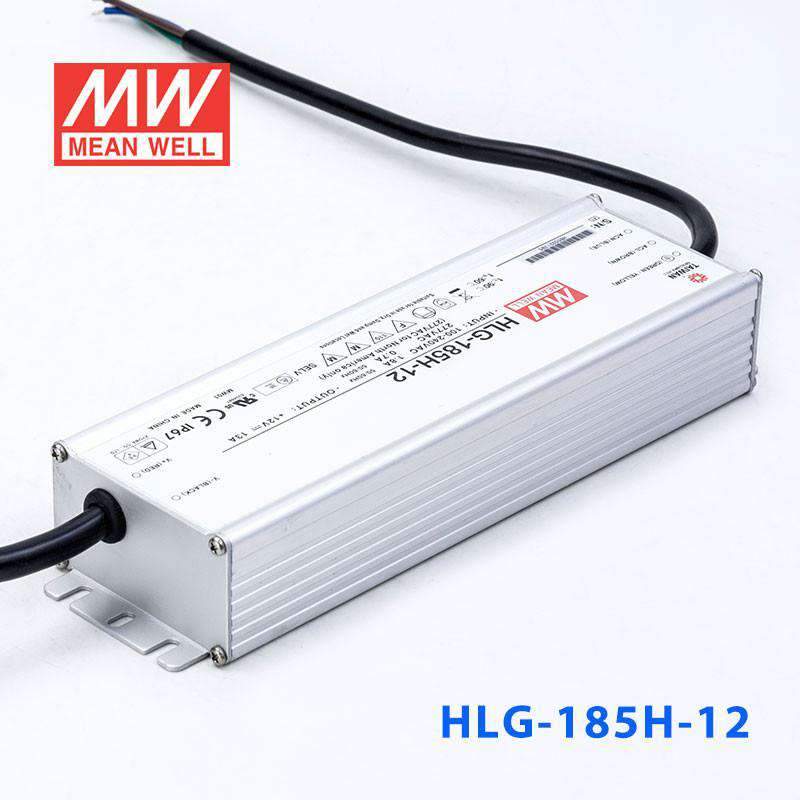

Mean Well HLG-185H-12 Power Supply 156W 12V | HLG-185H-12 LED Driver

The HLG-185H is a 156W Mean Well AC-DC LED driver (input: 90~305VAC, output: 12V, operating temperature: -40~+90°C).

Key Features

✓ Input voltage: 90~305VAC
✓ Output voltage: 12V
✓ Rated output current: 13A
✓ Ingress protection: IP67
✓ Operating temperature: -40~+90°C
✓ Safety certifications: CB, CCC, CE, EAC, PSE, RCM, TÜV, UL
✓ 7 year warranty

Frequently Asked Questions

Can I use the HLG-185H-12 to power 12V LED strip lighting for a large outdoor installation?

Yes. The HLG-185H-12 delivers 156W at 12V with up to 13A, providing substantial capacity for long runs of 12V LED strip. Its IP67 waterproof rating and -40°C to +90°C operating range make it suitable for permanently exposed outdoor installations in any climate.

Is the HLG-185H-12 powerful enough for a 12V LED channel-letter sign?

Yes. At 156W and 13A on the 12V output, it can drive a significant number of 12V LED sign modules. The wide 90-305VAC input accommodates commercial mains supplies, and the IP67 rating allows installation in outdoor sign cabinets or exposed locations.

Can the HLG-185H-12 power 12V LED under-cabinet or display lighting?

Yes. With 156W available at 12V, it has ample capacity for under-cabinet runs, retail display cases, or museum exhibit lighting using 12V LED strips or modules. The constant-current mode with a 6-12V CC range accommodates slight voltage variations across long wiring runs.

How many meters of 12V LED strip can the HLG-185H-12 power?

Divide 156W by your strip's rated power per meter. For example, a strip drawing 14.4W/m could run up to about 10.8 meters (156W / 14.4W per meter). A lower-power strip at 7.2W/m could reach about 21.6 meters. Always check your strip's rated power per meter and keep total load at or below 156W.

Can the HLG-185H-12 be buried in a ground-level junction box or installed in a fountain?

The IP67 rating protects against temporary immersion in water up to 1 meter for 30 minutes, so ground-level wet junction boxes are fine. However, it is not rated for continuous submersion, so permanently submerged fountain applications would require an IP68-rated enclosure or driver.

What are the differences between the HLG-185H-12, 12A, 12AB, and 12B models?

All four share the same 156W / 12V / 13A core specs. The base HLG-185H-12 has no output adjustment and is IP67 waterproof. The -12A adds output voltage/current adjustment via built-in potentiometer and is IP65. The -12AB adds both adjustment and 1-10V/PWM dimming input (IP65). The -12B adds dimming input only and retains IP67.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	IP Rating
Mean Well HLG-185H-48 Power Supply 185W 48V 3.9A	185W	48V	3.9A	IP67	View
Mean Well S-HLG-185H-24 Power Supply 185W 24V with AU/NZ plug 7.8A	185W	24V	7.8A	IP67	View
Mean Well HLG-185H-48B Power Supply 185W 48V- Dimmable 3.9A	185W	48V	3.9A	IP67	View
Mean Well HLG-185H-36B Power Supply 185W 36V- Dimmable 5.2A	185W	36V	5.2A	IP67	View
