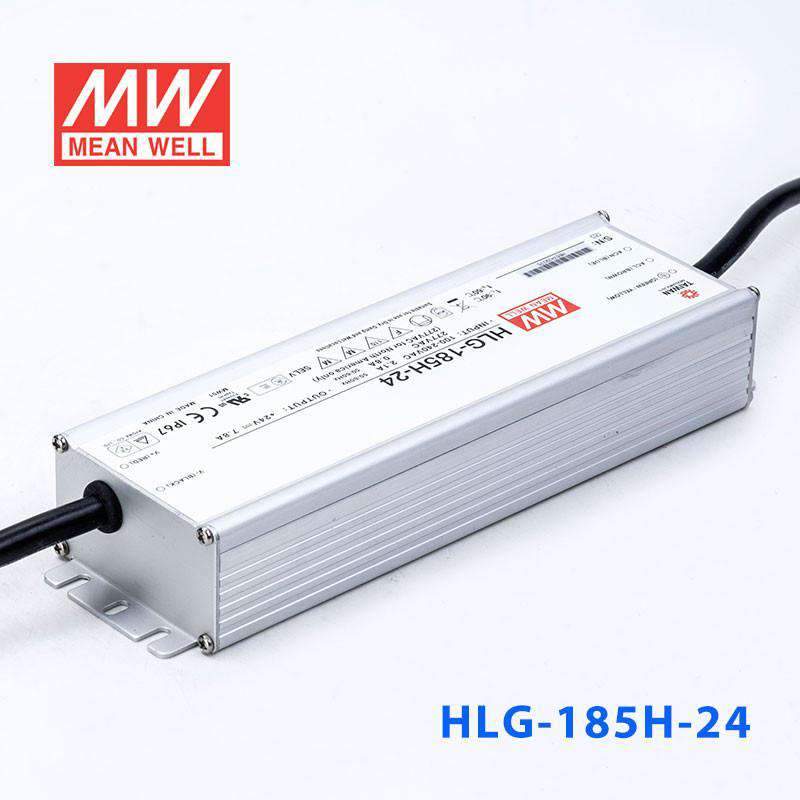

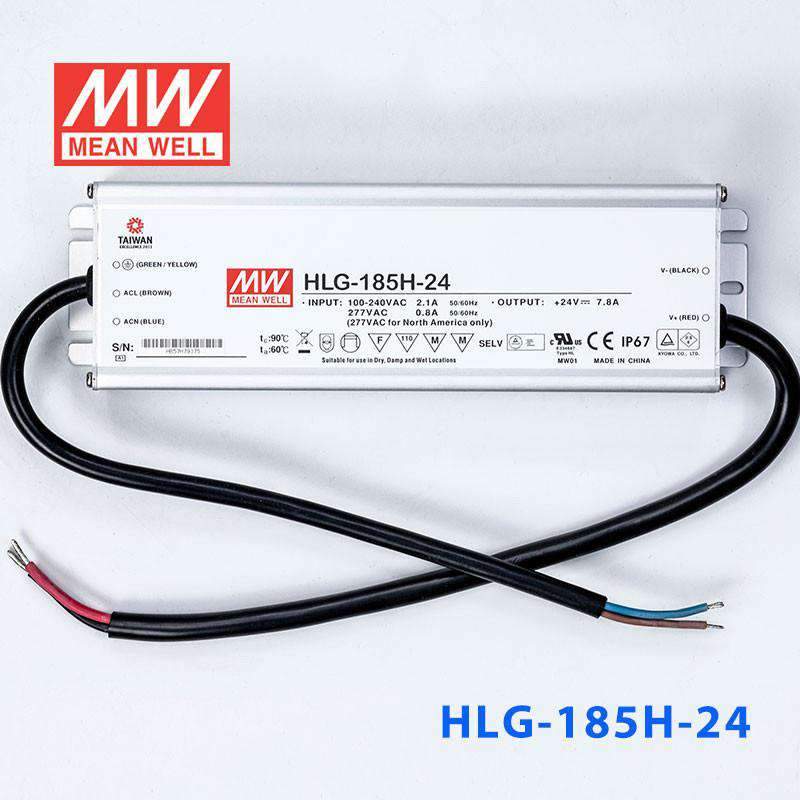

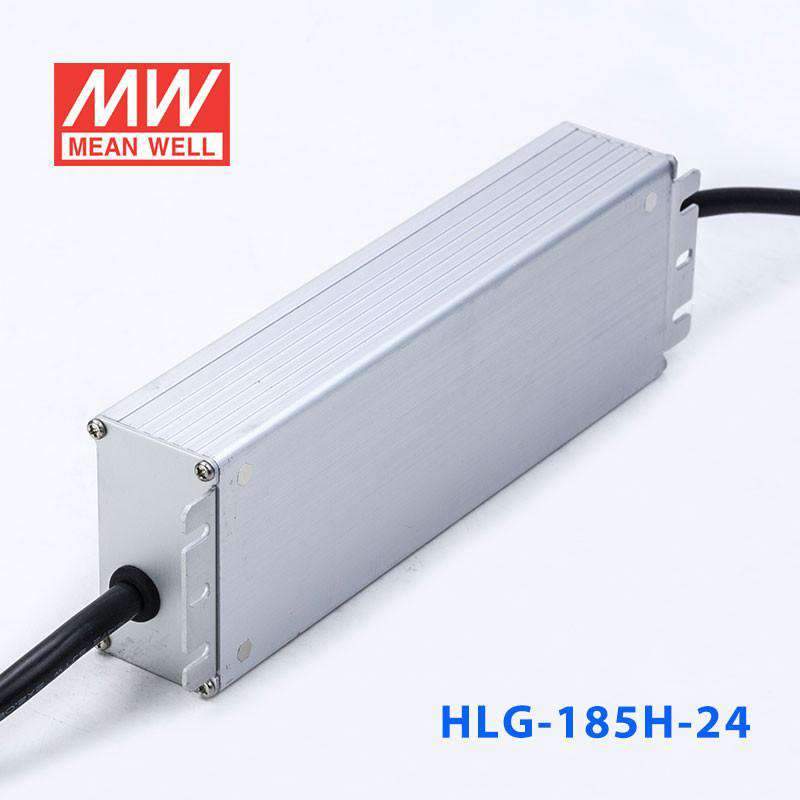

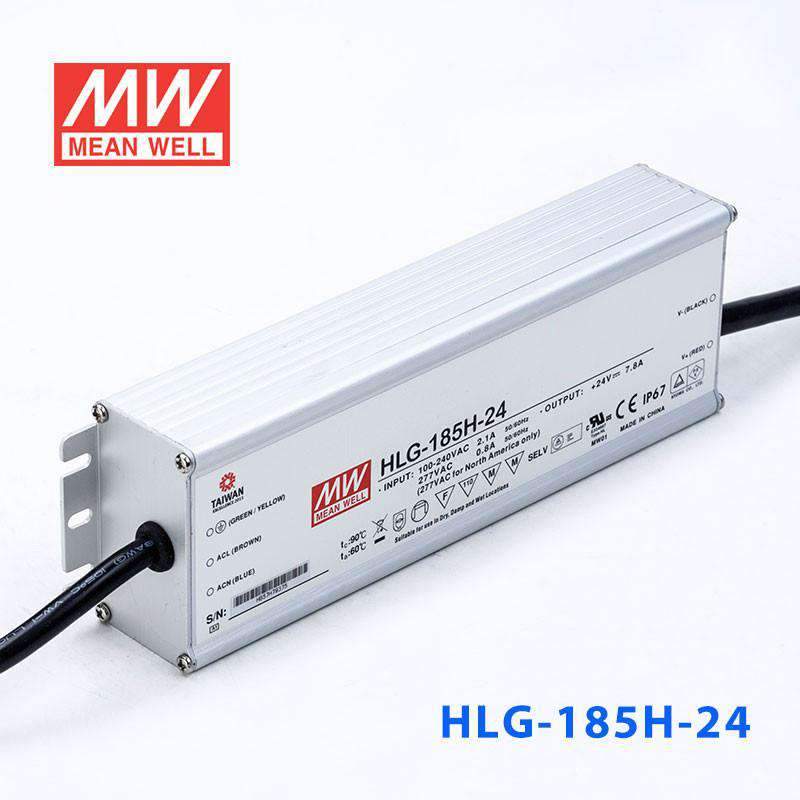

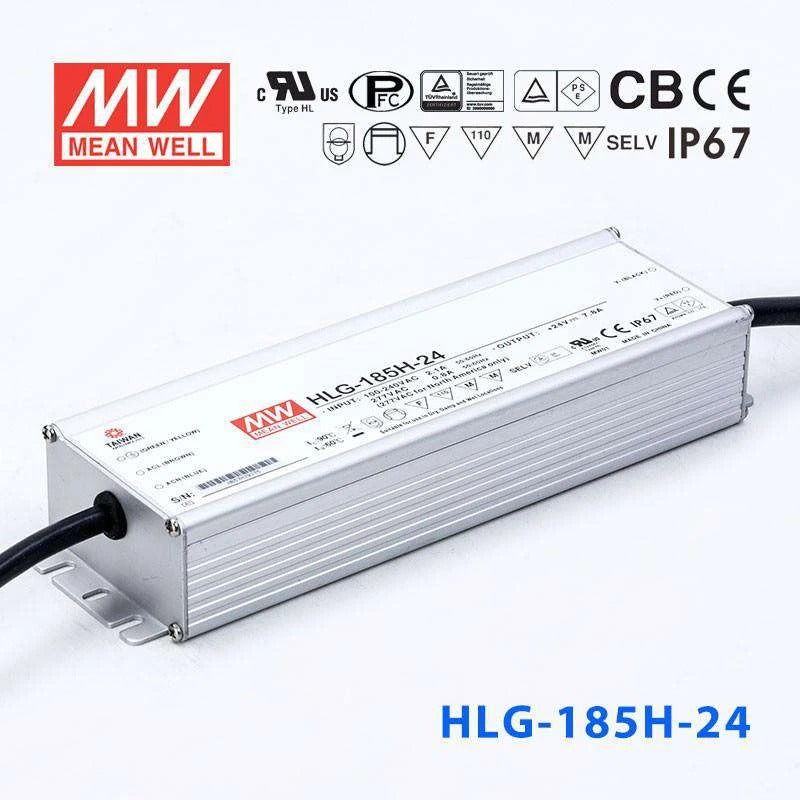

Mean Well HLG-185H-24 Power Supply 185W 24V | HLG Series | Constant Voltage + Constant Current LED Driver

The HLG-185H is a 185W Mean Well AC-DC LED driver (input: 90~305VAC, output: 24V, operating temperature: -40~+90°C).

Key Features

✓ Input voltage: 90~305VAC
✓ Output voltage: 24V
✓ Rated output current: 7.8A
✓ Ingress protection: IP67
✓ Operating temperature: -40~+90°C
✓ Safety certifications: CB, CCC, CE, EAC, PSE, RCM, TÜV, UL
✓ 7 year warranty

Frequently Asked Questions

Can I use the HLG-185H-24 to power 24V LED strip lighting in an outdoor installation?

Yes. The HLG-185H-24 outputs 24V at up to 7.8A (185W) and has an IP67 waterproof rating, making it suitable for fully exposed outdoor installations including rain and temporary submersion. The aluminium casing and -40°C to +90°C operating range handle harsh weather year-round.

Is the HLG-185H-24 suitable for powering 24V LED channel letter signage?

Yes. With 185W at 24V, the HLG-185H-24 provides ample power for channel-letter signs, light boxes, and cabinet signs using 24V LED modules. Its wide 90-305VAC input works worldwide, and the IP67 waterproof rating allows mounting inside outdoor sign enclosures.

Can the HLG-185H-24 drive 24V LED cove or accent lighting in commercial spaces?

Yes. The 185W capacity at 24V is well-suited for runs of cove, accent, or indirect lighting using 24V LED strip or modules. The constant-current mode with a CC voltage range of 12-24V maintains stable output across varying LED forward voltages. The 7-year warranty adds long-term reliability for permanent installations.

How many meters of 24V LED strip can the HLG-185H-24 power?

Divide 185W by your strip's wattage per meter. For example, a 24V strip rated at 14.4W/m would allow about 12.8 meters (185W / 14.4W per meter ≈ 12.8m). Always check your strip's rated power per meter and keep the total load at or below 185W.

Can the HLG-185H-24 be mounted in a location fully exposed to rain and dust?

Yes. The IP67 rating means it is completely dust-tight and protected against temporary submersion in water up to 1 meter. It can be mounted outdoors without additional enclosures. The operating temperature range of -40°C to +90°C covers extreme climates.

What are the differences between the HLG-185H-24, 24A, 24AB, and 24B models?

All four share 185W / 24V / 7.8A core specs. The base HLG-185H-24 has fixed output with IP67 waterproof rating. The -24A adds output voltage/current adjustment via built-in potentiometer (IP65). The -24AB adds both adjustment and 1-10V/PWM dimming input (IP65). The -24B provides dimming input only and retains the IP67 waterproof rating.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	IP Rating
Mean Well HLG-185H-48 Power Supply 185W 48V 3.9A	185W	48V	3.9A	IP67	View
Mean Well S-HLG-185H-24 Power Supply 185W 24V with AU/NZ plug 7.8A	185W	24V	7.8A	IP67	View
Mean Well HLG-185H-48B Power Supply 185W 48V- Dimmable 3.9A	185W	48V	3.9A	IP67	View
Mean Well HLG-185H-36B Power Supply 185W 36V- Dimmable 5.2A	185W	36V	5.2A	IP67	View
