Mean Well

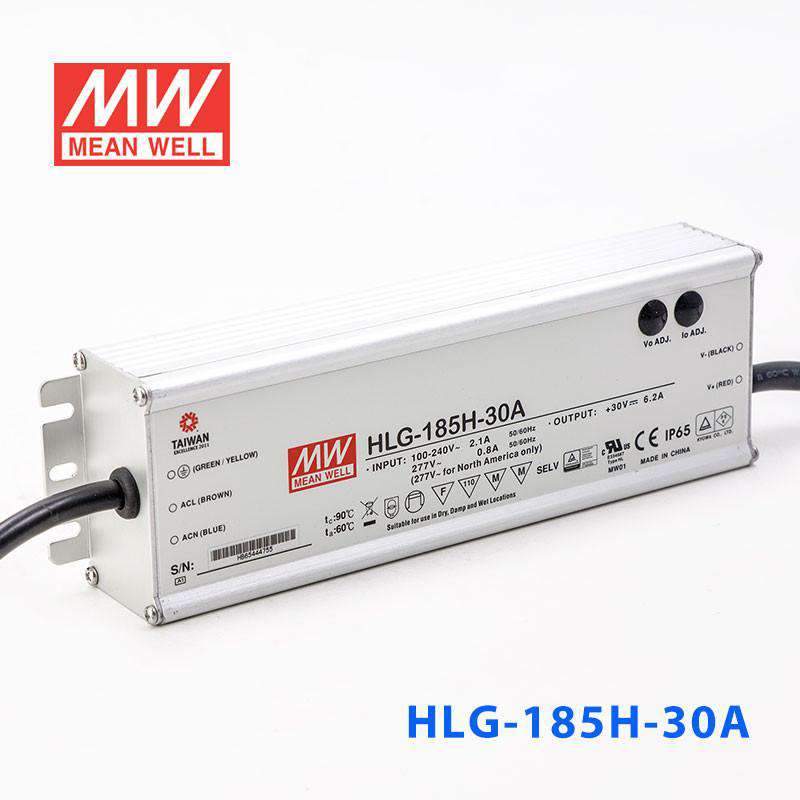

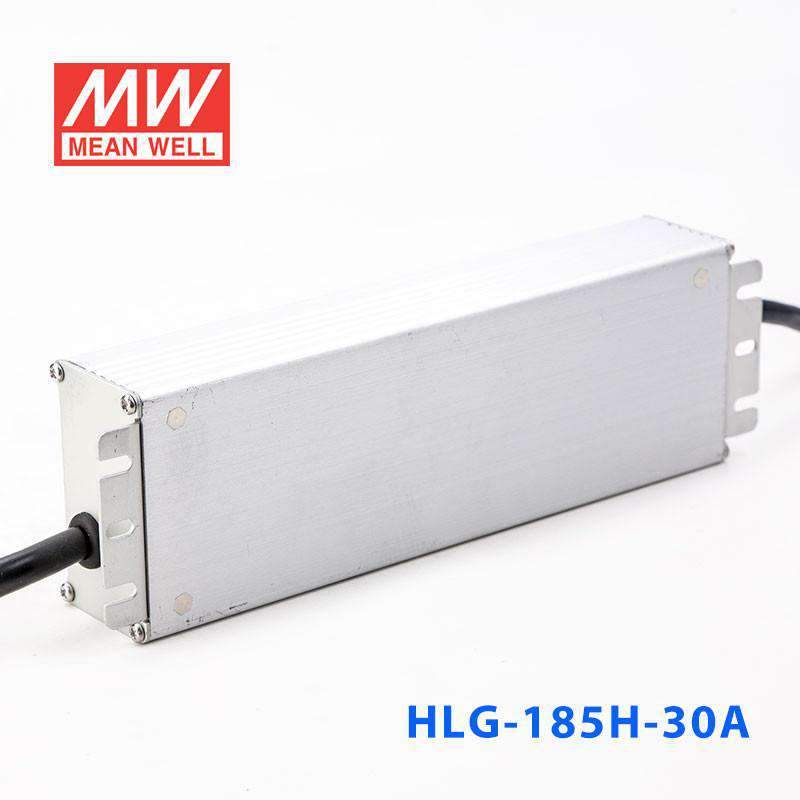

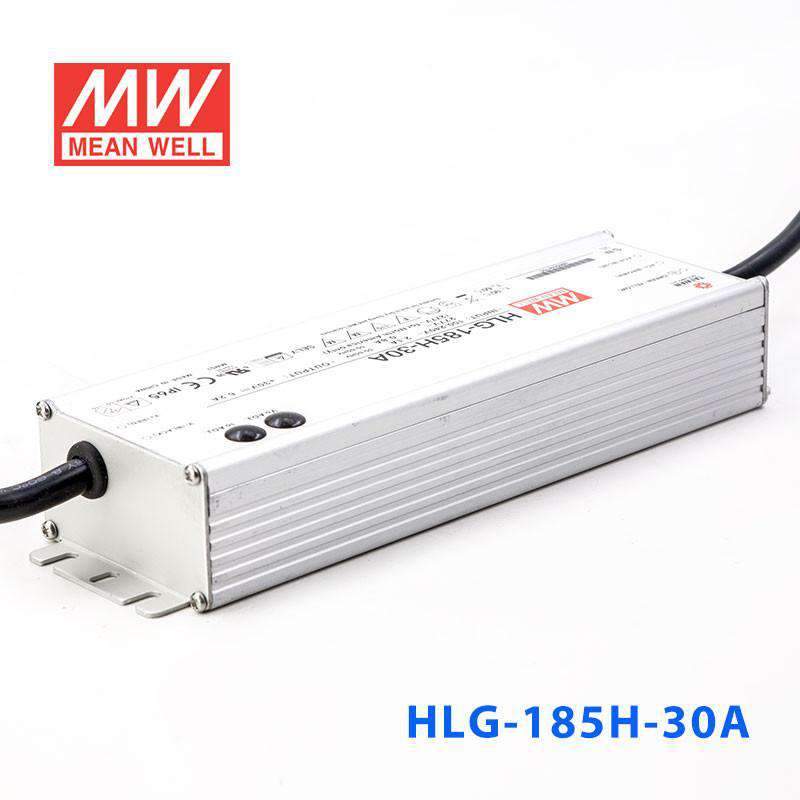

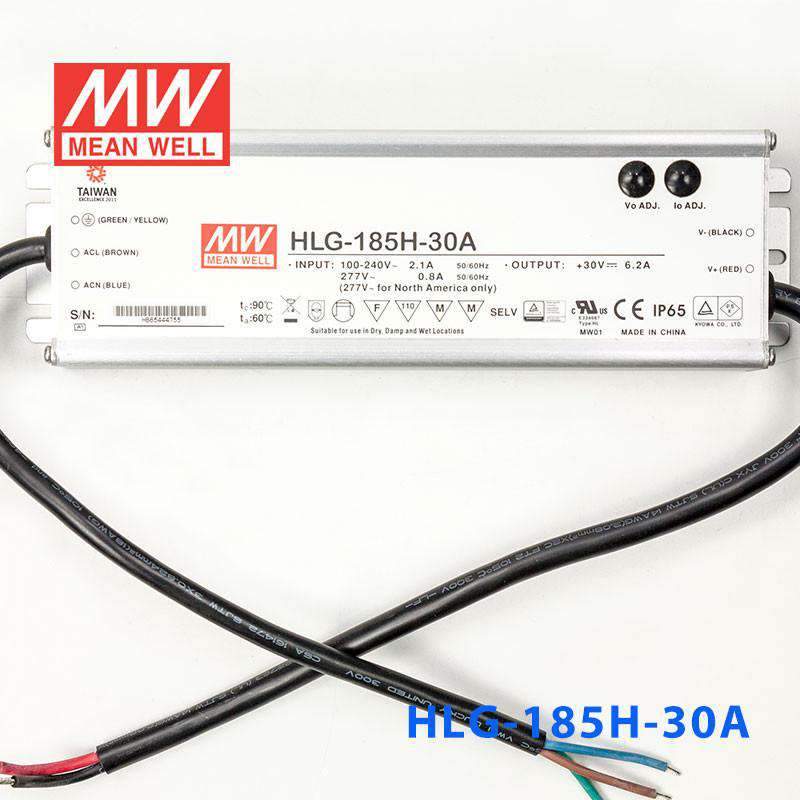

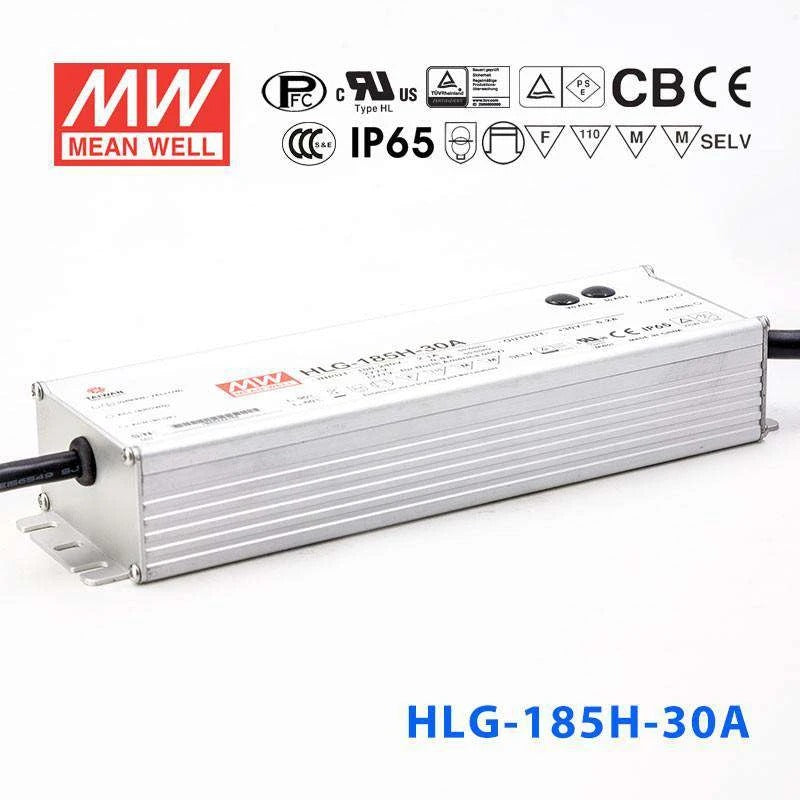

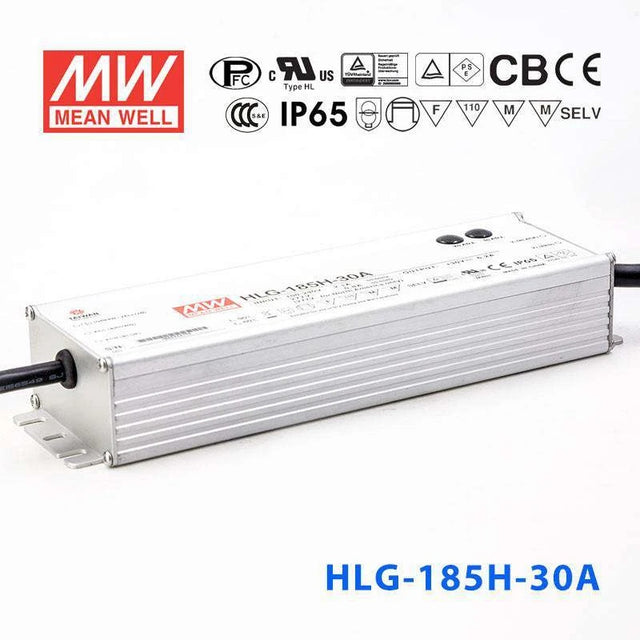

Mean Well HLG-185H-30A Power Supply 185W 30V - Adjustable 6.2A

4.9 (21 reviews)
premium quality7 years warrantyaluminium casinghigh efficiency
SKU HLG-185H-30A
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →

Select model — 20 in this family

HLG-185H-30A
Available to order
|

Overview

HLG-185H-30A is the 30V output model of this series: rated current 6.2A, rated power 186W, typical efficiency 93.5%. Type A: Io and Vo adjustable through built-in potentiometer (IP65).

HLG-185H series is a 185W AC/DC LED driver featuring the dual mode constant voltage and constant current output. HLG-185H operates from 90～305VAC and offers models with different rated voltage ranging between 12V and 54V. Thanks to the high efficiency up to 94%, with the fanless design, the entire series is able to operate for -40℃ ~ +90℃ case temperature under free air convection. The design of metal housing and IP65 ingress protection level allows this series to fit both indoor and outdoor applications. HLG-185H is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

Features

  • Constant Voltage + Constant Current mode output
  • Metal housing with class I design
  • IP65 rating for indoor or outdoor installations
  • Function options: output adjustable via potentiometer
  • Typical lifetime > 62000 hours
  • 7 years warranty

Specifications

HLG-185H-30ASpecifications from the official datasheet (2026-07-24 edition)

OUTPUT

DC VOLTAGE
30V
CONSTANT CURRENT REGIONNote.4
15 ~ 30V
RATED CURRENT
6.2A
RATED POWER
186W
RIPPLE & NOISE (max.)Note.2
200mVp-p
VOLTAGE ADJ. RANGE
Adjustable for A/AB-Type only (via built-in potentiometer) 27 ~ 33V
CURRENT ADJ. RANGE
Adjustable for A/AB-Type only (via built-in potentiometer) 3.1 ~ 6.2A
VOLTAGE TOLERANCENote.3
±1.0%
LINE REGULATION
±0.5%
LOAD REGULATION
±0.5%
SETUP, RISE TIMENote.6
1000ms,200ms/115VAC 500ms,200ms/230VAC
HOLD UP TIME (Typ.)
16ms / 115VAC, 230VAC

INPUT

VOLTAGE RANGENote.5
90 ~ 305VAC 127 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE
47 ~ 63Hz
POWER FACTOR (Typ.)
PF≧0.98/115VAC, PF≧0.95/230VAC, PF≧0.92/277VAC @ full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION
THD< 20% (@ load≧50% / 115VAC,230VAC; @ load≧75% / 277VAC) (Please refer to " TOTAL HARMONIC DISTORTION (THD) " section)
EFFICIENCY (Typ.)
93.5%
AC CURRENT (Typ.) 12V
1.8A / 115VAC 0.8A / 230VAC 0.7A / 277VAC
AC CURRENT (Typ.) 15V ~ 54V
2.1A / 115VAC 0.9A / 230VAC 0.8A / 277VAC
INRUSH CURRENT (Typ.)
COLD START 65A(twidth=445μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER
4 units (circuit breaker of type B) / 7 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT
<0.75mA / 277VAC

PROTECTION

OVER CURRENT
95 ~ 108% Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUIT
Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE
34 ~ 38V Shut down o/p voltage with auto-recovery or re-power on to recovery
OVER TEMPERATURENote.9
Shut down o/p voltage, recovers automatically after temperature goes down

ENVIRONMENT

WORKING TEMP.
Tcase= -40 ~ +90℃ (Please refer to "OUTPUT LOAD vs TEMPERATURE" section)
MAX. CASE TEMP.
Tcase= +90℃
WORKING HUMIDITY
20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.03%/℃ (0 ~ 60℃)
VIBRATION
10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS
UL8750(type”HL”),CSA C22.2 No. 250.0-08; BS EN/EN 61347-1, BS EN/EN 61347-2-13，AS/NZS 61347-1, AS/NZS 61347-2-13 independent;GB/T19510.1,GB/T19510.213 (except for D-type) ; IP65 or IP67; J61347-1, J61347-2-13(except for D-type) , EAC TP TC 004, KC61347-1,KC61347-2-13 (except for D-type) approved
WITHSTAND VOLTAGE
I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/EN55015, BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2 Class C (@ load≧50%) ; BS EN/EN61000-3-3,GB/T 17743 , GB17625.1(except for D-type) ,EAC TP TC 020, KSC 9815(except for D-type)
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, BS EN/EN55024, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV),EAC TP TC 020, KSC 9547(except for D-type)

OTHERS

MTBF
2184.8K hrs min. Telcordia SR-332 (Bellcore) ; 197.3K hrs min. MIL-HDBK-217F (25℃)
DIMENSION
228*68*38.8mm (L*W*H)
PACKING
1.15Kg; 12pcs/14.8Kg/0.8CUFT

Certifications & ratings

Type
HL

MODEL ENCODING

Blank
Io and Vo fixed; IP67
A (this model)
Io and Vo adjustable through built-in potentiometer; IP65
B
3 in 1 dimming function (1~10VDC, 10V PWM signal and resistance); IP67
AB
Io and Vo adjustable through built-in potentiometer & 3 in 1 dimming function (1~10Vdc, 10V PWM signal and resistance); IP65
D
Timer dimming function, contact MEAN WELL for details(safety pending); IP67
Test conditions and notes15
  1. 1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
  2. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
  3. 3. Tolerance : includes set up tolerance, line regulation and load regulation.
  4. 4. Please refer to "DRIVING METHODS OF LED MODULE".
  5. 5. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
  6. 6. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
  7. 7. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
  8. 8. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED driver can only be used behind a switch without permanently connected to the mains.
  9. 9. For OTP which triggered at light load/no load condition, proceed AC repower on to recovery.
  10. 10. This series meets the typical life expectancy of >62,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 75℃ or less.
  11. 11. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com.
  12. 12. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
  13. 13. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
  14. 14. For A/AB type need to consider build in using to comply with Type HL application.
  15. 15. Products sourced from the Americas regions may only have the UL, CE and UKCA logos. Please contact your MEAN WELL sales for more information.

Technical drawings

HLG-185H-30A BLOCK DIAGRAM
BLOCK DIAGRAM
HLG-185H-30A Illustration (page 5)
Illustration (page 5)
HLG-185H-30A STATIC CHARACTERISTICS
STATIC CHARACTERISTICS
HLG-185H-30A TOTAL HARMONIC DISTORTION
TOTAL HARMONIC DISTORTION
HLG-185H-30A LIFE TIME
LIFE TIME
HLG-185H-30A MECHANICAL SPECIFICATION ※A-Type
MECHANICAL SPECIFICATION ※A-Type
HLG-185H-30A Dimensions (mm)
Dimensions (mm)
HLG-185H-30A Dimensions (mm)
Dimensions (mm)
HLG-185H-30A WATERPROOF CONNECTION
WATERPROOF CONNECTION

Typical applications

  • LED street lighting
  • LED high-bay lighting
  • Parking space lighting
  • LED fishing lamp
  • LED greenhouse lighting
  • Type “HL” for use in ClassⅠ, Division 2 hazardous (Classified) location.

Downloads

FAQ

Can I use the HLG-185H-30A to power 30V LED strips in a warehouse with adjustable brightness?

Yes. The HLG-185H-30A delivers 186W at 30V with built-in potentiometers for output voltage (27-33V) and current (3.1-6.2A) adjustment. This lets you trim brightness to match the specific LED load. The IP65/IP67-rated metal housing makes it suitable for indoor warehouse or workshop environments.

Is the HLG-185H-30A a good choice for 30V LED panel lighting in commercial offices?

Yes. With 186W at 30V and adjustable output, it can power 30V LED panels or troffers while letting you fine-tune the drive level to match panel specifications. The wide 90-305VAC input works with commercial power supplies, and the datasheet lists a typical life of over 62,000 hours at Tcase of about 75°C or less.

Can the HLG-185H-30A drive 30V LED modules for indoor retail or museum display lighting?

Yes. At 186W and 30V, it handles substantial lighting loads for display cases, track-mounted accent lights, or wall-wash fixtures using 30V LED modules. The adjustable output via potentiometer lets you precisely dial in the voltage and current to prevent over-driving sensitive exhibit lighting.

How many meters of 30V LED strip can the HLG-185H-30A support?

Divide 186W by your strip's wattage per meter. For instance, a 30V strip rated at 18W/m allows about 10.3 meters (186W / 18W per meter ≈ 10.3m). Always check your strip's rated power per meter and keep the total load at or below 186W for safe operation.

Is the HLG-185H-30A protected enough for a covered outdoor installation like a parking garage?

Yes. The HLG-185H series has a metal housing with IP65/IP67 ingress protection that the datasheet says suits indoor and outdoor applications, which covers covered parking garages, loading docks, and semi-enclosed outdoor areas. Waterproof connectors are available for the output cable in wet locations.

Can I use the HLG-185H-30A in a location with wide temperature swings?

Yes. The case temperature range of -40°C to +90°C handles environments from unheated warehouses in winter to hot spaces in summer, although the output load must be derated at high temperatures per the datasheet curve. The wide 90-305VAC input accepts a broad range of mains voltages; derating may be needed at low input voltage.
