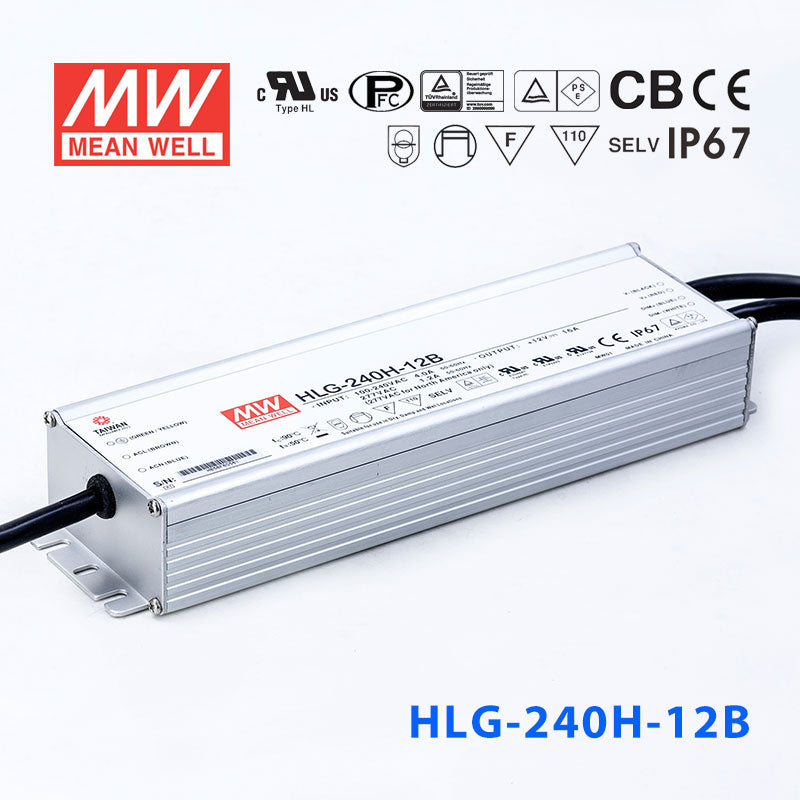

Mean Well HLG-240H-12AB Power Supply 192W 12V - Adjustable and Dimmable

The HLG-240H is a 192W Mean Well AC-DC LED driver (input: 90~305VAC, output: 12V, operating temperature: -40~+90°C).

Key Features

✓ Input voltage: 90~305VAC
✓ Output voltage: 12V
✓ Rated output current: 16A
✓ Ingress protection: IP65
✓ Operating temperature: -40~+90°C
✓ Safety certifications: CB, CCC, CE, EAC, PSE, RCM, TÜV, UL
✓ 7 year warranty

Frequently Asked Questions

Can I use the HLG-240H-12AB for a dimmable 12V LED strip installation in a restaurant or retail space?

Yes. The HLG-240H-12AB outputs 12V at up to 16A (192W) and accepts 1-10V, PWM, or resistance dimming signals for smooth brightness control. This makes it well suited for restaurant ambient lighting or retail display strips where adjustable light levels are important.

Is the HLG-240H-12AB a good choice for powering 12V LED cove lighting with dimming?

Yes. With 192W at 12V and both a built-in adjustment potentiometer and external dimming input, the HLG-240H-12AB gives you precise control over cove lighting brightness. You can set the baseline output with the potentiometer and then control scene levels via the dimming input.

Can the HLG-240H-12AB power dimmable 12V LED signage for a storefront?

Yes. The 192W capacity at 12V handles large sign module arrays, and the dimming input lets you reduce brightness at night to save energy or meet local light-pollution regulations. The IP65 rating is sufficient for covered sign cabinets or sheltered storefront locations.

How many meters of 12V LED strip can the HLG-240H-12AB power?

Divide 192W by your strip's rated power per meter. For a strip consuming 14.4W/m, that is approximately 13.3 meters (192W / 14.4W per meter). Always check your strip's rated power per meter and stay within the 192W maximum.

Can the HLG-240H-12AB be installed in an outdoor location with splashing water?

Its IP65 rating protects against low-pressure water jets and dust, so it is suitable for covered outdoor areas and splash zones. For direct rain exposure or risk of standing water, the IP67-rated HLG-240H-12B with dimming or the base HLG-240H-12 would be a safer choice.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	IP Rating
Mean Well S-HLG-240H-24 Power Supply 240W 24V with AU/NZ plug 10A	240W	24V	10A	IP67	View
Mean Well HLG-240H-48A Power Supply 240W 48V - Adjustable 5A	240W	48V	5A	IP65	View
Mean Well HLG-240H-48 Power Supply 240W 48V 5A	240W	48V	5A	IP67	View
Mean Well HLG-240H-24A Power Supply 240W 24V - Adjustable 10A	240W	24V	10A	IP65	View
Mean Well S-HLG-240H-12 Power Supply 192W 12V with AU/NZ plug 16A	192W	12V	16A	IP67	View
Mean Well HLG-240H-24B Power Supply 240W 24V- Dimmable 10A	240W	24V	10A	IP67	View
Mean Well HLG-240H-12A Power Supply 192W 12V - Adjustable 16A	192W	12V	16A	IP65	View

Customer reviews

4.9 Reviews verified for authenticity

5 ★ (19)

4 ★ (2)

3 ★ (0)

2 ★ (0)

1 ★ (0)

Reviewed by 21 customers across the HLG series

Best outdoor driver we use
By Hemi K.|2026-06-22✓ Verified Buyer
Model: HLG-240H-24Quantity: 6
HLG-240H-24 is IP67 and just keeps going. Powering a car-park flood install, 8 months no issues.
Premium, worth it
By Bright Spark|2026-06-01✓ Verified Buyer
Model: HLG-185H-24Quantity: 4
Built-in PFC, runs cool, DALI option on the B model. Our go-to.
Flawless
By Olivia D.|2026-05-09✓ Verified Buyer
Model: HLG-320H-48Quantity: 2
Drove a 48V architectural run for months, dead silent.
