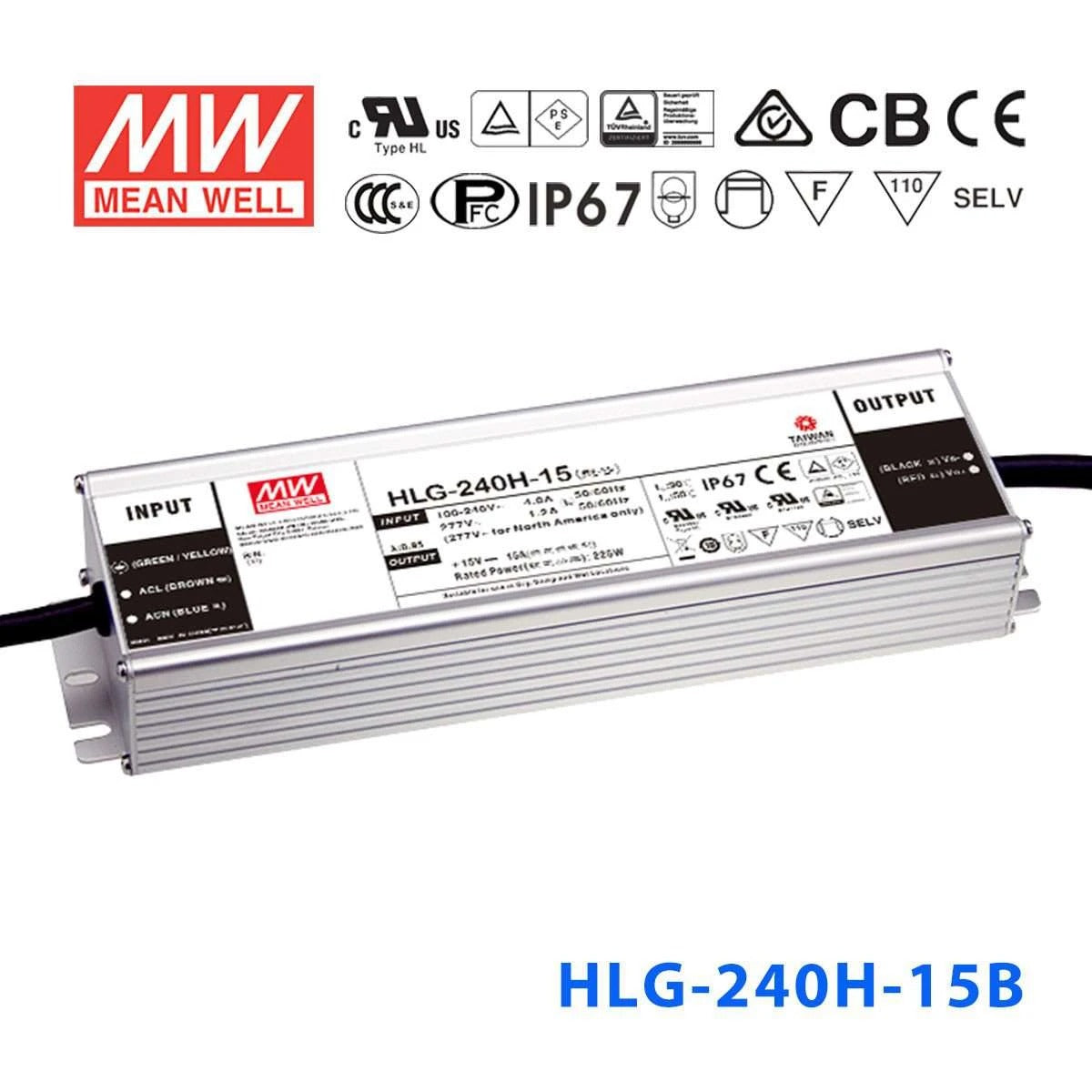

Mean Well HLG-240H-15B Power Supply 225W 15V - Dimmable - HLG Series

The HLG-240H is a 225W Mean Well AC-DC LED driver (input: 90~305VAC, output: 15V, operating temperature: -40~+90°C).

Key Features

✓ Input voltage: 90~305VAC
✓ Output voltage: 15V
✓ Rated output current: 15A
✓ Ingress protection: IP67
✓ Operating temperature: -40~+90°C
✓ Safety certifications: CB, CCC, CE, EAC, PSE, RCM, TÜV, UL
✓ 7 year warranty

Frequently Asked Questions

Can I use the HLG-240H-15B for outdoor 15V LED strip lighting with dimming control?

Yes. The HLG-240H-15B outputs 15V at up to 15A (225W) with an IP67 waterproof rating, making it fully suitable for exposed outdoor LED strip installations. The B suffix means it includes a dimming input (1-10V/PWM), so you can use an external dimmer to adjust brightness without needing a separate dimming module.

Is the HLG-240H-15B suitable for powering large 15V LED channel letter signs?

Yes. With 225W at 15V, the HLG-240H-15B can drive substantial runs of 15V LED sign modules. The IP67 waterproof enclosure allows mounting inside outdoor sign cabinets, and the built-in dimming input lets you reduce brightness during nighttime hours to comply with local signage regulations.

Can the HLG-240H-15B power 15V LED flood lights for architectural facade washing?

Yes, provided the total LED load does not exceed 225W. The constant-current operation with a CC voltage range of 7-15V ensures stable drive for LED flood or wash fixtures. Its IP67 rating and -40°C to +90°C operating range make it well suited for permanent outdoor facade installations.

How many meters of 15V LED strip can the HLG-240H-15B support?

Divide 225W by your strip's rated power per meter. For example, a strip rated at 14W/m would allow about 16 meters (225W / 14W per meter = 16.07m). Always check your strip's rated power per meter and keep the total load at or below 225W.

Can I install the HLG-240H-15B in a location that floods or gets heavy rain?

Yes. The IP67 waterproof rating means it is protected against dust ingress and can withstand temporary submersion up to 1 meter. It can be mounted in fully exposed outdoor locations, including areas subject to heavy rain, snow, or occasional flooding. The operating temperature range of -40°C to +90°C covers extreme climate conditions.

What are the differences between the HLG-240H-15, 15A, 15AB, and 15B models?

All four share the same 225W / 15V / 15A core output. The base HLG-240H-15 has fixed output with IP67 waterproof rating. The -15A adds an output adjustment potentiometer but drops to IP65. The -15AB adds both adjustment and 1-10V/PWM dimming input at IP65. The -15B (this model) provides dimming input while retaining the full IP67 waterproof rating.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	IP Rating
Mean Well S-HLG-240H-24 Power Supply 240W 24V with AU/NZ plug 10A	240W	24V	10A	IP67	View
Mean Well HLG-240H-48A Power Supply 240W 48V - Adjustable 5A	240W	48V	5A	IP65	View
Mean Well HLG-240H-48 Power Supply 240W 48V 5A	240W	48V	5A	IP67	View
Mean Well HLG-240H-24A Power Supply 240W 24V - Adjustable 10A	240W	24V	10A	IP65	View
Mean Well S-HLG-240H-12 Power Supply 192W 12V with AU/NZ plug 16A	192W	12V	16A	IP67	View
Mean Well HLG-240H-24B Power Supply 240W 24V- Dimmable 10A	240W	24V	10A	IP67	View
Mean Well HLG-240H-12A Power Supply 192W 12V - Adjustable 16A	192W	12V	16A	IP65	View
