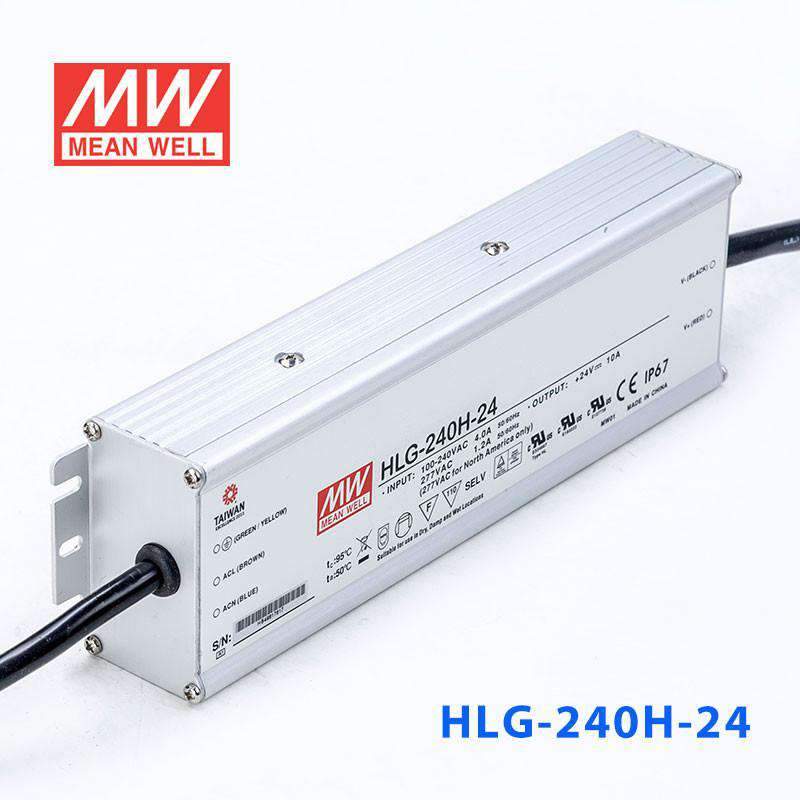

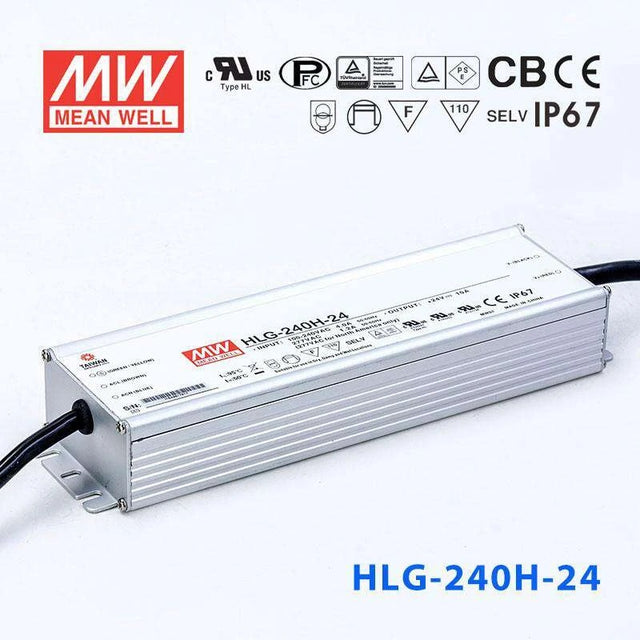

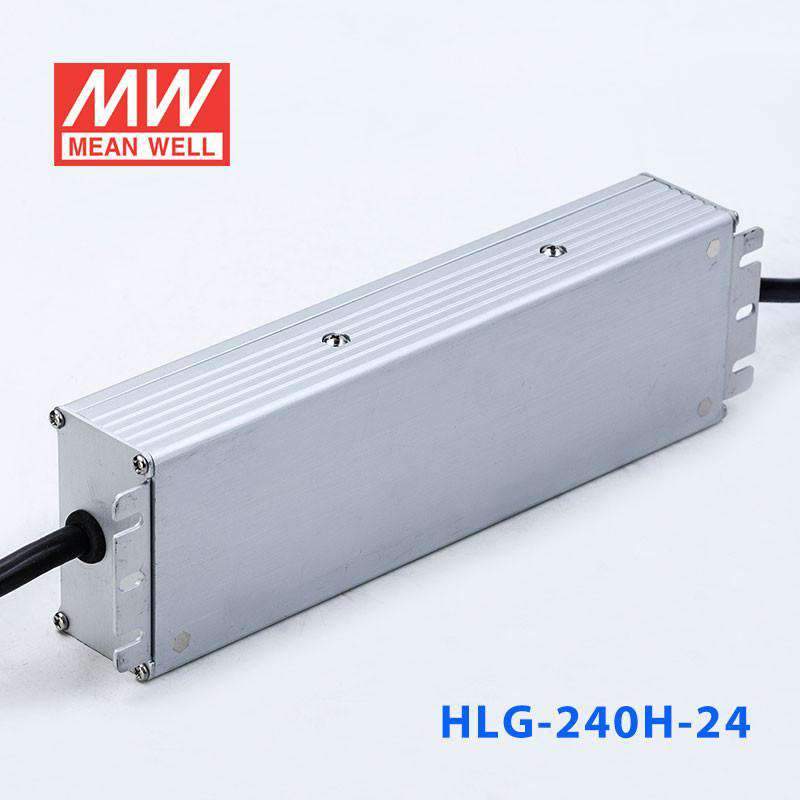

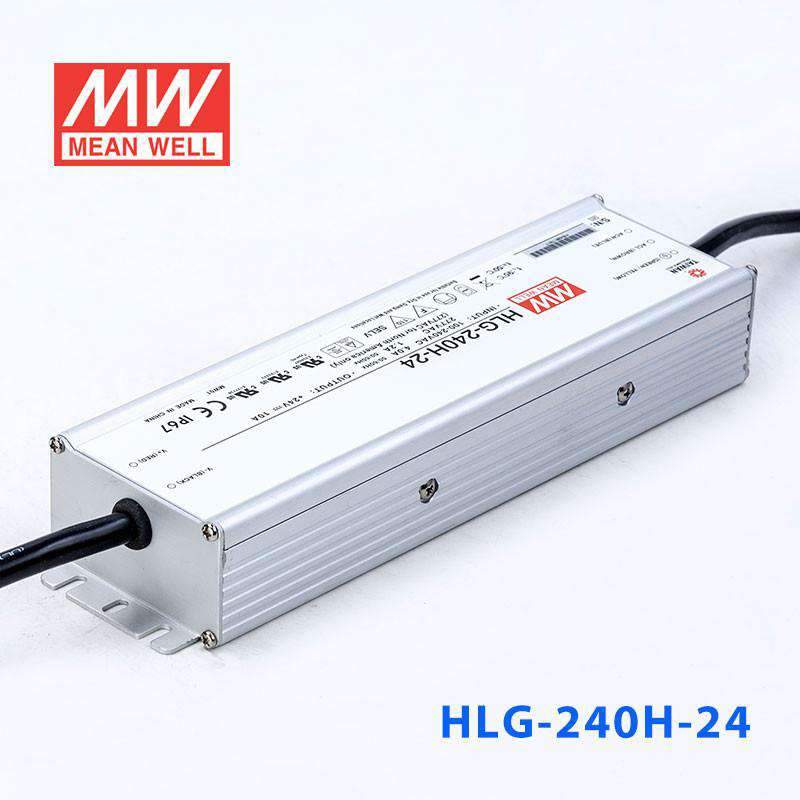

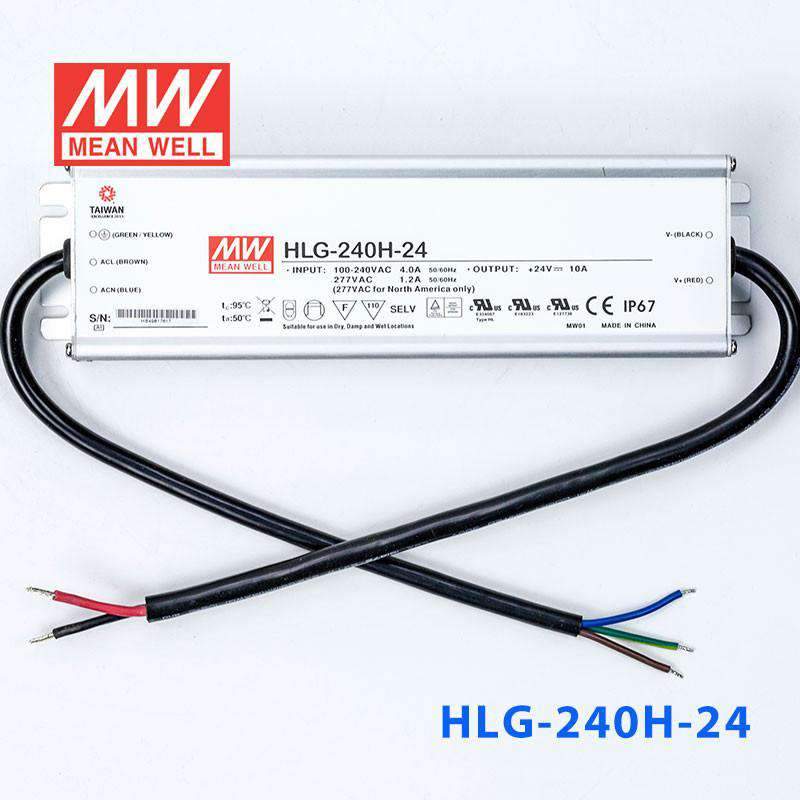

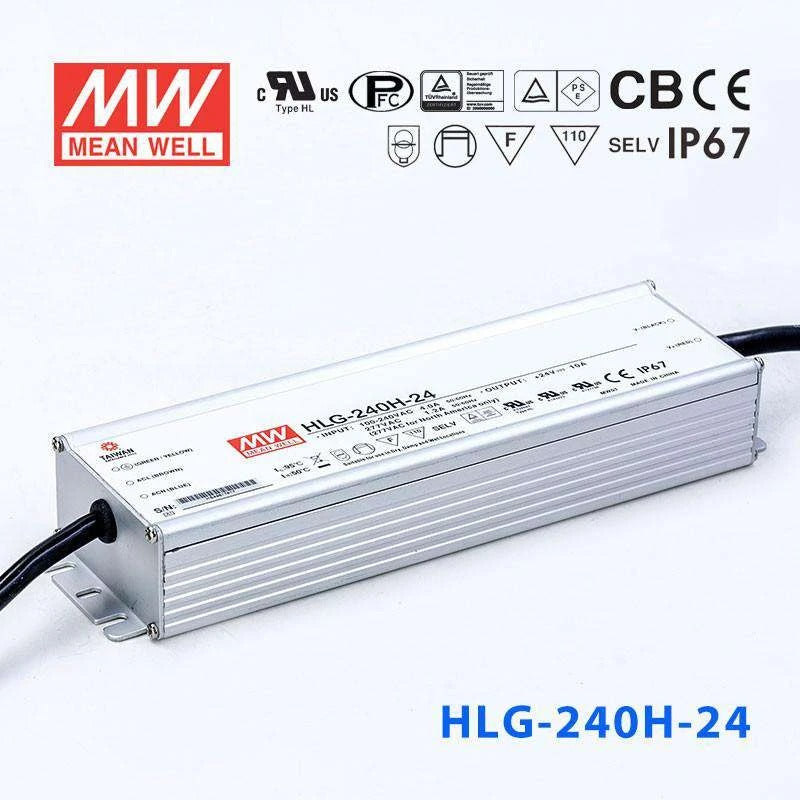

Mean Well HLG-240H-24 Power Supply 240W 24V

Yes. The HLG-240H-24 delivers 24V at up to 10A (240W) with an IP67 waterproof rating, making it ideal for extended outdoor 24V LED strip installations. The 24V output reduces voltage drop over long runs compared to 12V systems, which is advantageous for continuous runs of 15 meters or more.

Yes. At 240W and 24V output with constant-current operation across a CC range of 12-24V, it can reliably drive 24V LED high bays. The -40°C to +90°C operating temperature range accommodates the heat of industrial environments, and the IP67 rating protects against dust and washdown moisture.

Yes. With 240W of available power at 24V, it can handle large arrays of 24V LED channel letters or light box modules. The IP67 waterproof aluminium housing is well suited for mounting inside outdoor sign cabinets, and the wide 90-305VAC input handles variable commercial mains supplies.

Divide 240W by your strip's wattage per meter. For example, a 24V strip rated at 10W/m would allow 24 meters (240W / 10W per meter = 24m). A higher-density strip at 20W/m would allow 12 meters. Always check your strip's rated power per meter and keep total load at or below 240W.

Yes. It operates across a -40°C to +90°C temperature range, covering extreme winter cold and summer heat. The IP67 waterproof rating protects against rain, snow, and temporary submersion. The aluminium casing provides effective heat dissipation even at elevated ambient temperatures.
