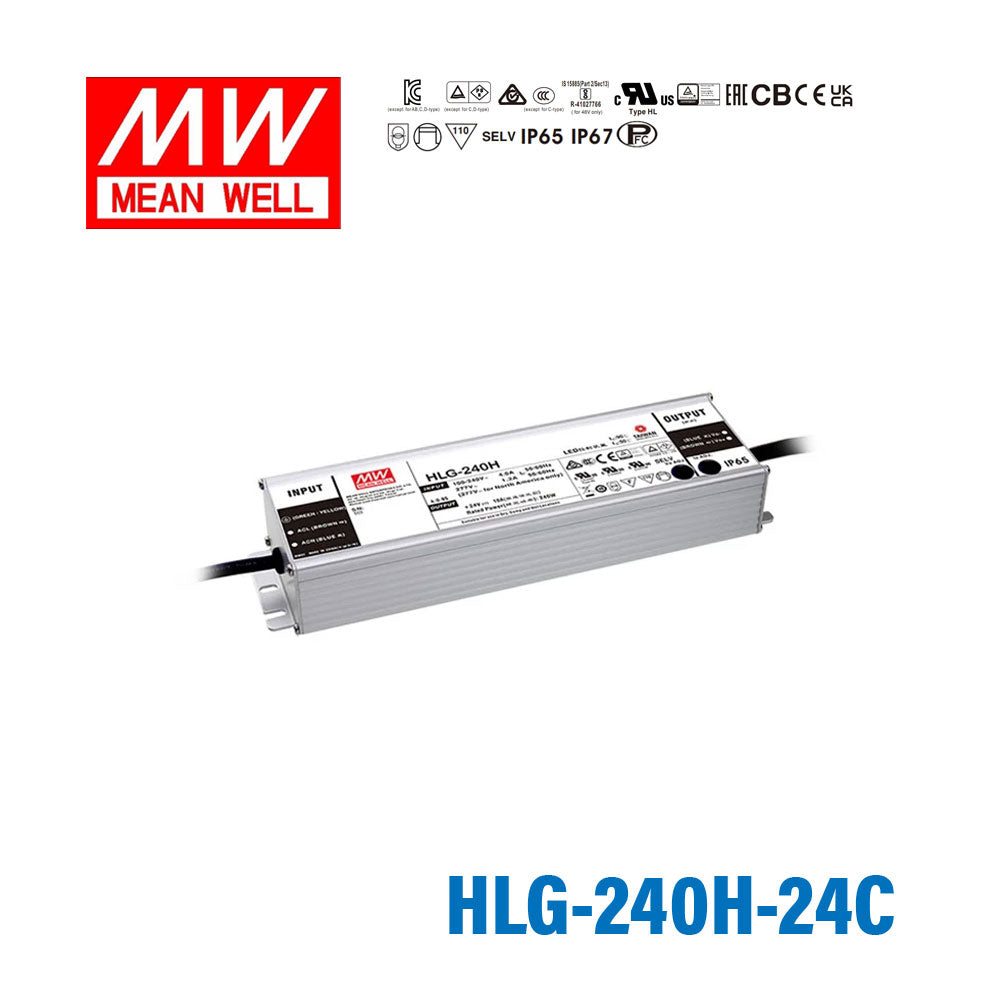

Mean Well HLG-240H-24C AC-DC Single output LED driver Mix mode 240W 10A

premium quality7 years warrantyaluminium casinghigh efficiency

SKU HLG-240H-24C

Log in to see price Trade pricing & online ordering for account holders

In stock

Overview

HLG-240H-24C is the 24V output model of this series: rated current 10A, rated power 240W, typical efficiency 92.5%. Type C: Terminal block for I/O connection. Output voltage and constant current level can be adjusted through internal potentiometer.

HLG-240H series is a 240W AC/DC LED driver featuring the dual mode constant voltage and constant current output. HLG-240H operates from 90～305VAC and offers models with different rated voltage ranging between 12V and 54V. Thanks to the high efficiency up to 93.5%, with the fanless design, the entire series is able to operate for -40℃ ~ +90℃ case temperature under free air convection. The design of metal housing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications. HLG-240H is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

Features

Constant Voltage + Constant Current mode output
Metal housing with class I design
IP67 / IP65 rating for indoor or outdoor installations
Function options: output adjustable via potentiometer
Typical lifetime > 62000 hours
7 years warranty

Specifications

HLG-240H-24CSpecifications from the official datasheet (2026-02-04 edition)

OUTPUT

DC VOLTAGE: 24V
CONSTANT CURRENT REGION^Note.4: 12 ~ 24V
RATED CURRENT: 10A
RATED POWER: 240W
RIPPLE & NOISE (max.)^Note.2: 150mVp-p
VOLTAGE ADJ. RANGE: 22.4 ~ 25.6V
CURRENT ADJ. RANGE: 5 ~ 10A
VOLTAGE TOLERANCE^Note.3: ±1.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±0.5%
SETUP, RISE TIME^Note.6: 1000ms,80ms/115VAC 500ms,80ms/230VAC
HOLD UP TIME (Typ.): 15ms / 115VAC, 230VAC

INPUT

VOLTAGE RANGE^Note.5: 90 ~ 305VAC 127 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF≧0.98/115VAC, PF≧0.95/230VAC @ full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20% (@ load≧50% / 115VAC,230VAC; @ load≧75% / 277VAC) (Please refer to " TOTAL HARMONIC DISTORTION (THD) " section)
EFFICIENCY (Typ.): 92.5%
AC CURRENT (Typ.): 4A / 115VAC 2A / 230VAC 1.2A / 277VAC
INRUSH CURRENT (Typ.): COLD START 75A(twidth=570μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 2 units (circuit breaker of type B) / 4 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.75mA / 277VAC

PROTECTION

OVER CURRENT: 95 ~ 108% Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUIT: Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 27 ~ 34V
OVER TEMPERATURE: Shut down o/p voltage, recovers automatically after temperature goes down

ENVIRONMENT

WORKING TEMP.: Tcase= -40 ~ +90℃ (Please refer to "OUTPUT LOAD vs TEMPERATURE" section)
MAX. CASE TEMP.: Tcase= +90℃
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL1012, CAN/CSA-C22.2 No. 107.1-01, UL8750(type”HL”), CSA C22.2 No. 250.0-08; BS EN/EN/AS/NZS 61347-1, BS EN/EN/AS/NZS 61347-2-13 independent (except for HLG-240H C type); IEC/UL/BS EN/EN 62368-1(except for AB,D type), UL8750;GB/T19510.1,GB/T19510. 213(except for C-type); IP65 or IP67;J61347-1,J61347-2-13 (except for C,D-type) , BIS IS15885( for 48V only), EAC TP TC 004,KC61347-1,KC61347-2-13 (except for AB,C,D-type) approved
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55015, BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2 Class C (@ load≧50%) ; BS EN/EN61000-3-3,GB/T 17743 , GB17625.1,EAC TP TC 020;KC KN15,KN61547(except for AB,C,D-type)
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, BS EN/EN55024, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV) EAC TP TC 020;KC KN15,KN61547(except for AB,C,D-type)

OTHERS

MTBF: 2015.1K hrs min. Telcordia SR-332 (Bellcore) ; 176.4K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 244.2*68*38.8mm (L*W*H)(HLG-240H-Blank/A/B) 251*68*38.8mm (L*W*H)(HLG-240H C-Type)
PACKING: 1.3Kg; 12pcs/16.6Kg/0.84CUFT(HLG-240-Blank/A/B) 1.23Kg; 12pcs/15.8Kg/1.16CUFT(HLG-240 C-Type)

MODEL ENCODING

Blank: Io and Vo fixed; IP67
A: Io and Vo adjustable through built-in potentiometer; IP65
B: 3 in 1 dimming function (1~10VDC, 10V PWM signal and resistance); IP67
AB: Io and Vo adjustable through built-in potentiometer & 3 in 1 dimming function (1~10Vdc, 10V PWM signal and resistance); IP65
C (this model): Terminal block for I/O connection. Output voltage and constant current level can be adjusted through internal potentiometer
D: Timer dimming function, contact MEAN WELL for details(safety pending); IP67

Test conditions and notes13

1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. Please refer to "DRIVING METHODS OF LED MODULE".
5. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
6. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
7. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
8. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED driver can only be used behind a switch without permanently connected to the mains.
9. This series meets the typical life expectancy of >62,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 75℃ or less.
10. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com.
11. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
12. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
14. Products sourced from the Americas regions may only have the UL, CE and UKCA logos. Please contact your MEAN WELL sales for more information.

Technical drawings

HLG-240H-24C BLOCK DIAGRAM — BLOCK DIAGRAM

HLG-240H-24C Illustration (page 5) — Illustration (page 5)

HLG-240H-24C STATIC CHARACTERISTICS — STATIC CHARACTERISTICS

HLG-240H-24C TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

HLG-240H-24C Dimensions (mm) — Dimensions (mm)

HLG-240H-24C WATERPROOF CONNECTION — WATERPROOF CONNECTION

Typical applications

LED street lighting
LED high-bay lighting
Parking space lighting
LED fishing lamp
LED greenhouse lighting
Type “HL” for use in ClassⅠ, Division 2 hazardous (Classified) location.

Downloads

Datasheet1

HLG-240H-24C datasheetHLG-240H-SPEC.PDF · 2026-02-04 edition PDF Download

Certificates3

CB Certificate (HLG-100-185H)(EN) PDF Download

TUV Certificate (HLG-240H)(EN) PDF Download

EMC Certificate(HLG-240H)(EN) PDF Download

FAQ

Can I use the HLG-240H-24C to power 24V LED strip installations indoors?

Yes. The HLG-240H-24C provides 240W at 24V (10A), which is ample for extensive 24V LED strip runs in commercial or residential interiors. Note that the C-type uses AC input and DC output terminal blocks and has a built-in potentiometer for output voltage and current adjustment.

Is the HLG-240H-24C a good fit for 24V LED retail display or cabinet lighting?

Yes. At 240W and 24V, it can power a significant amount of display case, shelf, or cabinet LED lighting. The wide 90-305VAC input handles various commercial mains supplies, and its fanless metal housing cools by free air convection.

Can the HLG-240H-24C drive 24V LED panels for commercial office lighting?

Yes. The 240W output at 24V is sufficient for multiple LED panel fixtures. Its constant-current operation across a 12-24V CC region ensures stable drive for panels that require a regulated current source. It is rated for a -40°C to +90°C case temperature, with output derating at high temperatures.

How many meters of 24V LED strip can the HLG-240H-24C support?

Divide 240W by your strip's wattage per meter. For example, a strip drawing 19.2W/m would allow about 12.5 meters (240W / 19.2W per meter = 12.5m). Always verify your strip's rated power per meter and keep total consumption at or below 240W.

Does the HLG-240H-24C need to be installed in a dry location?

The sheet lists IP65 or IP67 ingress protection for the HLG-240H series, and the series is intended for both indoor and outdoor use. The C-type connects through terminal blocks rather than fixed cables, so follow the waterproof installation cautions in MEAN WELL's user manual. Its case temperature range is -40°C to +90°C.

How does the HLG-240H-24C differ from the HLG-240H-24 and HLG-240H-24B?

All three deliver 240W at 24V / 10A. The base HLG-240H-24 has fixed output with IP67 waterproof rating. The -24B adds a dimming input while retaining IP67. The -24C adds potentiometer voltage/current adjustment, uses AC/DC terminal blocks, and has a longer 251 mm case; some approvals (e.g. EN 61347-2-13 independent, GB/T 19510, J61347, KC) exclude the C-type.
