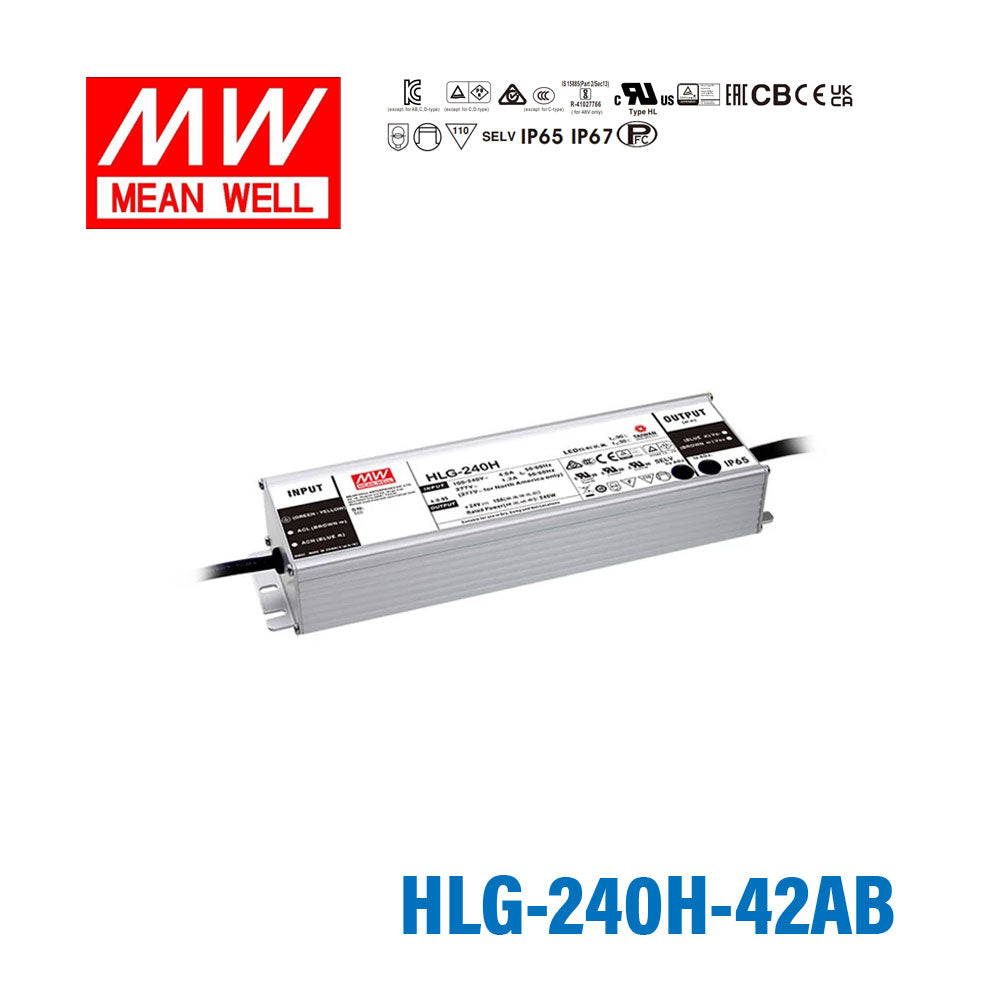

Mean Well HLG-240H-42AB 240W Power Supply 42V - Adjustable & Dimmable

The HLG-240H is a 240W Mean Well AC-DC LED driver (input: 90~305VAC, output: 42V, operating temperature: -40~+90°C).

Key Features

✓ Input voltage: 90~305VAC
✓ Output voltage: 42V
✓ Rated output current: 5.72A
✓ Ingress protection: IP65
✓ Operating temperature: -40~+90°C
✓ Safety certifications: CB, CCC, CE, EAC, PSE, RCM, TÜV, UL
✓ 7 year warranty

Frequently Asked Questions

Can I use the HLG-240H-42AB to power and dim 42V LED panels in a commercial space?

Yes. The AB suffix provides both output voltage/current adjustment and dimming input (1-10V/PWM). At 240W and 42V, it can drive 42V LED panel arrays while accepting dimming commands from a commercial lighting controller or building management system.

Is the HLG-240H-42AB a good choice for dimmable 42V horticultural LED lighting?

Yes. The 240W output at 42V suits many quantum board and COB grow light setups. The built-in potentiometer lets you set the baseline drive level, and the 1-10V/PWM dimming input allows automated light cycle control via a grow room controller. The CC voltage range of 21-42V supports smooth dimming.

Can I use the HLG-240H-42AB for 42V architectural accent lighting with scene control?

Yes. The dimming input accepts standard 1-10V or PWM signals from scene controllers, making it suitable for lobby accents, display lighting, or retail environments. The adjustable output via potentiometer lets you set a maximum brightness level, and the dimming input controls the range below that point.

Does the HLG-240H-42AB work in a sheltered outdoor setting like a covered walkway?

Yes. The IP65 water-resistant rating protects against dust ingress and low-pressure water jets. It is suitable for covered walkways, pergolas, and carports. For fully rain-exposed or submersion-risk locations, the IP67-rated HLG-240H-42B offers stronger water protection.

How many meters of 42V LED strip can the HLG-240H-42AB support?

Divide 240W by your strip's rated power per meter. A strip rated at 18W/m would allow about 13.3 meters (240W / 18W per meter = 13.33m). Always verify your strip's rated power per meter and keep the total load at or below 240W for reliable operation.

What are the differences between the HLG-240H-42, 42A, 42AB, and 42B variants?

All four share the same 240W / 42V / 5.72A core specs. The base HLG-240H-42 has fixed output and IP67 waterproof rating. The -42A adds output adjustment via potentiometer (IP65). The -42AB adds both adjustment and 1-10V/PWM dimming input (IP65). The -42B provides dimming input only and retains the IP67 waterproof rating.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	IP Rating
Mean Well S-HLG-240H-24 Power Supply 240W 24V with AU/NZ plug 10A	240W	24V	10A	IP67	View
Mean Well HLG-240H-48A Power Supply 240W 48V - Adjustable 5A	240W	48V	5A	IP65	View
Mean Well HLG-240H-48 Power Supply 240W 48V 5A	240W	48V	5A	IP67	View
Mean Well HLG-240H-24A Power Supply 240W 24V - Adjustable 10A	240W	24V	10A	IP65	View
Mean Well S-HLG-240H-12 Power Supply 192W 12V with AU/NZ plug 16A	192W	12V	16A	IP67	View
Mean Well HLG-240H-24B Power Supply 240W 24V- Dimmable 10A	240W	24V	10A	IP67	View
Mean Well HLG-240H-12A Power Supply 192W 12V - Adjustable 16A	192W	12V	16A	IP65	View
