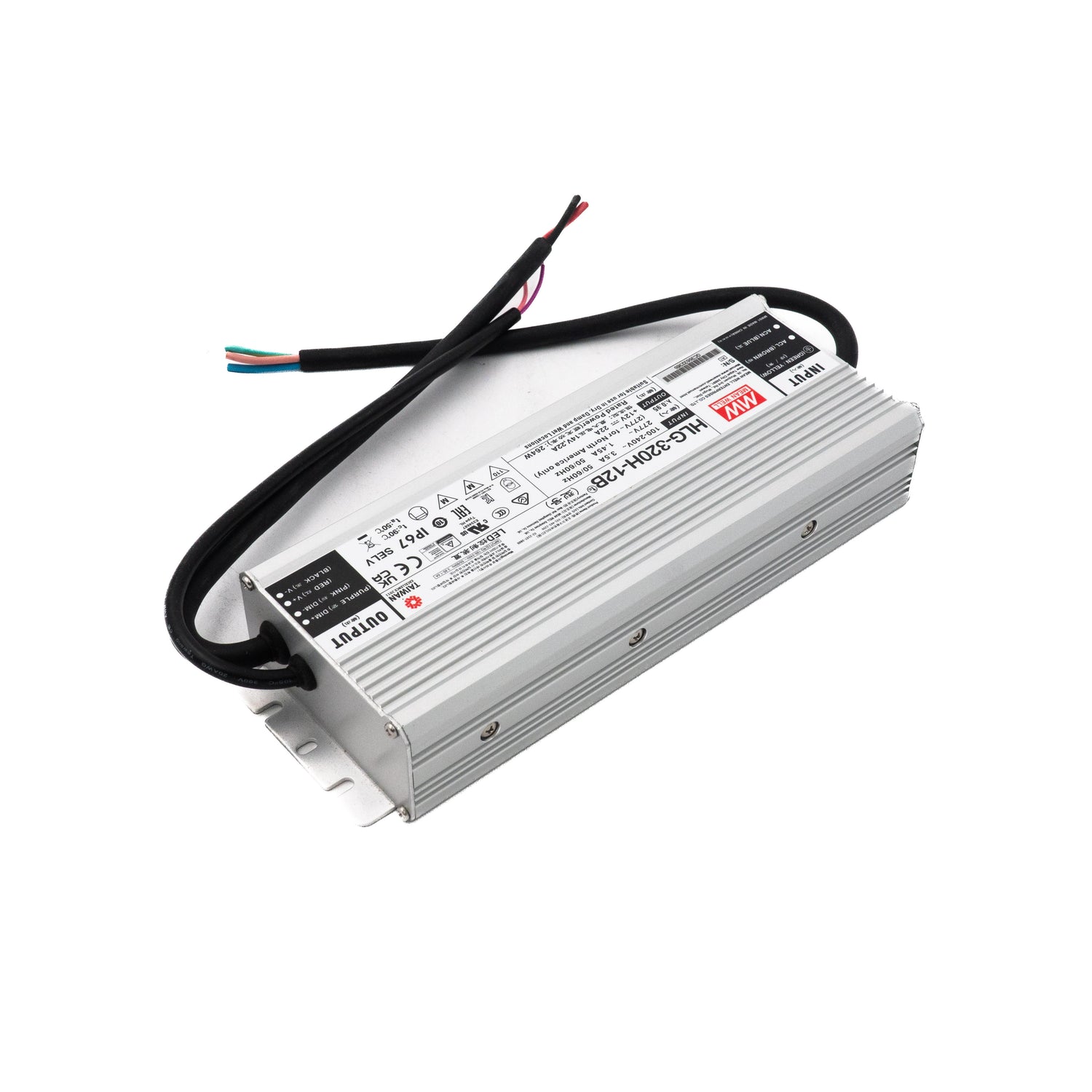

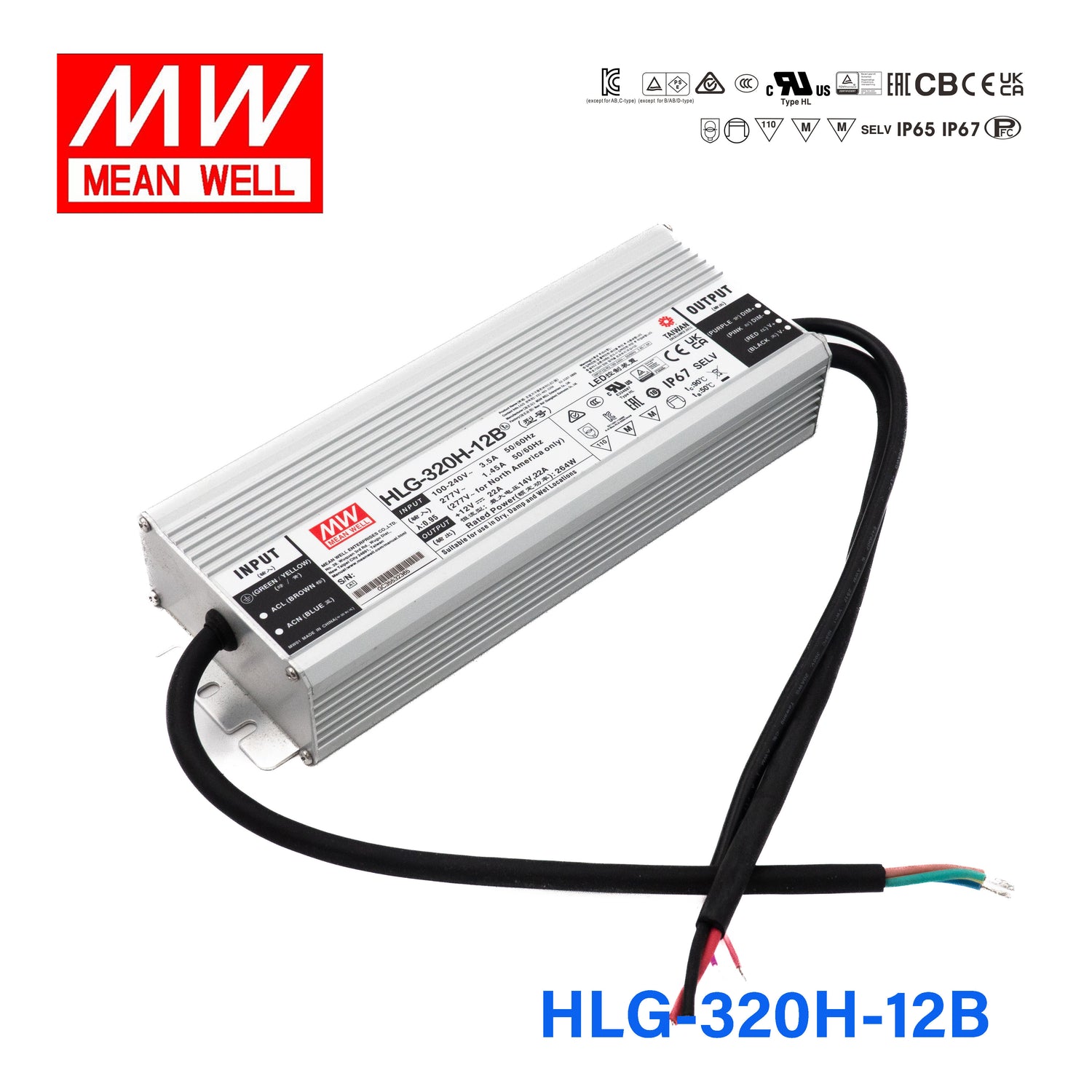

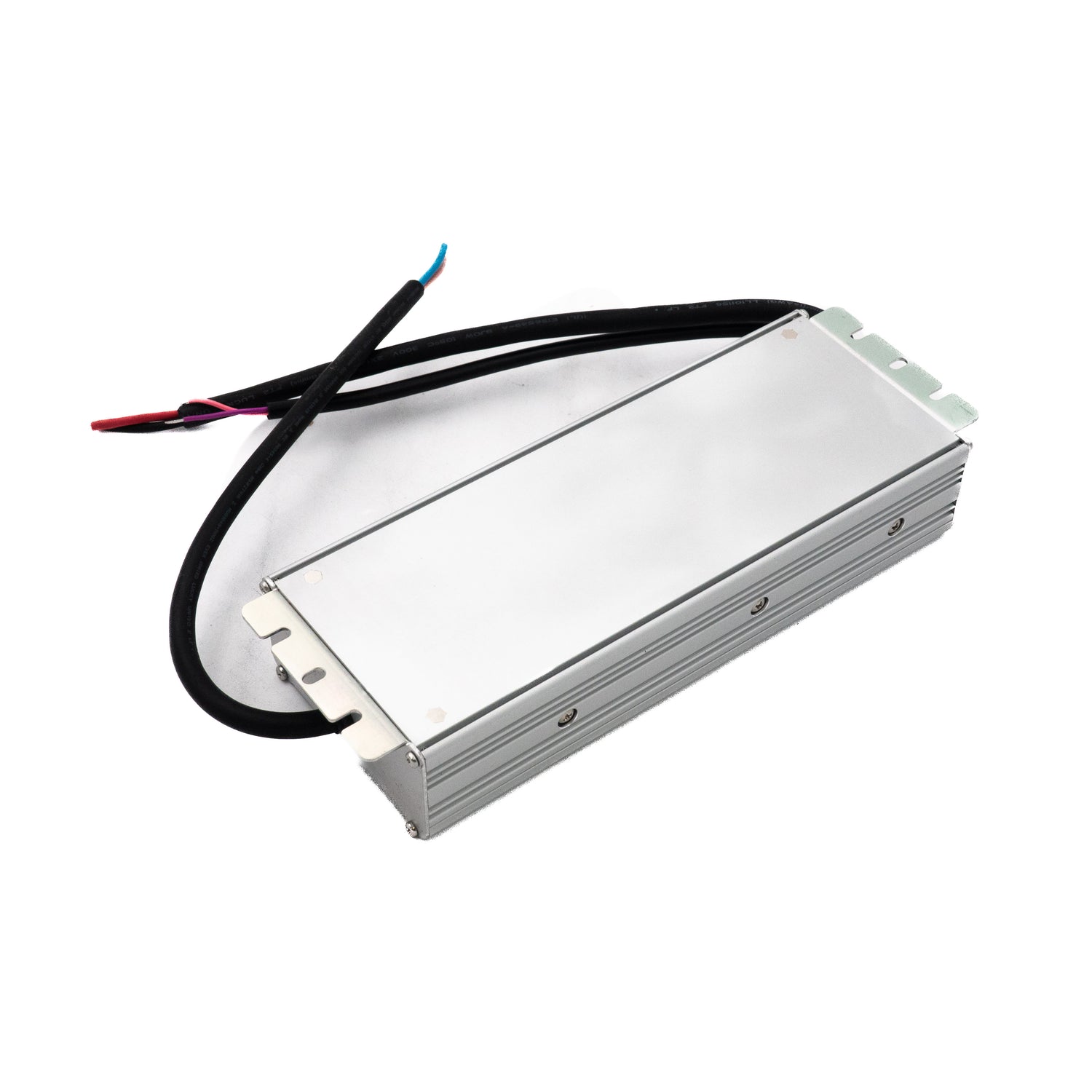

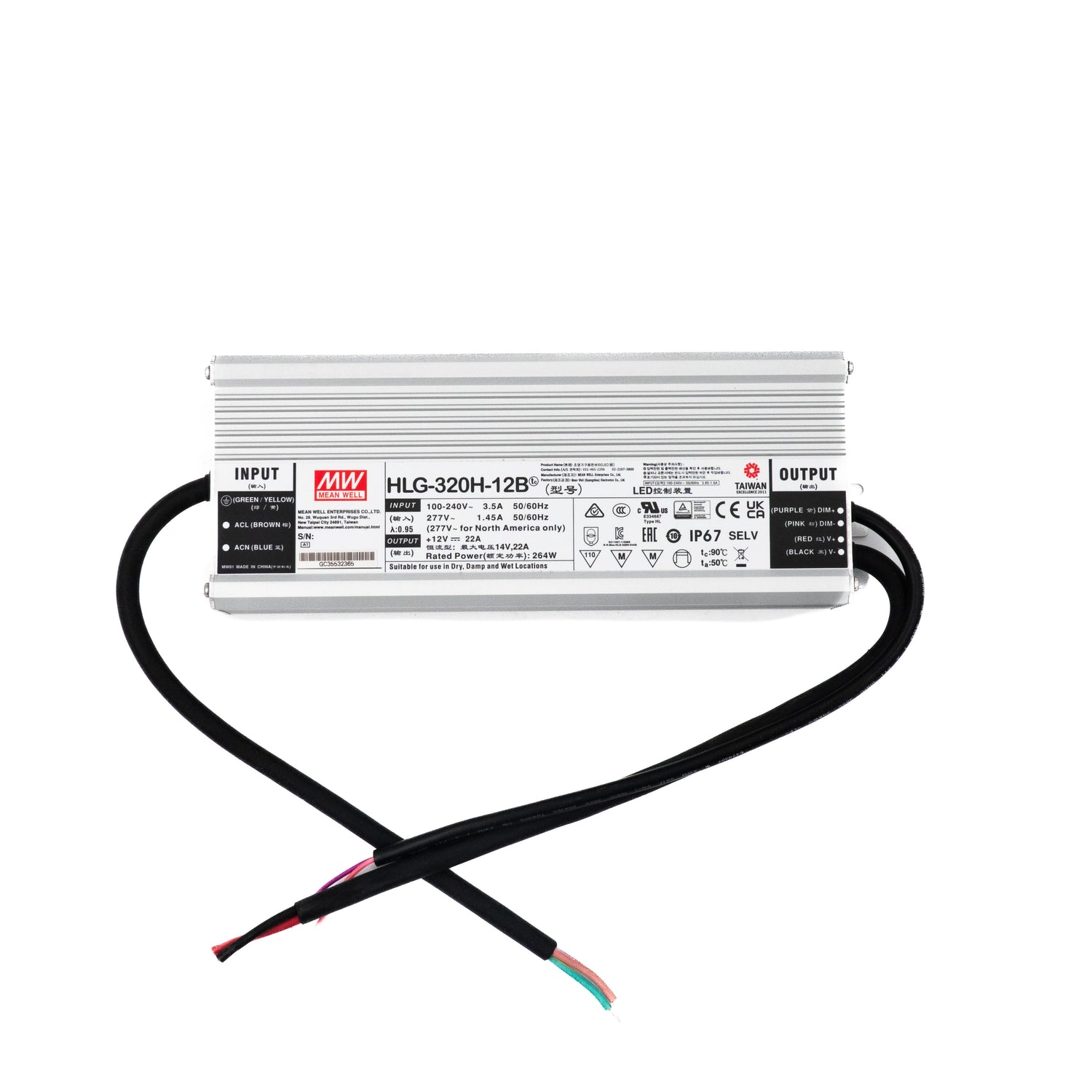

Mean Well HLG-320H-12B LED Driver - 264W 12V - Dimmable

Name: Mean Well HLG-320H-12B Power Supply 264W 12V - Dimmable 22A
Brand: Mean Well
SKU: HLG-320H-12B
Price: 299.81 NZD
Availability: InStock
Rating: 4.9 (21 reviews)

Overview

HLG-320H-12B is the 12V output model of this series: rated current 22A, rated power 264W, typical efficiency 91%.

HLG-320H series is a 320W AC/DC LED driver featuring the dual mode constant voltage and constant current output. HLG-320H operates from 90～305VAC and offers models with different rated voltage ranging between 12V and 54V. Thanks to the high efficiency up to 94%, with the fanless design, the entire series is able to operate for -40℃ ~ +90℃ case temperature under free air convection. The design of metal housing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications. HLG-320H is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

Features

Constant Voltage + Constant Current mode output
Metal housing with class I design
Built-in active PFC function
IP67 / IP65 rating for indoor or outdoor installations
Function options: output adjustable via potentiometer; 3 in 1 dimming
Typical lifetime > 62000 hours
7 years warranty

Specifications

HLG-320H-12BSpecifications from the official datasheet (2019-12-10 edition)Download datasheet PDF

OUTPUT

DC VOLTAGE: 12V
CONSTANT CURRENT REGION^Note.4: 6 ~12V
RATED CURRENT: 22A
RATED POWER: 264W
RIPPLE & NOISE (max.)^Note.2: 150mVp-p
VOLTAGE ADJ. RANGE: 10.8 ~ 13.5V
CURRENT ADJ. RANGE: 11 ~ 22A
VOLTAGE TOLERANCE^Note.3: ±3.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±2.0%
SETUP, RISE TIME^Note.6: 2500ms,80ms/115VAC 500ms,80ms/230VAC
HOLD UP TIME (Typ.): 15ms / 115VAC, 230VAC

INPUT

VOLTAGE RANGE^Note.5: 90 ~ 305VAC 127 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF≧0.98/115VAC, PF≧0.95/230VAC, PF≧0.94/277VAC @ full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20% (@ load≧50% / 115VAC,230VAC; @ load≧75% / 277VAC) (Please refer to " TOTAL HARMONIC DISTORTION (THD) " section)
EFFICIENCY (Typ.) (230Vac): 91%
EFFICIENCY (Typ.) (277Vac): 91.5%
AC CURRENT (Typ.): 3.5A / 115VAC 1.65A / 230VAC 1.45A / 277VAC
INRUSH CURRENT(Typ.): COLD START 70A(twidth=1010μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 1 unit (circuit breaker of type B) / 2 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.75mA / 277VAC

PROTECTION

OVER CURRENT^Note.4: 95 ~ 108% Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUIT: Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 14 ~ 17V Shut down and latch off o/p voltage, re-power on to recover
OVER TEMPERATURE: Shut down and latch off o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.: Tcase= -40 ~ +90℃ (Please refer to "OUTPUT LOAD vs TEMPERATURE" section)
MAX. CASE TEMP.: Tcase= +90℃
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL8750(type”HL”), CSA C22.2 No. 250.0-08; EN/AS/NZS 61347-1, EN/AS/NZS 61347-2-13, EN62384 independent; GB19510.1,GB19510.14; IP65 or IP67 (except for HLG-320H C-type); J61347-1, J61347-2-13 (except for B,AB,C and D-type), EAC TP TC 004;KC61347-1,KC61347-2-13(except for AB,C-type) approved
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to EN55015, EN55032 (CISPR32) Class B, EN61000-3-2 Class C (@ load≧50%) ; EN61000-3-3,EN61000-3-3, GB17743 and GB17625.1,EAC TP TC 020
EMC IMMUNITY: Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547, EN55024, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV), EAC TP TC 020

OTHERS

MTBF: 157.1K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 252*90*43.8mm (L*W*H)
PACKING: 1.88Kg; 8pcs/16Kg/0.92CUFT

Test conditions and notes12

1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. Please refer to "DRIVING METHODS OF LED MODULE".
5. De-rating may be needed under low input voltages. Please refer to "STATIC CHARACTERISTIC" sections for details.
6. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
7. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again.
8. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED driver can only be used behind a switch without permanently connected to the mains.

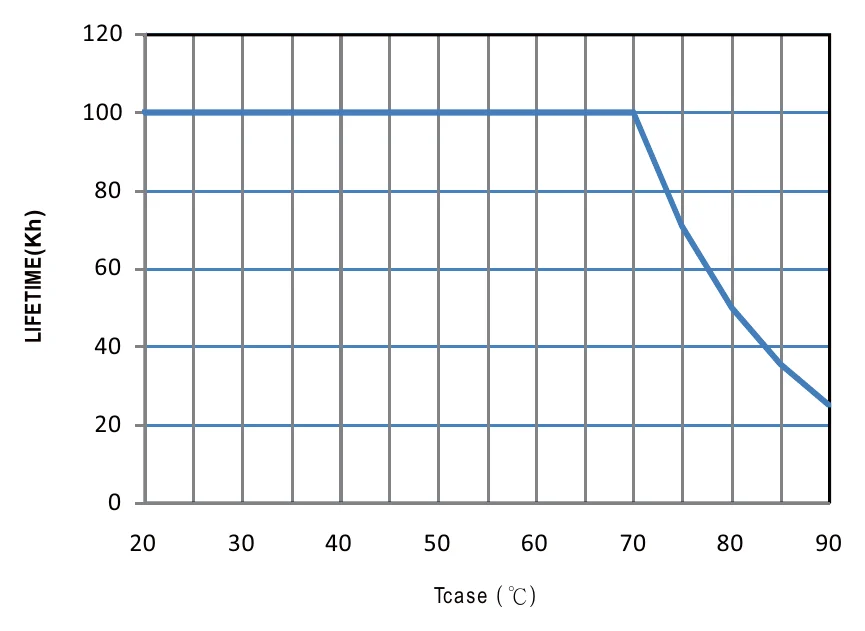

9. This series meets the typical life expectancy of >62,000 hours of operation when Tcase, particularly  point (or TMP, per DLC), is about 75℃ or less.
10. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com.
11. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
12. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf

Technical drawings

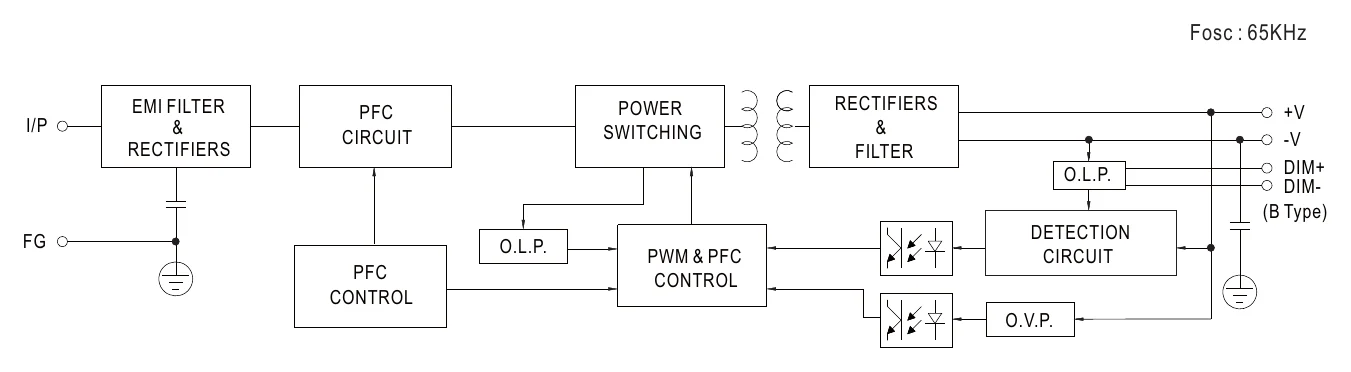

HLG-320H-12B BLOCK DIAGRAM — BLOCK DIAGRAM

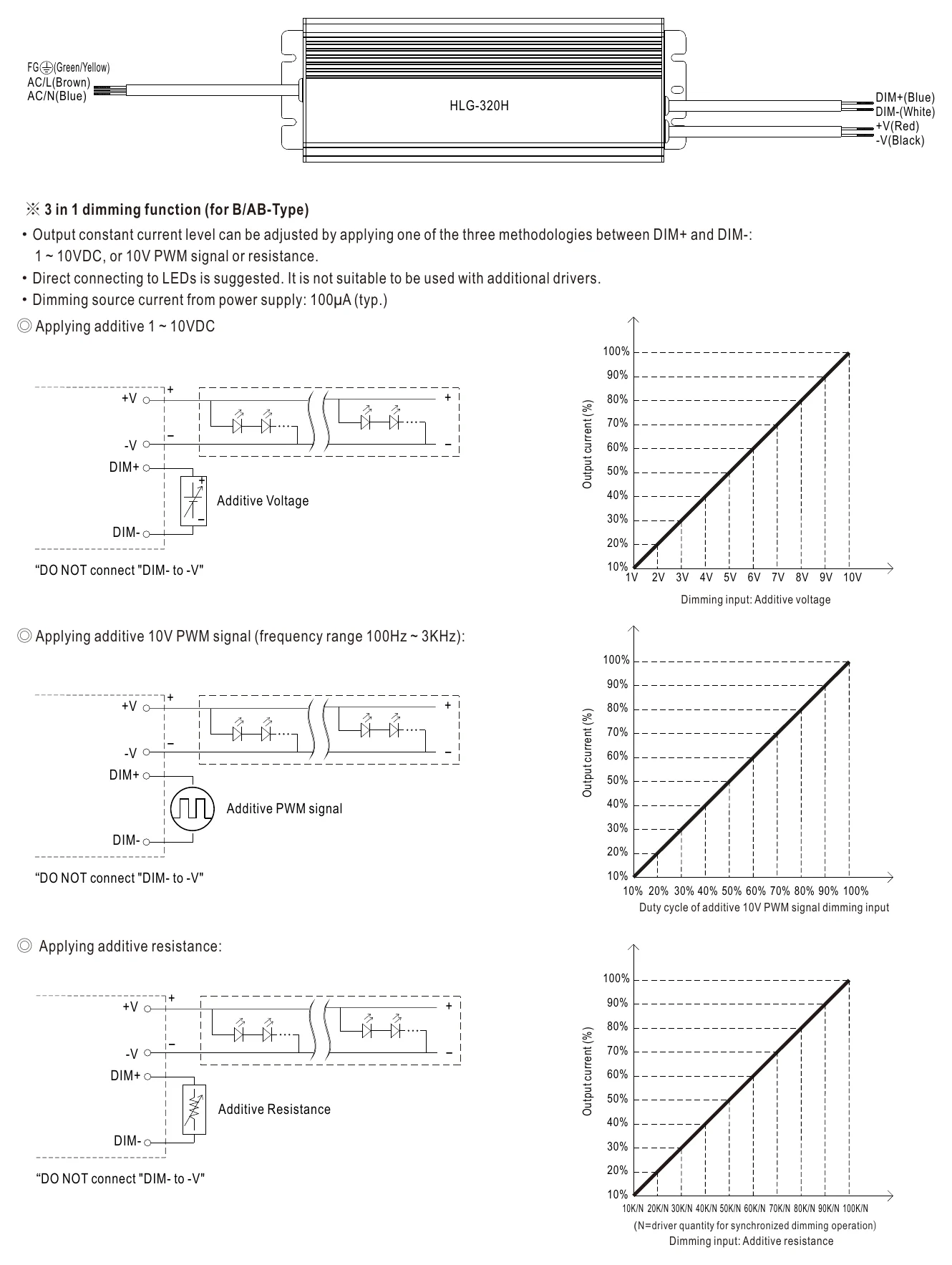

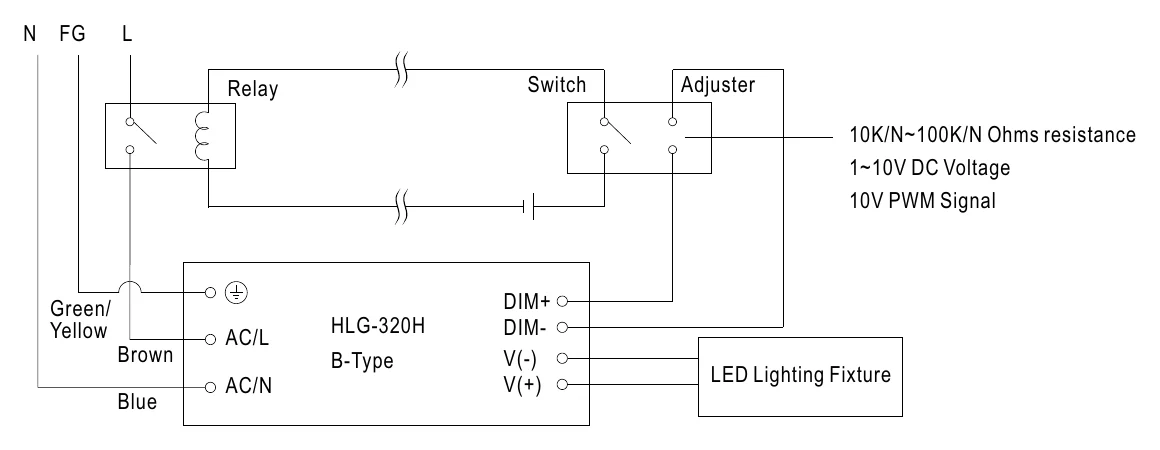

HLG-320H-12B DIMMING OPERATION — DIMMING OPERATION

HLG-320H-12B Illustration (page 5) — Illustration (page 5)

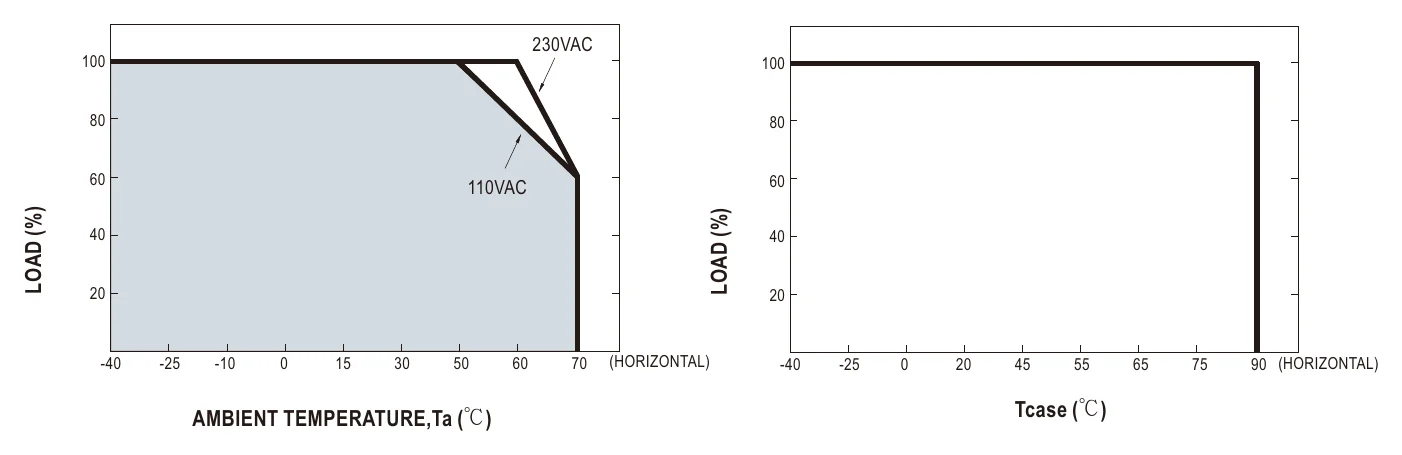

HLG-320H-12B OUTPUT LOAD vs TEMPERATURE(Note.10) — OUTPUT LOAD vs TEMPERATURE(Note.10)

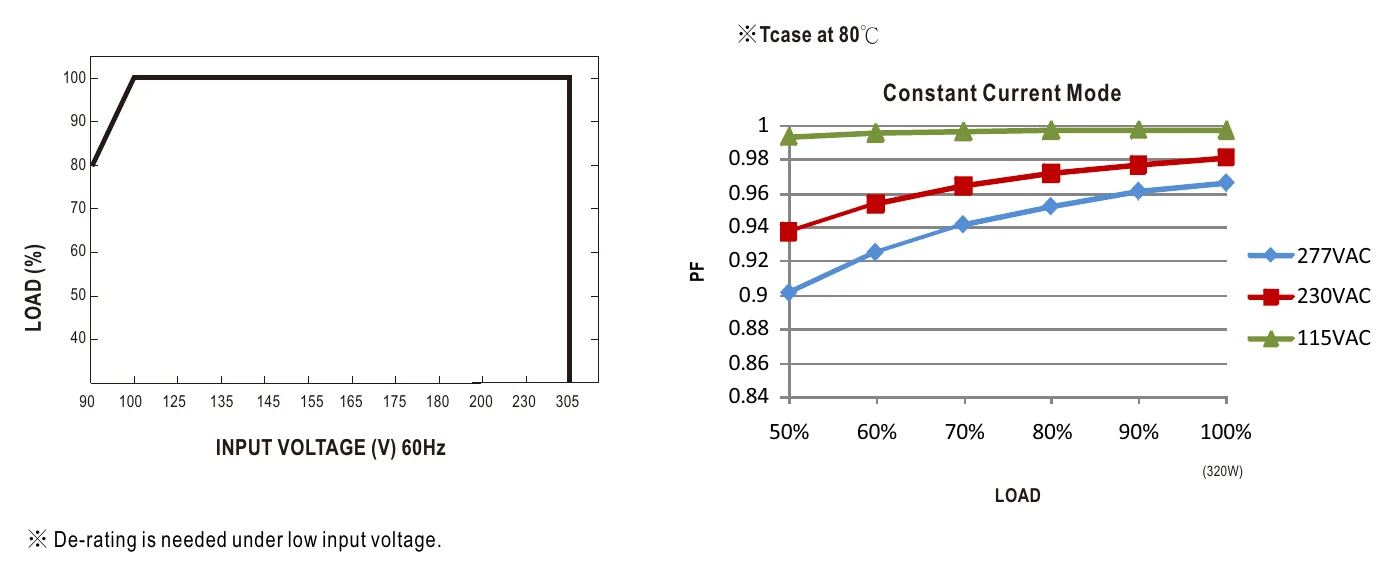

HLG-320H-12B STATIC CHARACTERISTICS — STATIC CHARACTERISTICS

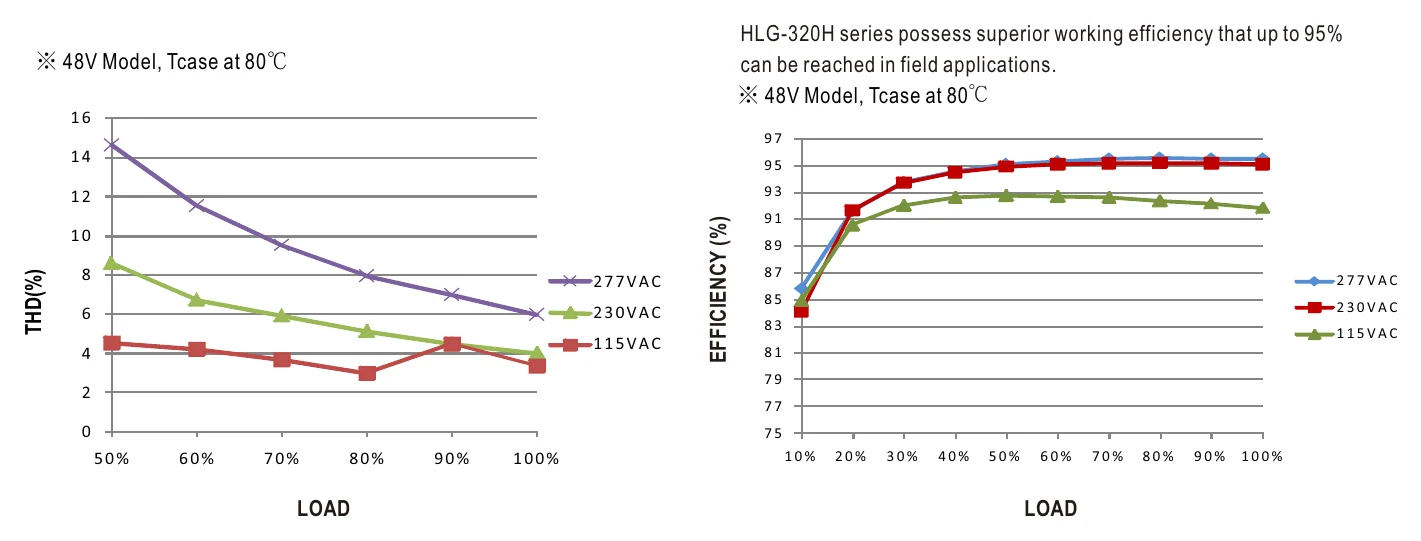

HLG-320H-12B TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

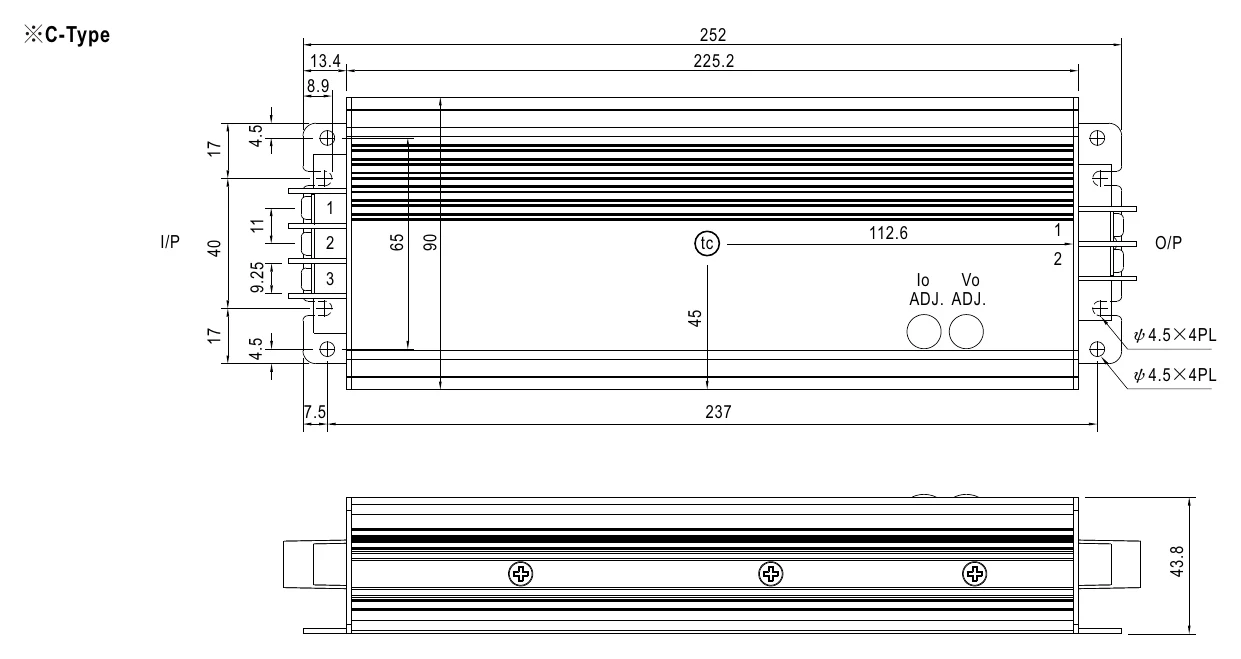

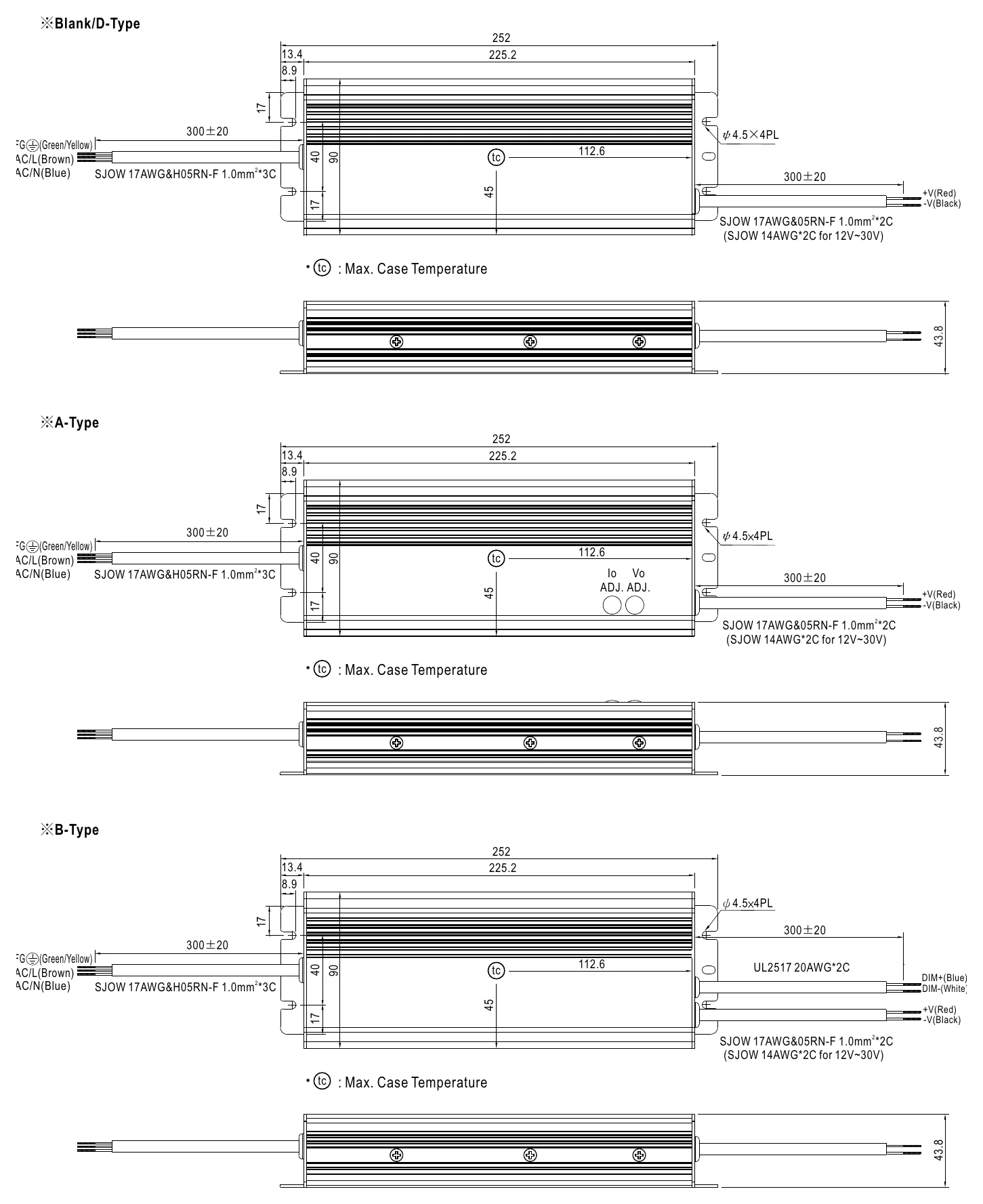

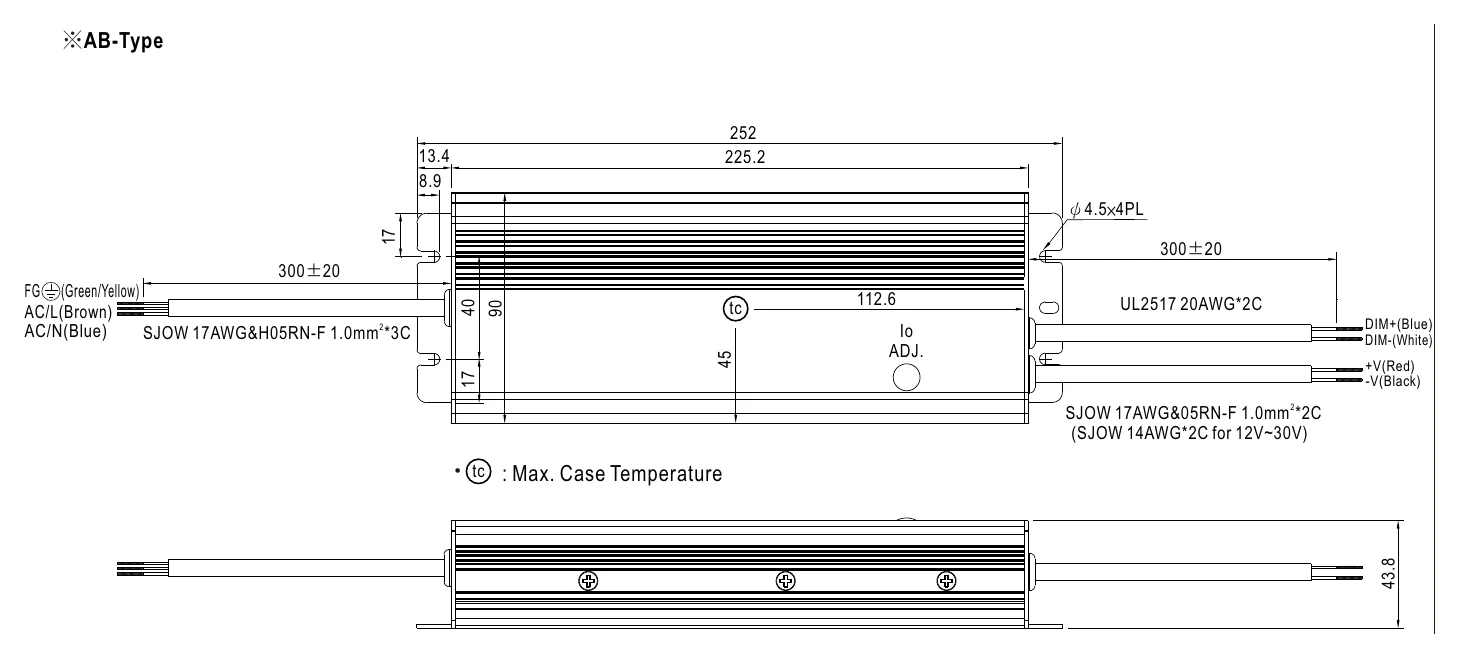

HLG-320H-12B MECHANICAL SPECIFICATION — MECHANICAL SPECIFICATION

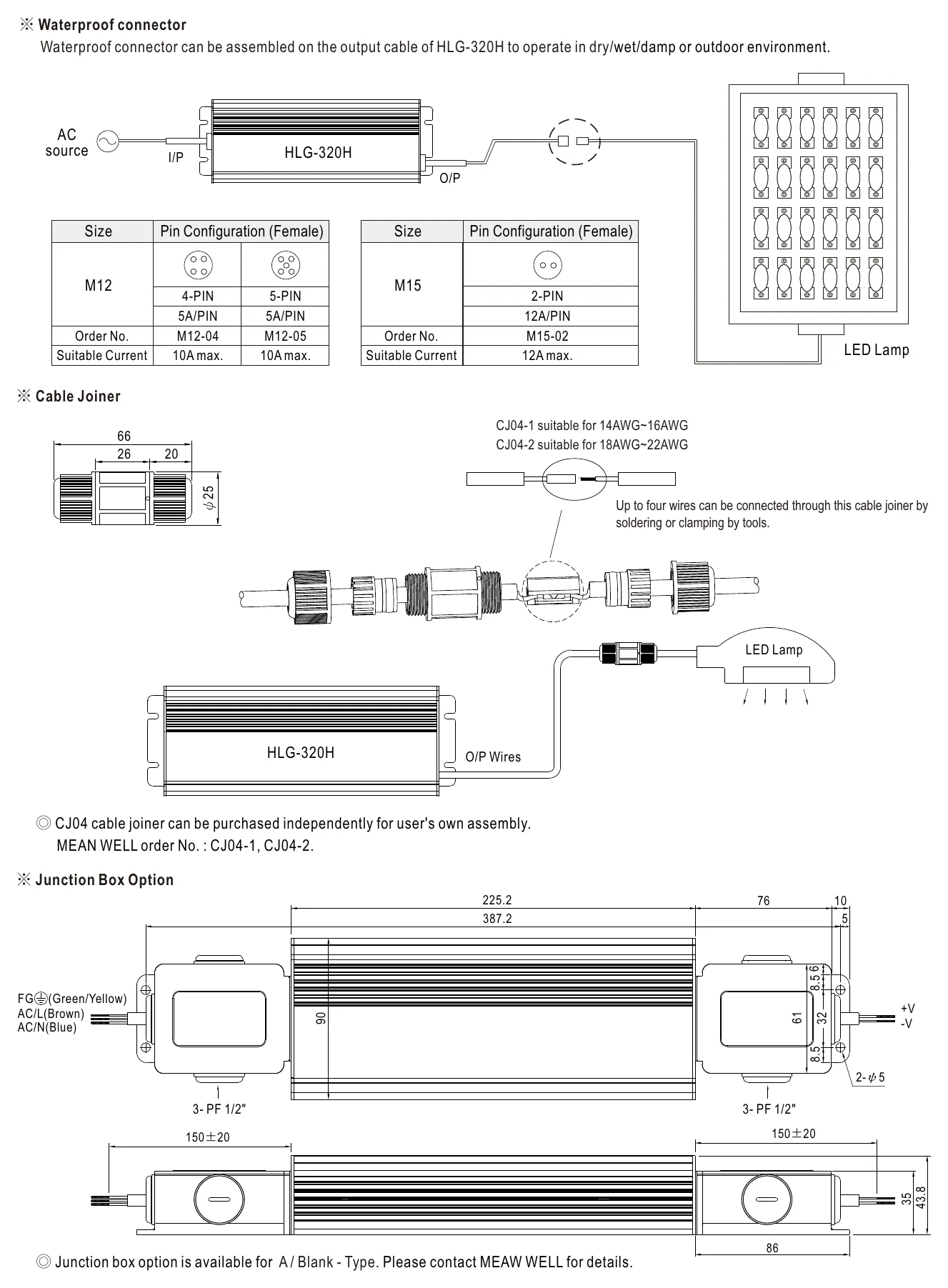

HLG-320H-12B WATERPROOF CONNECTION — WATERPROOF CONNECTION

Typical applications

LED street lighting
LED high-bay lighting
Parking space lighting
LED fishing lamp
LED greenhouse lighting
Type HL for use in ClassⅠ, Division 2 Hazardous (Classified) Location.

Downloads

Datasheet1

HLG-320H-12B datasheethlg_320h_spec.pdf · 2019-12-10 edition PDF Download

Certificates5

CB Certificate (HLG-320H)(EN) PDF Download

TUV Certificate (HLG-320H)(EN) PDF Download

EMC Certificate(HLG-320H)(EN) PDF Download

UL Certificate(HLG-320H)(EN) PDF Download

PSE Certificate(HLG-320H)(EN) PDF Download

Test reports1

Test Report (HLG-320H-12)(EN) PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

Can I use the HLG-320H-12B to power 12V LED strips for an outdoor architectural facade?

Yes. The HLG-320H-12B delivers 264W at 12V and carries an IP67 waterproof rating, meaning it can withstand dust and temporary water immersion. This makes it an excellent choice for fully exposed outdoor facade lighting where the driver may encounter rain, snow, or washdown conditions.

Is the HLG-320H-12B a good driver for 12V LED landscape lighting?

Yes. With 264W at 12V and IP67 waterproof protection, the HLG-320H-12B is well suited for landscape and garden LED systems. It can be mounted in ground-level junction boxes or outdoor enclosures exposed to irrigation spray and seasonal weather.

Can the HLG-320H-12B drive 12V LED lighting in a car wash or wet industrial area?

Yes. The IP67 waterproof enclosure is rated for temporary immersion and full dust protection, making it suitable for high-moisture environments like car washes, food processing areas, or wash-down zones. The 264W at 12V output handles substantial LED loads in these settings.

How many meters of 12V LED strip can I run from the HLG-320H-12B?

The HLG-320H-12B provides up to 264W at 12V. Divide 264W by your strip's rated wattage per meter to find the maximum length. For instance, a strip rated at 10W/m would allow up to 264 / 10 = 26.4 meters. Always check your strip's rated power per meter and stay within the 264W total.

Can the HLG-320H-12B handle extreme cold or heat in outdoor installations?

Yes. The HLG-320H-12B has an operating temperature range of -40°C to +90°C, covering harsh winter cold through intense summer heat. Combined with its IP67 waterproof rating, it is designed for year-round outdoor deployment in virtually any climate.

Can the HLG-320H-12B be dimmed, and how does dimming work on this model?

Yes. The -B suffix indicates a built-in dimming function that accepts 1-10V, PWM, or resistance signals. This allows integration with external dimmers or automation controllers. Unlike the -AB model, the -12B does not include a potentiometer for manual voltage/current adjustment.
