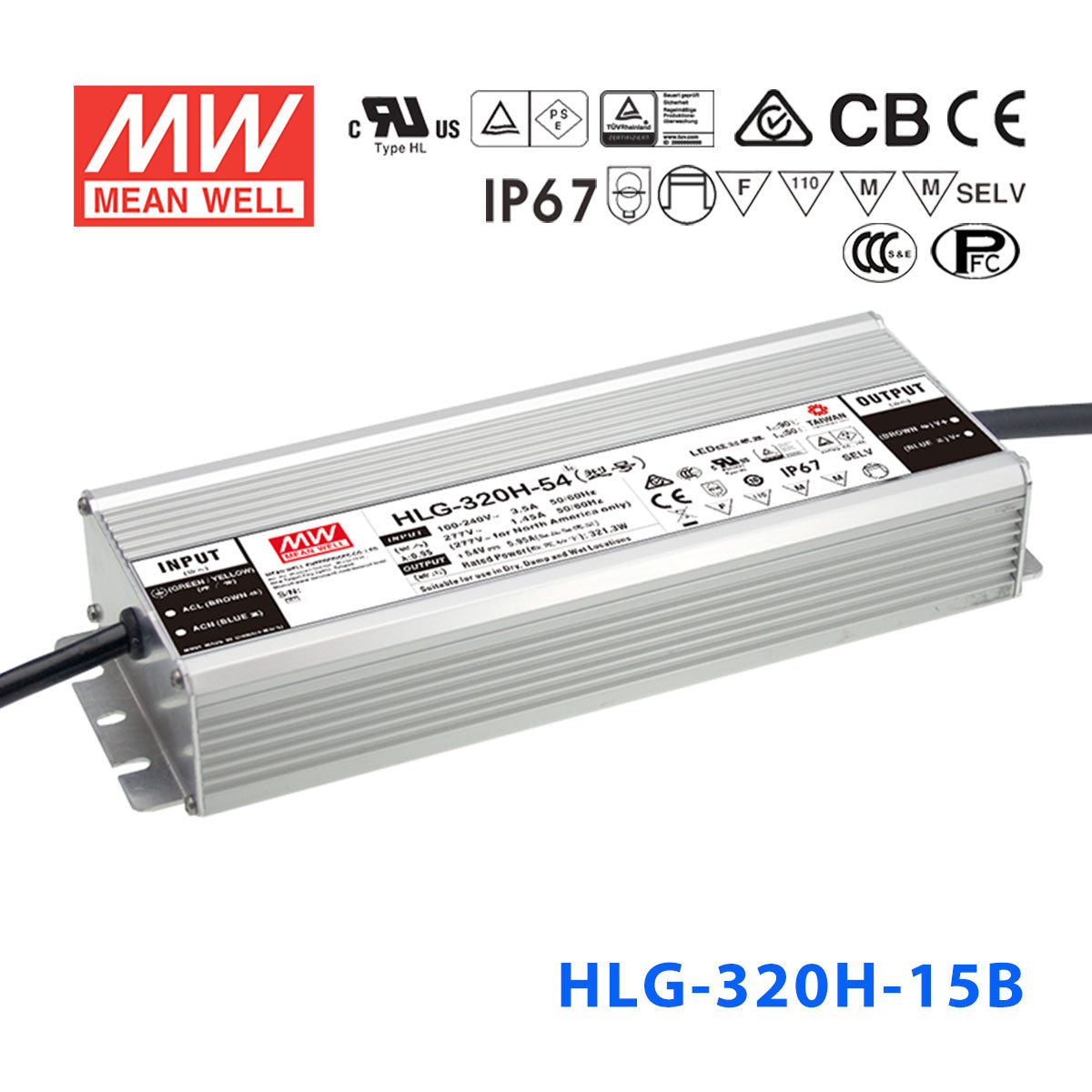

Mean Well HLG-320H-15AB Power Supply 285W 15V - Adjustable and Dimmable

premium quality, 7 years warranty, aluminium casing, high efficiency

|

Description

Features

Universal AC input (up to 305VAC) / Full range
High efficiency up to 95%
Built-in active PFC function, PF> 0.9 for 60% of load or higher
Protections: Short circuit / Over current / Over voltage / Over temperature
IP67 / IP65 design for indoor or outdoor installations
Cooling by free air convection
Output current adjustable
Suitable for LED lighting and street lighting applications
Meet 4kV surge immunity level (IEC61000-4-5)
Multiple models for choice: A-Type: IP65 rated. Output voltage and constant current level can be adjusted through internal potentiometer B-Type: IP67 rated and built-in 3 in 1 dimming function (1~10VDC, PWM signal, or resistance) C-Type: Terminal block for I/O connection Blank-Type: IP67 rated. Cable for I/O connection D-Type(option): IP67 rated. Timer dimming function, contact MEAN WELL for details (safety pending for 150~240W)
7 years warranty

General Specification

AC input voltage range 90~305VAC ; 127~431VDC
AC inrush current (max.) Cold start, 70A at 230VAC
DC adjustment range ±6% rated output voltage
Current adjustment range 50%~100%
Over current protection 95%~108% constant current limiting, auto-recovery
Over voltage protection 110%~140% rated output voltage
Setup, rise, hold up time 2500ms, 80ms, 15ms at full load and 230VAC
Withstand voltage I/P-O/P: 3.75kVAC, I/P-FG: 2kVAC, O/P-FG: 0.5kVAC
Working temperature -40~+70ºC (refer to output derating curve)
Safety standards UL8750, TUV EN61347-1, EN61347-2-13, PSE J61347-1, J61347-2-13 (except for C-Type) approved; UL1012, UL60950-1
EMC standards EN55015, EN55022 class B, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547
Connection Input UL rated, SJTW 18AWGx3C (30cm);
Connection Output A/D/Blank-Type: SJTW 14AWGx2C (30cm) ; B-Type: SJTW 14AWGx2C (30cm)+SJTW 18AWGx2C (30cm); C-Type: Terminal block
Dimension (LxWxH) (mm) 252x 90x 43.8

Specifications

  • Brand
    Mean Well
  • Series
    HLG Series
  • Power Rating
    285 Watt
  • Output Voltage
    15 Volt
  • Rated Current
    19 Ampere
  • Input Voltage
    90V~305V
  • Standards Met
    CB,CCC,CE,EAC,PSE,RCM,TUV,UL
  • Operation Mode
    Constant Current,Constant Voltage
  • Operating Temperature
    -40°C~90°C
  • Warranty
    7 Year
  • Length
    25.2 cm
  • Width
    9 cm
  • Height
    4.38 cm
  • Weight
    1.88 kg
