Mean Well

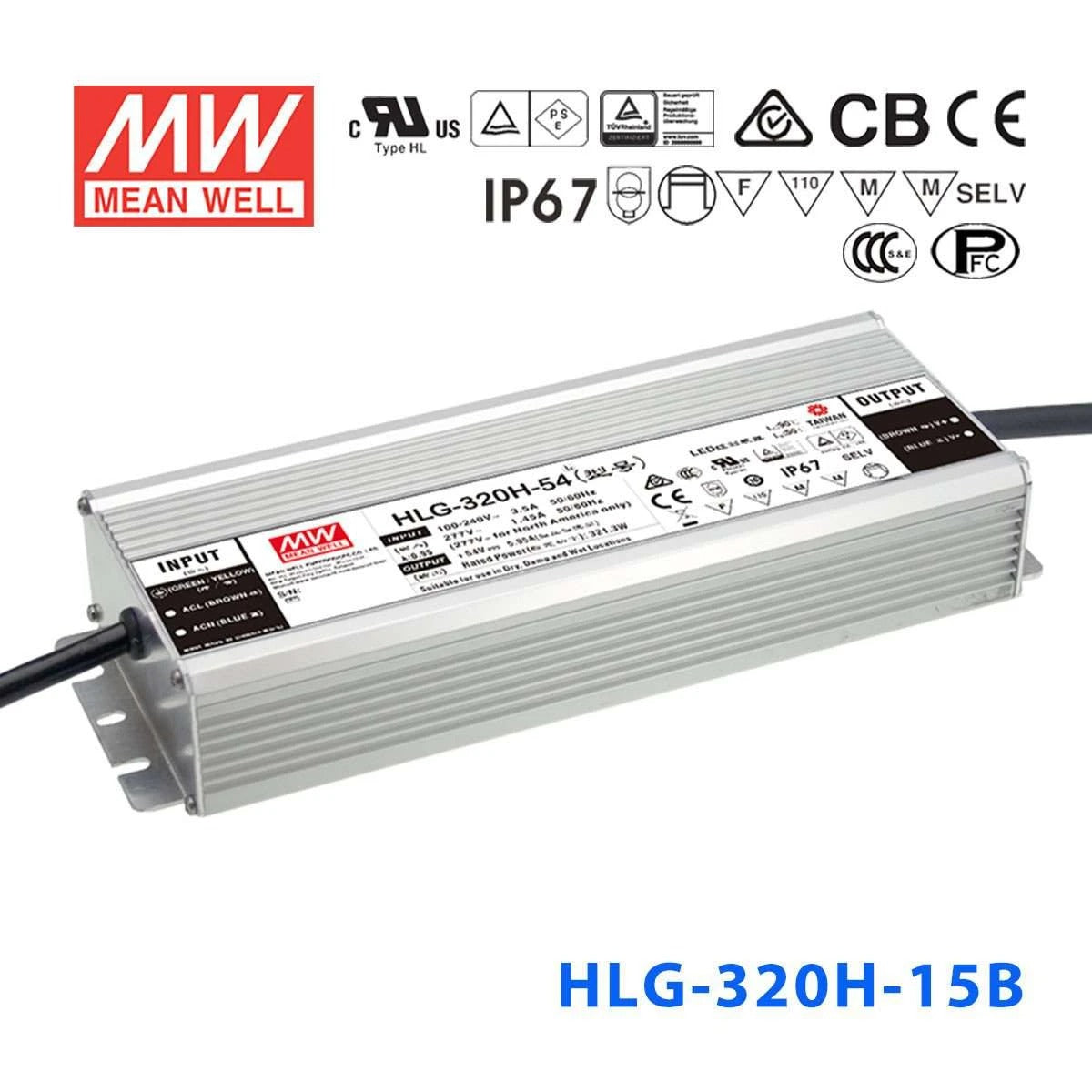

Mean Well HLG-320H-15B Power Supply 285W 15V - Dimmable 19A

4.9 (21 reviews)
premium quality7 years warrantyaluminium casinghigh efficiency
SKU HLG-320H-15B
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →

Select model — 16 in this family

HLG-320H-15B
|

Overview

HLG-320H-15B is the 15V output model of this series: rated current 19A, rated power 285W, typical efficiency 92.5%.

HLG-320H series is a 320W AC/DC LED driver featuring the dual mode constant voltage and constant current output. HLG-320H operates from 90～305VAC and offers models with different rated voltage ranging between 12V and 54V. Thanks to the high efficiency up to 94%, with the fanless design, the entire series is able to operate for -40℃ ~ +90℃ case temperature under free air convection. The design of metal housing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications. HLG-320H is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

Features

  • Constant Voltage + Constant Current mode output
  • Metal housing with class I design
  • Built-in active PFC function
  • IP67 / IP65 rating for indoor or outdoor installations
  • Function options: output adjustable via potentiometer; 3 in 1 dimming
  • Typical lifetime > 62000 hours
  • 7 years warranty

Specifications

HLG-320H-15BSpecifications from the official datasheet (2019-12-10 edition)Download datasheet PDF

OUTPUT

DC VOLTAGE
15V
CONSTANT CURRENT REGIONNote.4
7.5 ~ 15V
RATED CURRENT
19A
RATED POWER
285W
RIPPLE & NOISE (max.)Note.2
150mVp-p
VOLTAGE ADJ. RANGE
13.5 ~ 17V
CURRENT ADJ. RANGE
9.5 ~ 19A
VOLTAGE TOLERANCENote.3
±2.0%
LINE REGULATION
±0.5%
LOAD REGULATION
±1.5%
SETUP, RISE TIMENote.6
2500ms,80ms/115VAC 500ms,80ms/230VAC
HOLD UP TIME (Typ.)
15ms / 115VAC, 230VAC

INPUT

VOLTAGE RANGENote.5
90 ~ 305VAC 127 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE
47 ~ 63Hz
POWER FACTOR (Typ.)
PF≧0.98/115VAC, PF≧0.95/230VAC, PF≧0.94/277VAC @ full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION
THD< 20% (@ load≧50% / 115VAC,230VAC; @ load≧75% / 277VAC) (Please refer to " TOTAL HARMONIC DISTORTION (THD) " section)
EFFICIENCY (Typ.) (230Vac)
92.5%
EFFICIENCY (Typ.) (277Vac)
93%
AC CURRENT (Typ.)
3.5A / 115VAC 1.65A / 230VAC 1.45A / 277VAC
INRUSH CURRENT(Typ.)
COLD START 70A(twidth=1010μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER
1 unit (circuit breaker of type B) / 2 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT
<0.75mA / 277VAC

PROTECTION

OVER CURRENTNote.4
95 ~ 108% Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUIT
Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE
17.5 ~ 21V Shut down and latch off o/p voltage, re-power on to recover
OVER TEMPERATURE
Shut down and latch off o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.
Tcase= -40 ~ +90℃ (Please refer to "OUTPUT LOAD vs TEMPERATURE" section)
MAX. CASE TEMP.
Tcase= +90℃
WORKING HUMIDITY
20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.03%/℃ (0 ~ 50℃)
VIBRATION
10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS
UL8750(type”HL”), CSA C22.2 No. 250.0-08; EN/AS/NZS 61347-1, EN/AS/NZS 61347-2-13, EN62384 independent; GB19510.1,GB19510.14; IP65 or IP67 (except for HLG-320H C-type); J61347-1, J61347-2-13 (except for B,AB,C and D-type), EAC TP TC 004;KC61347-1,KC61347-2-13(except for AB,C-type) approved
WITHSTAND VOLTAGE
I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to EN55015, EN55032 (CISPR32) Class B, EN61000-3-2 Class C (@ load≧50%) ; EN61000-3-3,EN61000-3-3, GB17743 and GB17625.1,EAC TP TC 020
EMC IMMUNITY
Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547, EN55024, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV), EAC TP TC 020

OTHERS

MTBF
157.1K hrs min. MIL-HDBK-217F (25℃)
DIMENSION
252*90*43.8mm (L*W*H)
PACKING
1.88Kg; 8pcs/16Kg/0.92CUFT
Test conditions and notes12
  1. 1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
  2. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
  3. 3. Tolerance : includes set up tolerance, line regulation and load regulation.
  4. 4. Please refer to "DRIVING METHODS OF LED MODULE".
  5. 5. De-rating may be needed under low input voltages. Please refer to "STATIC CHARACTERISTIC" sections for details.
  6. 6. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
  7. 7. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again.
  8. 8. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED driver can only be used behind a switch without permanently connected to the mains.
  9. 9. This series meets the typical life expectancy of >62,000 hours of operation when Tcase, particularly  point (or TMP, per DLC), is about 75℃ or less.
  10. 10. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com.
  11. 11. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
  12. 12. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf

Technical drawings

HLG-320H-15B BLOCK DIAGRAM
BLOCK DIAGRAM
HLG-320H-15B DIMMING OPERATION
DIMMING OPERATION
HLG-320H-15B Illustration (page 5)
Illustration (page 5)
HLG-320H-15B OUTPUT LOAD vs TEMPERATURE(Note.10)
OUTPUT LOAD vs TEMPERATURE(Note.10)
HLG-320H-15B STATIC CHARACTERISTICS
STATIC CHARACTERISTICS
HLG-320H-15B TOTAL HARMONIC DISTORTION
TOTAL HARMONIC DISTORTION
HLG-320H-15B LIFE TIME
LIFE TIME
HLG-320H-15B MECHANICAL SPECIFICATION
MECHANICAL SPECIFICATION
HLG-320H-15B ※AB-Type
※AB-Type
HLG-320H-15B ※C-Type
※C-Type
HLG-320H-15B WATERPROOF CONNECTION
WATERPROOF CONNECTION

Typical applications

  • LED street lighting
  • LED high-bay lighting
  • Parking space lighting
  • LED fishing lamp
  • LED greenhouse lighting
  • Type HL for use in ClassⅠ, Division 2 Hazardous (Classified) Location.

Downloads

FAQ

Can I use the HLG-320H-15B to power dimmable 15V LED lighting in an outdoor parking structure?

Yes. The HLG-320H-15B delivers 285W at 15V with a built-in dimming input accepting 1-10V, PWM, or resistance signals. Its IP67 waterproof rating handles the rain, spray, and dust typical of open-air parking structures, while the dimming capability supports occupancy-based or daylight-harvesting controls.

Is the HLG-320H-15B suitable for dimmable 15V LED tunnel or underpass lighting?

Yes. With 285W output, IP67 waterproofing, and a -40°C to +90°C operating range, the HLG-320H-15B handles the humidity, condensation, and temperature swings common in tunnels. The dimming input allows gradual brightness transitions at tunnel entry and exit zones.

Can the HLG-320H-15B drive 15V LED lighting in a marina or waterfront installation?

Yes. The IP67 waterproof rating provides full dust and temporary immersion protection, making it suitable for marinas, boardwalks, and waterfront installations where saltwater spray and high humidity are present. The 285W at 15V output powers substantial dock or pier lighting arrays.

How many 15V LED fixtures can I connect to the HLG-320H-15B?

The total connected load must not exceed 285W at 15V (19A). For instance, if each 15V fixture draws 40W, you can connect up to seven fixtures (280W total). Always sum the rated wattage of all fixtures and ensure the total remains at or below 285W.

Can the HLG-320H-15B operate in freezing winter conditions?

Yes. The HLG-320H-15B is rated for an operating temperature range of -40°C to +90°C, making it fully capable of continuous operation in sub-zero environments. Its IP67 sealed enclosure also prevents moisture ingress from ice, snow, or condensation.
