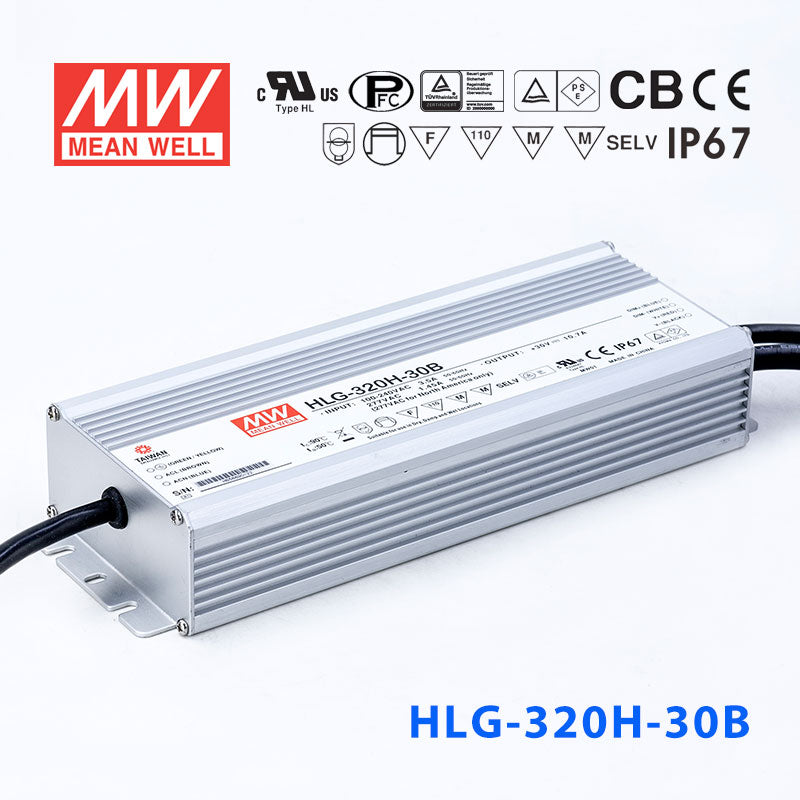

Mean Well HLG-320H-30AB Power Supply 320W 30V - Adjustable and Dimmable

The HLG-320H is a 320W Mean Well AC-DC LED driver (input: 90~305VAC, output: 30V, operating temperature: -40~+90°C).

Key Features

✓ Input voltage: 90~305VAC
✓ Output voltage: 30V
✓ Rated output current: 10.7A
✓ Ingress protection: IP65
✓ Operating temperature: -40~+90°C
✓ Safety certifications: CB, CCC, CE, EAC, PSE, RCM, TÜV, UL
✓ 7 year warranty

Frequently Asked Questions

Can I use the HLG-320H-30AB for dimmable outdoor 30V LED strip lighting?

Yes. The HLG-320H-30AB delivers 320W at 30V with both adjustable output and dimming capability via 1-10V, PWM, or resistance signals. However, it carries an IP65 water-resistant rating, so it should be mounted in a sheltered location such as a covered enclosure or canopy rather than fully exposed to rain or submersion.

Is the HLG-320H-30AB suitable for powering dimmable 30V LED channel letter signage?

It is a strong fit for medium to large channel letter sign installations requiring dimming control. At 320W and 30V output, it can drive a significant number of LED modules, and the adjustable output lets you fine-tune voltage within the 15-30V constant-current range. Mount the driver inside the sign cabinet to respect the IP65 rating.

Can I power a 30V dimmable LED light box or backlit display with the HLG-320H-30AB?

Yes, as long as the total load stays at or below 320W. The built-in potentiometer lets you dial in the baseline output while the dimming input provides scene-based brightness control. Its wide 90-305VAC input means it works on virtually any mains supply worldwide.

How many meters of 30V LED strip can the HLG-320H-30AB support?

Divide 320W by your strip's rated power per meter to find the maximum length. For example, a strip rated at 14W/m could run approximately 22.8 meters (320W / 14W per meter). Always check your strip's rated power per meter and keep the total load at or below 320W.

Is the HLG-320H-30AB weatherproof enough for a rooftop or exposed outdoor installation?

The HLG-320H-30AB is rated IP65, which protects against dust and low-pressure water jets but not submersion or heavy direct rain exposure. For a rooftop or exposed location, house it in a ventilated weatherproof enclosure. If the driver must be fully exposed, consider the IP67-rated HLG-320H-30B instead.

What is the difference between the HLG-320H-30AB and the other HLG-320H-30 variants?

All four share 320W, 30V, 10.7A core specs. The base HLG-320H-30 has fixed output and IP67 waterproof rating. The -30A adds adjustable output at IP65. The -30AB (this model) combines adjustable output and dimming at IP65. The -30B offers dimming only and retains the IP67 waterproof rating.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	IP Rating
Mean Well S-HLG-320H-24 Power Supply 320W 24V with AU/NZ plug 13.34A	320W	24V	13.34A	IP67	View
Mean Well HLG-320H-24A Power Supply 320W 24V - Adjustable 13.34A	320W	24V	13.34A	IP65	View
Mean Well S-HLG-320H-12 Power Supply 264W 12V with AU/NZ plug 22A	264W	12V	22A	IP67	View
Mean Well HLG-320H-48A Power Supply 320W 48V - Adjustable 6.7A	320W	48V	6.7A	IP65	View
Mean Well HLG-320H-48 Power Supply 320W 48V 6.7A	320W	48V	6.7A	IP67	View
Mean Well HLG-320H-24 Power Supply 320W 24V 13.34A	320W	24V	13.34A	IP67	View
Mean Well HLG-320H-12 Power Supply 264W 12V 22A	264W	12V	22A	IP67	View
Mean Well HLG-320H-24B Power Supply 320W 24V- Dimmable 13.34A	320W	24V	13.34A	IP67	View
