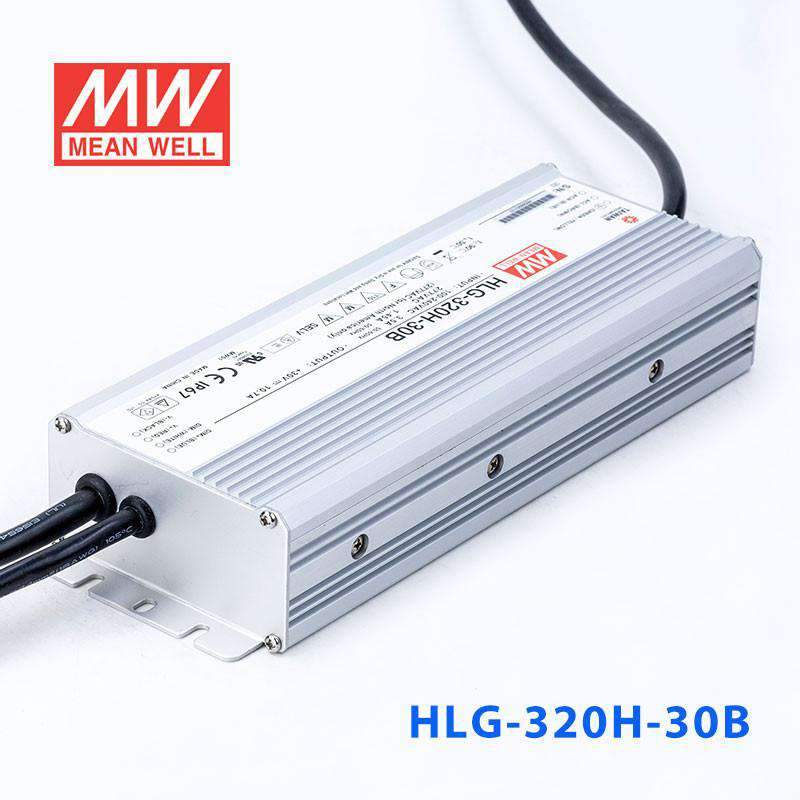

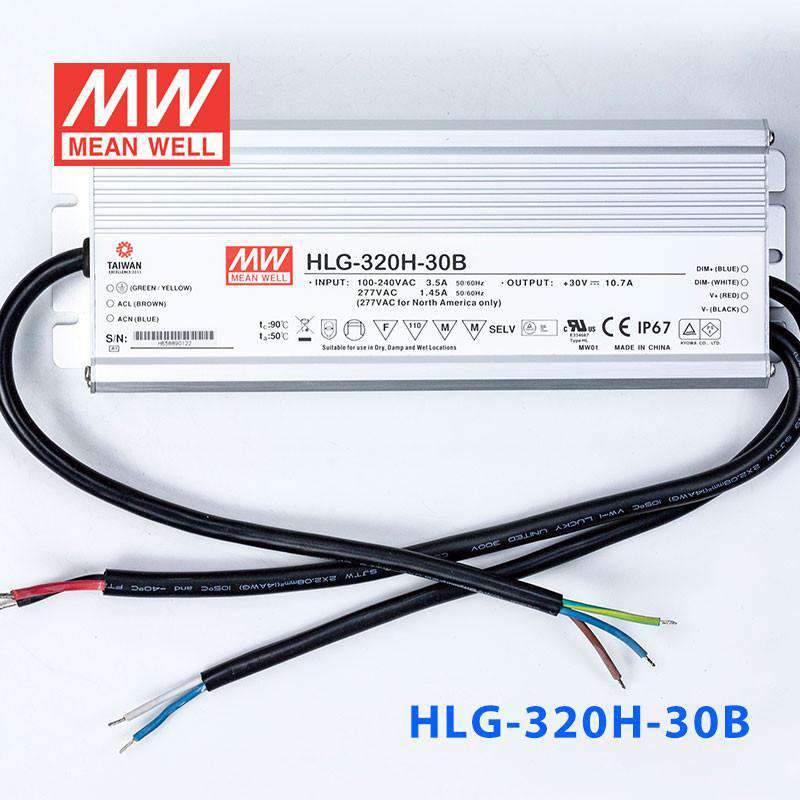

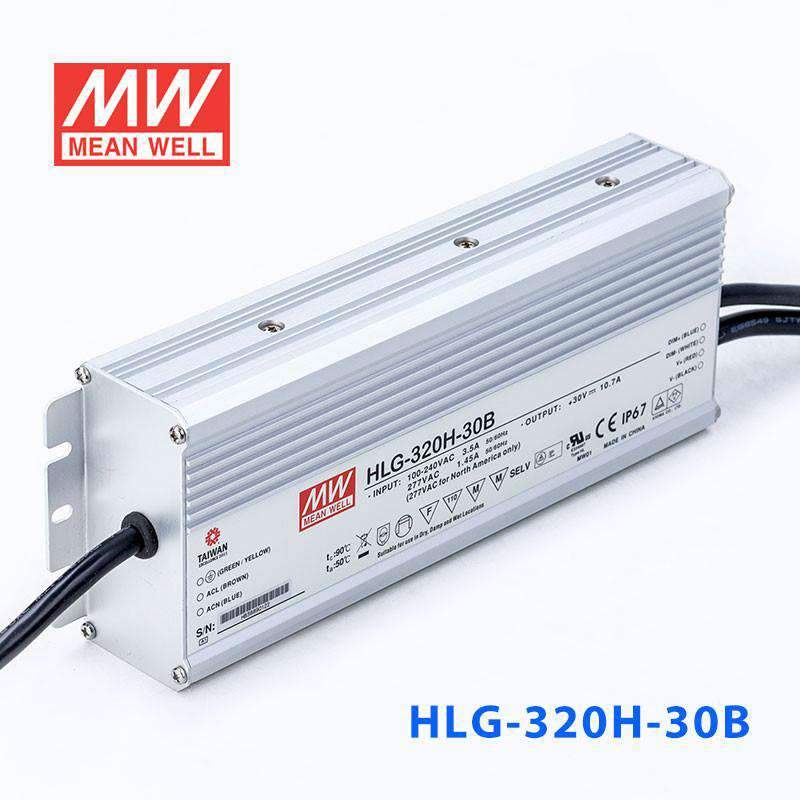

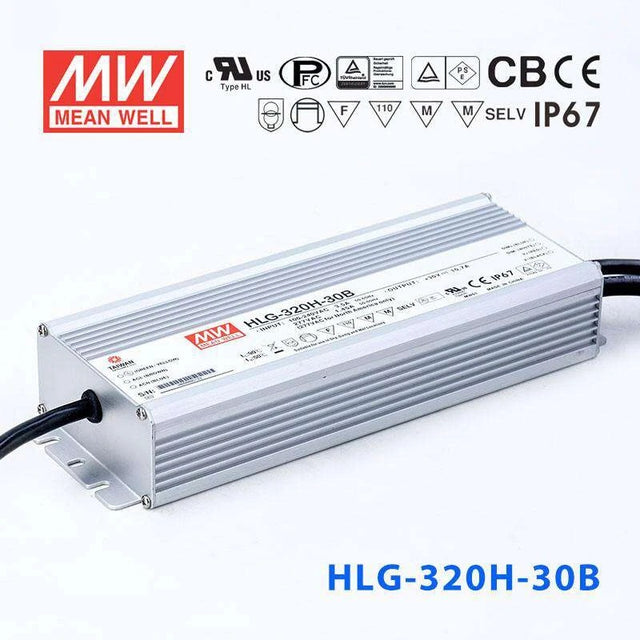

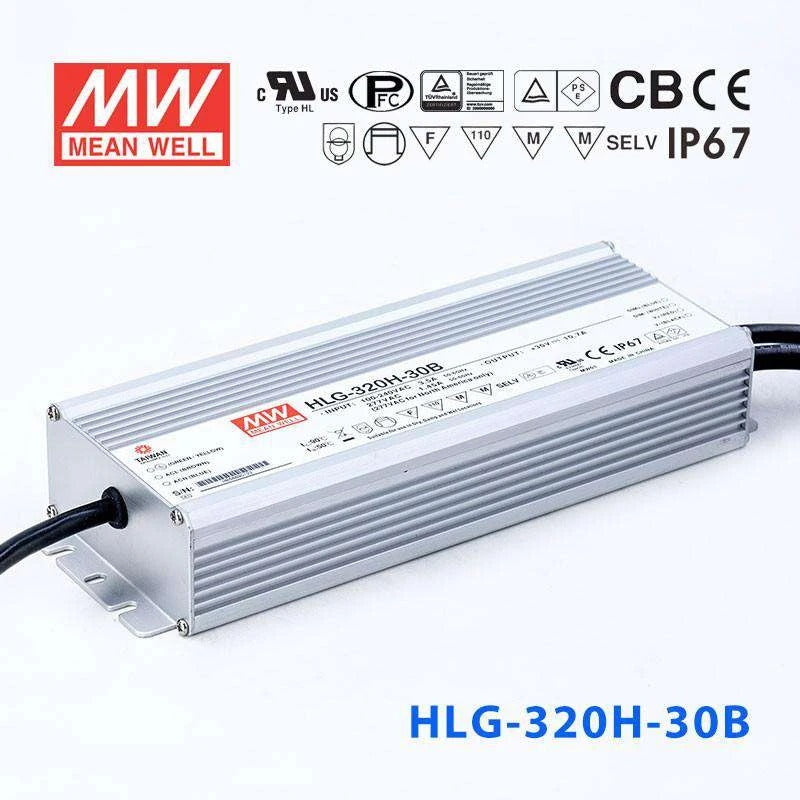

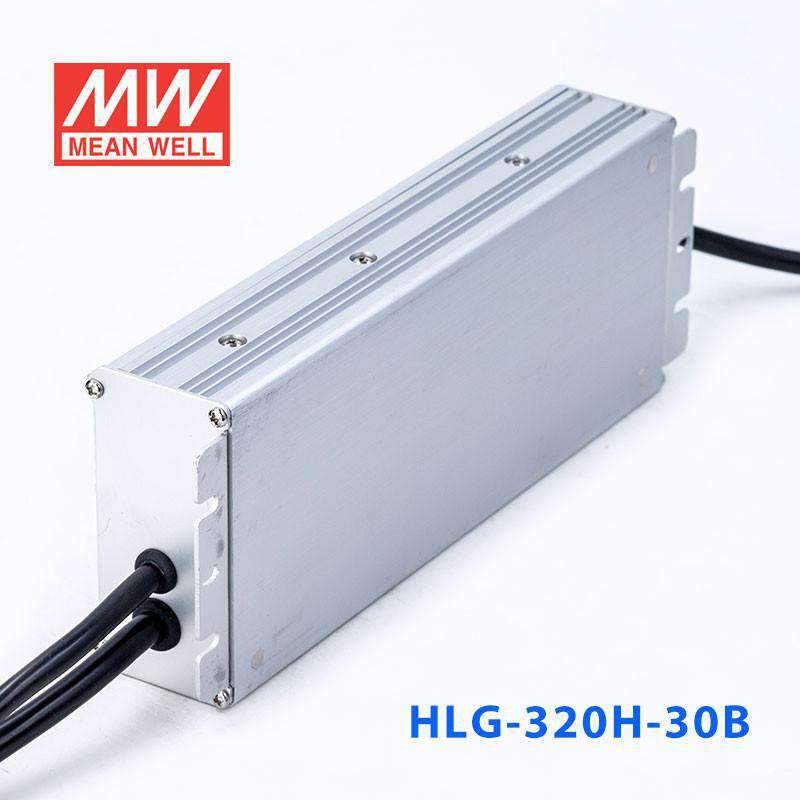

Mean Well HLG-320H-30B Power Supply | Universal AC Input | 320W 30V - Dimmable

The HLG-320H is a 320W Mean Well power converter (input range: 90~305VAC).

Key Features

✓ Input voltage range: 90~305VAC
✓ DC output voltage adjustable ±10%
✓ 3.75KVAC reinforced I/O isolation
✓ Cooling by free air convection
✓ Protections: Short circuit / Over voltage / Over temperature
✓ Active PFC — meets international energy efficiency regulations
✓ Safety approvals: SAFETY & EMC
✓ 3 years warranty

Frequently Asked Questions

Can I use the HLG-320H-30B for outdoor 30V LED strip installations that need dimming?

Yes. The HLG-320H-30B delivers 320W at 30V with dimming capability and carries an IP67 waterproof rating, making it suitable for fully exposed outdoor LED strip installations. It supports 1-10V, PWM, and resistance dimming signals for smooth brightness control.

Is the HLG-320H-30B a good choice for dimmable 30V LED facade or building lighting?

It is well suited for architectural facade lighting where dimming and weather resistance are both essential. The 320W capacity can drive extensive 30V LED arrays, and the IP67 rating allows mounting in locations exposed to rain, snow, or washdown without an additional enclosure.

Can I power a 30V dimmable LED sign with the HLG-320H-30B?

Yes, provided total power draw stays within 320W. The dimming function lets you reduce brightness for nighttime or ambient conditions, and the IP67 waterproof rating means the driver can be mounted inside or outside the sign cabinet. The wide 90-305VAC input handles different mains voltages globally.

Can the HLG-320H-30B be installed in a wet or underground location?

Yes. Its IP67 waterproof rating protects against dust ingress and temporary submersion up to 1 meter. The sealed aluminium housing and -40°C to +90°C operating temperature range make it suitable for underground vaults, tunnel lighting, or other damp and harsh environments.

How many meters of 30V LED strip can the HLG-320H-30B drive?

The HLG-320H-30B provides 320W at 30V. Divide 320W by your strip's rated wattage per meter. For example, a strip drawing 20W/m would support up to 16 meters (320W / 20W per meter = 16m). Always check your strip's rated power per meter and keep total load at or below 320W.

How does the HLG-320H-30B differ from the HLG-320H-30 and HLG-320H-30A?

All three deliver 320W at 30V and 10.7A. The base HLG-320H-30 has fixed output and IP67. The -30A adds adjustable output via potentiometer but drops to IP65. The -30B (this model) adds dimming capability while keeping the IP67 waterproof rating, but does not include adjustable output.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	IP Rating
Mean Well S-HLG-320H-24 Power Supply 320W 24V with AU/NZ plug 13.34A	320W	24V	13.34A	IP67	View
Mean Well HLG-320H-24A Power Supply 320W 24V - Adjustable 13.34A	320W	24V	13.34A	IP65	View
Mean Well S-HLG-320H-12 Power Supply 264W 12V with AU/NZ plug 22A	264W	12V	22A	IP67	View
Mean Well HLG-320H-48A Power Supply 320W 48V - Adjustable 6.7A	320W	48V	6.7A	IP65	View
Mean Well HLG-320H-48 Power Supply 320W 48V 6.7A	320W	48V	6.7A	IP67	View
Mean Well HLG-320H-24 Power Supply 320W 24V 13.34A	320W	24V	13.34A	IP67	View
Mean Well HLG-320H-12 Power Supply 264W 12V 22A	264W	12V	22A	IP67	View
Mean Well HLG-320H-24B Power Supply 320W 24V- Dimmable 13.34A	320W	24V	13.34A	IP67	View
Mean Well HLG-320H-15 Power Supply 285W 15V 19A	285W	15V	19A	IP67	View

Customer reviews

4.9 Reviews verified for authenticity

5 ★ (19)

4 ★ (2)

3 ★ (0)

2 ★ (0)

1 ★ (0)

Reviewed by 21 customers across the HLG series

Best outdoor driver we use
By Hemi K.|2026-06-22✓ Verified Buyer
Model: HLG-240H-24Quantity: 6
HLG-240H-24 is IP67 and just keeps going. Powering a car-park flood install, 8 months no issues.
Premium, worth it
By Bright Spark|2026-06-01✓ Verified Buyer
Model: HLG-185H-24Quantity: 4
Built-in PFC, runs cool, DALI option on the B model. Our go-to.
Flawless
By Olivia D.|2026-05-09✓ Verified Buyer
Model: HLG-320H-48Quantity: 2
Drove a 48V architectural run for months, dead silent.
