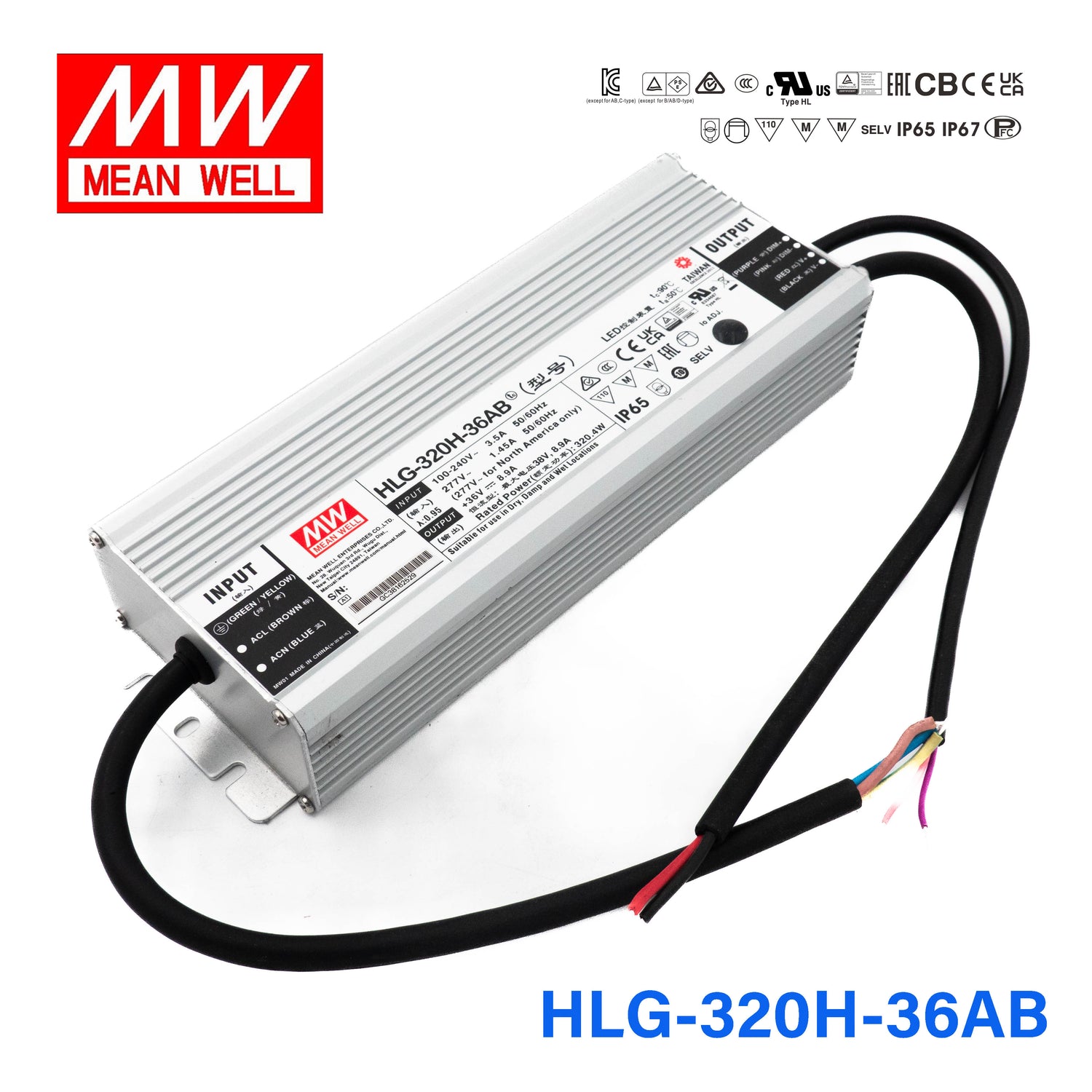

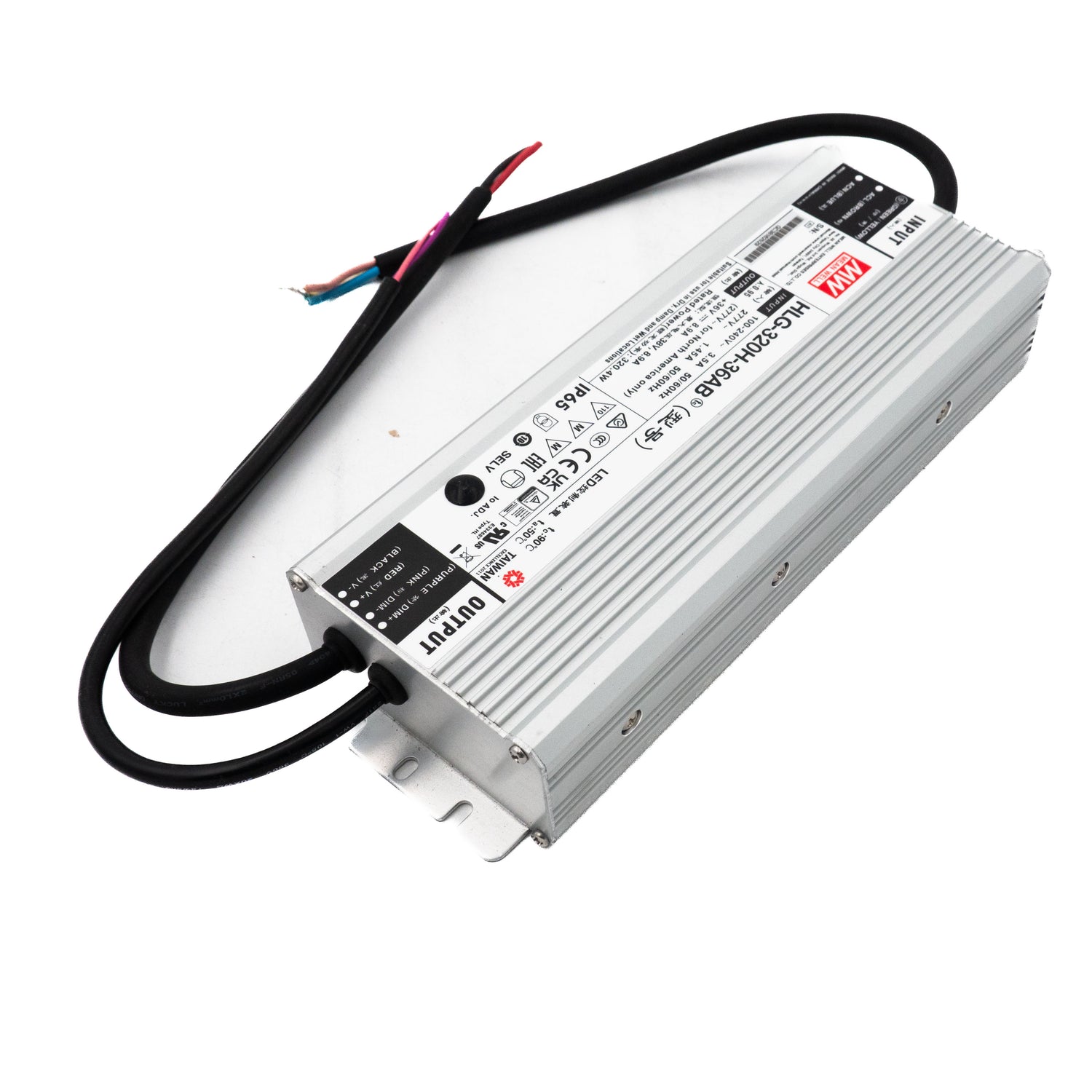

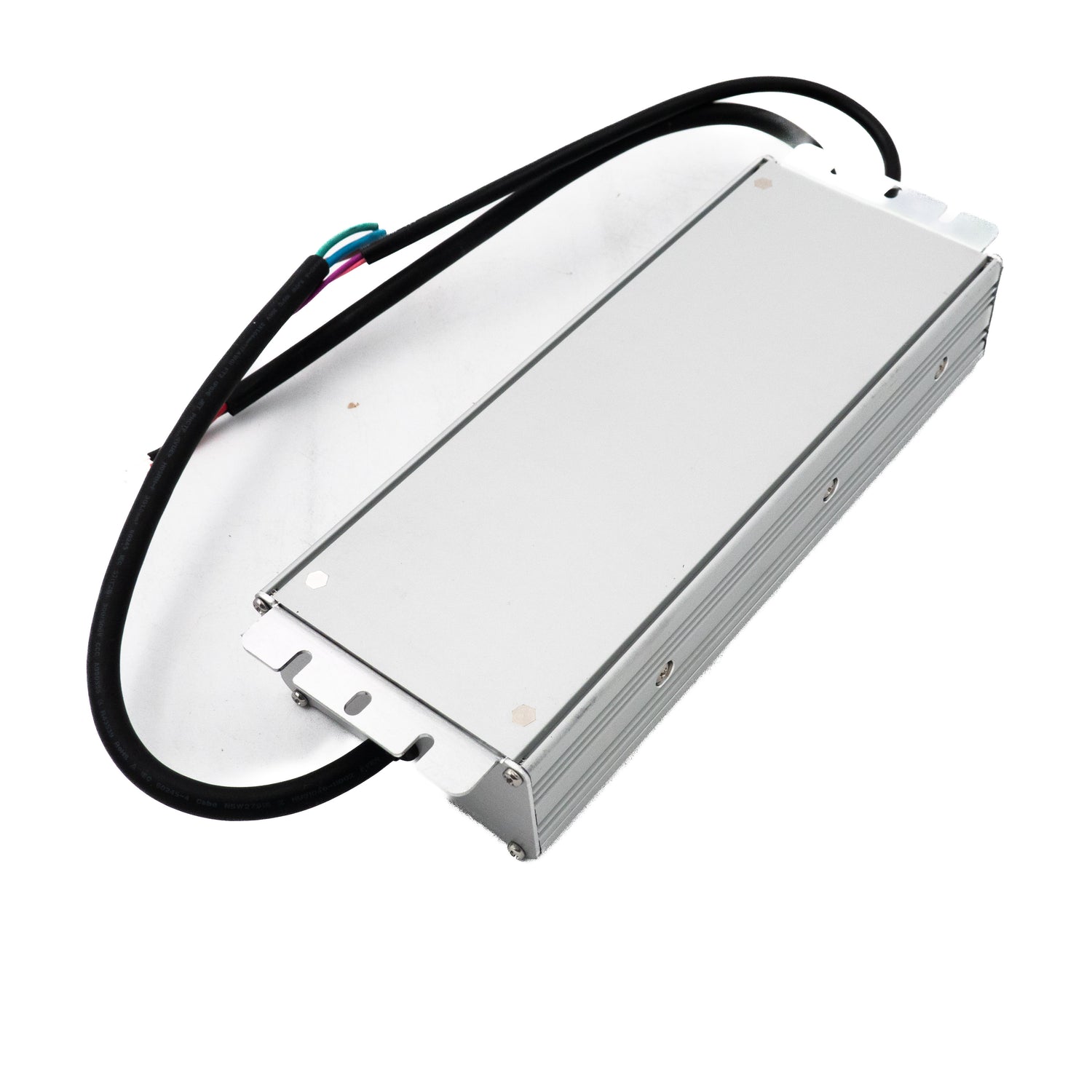

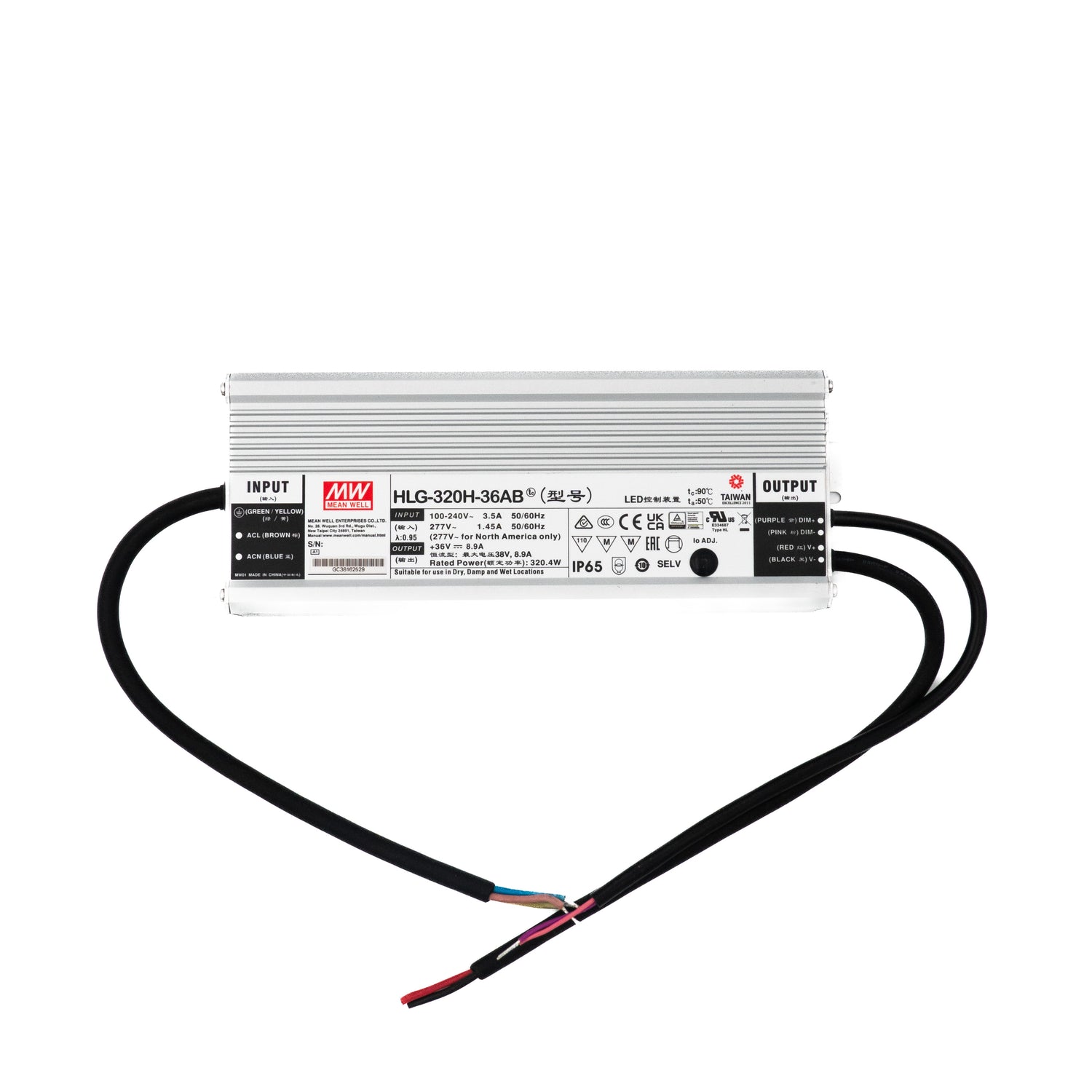

Mean Well HLG-320H-36AB Power Supply: Universal AC Input & High Efficiency

The HLG-320H is a 320W Mean Well AC-DC LED driver (input: 90~305VAC, output: 36V, operating temperature: -40~+90°C).

Key Features

✓ Input voltage: 90~305VAC
✓ Output voltage: 36V
✓ Rated output current: 8.9A
✓ Ingress protection: IP65
✓ Operating temperature: -40~+90°C
✓ Safety certifications: CB, CCC, CE, EAC, PSE, RCM, TÜV, UL
✓ 7 year warranty

Frequently Asked Questions

Can I use the HLG-320H-36AB with a 0-10V dimmer for 36V LED retail display lighting?

Yes. The HLG-320H-36AB supports dimming via 1-10V, PWM, and resistance signals, making it compatible with standard 0-10V dimmers. Combined with 320W at 36V and adjustable output, it is a strong choice for retail environments where scene-based brightness control is needed.

Is the HLG-320H-36AB suitable for dimmable 36V LED stage or studio lighting?

It works well for stage and studio lighting where smooth dimming and precise current control are critical. The built-in potentiometer sets the baseline output within the 18-36V range, while the dimming input allows real-time brightness adjustments during performances or shoots.

Can I power a dimmable 36V LED light panel array with the HLG-320H-36AB?

Yes, as long as the total load does not exceed 320W. The HLG-320H-36AB delivers 36V at up to 8.9A with both adjustable output and dimming, letting you fine-tune base brightness and provide dynamic dimming control for panel arrays in commercial or architectural settings.

How many meters of 36V LED strip can the HLG-320H-36AB drive?

Divide 320W by your strip's rated power per meter. A strip drawing 12W/m could run approximately 26.6 meters (320W / 12W per meter). A higher-power strip at 20W/m would allow about 16 meters. Always check your strip's rated power per meter and keep total load at or below 320W.

Can the HLG-320H-36AB be used in an outdoor covered patio or pergola?

Yes. Its IP65 rating protects against dust and low-pressure water jets, which is adequate for covered outdoor areas where the driver is shielded from direct rain and standing water. For fully exposed locations, consider the IP67-rated HLG-320H-36B instead.

What does the 'AB' suffix mean on the HLG-320H-36AB compared to the other 36V variants?

The 'AB' suffix indicates the model combines both adjustable output (potentiometer) and dimming capability. The base HLG-320H-36 has fixed output and IP67. The -36A has adjustable output only at IP65. The -36B has dimming only at IP67. The -36AB (this model) offers both features at IP65.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	IP Rating
Mean Well S-HLG-320H-24 Power Supply 320W 24V with AU/NZ plug 13.34A	320W	24V	13.34A	IP67	View
Mean Well HLG-320H-24A Power Supply 320W 24V - Adjustable 13.34A	320W	24V	13.34A	IP65	View
Mean Well S-HLG-320H-12 Power Supply 264W 12V with AU/NZ plug 22A	264W	12V	22A	IP67	View
Mean Well HLG-320H-48A Power Supply 320W 48V - Adjustable 6.7A	320W	48V	6.7A	IP65	View
Mean Well HLG-320H-48 Power Supply 320W 48V 6.7A	320W	48V	6.7A	IP67	View
Mean Well HLG-320H-24 Power Supply 320W 24V 13.34A	320W	24V	13.34A	IP67	View
Mean Well HLG-320H-12 Power Supply 264W 12V 22A	264W	12V	22A	IP67	View
Mean Well HLG-320H-24B Power Supply 320W 24V- Dimmable 13.34A	320W	24V	13.34A	IP67	View
