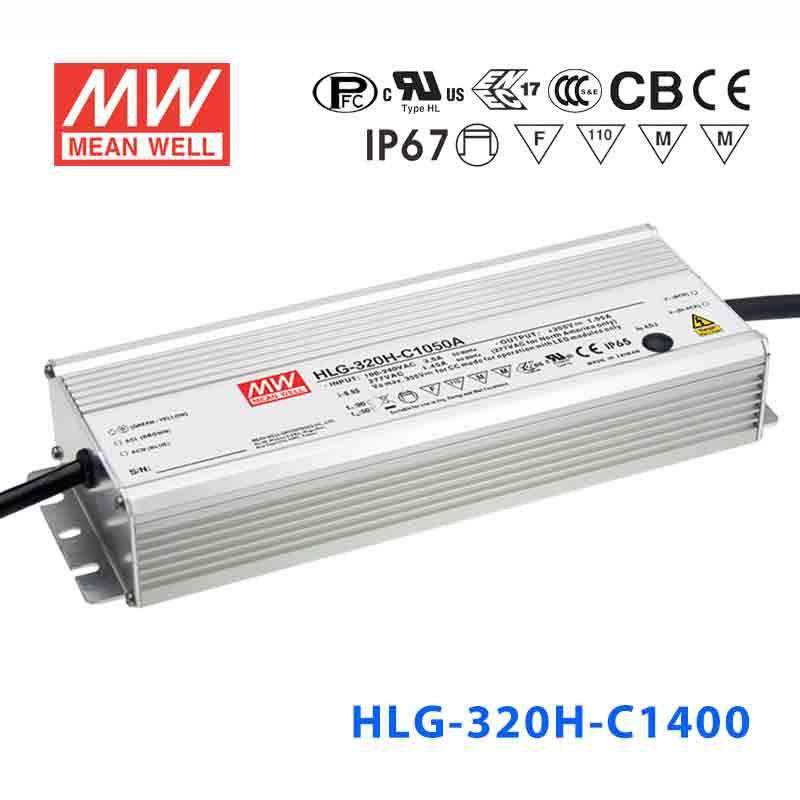

Mean Well HLG-320H-C1400A | 320.6W 1400mA Power Supply - Adjustable

Overview

HLG-320H-C1400A is the model of this series: rated current 1400mA, rated power 320.6W, typical efficiency 94%. Type A: Io adjustable through built-in potentiometer (IP65).

HLG-320H-C series is a 320W LED AC/DC LED driver featuring the constant current mode and high voltage output. HLG-320H-C operates from 90~305VAC and offers models with different rated current ranging between 700mA and 3500mA. Thanks to the high efficiency up to 94%, with the fanless design, the entire series is able to operate for -40℃ ~ +85℃ case temperature under free air convection. The design of metal housing and IP65 ingress protection level allows this series to fit both indoor and outdoor applications. HLG-320H-C is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

Features

Constant Current mode output
Metal housing with ClassⅠdesign
Built-in active PFC function
IP65 design for indoor or outdoor installations
Function options: output adjustable via potentiometer
Type "HL" for use in ClassⅠ, Division 2 hazardous (Classified) location.
Typical lifetime>62000 hours
7 years warranty

Specifications

HLG-320H-C1400ASpecifications from the official datasheet (2026-02-04 edition)

OUTPUT

RATED CURRENT: 1400mA
RATED POWER: 320.6W
CONSTANT CURRENT REGION^Note.2: 114 ~ 229V
OPEN CIRCUIT VOLTAGE (max.): 234V
CURRENT ADJ. RANGE: Adjustable for A/AB-Type only (via built-in potentiometer) 700 ~ 1400mA
CURRENT RIPPLE: 5.0% max. @rated current
CURRENT TOLERANCE: ±5%
SET UP TIME^Note.4: 1000ms/115VAC, or 500ms/230VAC

INPUT

VOLTAGE RANGE^Note.3: 90 ~ 305VAC 127~417VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF≧0.98/115VAC, PF≧0.95/230VAC, PF≧0.92/277VAC @full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20% (@ load≧50% /115VAC, 230VAC; @ load≧70%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION (THD)” section)
EFFICIENCY (Typ.): 94%
AC CURRENT (Typ.): 3.5A / 115VAC 1.65A / 230VAC 1.45A / 277VAC
INRUSH CURRENT(Typ.): COLD START 70A(twidth=1200μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 2 units (circuit breaker of type B) / 3 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.75mA / 277VAC

PROTECTION

SHORT CIRCUIT: Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE: 235 ~ 252V Shut down and latch off o/p voltage, re-power on to recover
OVER TEMPERATURE: Shut down and latch off o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.: Tcase=-40 ~ +85℃(Please refer to "OUTPUT LOAD vs TEMPERATURE" section)
MAX. CASE TEMP.: Tcase=+85℃
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL8750(type”HL”), CSA C22.2 No. 250.13-12; ENEC BS EN/EN61347-1, BS EN/EN61347-2-13, BS EN/EN62384 independent; GB/T19510.1,GB/T19510.213,EAC TP TC 004, IP65 approved
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (@ load≧50%) ; BS EN/EN61000-3-3,GB/T 17743 , GB17625.1,EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV), EAC TP TC 020

OTHERS

MTBF: 1847.6K hrs min. Telcordia SR-332 (Bellcore) ; 182.3K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 252*90*43.8mm (L*W*H)
PACKING: 1.88Kg; 8pcs/16Kg/0.92CUFT

Certifications & ratings

Type: HL

MODEL ENCODING

A (this model): Io adjustable through built-in potentiometer.; IP65
B: 3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance); IP67
DA: DALI control technology.; IP67
AB: Io adjustable through built-in potentiometer & 3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance); IP65
DX: Built-in Smart timer dimming function by user request.; IP67

Test conditions and notes11

1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
2. Please refer to "DRIVING METHODS OF LED MODULE".
3. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
4. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
5. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
6. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED driver can only be used behind a switch without permanently connected to the mains.
7. This series meets the typical life expectancy of >62,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 75℃ or less.
8. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
9. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
10. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
11. For A/AB type need to consider build in using to comply with Type HL application.

Technical drawings

HLG-320H-C1400A BLOCK DIAGRAM — BLOCK DIAGRAM

HLG-320H-C1400A 320W Constant Current Mode LED Driver — 320W Constant Current Mode LED Driver

HLG-320H-C1400A OUTPUT LOAD vs TEMPERATURE(Note.8) — OUTPUT LOAD vs TEMPERATURE(Note.8)

HLG-320H-C1400A STATIC CHARACTERISTIC — STATIC CHARACTERISTIC

HLG-320H-C1400A TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

HLG-320H-C1400A LIFETIME(Kh) — LIFETIME(Kh)

HLG-320H-C1400A MECHANICAL SPECIFICATION ※ A-Type — MECHANICAL SPECIFICATION ※ A-Type

Typical applications

Downloads

Datasheet1

HLG-320H-C1400A datasheetHLG-320H-C-SPEC.PDF · 2026-02-04 edition PDF Download

Certificates4

UL Certificate(HLG-320H-C)(EN) PDF Download

CB Certificate(HLG-320H-C)(EN) PDF Download

EMC Certificate(HLG-320H-C)(EN) PDF Download

ENEC Certificate(HLG-320H-C)(EN) PDF Download

Test reports1

Test Report(HLG-320H-C1400)(EN) PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

Can I use the HLG-320H-C1400A to drive high-power LED floodlights for sports facilities?

Yes. The HLG-320H-C1400A delivers 1400mA constant current at up to 320.6W with a CC voltage range of 114-229V. This higher current rating makes it suitable for high-power floodlight fixtures in stadiums, sports courts, or large outdoor event spaces that use series LED strings within that voltage range.

Is the HLG-320H-C1400A a good choice for driving LED grow lights that need 1400mA?

Yes, provided your grow light panel is designed for 1400mA constant-current drive with a total forward voltage between 114V and 229V. The 320.6W capacity handles demanding horticultural LED arrays. The built-in potentiometer lets you trim the output to fine-tune light intensity for different crop stages.

Can I adjust the output current of the HLG-320H-C1400A?

Yes. The A suffix indicates a built-in potentiometer for output adjustment. This allows you to trim the constant-current drive level between 700mA and 1400mA to match your specific LED load without needing external control equipment. The CC voltage range operates between 114V and 229V at up to 1400mA.

Is the HLG-320H-C1400A suitable for large-format LED panel lighting in commercial buildings?

Yes. At 320.6W and 1400mA, this driver handles high-power commercial LED panels with series strings in the 114-229V range. The adjustable output lets installers match the driver precisely to the panel's optimal drive point. The IP65/IP67-approved enclosure and wide 90-305VAC input suit most commercial building environments.

What LED string voltage should I target when using the HLG-320H-C1400A?

Your series LED string's total forward voltage must fall within 114-229V. The driver regulates at 1400mA constant current across this range. The number of LEDs in series depends on each LED's forward voltage — add them up and confirm the total is within the 114-229V window.

Can I mount the HLG-320H-C1400A in a dusty industrial environment?

Yes. The HLG-320H-C series is IP65 or IP67 approved, so the enclosure is dust-tight and protected against water. This makes it suitable for factories, workshops, or equipment rooms where airborne dust and occasional moisture are present. Keep the case at or below its +85°C maximum case temperature (Tcase) in warm environments.
