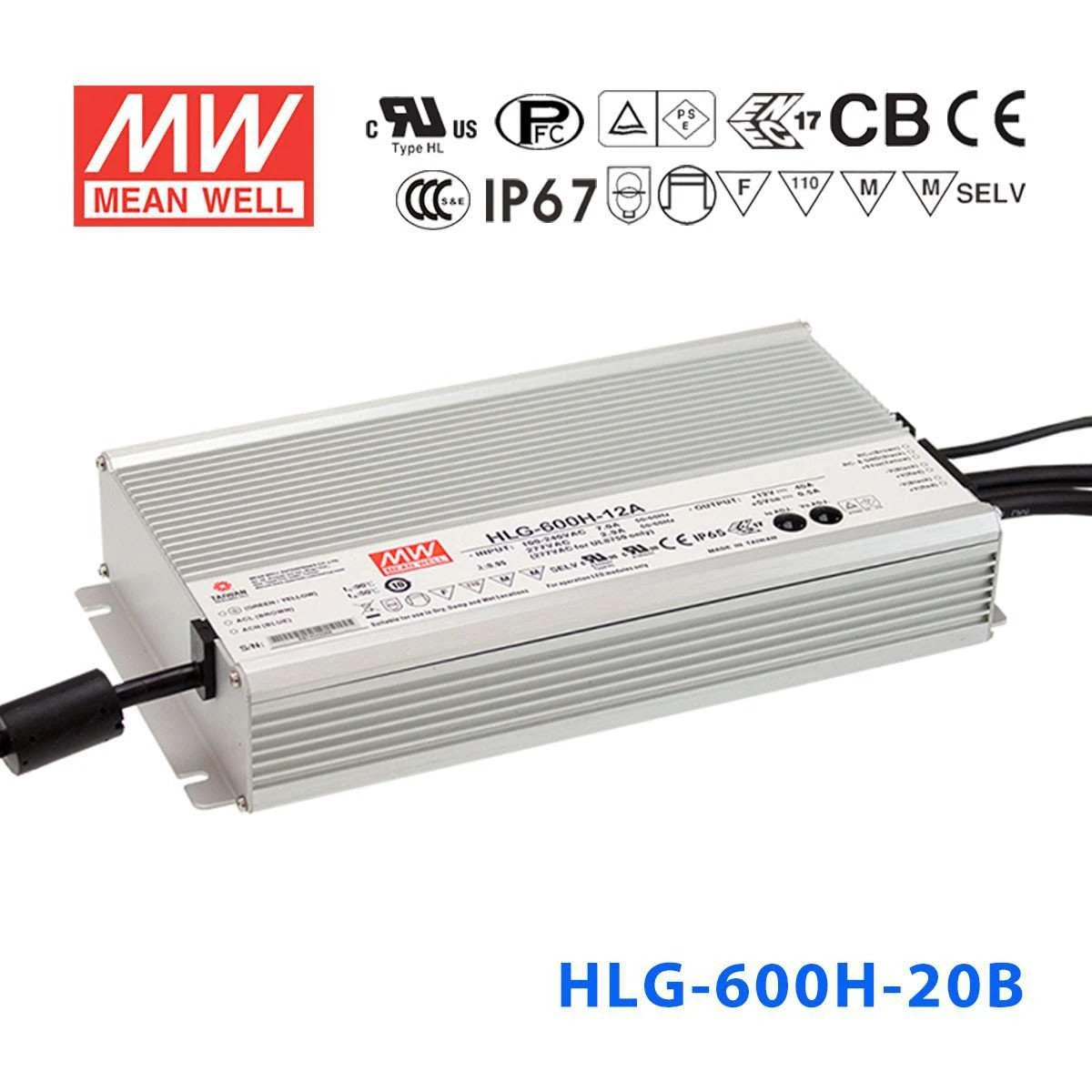

Mean Well HLG-600H-20B LED Driver - 560W 20V Dimmable | Auckland Distributor

The HLG-600H is a 600W Mean Well power converter (input range: 90~305VAC).

Key Features

✓ Input voltage range: 90~305VAC
✓ DC output voltage adjustable ±10%
✓ 3.75KVAC reinforced I/O isolation
✓ Cooling by free air convection
✓ Protections: Short circuit / Over voltage / Over temperature
✓ Active PFC — meets international energy efficiency regulations
✓ Remote ON/OFF control
✓ 3 years warranty

Frequently Asked Questions

Can I use the HLG-600H-20B to power 20V LED strip lighting in a fully exposed outdoor setting?

Yes. The HLG-600H-20B outputs 20V at up to 28A (560W) and carries an IP67 waterproof rating, meaning it can withstand temporary immersion and direct rain. Its aluminium casing and -40°C to +90°C operating range make it reliable for year-round outdoor installations without additional enclosures.

Is the HLG-600H-20B suitable for powering dimmable 20V LED flood lights?

Yes. The HLG-600H-20B includes a 1-10V/PWM dimming input, allowing you to pair with a compatible dimmer or automation controller to adjust flood light brightness. At 560W it can drive a substantial number of 20V flood fixtures, and the IP67 rating suits exposed mounting near the lights themselves.

Can the HLG-600H-20B power a large-scale 20V LED channel-letter sign?

Yes, as long as the total module draw does not exceed 560W. The constant-current voltage range of 10-20V accommodates LED modules that operate at slightly different voltages. The IP67 waterproof rating is well-suited for exterior-mounted signage exposed to weather.

How many meters of 20V LED strip can the HLG-600H-20B drive?

It depends on the strip's power consumption per meter. The HLG-600H-20B provides up to 560W at 20V. For a strip rated at 10W/m, you could run 56 meters (560W / 10W per meter = 56m). For a 20W/m strip, up to 28 meters. Always check your strip's rated power per meter and stay within 560W total.

Can the HLG-600H-20B be installed in a below-grade vault or wet junction box?

Yes. IP67 means the enclosure can withstand temporary immersion in water up to 1 meter deep, so below-grade vaults and wet junction boxes are acceptable. The -40°C to +90°C operating temperature range also covers extreme underground conditions.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	IP Rating
Mean Well HLG-600H-24B Power Supply 600W 24V- Dimmable 25A	600W	24V	25A	IP67	View
Mean Well HLG-600H-24A Power Supply 600W 24V - Adjustable 25A	600W	24V	25A	IP65	View
Mean Well HLG-600H-24 Power Supply 600W 24V 25A	600W	24V	25A	IP67	View
Mean Well HLG-600H-12B Power Supply 480W 12V - Dimmable 40A	480W	12V	40A	IP67	View

Customer reviews

4.9 Reviews verified for authenticity

5 ★ (19)

4 ★ (2)

3 ★ (0)

2 ★ (0)

1 ★ (0)

Reviewed by 21 customers across the HLG series

Best outdoor driver we use
By Hemi K.|2026-06-22✓ Verified Buyer
Model: HLG-240H-24Quantity: 6
HLG-240H-24 is IP67 and just keeps going. Powering a car-park flood install, 8 months no issues.
Premium, worth it
By Bright Spark|2026-06-01✓ Verified Buyer
Model: HLG-185H-24Quantity: 4
Built-in PFC, runs cool, DALI option on the B model. Our go-to.
Flawless
By Olivia D.|2026-05-09✓ Verified Buyer
Model: HLG-320H-48Quantity: 2
Drove a 48V architectural run for months, dead silent.
