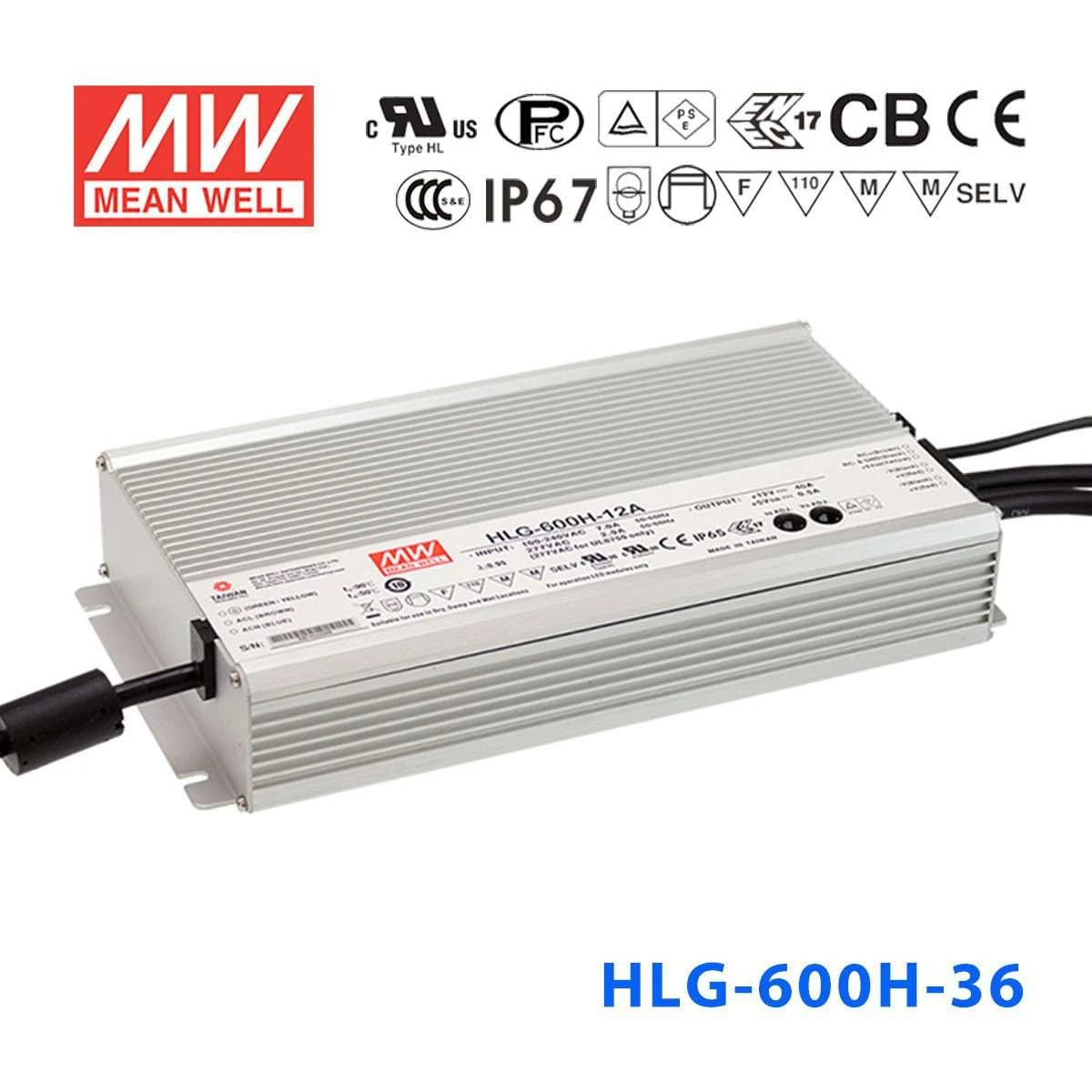

Mean Well HLG-600H-36 600W 36V LED Driver | HLG Series - Auckland, NZ Distributor

The HLG-600H is a 600W Mean Well power converter (input range: 90~305VAC).

Key Features

✓ Input voltage range: 90~305VAC
✓ DC output voltage adjustable ±10%
✓ 3.75KVAC reinforced I/O isolation
✓ Cooling by free air convection
✓ Protections: Short circuit / Over voltage / Over temperature
✓ Active PFC — meets international energy efficiency regulations
✓ Remote ON/OFF control
✓ 3 years warranty

Frequently Asked Questions

Can I use the HLG-600H-36 for large-scale 36V LED strip installations?

Yes. The HLG-600H-36 delivers 600W at 36V with up to 16.7A of output, which is enough to drive long runs of high-power 36V LED strips for commercial, retail, or architectural lighting. Its IP67 waterproof rating also allows outdoor placement without an additional enclosure.

Is the HLG-600H-36 suitable for powering 36V LED high-bay or warehouse lighting?

Yes. With 600W at 36V, it can drive multiple 36V LED high-bay fixtures wired in parallel, provided their combined load stays within 600W. The wide 90-305VAC input accommodates the varying mains voltages often found in industrial and warehouse facilities.

Can I power 36V LED grow lights with the HLG-600H-36?

Yes. The HLG-600H-36 provides 600W at 36V in constant-current mode with a CC voltage range of 18-36V, making it compatible with many 36V horticulture LED panels. Its high efficiency and aluminium casing help manage heat, which is important in enclosed growing environments.

How many meters of 36V LED strip can the HLG-600H-36 power?

Divide 600W by your strip's wattage per meter. For example, a 36V strip rated at 12W/m would allow up to 50 meters (600W / 12W per meter = 50m). Check your strip's rated power per meter and keep the total load at or below 600W.

Can the HLG-600H-36 be mounted outdoors in direct weather exposure?

Yes. Its IP67 waterproof rating protects against dust ingress and temporary water immersion up to 1 meter. Combined with a -40°C to +90°C operating temperature range, it is designed for fully exposed outdoor installations including rooftops, building exteriors, and landscape applications.

What are the differences between the HLG-600H-36, 36A, 36AB, and 36B variants?

All four deliver 600W at 36V / 16.7A. The base HLG-600H-36 has fixed output and IP67 waterproof protection. The -36A adds a built-in potentiometer for output voltage and current adjustment (IP65). The -36AB adds both adjustment and 1-10V/PWM dimming (IP65). The -36B provides dimming input only while retaining IP67 waterproof rating.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	IP Rating
Mean Well HLG-600H-24B Power Supply 600W 24V- Dimmable 25A	600W	24V	25A	IP67	View
Mean Well HLG-600H-24A Power Supply 600W 24V - Adjustable 25A	600W	24V	25A	IP65	View
Mean Well HLG-600H-24 Power Supply 600W 24V 25A	600W	24V	25A	IP67	View
Mean Well HLG-600H-12B Power Supply 480W 12V - Dimmable 40A	480W	12V	40A	IP67	View
